Accuracy 2A 3A Go No Go Thread Ring Gauge ANSI B1.2-83 Standard

High Precision Inch Thread Ring Gauge DIN Standard

Quick Detail:

1. Inch thread ring gauge.

2. Accuracy: 2A,3A.

3. GO and NO GO types.

4. Fixed and adjustable type for optional.

5. Conform standard: ANSI B1.2-83.

6. Wear resistance and corrosion resistance, stable structure, easy to use.

7. Supplied in fitted case.

Description:

KM inch thread ring gauges are manufactured in two designs, fixed and adjustable.

Fixed thread ring gauges are fixed in their exact size, they are very simple and easy to use and there is no need to adjust

these ring gauges after used. Adjustable thread ring gauges offered in AGD(American gage design), is able to be adjusted

as they wore down, saving considerable life cycle cost to the owner.

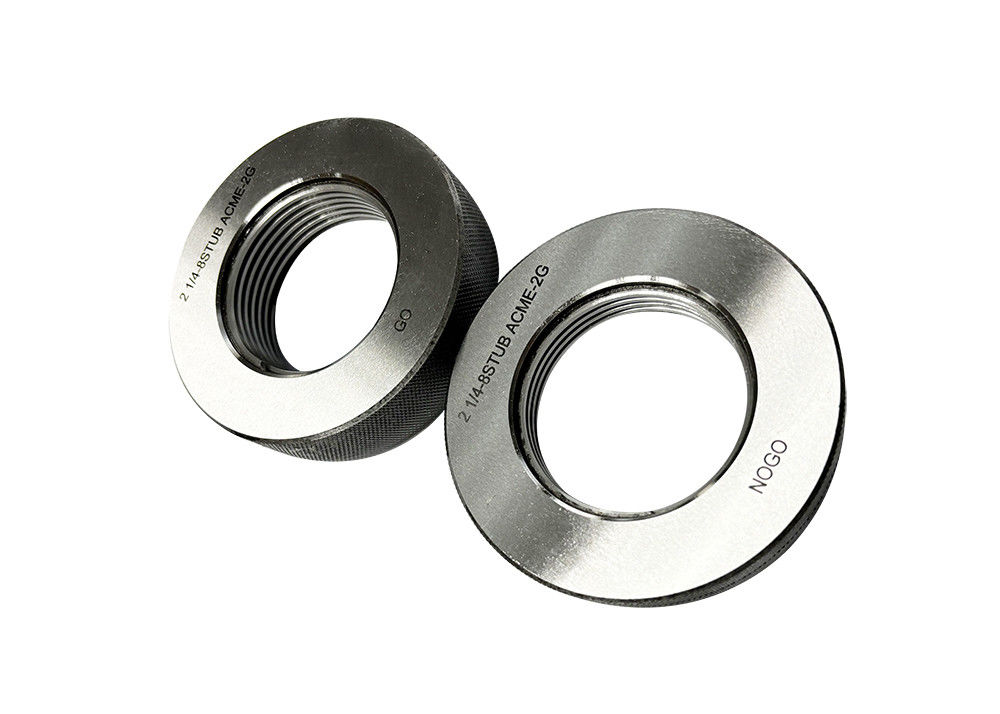

Inch thread ring gauges comes in GO and NOGO types, the GO ring gauge is machined to a minus tolerance making it

so the member is at the maximum material limit and used for verification of an externally threaded component.

The NOGO thread ring gauge is machined to a plus tolerance making it so the member is at the minimum material limit

and used for verification of an externally threaded component.

We introduced internal first grade thread machining center and measuring equipment, in order to provide high precision

thread ring gauges to customers worldwide.

Specification:

UNC

UNF

UNEF

UN

Precautions:

1. It is not allowed to touch the working surface of the plug ring gauge with your hands, so as not to cause rust.

2. During use, the plug ring gauge should be placed in an appropriate place, such as on the table of the tool cabinet

    or on the wooden backing plate of the immovable part of the machine, and should not be placed on the tool holder of the machine

    or the guide rail of the machine, so as not to cause damage.

3. Inspect regularly to see if there is any damage, rust or deformation. If you find that the plug ring gauge begins to rust,

    you should put it in gasoline and soak it for a period of time, then take it out and wipe it carefully, and apply anti-rust oil.

4. Do not save the working surfaces of the two plug ring gauges together, otherwise the two working surfaces will be glued

    to each other, and the gauge will be unnecessarily damaged when separated by external force.

5. After used the threaded plug ring gauge, it should be wiped clean and stored under dry condition.

Applications:

The threaded ring gauge is mainly used to measure the diameter and pitch of the thread, which has the advantages of high precision,

wide measurement range and simple operation, and is widely used in machinery manufacturing, aerospace, automobile

manufacturing and other fields.
