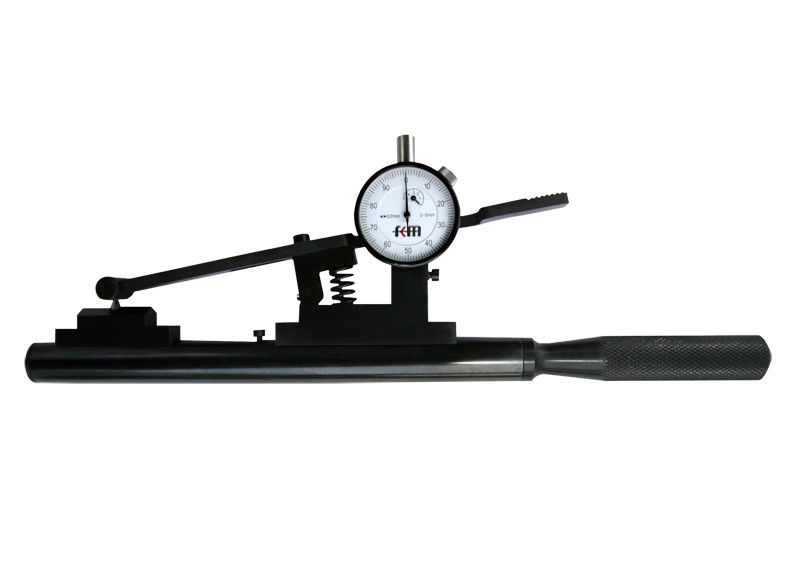

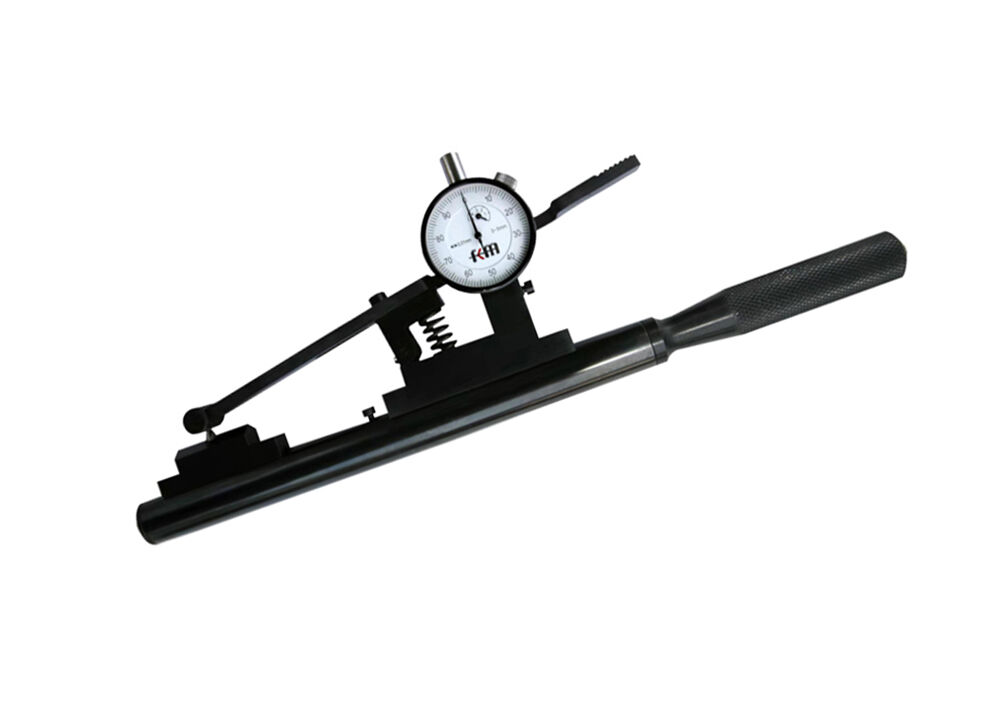

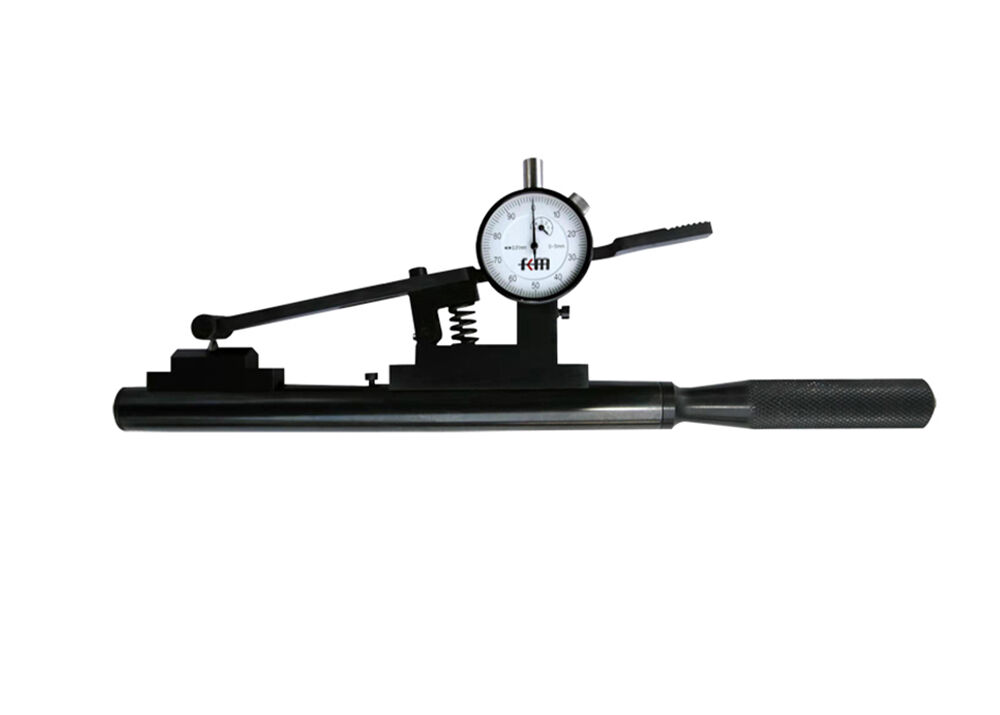

0-4mm Petroleum Oil Pipe Internal Thread Height Lead Gauge Measuring Instrument
-
Highlight
Internal Thread Height Lead Gauge
,Petroleum Oil Pipe thread height gauge
,0-4mm thread height gauge
-
WarrantyOne Year
-
Measurement ObjectInter Thread Taper
-
Range0-4mm
-
Graduation0.01mm
-
Range Ability0-4mm
-
ApplicationOil Pipe Thread Measurement
-
PackageAluminum Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-IH
-
Packaging DetailsAluminum Case 40*25*8cm/Piece 3.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
0-4mm Petroleum Oil Pipe Internal Thread Height Lead Gauge Measuring Instrument
- Petroleum pipe measuring instruments
- Used for oil industry to measure the inner thread height
- Measuring heads are optional

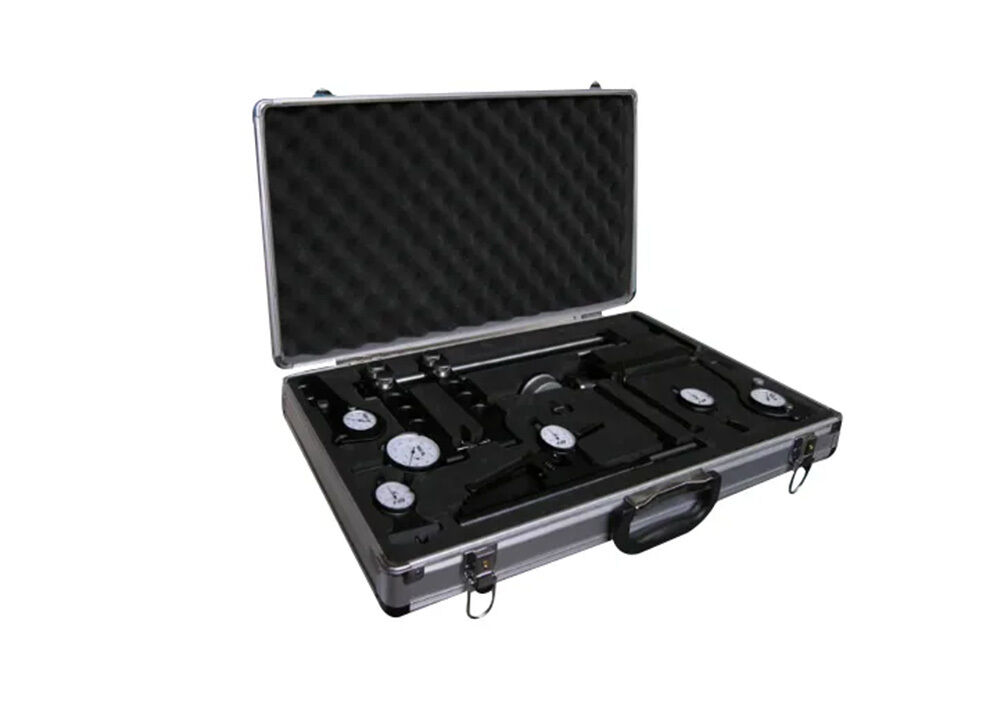

- Supplied in fitted case
Our oil pipe thread instruments are special precision measuring tools for the oil industry, designed to measure thread taper, pitch, and height parameters for various oil pipes including casing pipe, oil pipe, pipeline, and drill pipe.
This internal thread height measuring instrument is specifically designed for measuring internal thread heights smaller than 5 1/2in (139.7mm). Different measuring heads are available as options - please specify your thread type requirements when ordering for optimal configuration.
All instruments are manufactured and calibrated to exacting standards including ISO9001 management standards, meeting national standards JJF1063-2000 and JJG42-96 as well as API STD 5B specifications.
| Order No. | Measuring Range | Graduation | Usage |
|---|---|---|---|
| KM-IH | 0-4mm | 0.01mm | Measure the inner thread height with 5 1/2in(139.7mm) |
- Place measuring tip in standard template U-shaped slot matching thread specifications, adjust indicator to zero, and tighten bezel locking screw
- Verify measurement consistency between V-shaped and U-shaped grooves (tolerance ≤0.013mm)

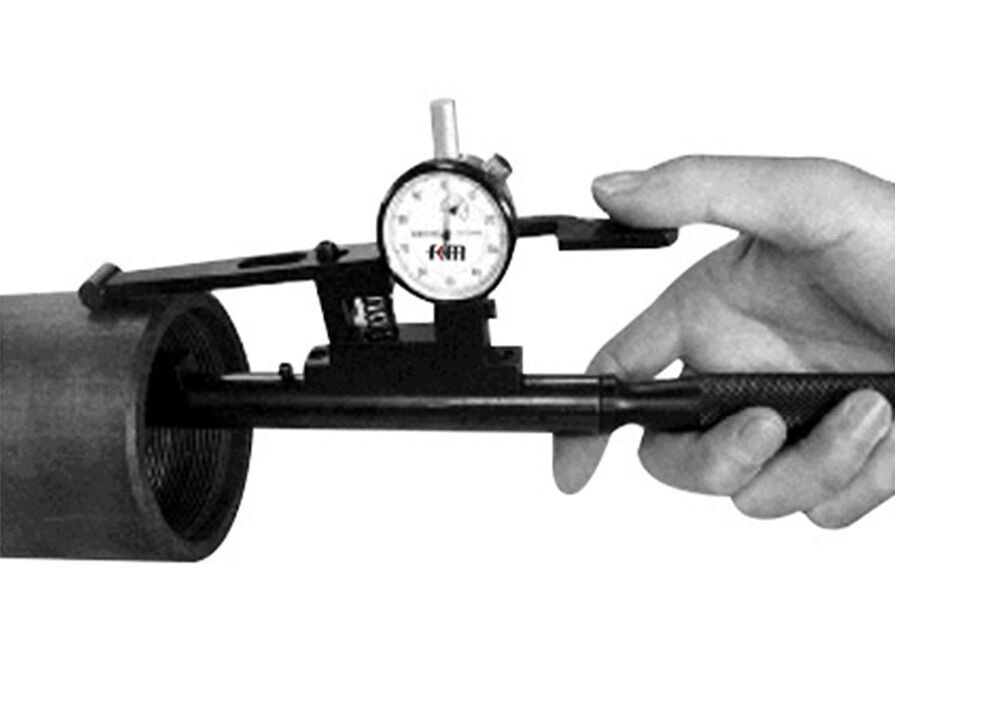

- For measurement, position instrument in thread groove with anvil adjacent to thread top, then perform small arc swings perpendicular to cone to determine height error
Widely used in the oil industry for measuring geometric accuracy of pipe threads including casing pipe, oil pipe, pipeline, and drill pipe.
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
We support FOB, CFR, CIF, and EXW trade terms.
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Yes, OEM services are available.
All products come with one year warranty. Defective components will be replaced promptly. Our strict calibration and inspection processes ensure reliable product quality.
Our products are sold all over the world, you can rest assured.
