25-50mm Mechanical Outside Micrometer Precision Measuring Tools
-
Highlight
Mechanical Outside Micrometer
,25-50mm Outside Micrometer
,Precision Measuring Tools Outside Micrometer
-
WarrantyOne Year
-
Measurement ObjectOutside Diameter
-
MeasurementMetric
-
Range25-50mm
-
Graduation0.01mm
-
Precision0.004mm
-
FeatureRatchet Stop
-
Measuring FacesCarbide
-
ProcessingFine Lapping
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2106-50
-
Packaging DetailsABS Box 19*7*4.5cm/Piece 0.55kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

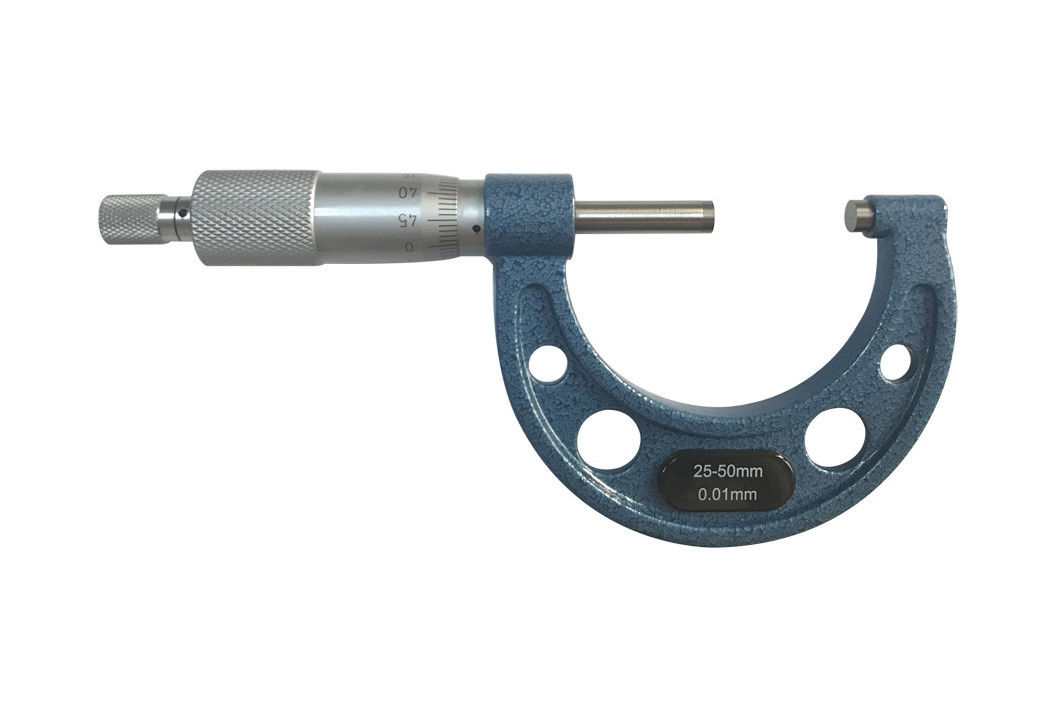

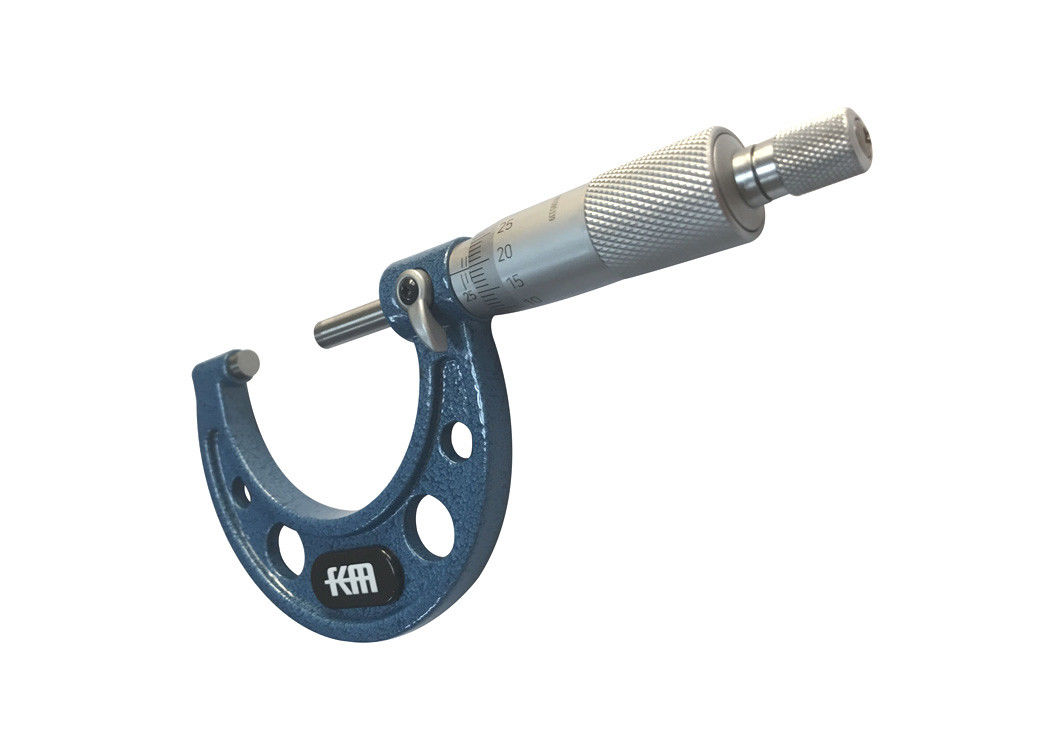

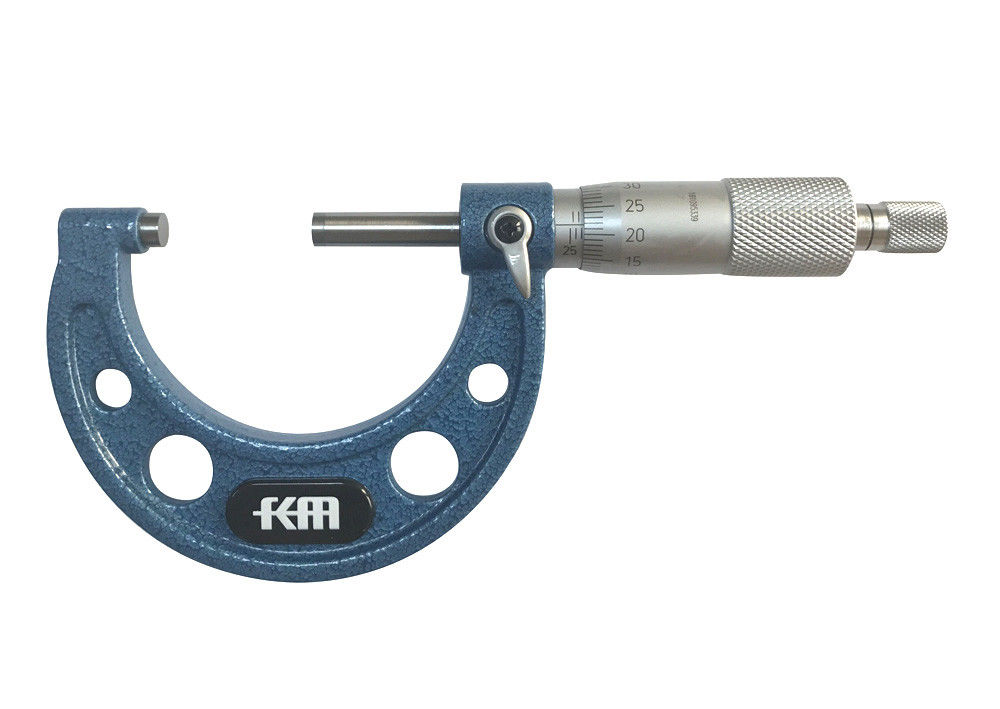

25-50mm Mechanical Outside Micrometer Precision Measuring Tools
25-50mm Mechanical Outside Micrometer Precision Measuring Tools
Key Features:
- Painted and fine cast frame for durability.
- Laser-etched scale for clear, easy reading.
- Carbide measuring faces for accuracy and wear resistance.
- Ratchet thimble for precise force application.

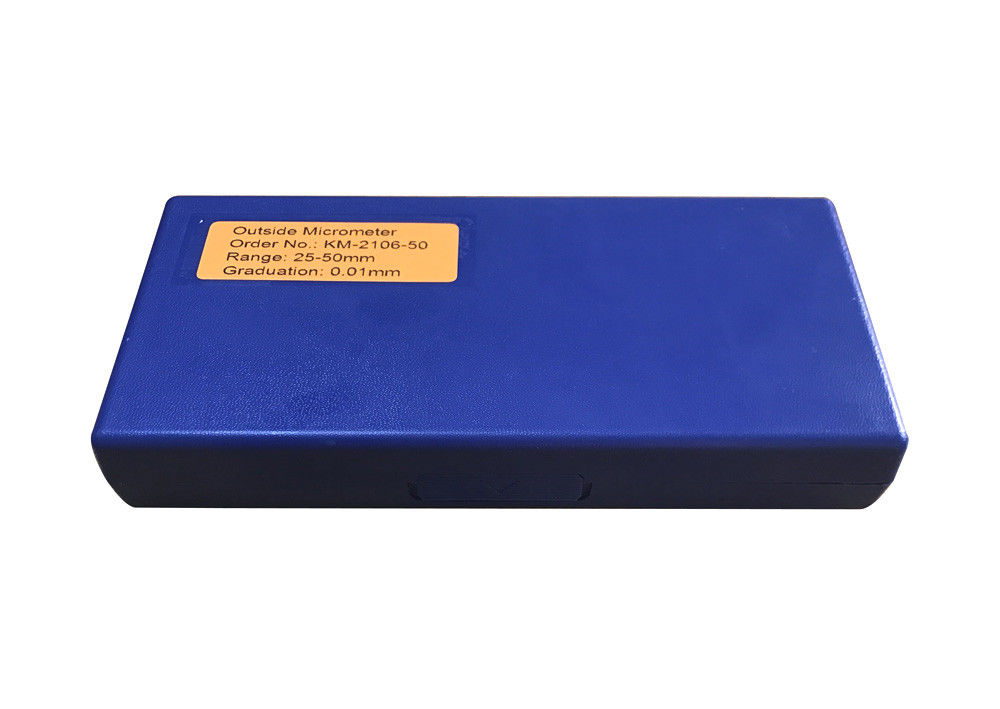

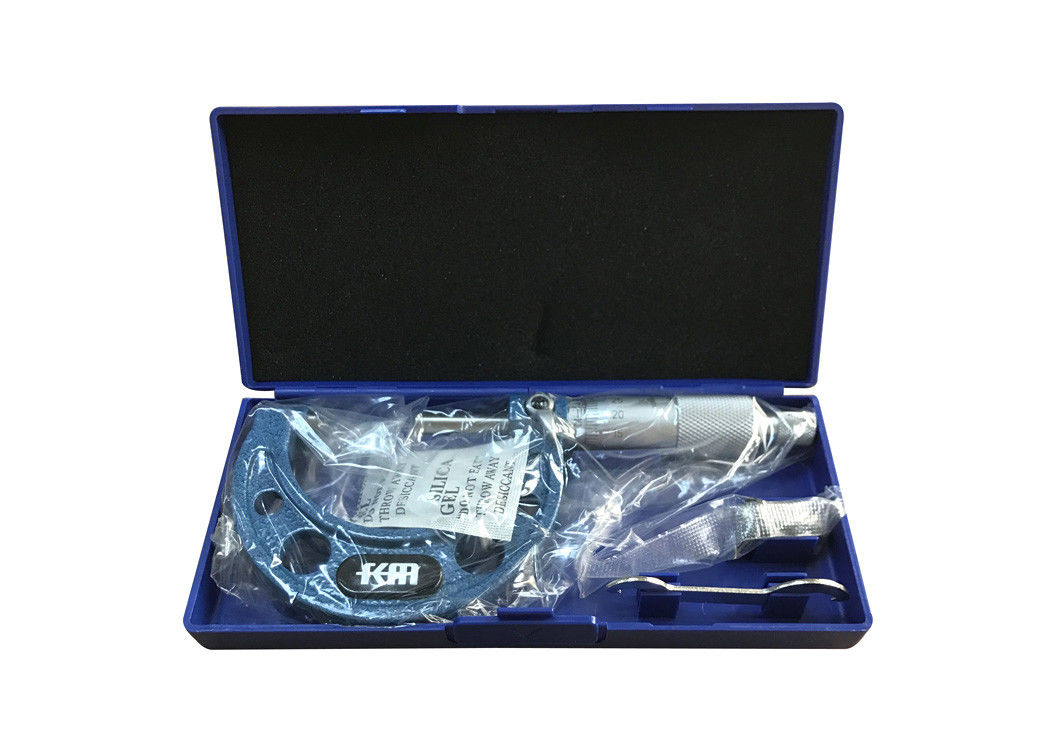

- Includes fitted protective case.
Product Description
This standard mechanical outside micrometer (also known as micrometer screw gauge or external micrometer) is engineered for high-accuracy measurement of small distances in engineering and physics applications. Features include a hardened, ground spindle and carbide anvil for durability and precision, plus a ratchet thimble for controlled measurement pressure.
Available in full measuring ranges from 0-25mm to 275-300mm with 0.01mm graduation. All models above 25mm include a setting standard for calibration. Each micrometer comes with a fitted protective case and adjustment spanner. Sets available for multiple measurement requirements.
Technical Specifications
| Order No. | Measuring Range | Graduation | Accuracy |
|---|---|---|---|
| KM-2106-25 | 0-25mm | 0.01mm | ±0.004mm |
| KM-2106-50 | 25-50mm | 0.01mm | ±0.004mm |
| KM-2106-75 | 50-75mm | 0.01mm | ±0.005mm |
| KM-2106-100 | 75-100mm | 0.01mm | ±0.005mm |
| KM-2106-125 | 100-125mm | 0.01mm | ±0.006mm |
| KM-2106-150 | 125-150mm | 0.01mm | ±0.006mm |
| KM-2106-175 | 150-175mm | 0.01mm | ±0.007mm |
| KM-2106-200 | 175-200mm | 0.01mm | ±0.007mm |
| KM-2106-225 | 200-225mm | 0.01mm | ±0.008mm |
| KM-2106-250 | 225-250mm | 0.01mm | ±0.008mm |
| KM-2106-275 | 250-275mm | 0.01mm | ±0.009mm |
| KM-2106-300 | 275-300mm | 0.01mm | ±0.009mm |
Usage Guidelines
- Clean measuring faces with soft cloth/paper before use and carefully bring surfaces together using ratchet stop.
- After measurement, separate anvils and tighten fixing screws to prevent rust from prolonged contact.
- Store in stable environments - avoid humid areas with temperature fluctuations.
- Never measure moving/hot objects or use as striking tool.
Industrial Applications
Essential for precision measurement in engineering, machining, physics, and manufacturing. Specifically used for:
- Quality control measurement of parts and components in manufacturing.
- Outer diameter, dimensional, and roundness measurement in machining.
- Automotive maintenance applications (e.g., tire diameter measurement).
Company Information
Manufacturer:
Deko Corporation - Specialists in KM brand precision measuring tools.
Product Range:
Dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, protractors, gauge blocks, levels.
Trade Terms:
FOB, CFR, CIF, EXW
Payment Methods:
T/T, L/C, D/A, D/P, PayPal, Western Union.
Customization:
OEM services available.
Warranty:
1-year warranty with defective part replacement.
