IP65 Digital Single Point Micrometer for Measuring Height of Crimp Contacts

IP65 Digital Single Point Micrometer for Measuring Height of Crimp Contacts

Quick Detail:

1. Protection level: IP65(oil, water and dust proof).

2. Pointed spindle and anvil for measuring drills, grooves and hard-to-reach dimensions.

3. Flat or blade anvil for single point micrometers for measuring the height of crimp contacts.

4. OFF/ON, SET, ABS/INC, UNIT (in/mm conversion) function keys.

5. Carbide measuring faces provide accuracy and wear resistance.

6. Supplied in fitted case.


Description:

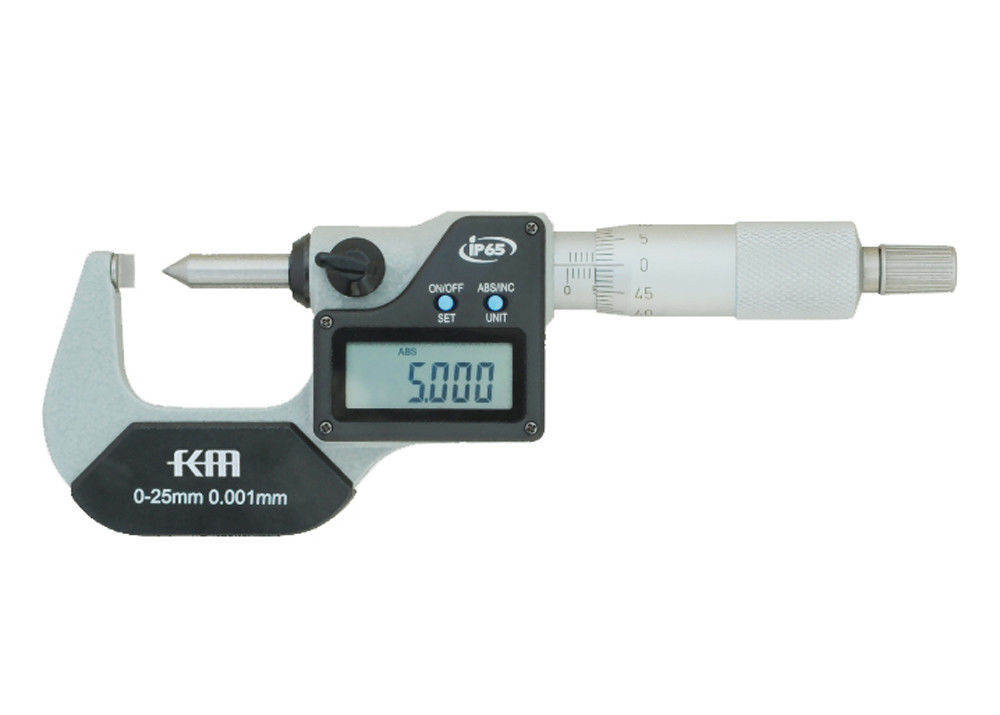

KM digital single point micrometer special designed with single point makes it ideal for measuring drill grooves,

small diameter workpieces, and other complex shapes that are difficult to measure with a normal micrometer.

The IP65 protection level has good dustproof and waterproof performance and is suitable for a variety of working

environments. The large digital display the measurement results directly through the electronic display for easy reading.

The tungsten carbide measuring surface has the characteristics of wear resistance and corrosion resistance,

which can prolong the service life of the micrometer and maintain the stability of the measurement accuracy.

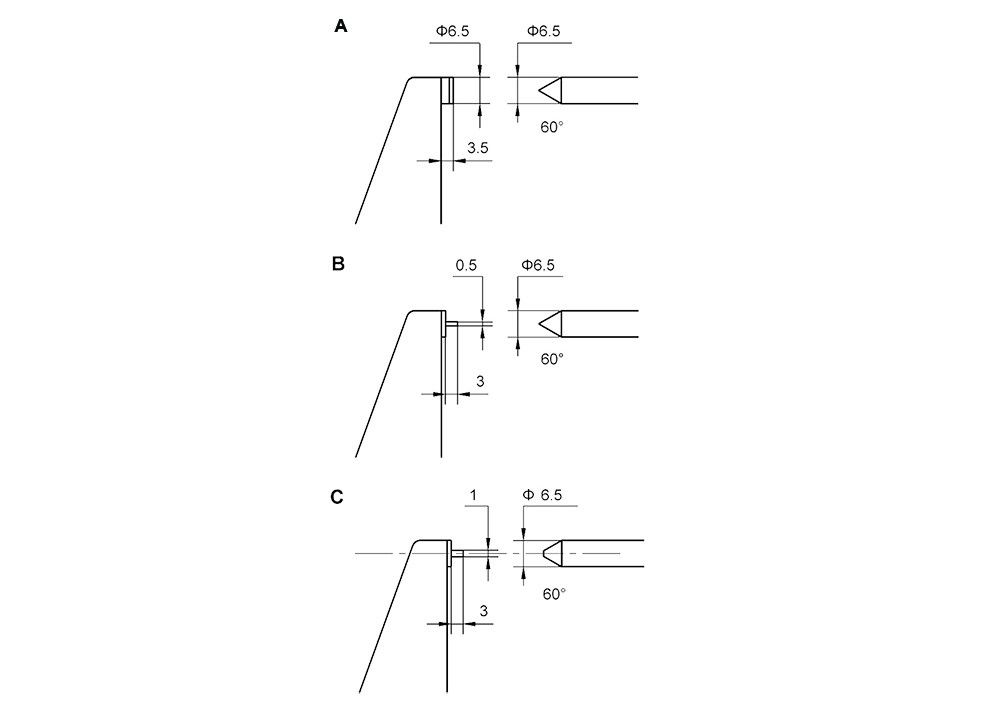

Digital single point micrometer provides type A, B and C anvil for option, when you choose single point micrometer,

please choose the suitable anvil based on your measurement requirement.


Specification:

Metric

Inch

Precautions:

1. Use soft cloth or cotton cleaning the micrometer.

2. Do not use any organic solvent.

3. The spindle is designed so that it cannot be removed from the inner sleeve.

4. Do not move it past the upper limit of the measuring range.

5. Remove the battery if the gauge not use for a long time.


Applications:
Digital single point micrometer can accurately measure some small parts that are difficult to reach with traditional tools,

such as small grooves and fine parts. It plays a particularly important role in the precision measurement in the field of

mechanical engineering.

FAQ:
1) Who are we?
Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools
in China mainland.

2) What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,
gauge, blocks, level, etc.

3) What are the terms of trade?
We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?
Yes, OEM is available.

6) How about after-sales service?
One year warranty for all kinds of products.
If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.
As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
