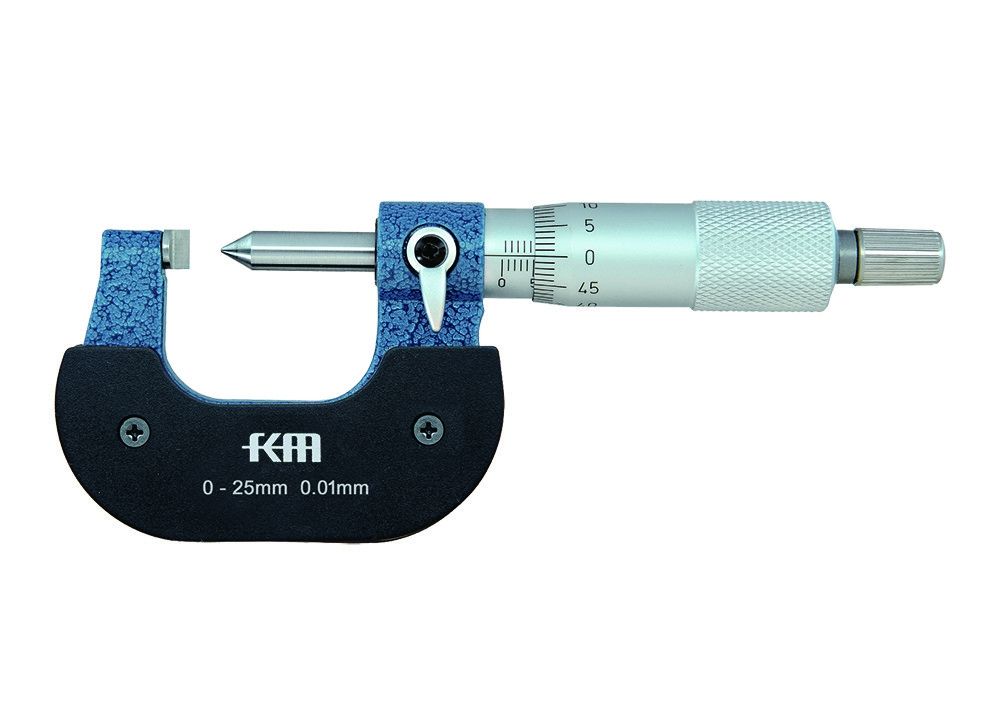

0-25mm Single Point Micrometer for Measuring Drills and Grooves

0-25mm Single Point Micrometer for Measuring Drills and Grooves

Quick Detail:

1. Painted and fine cast frame.

2. Laser-etched scale for clear and easy reading.

3. Pointed spindle and anvil for measuring drills, grooves and hard-to-reach dimensions.

4. Flat or blade anvil for single point micrometers for measuring the height of crimp contacts.

5. Carbide measuring faces provide accuracy and wear resistance.

6. Ratchet thimble for precise application of force.

7. Supplied in fitted case.


Description:

Our KM-2240 series is single point micrometer mainly used to accurately measure the length, width, thickness

and small groove of small objects. The anvil is designed as a pointed tip to accommodate the needs of fine

measurements and specially shaped objects.

This mechanical single-tip micrometer features with high hardness, corrosion resistance, and not easy to deform,

which can ensure the accuracy and stability of measurement results.

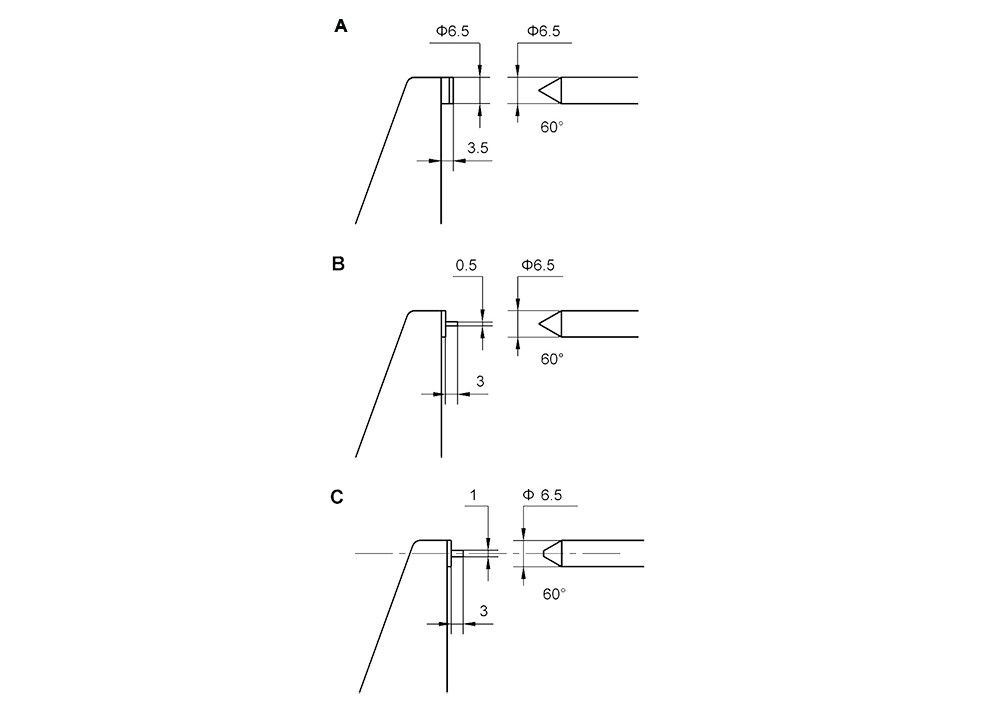

Single point micrometer provides type A, B and C anvil for option, when you choose single point micrometer,

please choose the suitable anvil based on your measurement requirement.

Specification:

Metric

Inch

Precautions:

1. Before measuring, clean measuring faces of the anvils and the spindle with soft cloth or soft paper,

    then bring them together carefully by turning the ratchet stop.

2. After measuring, separate the anvil and tighten the fixing screws to avoid rust caused by prolonged contact.

3. Micrometers should not be stored in humid places with large temperature changes.

4. Do not use micrometer to measure moving or hot objects or to strike something.

Applications:
Single point micrometer can accurately measure some small parts that are difficult to reach with traditional tools,

such as small grooves and fine parts. It plays a particularly important role in the precision measurement in the field of

mechanical engineering.
