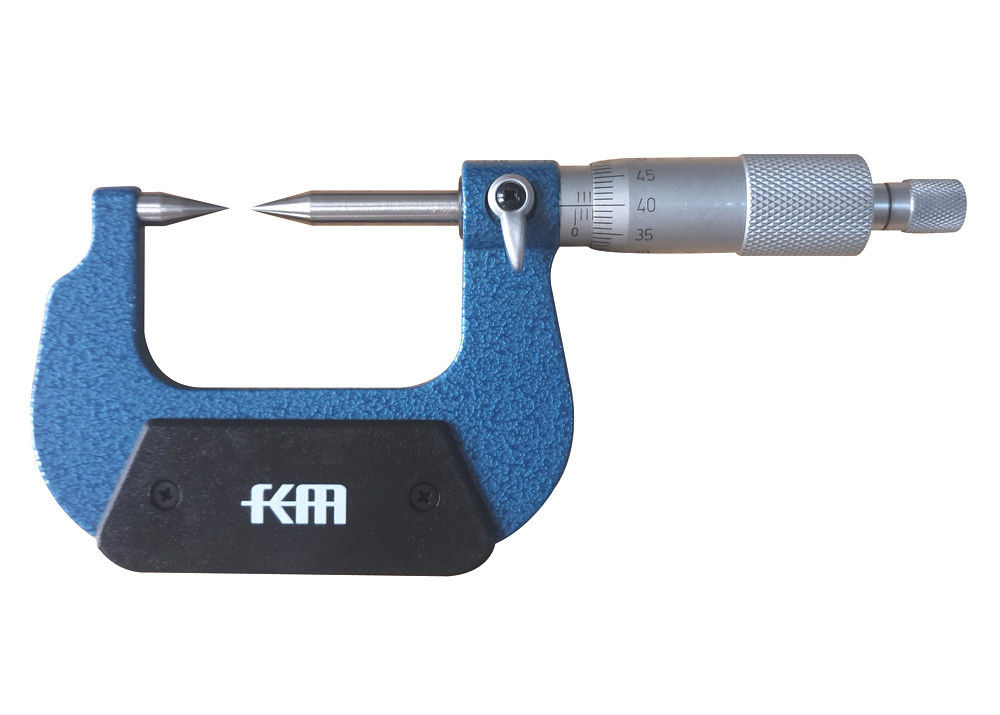

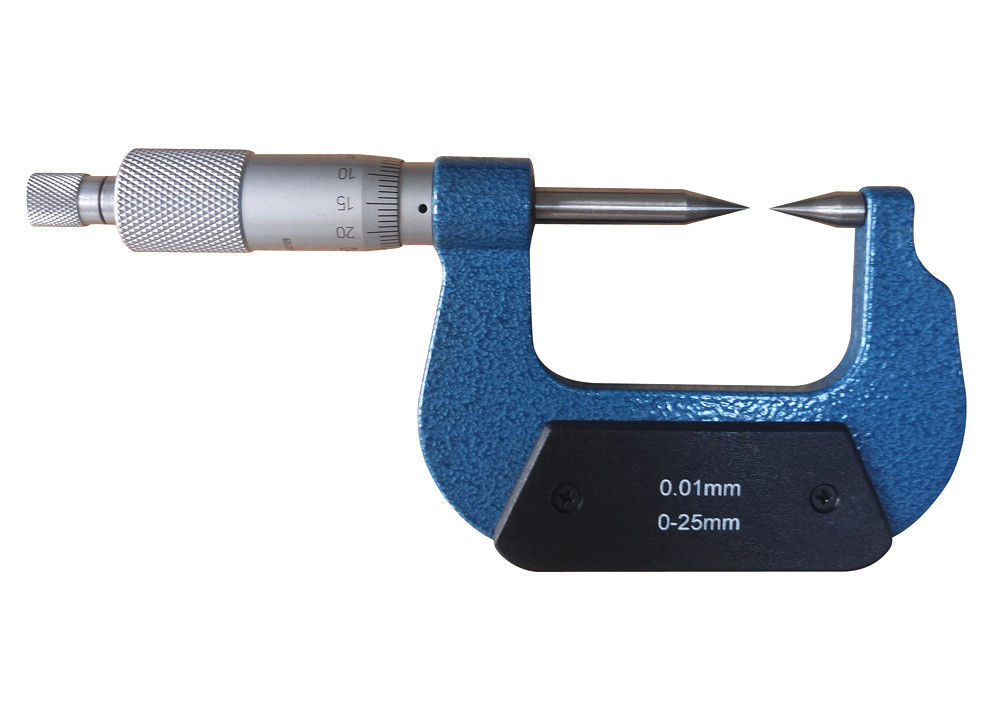

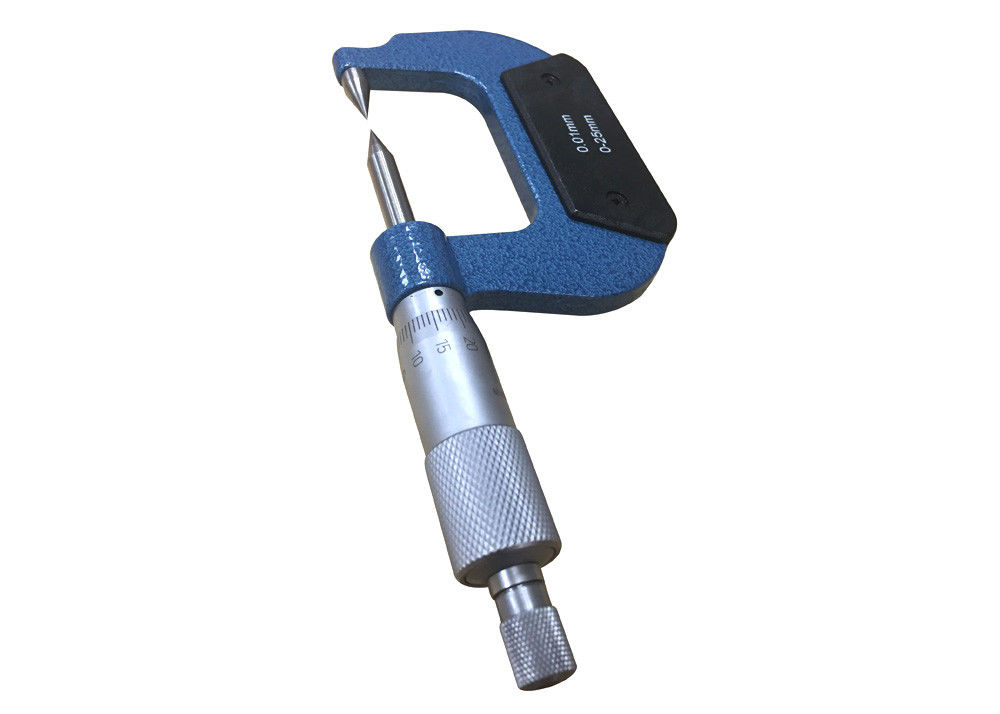

KM 0-25mm Point Micrometer With Carbide-tipped Measuring Face

KM 0-25mm Point Micrometer with Carbide-tipped Measuring Face

Quick Detail:

1. Painted and fine cast frame.

2. Laser-etched scale for clear and easy reading.

3. Pointed spindle and anvil for measuring drills, grooves and hard-to-reach dimensions.

4. Carbide measuring faces provide accuracy and wear resistance.

5. Ratchet thimble for precise application of force.

6. 15° and 30° measuring points are available.

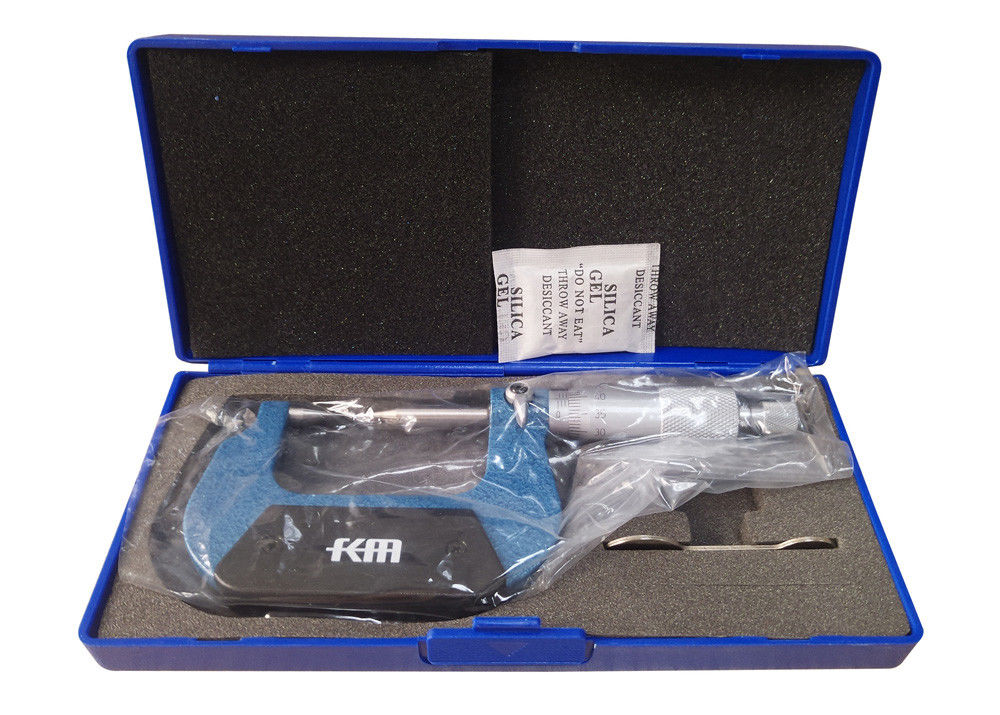

7. Supplied in fitted case.


Description:

KM point micrometer is designed with both point anvils measuring tip, specially used for measuring distances

in multiple directions such as grooves, holes, and depths simultaneously.

This mechanical single-tip micrometer features with high hardness, corrosion resistance, and not easy to deform,

which can ensure the accuracy and stability of measurement results. The ratchet locking devices, ensure a constant

measuring force during the measurement process, further improving the stability and accuracy of the measurement.

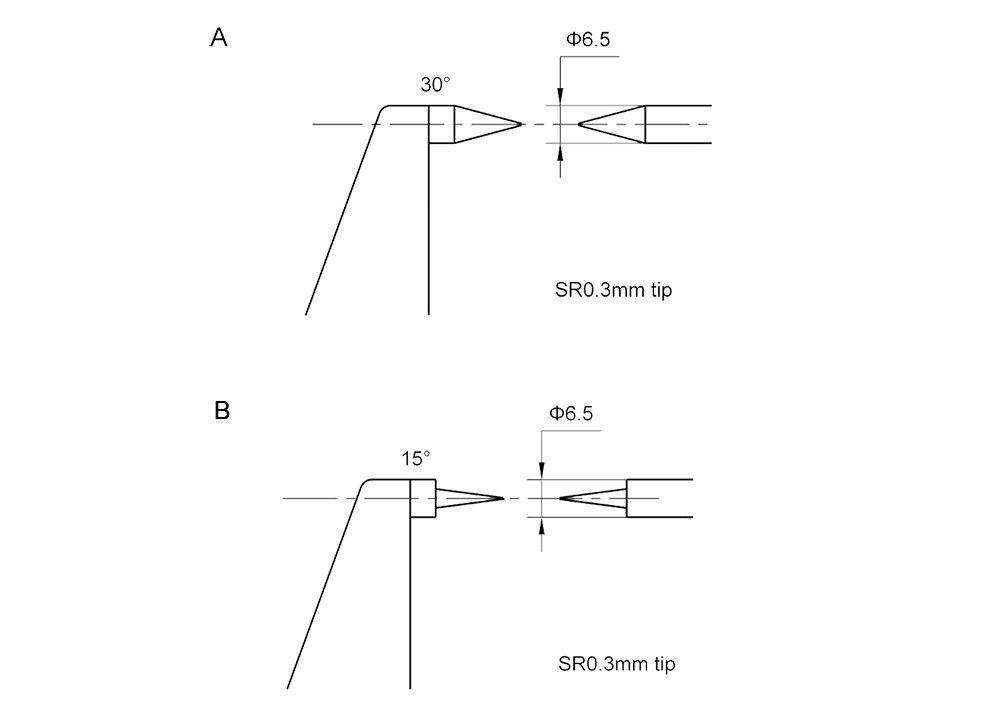

Point micrometer provide type A and B type anvil for option, when you choose point micrometer, please choose

the suitable anvil based on your measurement requirement.

Specification:

Metric

Inch

Precautions:

1. Before measuring, clean measuring faces of the anvils and the spindle with soft cloth or soft paper,

    then bring them together carefully by turning the ratchet stop.

2. After measuring, separate the anvil and tighten the fixing screws to avoid rust caused by prolonged contact.

3. Micrometers should not be stored in humid places with large temperature changes.

4. Do not use micrometer to measure moving or hot objects or to strike something.

Applications:
Point micrometer can accurately measure some small parts that are difficult to reach with traditional tools,

such as small grooves and fine parts. It plays a particularly important role in the precision measurement in the field of

mechanical engineering.
