Highlight
Sheet Metal Mechanical Micrometer
,Mechanical Sheet Metal Micrometer
-
WarrantyOne Year
-
MeasurementMetric
-
Range0-15mm
-
Graduation0.01mm
-
Precision0.004mm
-
FormRatchet Stop
-
Measuring FaceCarbide Measuring Face
-
CustomizedAcceptable
-
ProcessingFine Lapping
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2207-15
-
Packaging DetailsABS Box 26*15*6cm 0.70kg
-
Delivery TimeWithin 15days
-
Payment TermsT/T, L/C, D/P, D/A, Western Union, PayPal, MoneyGram
-
Supply Ability50000pieces/Month

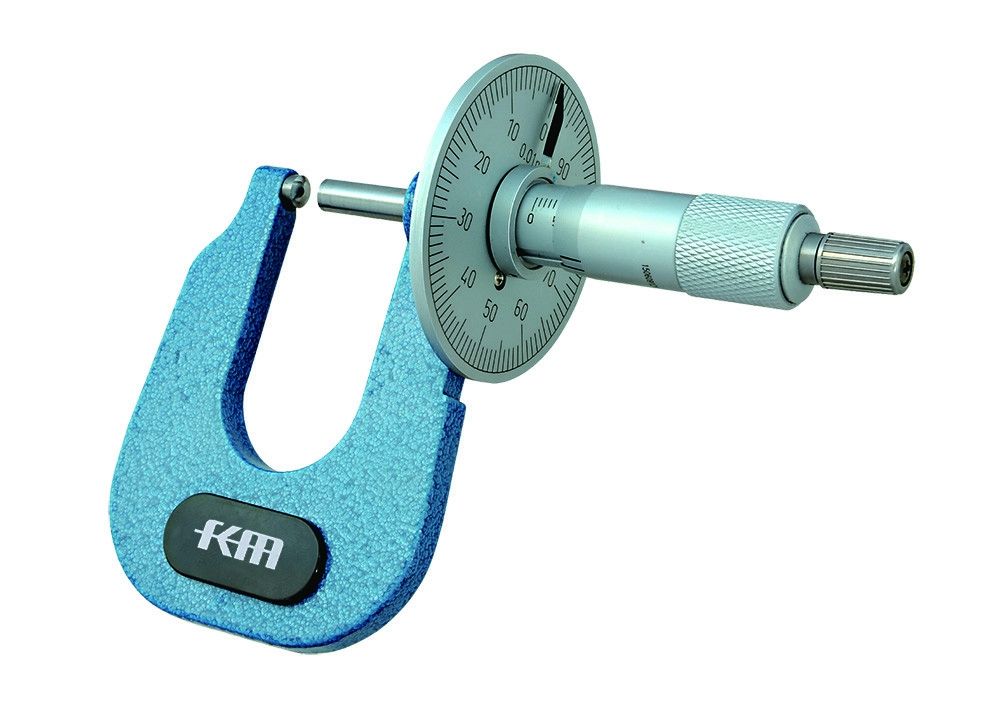

Mechanical Sheet Metal Micrometer
Mechanical Sheet Metal Micrometer
Quick Detail:
1. The sheet metal micrometer has a dial attached to the sleeve for making easy and quick reading
of sheet metal thickness.
2. Carbide measuring faces.

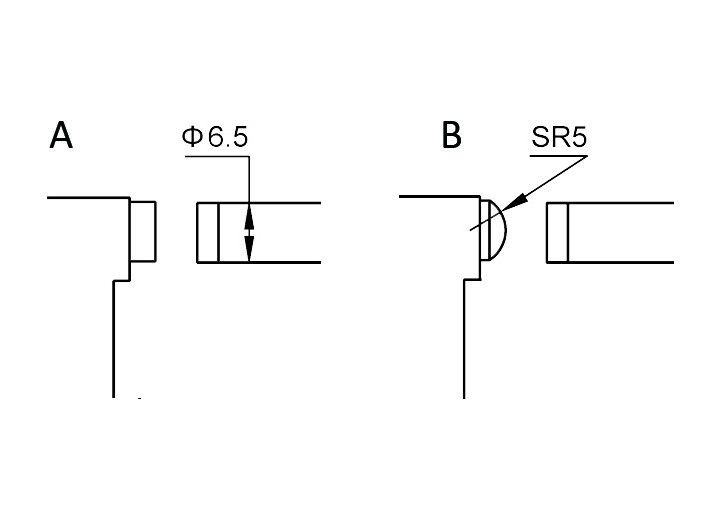

3. Flat measuring faces and spherical measuring faces as option.
4. Ratchet stops.
5. Supplied in fitted case.
Description:
KM sheet metal micrometer is especially suited for measuring the thickness of metal sheets, the large dial makes
the reading very easy and quick. There are flat measuring faces and spherical measuring faces for option.
Our mechanical sheet metal micrometer features with hardened and ground spindle along with a carbide anvil ensure
durability and accuracy. It also has the ratchet thimble allows precise application of pressure on the object being measured.
Specification:
Metric
| Order No. | Measuring Range | Graduation | Accuracy | Remark |
| KM-2207A-15 | 0-15mm | 0.01mm | ±0.004mm | A Type Measuring Face |
| KM-2207A-25 | 0-25mm | 0.01mm | ±0.004mm | |
| KM-2207A-50 | 0-50mm | 0.01mm | ±0.005mm | |
| KM-2207B-15 | 0-15mm | 0.01mm | ±0.004mm | B Type Measuring Face |
| KM-2207B-25 | 0-25mm | 0.01mm | ±0.004mm | |
| KM-2207B-50 | 0-50mm | 0.01mm | ±0.005mm |
Inch
| Order No. | Measuring Range | Graduation | Accuracy | Remark |
| KM-2207A-0.6 | 0-0.6″ | 0.0001″ | ±0.00016″ | A Type Measuring Face |
| KM-2207A-1 | 0-1″ | 0.0001″ | ±0.00016″ | |
| KM-2207A-2 | 0-2″ | 0.0001″ | ±0.0002″ | |
| KM-2207B-0.6 | 0-0.6″ | 0.0001″ | ±0.00016″ | B Type Measuring Face |
| KM-2207B-1 | 0-1″ | 0.0001″ | ±0.00016″ | |
| KM-2207B-2 | 0-2″ | 0.0001″ | ±0.0002″ |
Precautions:
1. Before measuring, clean measuring faces of the anvils and the spindle with soft cloth or soft paper,
then bring them together carefully by turning the ratchet stop.
2. After measuring, separate the anvil and tighten the fixing screws to avoid rust caused by prolonged contact.
3. Micrometers should not be stored in humid places with large temperature changes.
4. Do not use micrometer to measure moving or hot objects or to strike something.
Applications:
Sheet metal micrometers are widely used in metal working industry for measuring thickness of metal sheet.
