0-25mm Digital Tube Micrometer for Processing Metric/Inch Measurement
-
Highlight
25mm Digital Tube Micrometer
,Inch Measurement Digital Tube Micrometer
,Fine Lapping Digital Tube Micrometer
-
WarrantyOne Year
-
MeasurementMetric/Inch
-
Range0-25mm
-
Resolution0.001mm
-
Precision0.002mm
-
Protection LevelIP65
-
Measurement ObjectWall Thickness Of Verious Tubes
-
Measuring FaceCarbide Measuring Face
-
FormSPC Data Output
-
ProcessingFine Lapping
-

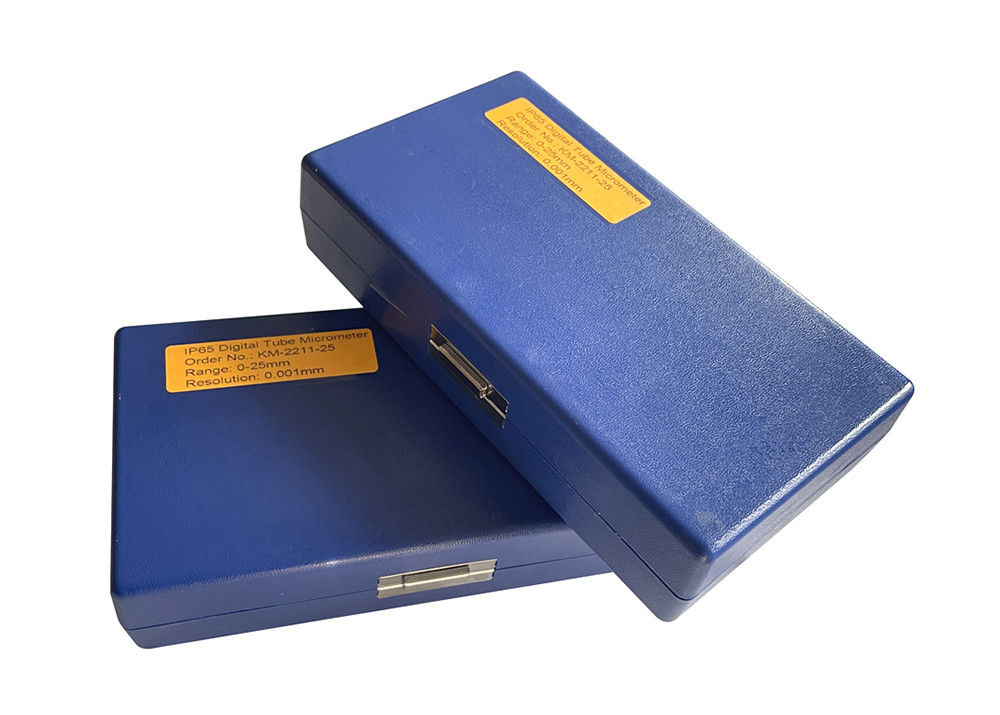

PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2211-25
-
Packaging DetailsABS Box 22*11*5cm 0.50kg
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
0-25mm Digital Tube Micrometer for Processing Metric/Inch Measurement

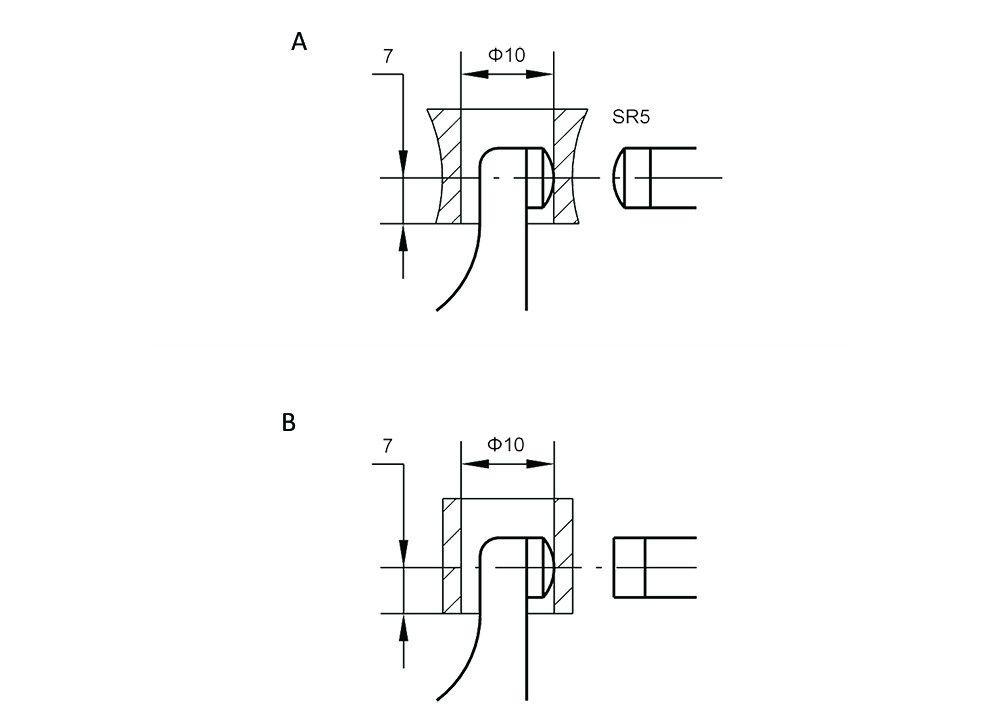

Digital tube micrometer with ball measuring face specially used to measuring wall thickness of various tubes. In this series, there are two types of anvils A with both ball ends measuring face and B with ball and flat measuring face.
Digital tube micrometer with IP65 protection degree, which provide excellent resistance against water, dust and ensures precision and reliable measuring, even in very bad surroundings. The hardened and ground spindle along with a carbide anvil ensure durability and accuracy. With the large LCD display, we can easily obtain measurement results by simply looking at the numbers on the display, without the need for complex calculations or conversions.
- Precisely measures wall thickness of tubes.
- IP65 protection rating (oil, water and dust proof).

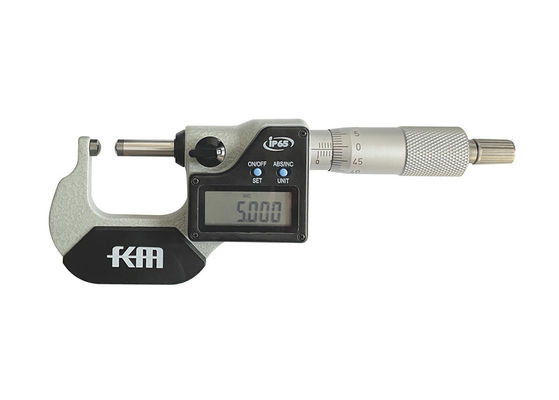

- Clear LCD display for fast, accurate readings.
- Function keys for OFF/ON, SET, ABS/INC, and UNIT (in/mm conversion).
- Carbide measuring faces for accuracy and durability.
- Ratchet thimble for consistent measuring force.
- SPC data output capability.

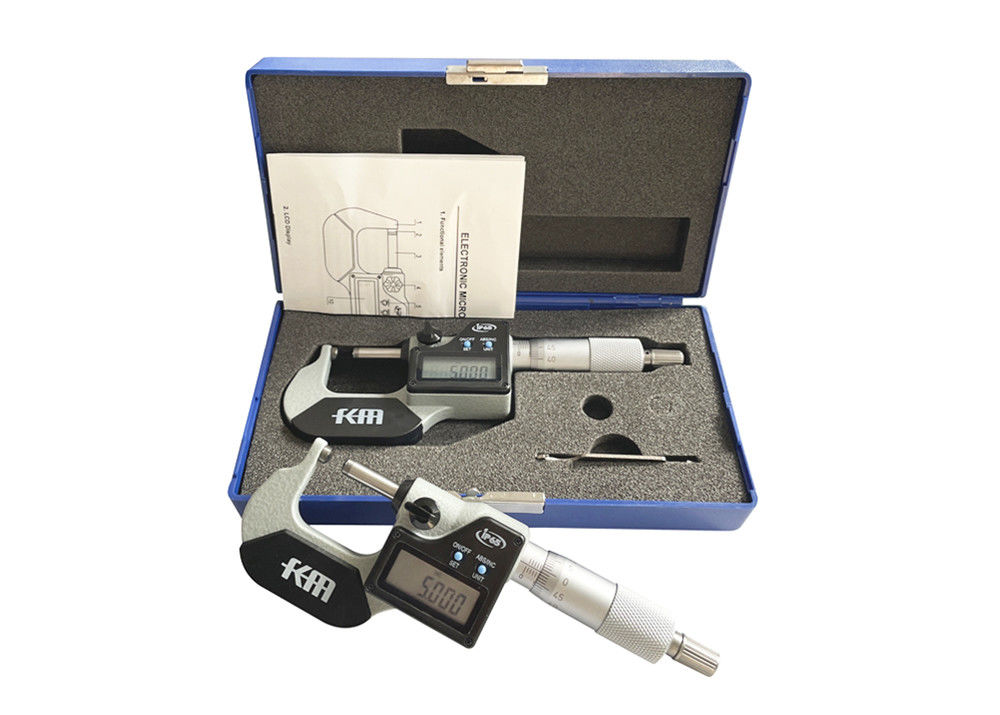

- Includes protective fitted case.
| Order No. | Measuring Range | Resolution | Accuracy |
|---|---|---|---|
| KM-2211A-25 | 0-25mm | 0.001mm | ±0.002mm |
| KM-2211A-50 | 25-50mm | 0.001mm | ±0.002mm |
| KM-2211A-75 | 50-75mm | 0.001mm | ±0.003mm |
| KM-2211A-100 | 75-100mm | 0.001mm | ±0.003mm |
| KM-2211B-25 | 0-25mm | 0.001mm | ±0.002mm |
| KM-2211B-50 | 25-50mm | 0.001mm | ±0.002mm |
| KM-2211B-75 | 50-75mm | 0.001mm | ±0.003mm |
| KM-2211B-100 | 75-100mm | 0.001mm | ±0.003mm |
- Clean with soft cloth or cotton only.
- Avoid organic solvents.
- Spindle cannot be removed from inner sleeve.
- Do not exceed measuring range limits.
- Remove battery during prolonged storage.
Digital tube micrometer is suitable for various industrial applications that require accurate measurement of the wall thickness of tubes or other tubular parts, and its accuracy and convenience make it an important tool in industrial measurement.
