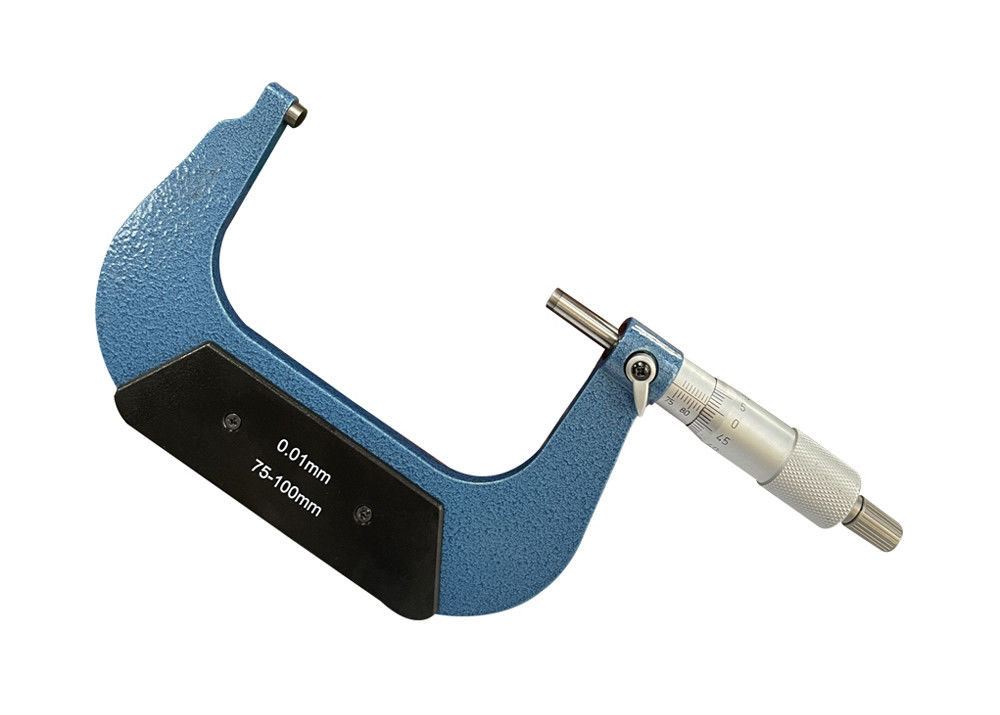

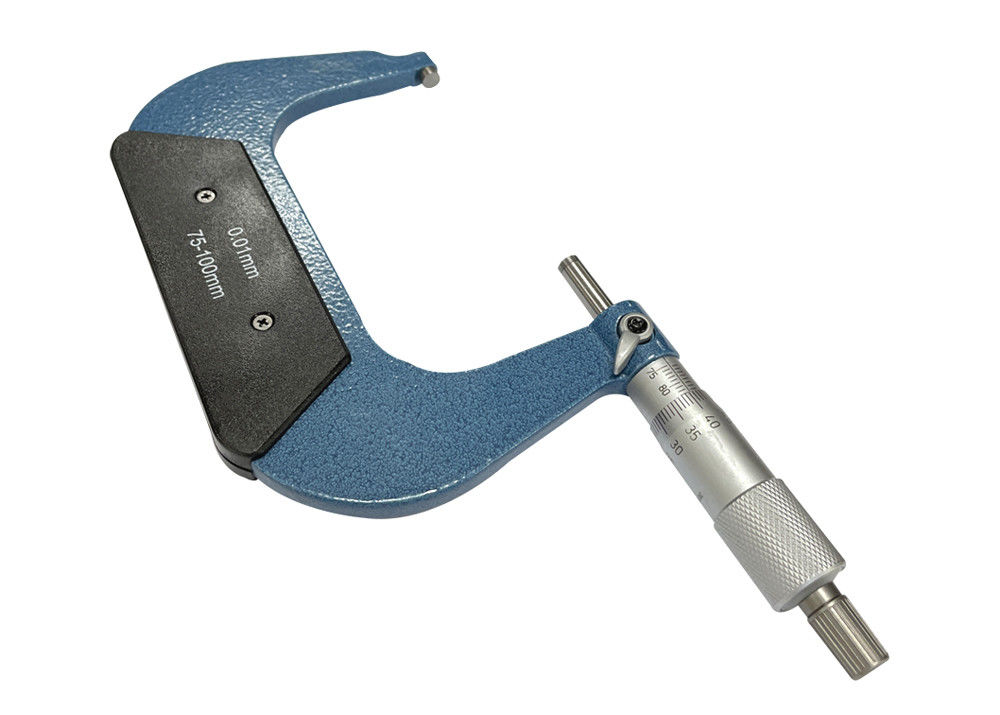

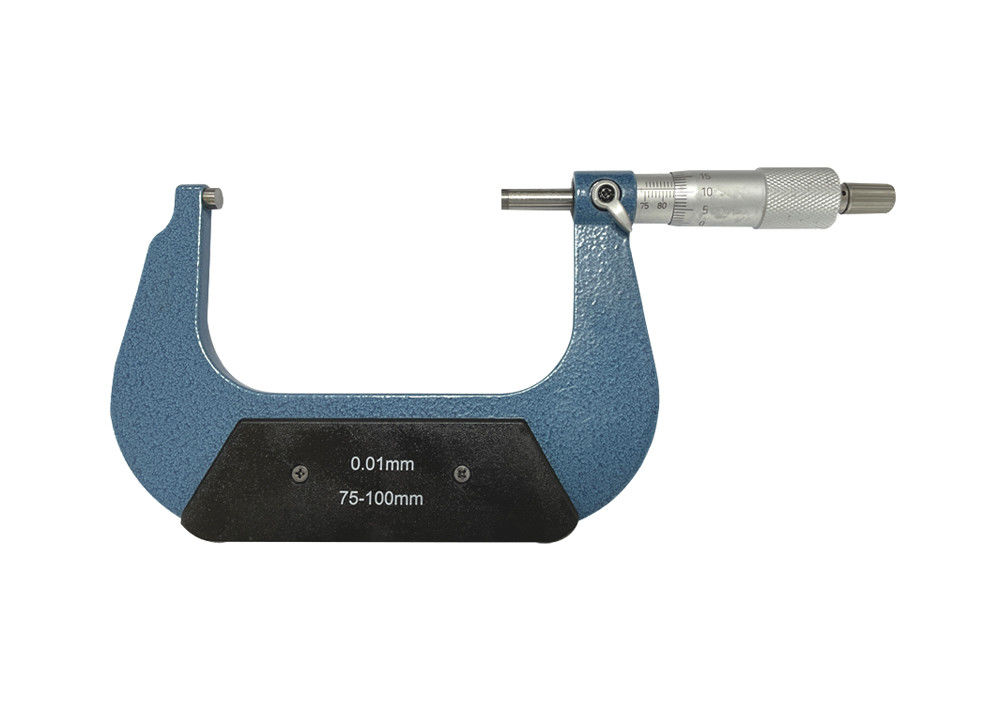

High-Performance 75-100mm Outside Micrometer with Graduation 0.01mm for Accurate Measurement

High-Performance 75-100mm Outside Micrometer with Graduation 0.01mm for Accurate Measurement

Quick Detail:

1. Painted and fine cast frame.

2. Laser-etched scale for clear and easy reading.

3. Carbide measuring faces provide accuracy and wear resistance.

4. Ratchet thimble for precise application of force.

5. Supplied in fitted case.

Description:

This is also one most standard mechanical outside micrometer, with graduation 0.01mm, the measuring range

start from 0-25mm to 175-200mm. The hardened and ground spindle along with a carbide anvil ensure durability

and accuracy. It also has the ratchet thimble allows precise application of pressure on the object being measured.

The outside micrometer is also known as external micrometer or side micrometer, used for measuring

the outside dimensions of jobs, such as diameter of a bar, rod and thickness of plate, mainly measuring dimensions

of small components with great accuracy.

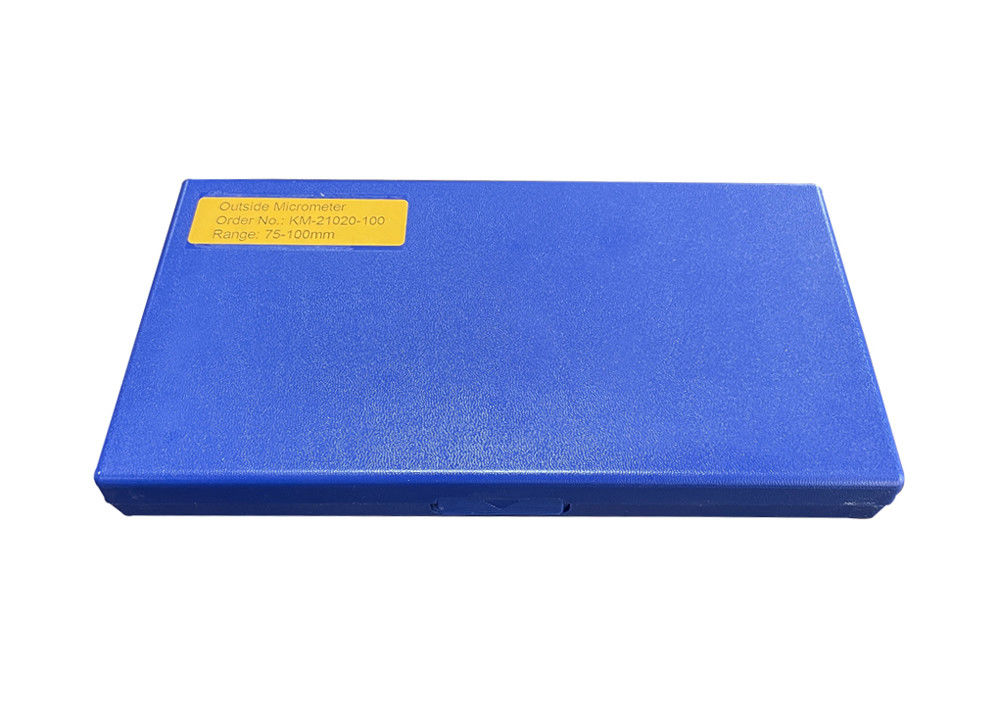

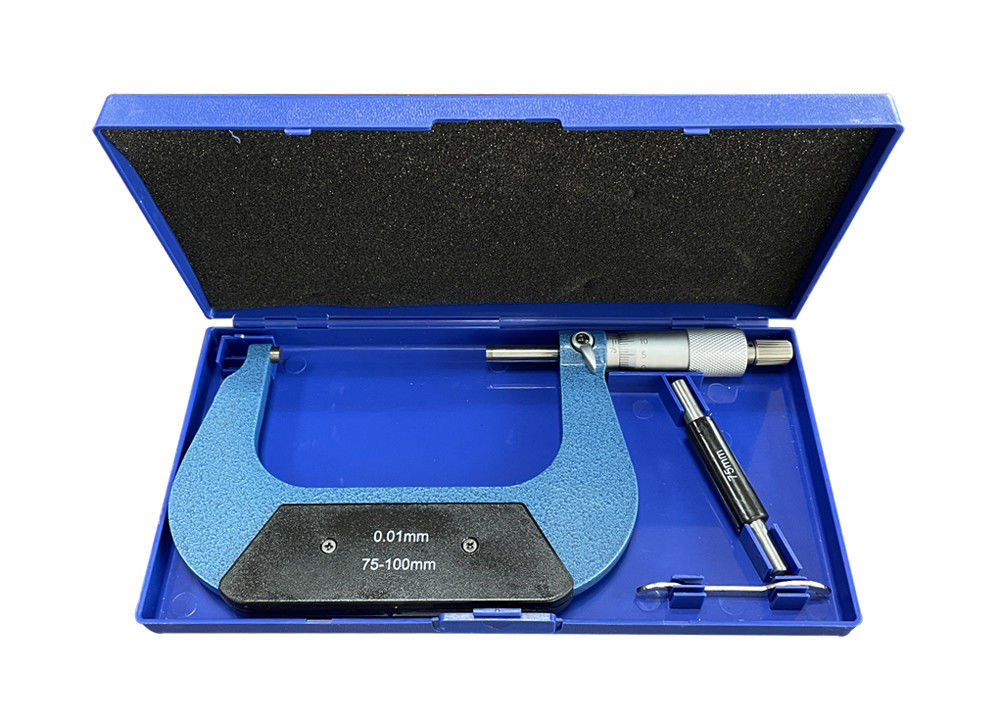

All of our outside micrometers come with fitted safe case packing and little spanner. You would use the calibration standards

and spanner to calibrate the micrometer appropriately. We also have single micrometer and sets of outside micrometers available

to meet your demand.

Specification:

Precautions:

1. Before measuring, clean measuring faces of the anvils and the spindle with soft cloth or soft paper,

    then bring them together carefully by turning the ratchet stop.

2. After measuring, separate the anvil and tighten the fixing screws to avoid rust caused by prolonged contact.

3. Micrometers should not be stored in humid places with large temperature changes.

4. Do not use micrometer to measure moving or hot objects or to strike something.

Applications:

Outside micrometers are particularly useful in fields where precise measurements are essential,

such as engineering, machining, physics, and manufacturing.

In the manufacturing industry, the outside micrometer is often used to measure parts and components

to ensure the accuracy and quality of the product.

In the field of machining, it is often used for outer diameter machining, dimensional measurement

and roundness measurement to meet the needs of precision machining.

At the same time, the outside micrometer is also widely used in the automobile maintenance industry,

for example, to measure the diameter of tires, etc., to ensure the accuracy and safety of maintenance work.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
