50-75mm Disk Micrometers in Industrial Applications with High Precision and Lock Device

50-75mm Disk Micrometers in Industrial Applications with High Precision and Lock Device

Quick Detail:

1. Painted and fine cast frame.

2. Laser-etched scale for clear and easy reading.

3. Disk measuring faces for measuring gears and paper thickness.

4. Supplied in fitted case.


Description:

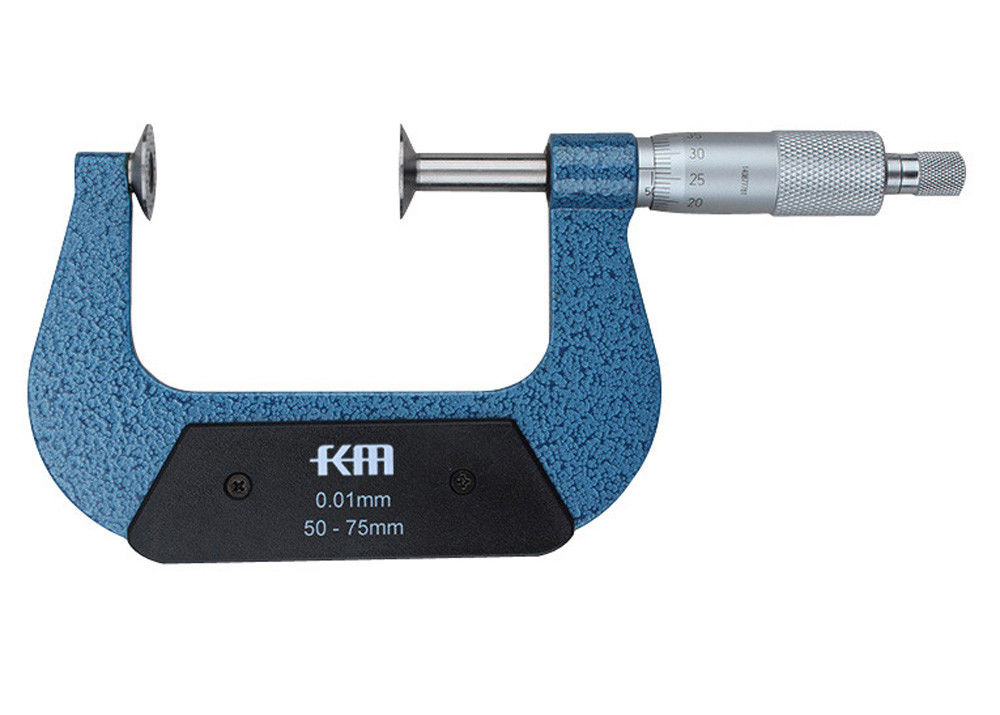

Our disk micrometer is a specialized type of micrometer that are designed for measuring the gears and paper thickness

with high precision. Disk micrometer is designed with a unique anvil and spindle configuration that allows for the precise

measurement of disc-shaped workpiece. The anvil is shaped like a flat disc, while the spindle is tapered to allow for easy

insertion between the edges of the disc being measured.

This mechanical disk micrometer has a lock device to locks the micrometer screw, and when locked, the distance

between the two measuring surfaces is kept to a minimum, preventing unintentional changes during the measurement.

We supply with a full measuring range of up to 200mm or 8″, with resolution for metric 0.01mm or 0.0001″ for inch.


Specification:

Metric

Inch

Precautions:

1. Before measuring, clean measuring faces of the anvils and the spindle with soft cloth or soft paper,

    then bring them together carefully by turning the ratchet stop.

2. After measuring, separate the anvil and tighten the fixing screws to avoid rust caused by prolonged contact.

3. Micrometers should not be stored in humid places with large temperature changes.

4. Do not use micrometer to measure moving or hot objects or to strike something.


Applications:
Disk micrometer is a high-precision tool for measuring the length of gears teeth. It is widely used in machinery manufacturing,

engineering maintenance, equipment testing and other fields.

FAQ:
1) Who are we?
Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools
in China mainland.

2) What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,
gauge, blocks, level, etc.

3) What are the terms of trade?
We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?
Yes, OEM is available.

6) How about after-sales service?
One year warranty for all kinds of products.
If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.
As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
