35-50mm Bore Gauges for Internal Dimension Measurement with 150mm Measuring Depth
-
Highlight
Internal Dimension Measurement Bore Gauges
,150mm Measuring Depth Bore Gauges
,35-50mm Bore Gauges
-
WarrantyOne Year
-
TypeDial Bore Gauge
-
MeasurementMetric
-
MaterialStainless Steel
-
ApplicationInternal Measurement
-
Range35-50mm
-
Graduation0.001mm
-
Measuring Depth150mm
-
PackageABS Box
-
CustomizedAcceptable
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DBM-50
-
Packaging DetailsABS Box 31*14*4.5cm/Piece 1.02kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
35-50mm Bore Gauges for Internal Dimension Measurement with 150mm Measuring Depth
35-50mm Bore Gauges for Internal Dimension Measurement with 150mm Measuring Depth
Quick Features:
- For internal measurement
- Wheel guide design
- Includes interchangeable anvils
- Supplied with 0.001mm dial indicator
- Customizable measuring depth for different applications
- Comes in a fitted protective case
Product Description:
Our premium bore gauge series is designed for precise internal dimension measurement, capable of accurately measuring bores or holes of various lengths and shapes. The standard measuring range extends from 6mm up to 450mm with 0.01mm graduation. We offer customization options for wider ranges and extended measuring depths to ensure accurate measurements for specialized applications.

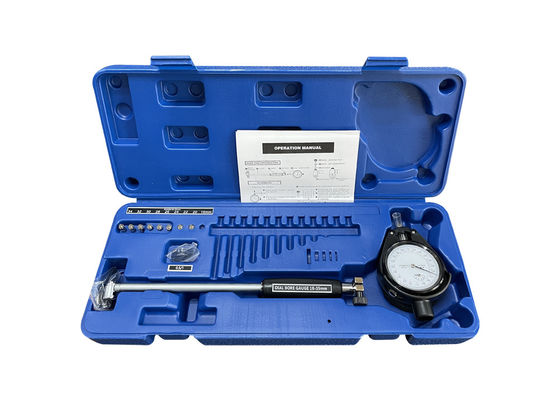

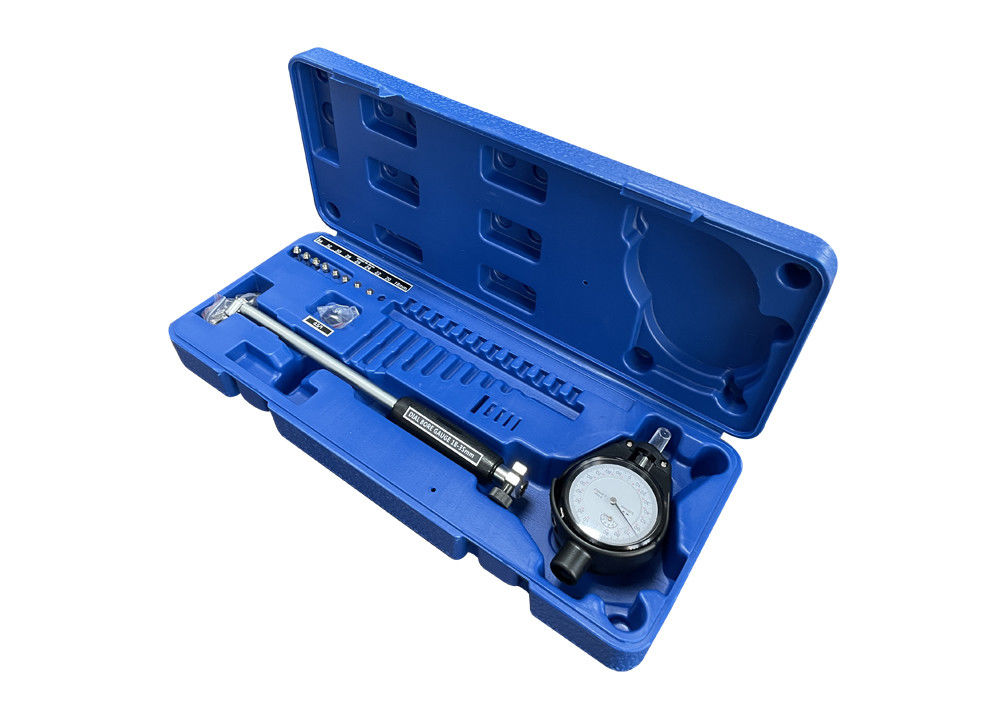

Each bore gauge comes complete with a dial indicator, measuring extended heads, inserting anvils, and adjusting washers for comprehensive measurement solutions.
Technical Specifications:
| Order No. | Range | Measuring Depth | Graduation | Accessories |
|---|---|---|---|---|
| KM-DBM-10 | 6-10mm | 40mm | 0.001mm | 9 anvils |
| KM-DBM-18 | 10-18mm | 100mm | 0.001mm | 9 anvils, 1 washer |
| KM-DBM-35 | 18-35mm | 150mm | 0.001mm | 9 anvils, 2 washers |
| KM-DBM-50 | 35-50mm | 150mm | 0.001mm | 4 anvils, 4 washers |
| KM-DBM-160 | 50-160mm | 150mm | 0.001mm | 12 anvils, 4 washers, 1 sub-anvil |
| KM-DBM-250 | 160-250mm | 250mm | 0.001mm | 5 anvils, 5 washers, 1 sub-anvil |
| KM-DBM-450 | 250-450mm | 250mm | 0.001mm | 5 anvils, 5 washers, 2 sub-anvils |
Usage Precautions:
- Do not disassemble or modify the gauge
- Avoid subjecting the gauge to impacts or knocks
- Clean and apply anti-rust treatment after use
- Store the gauge properly in its case when not in use
- Do not misplace or mix up anvils and washers
Industrial Applications:
Bore gauges are essential tools in the automotive industry for inspecting engine components, drivetrains, and brake systems. They are also widely used in machining, aerospace, and shipbuilding industries to maintain production quality and efficiency.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, we offer OEM services for customized requirements.
How about after-sales service?
All products come with a one-year warranty. Our strict calibration and inspection processes ensure product quality, and we promptly replace any defective components.
