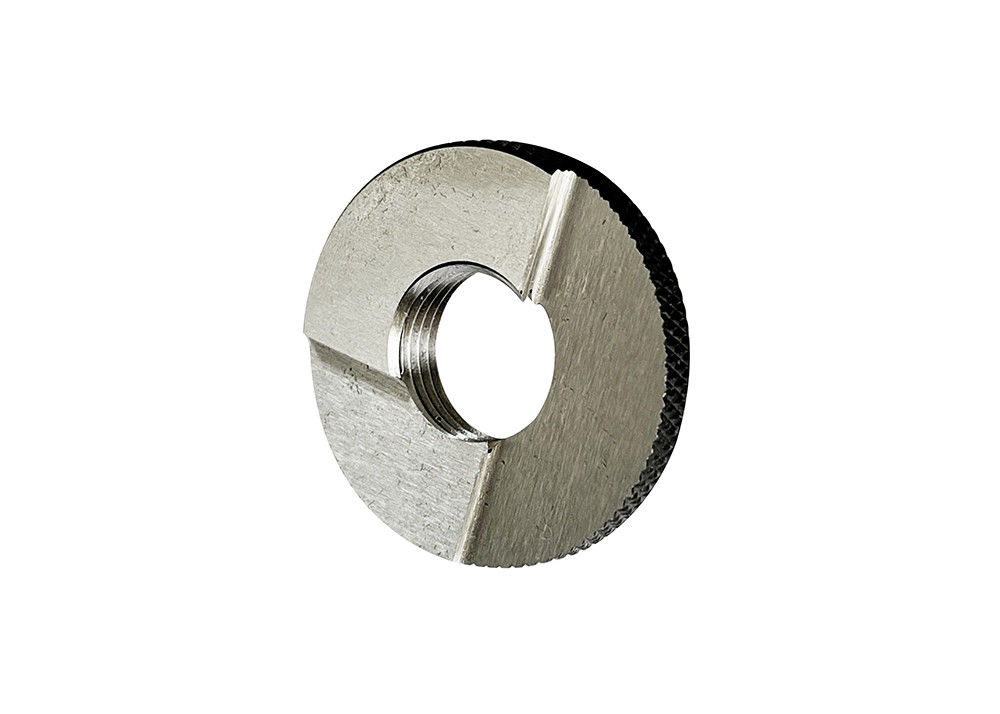

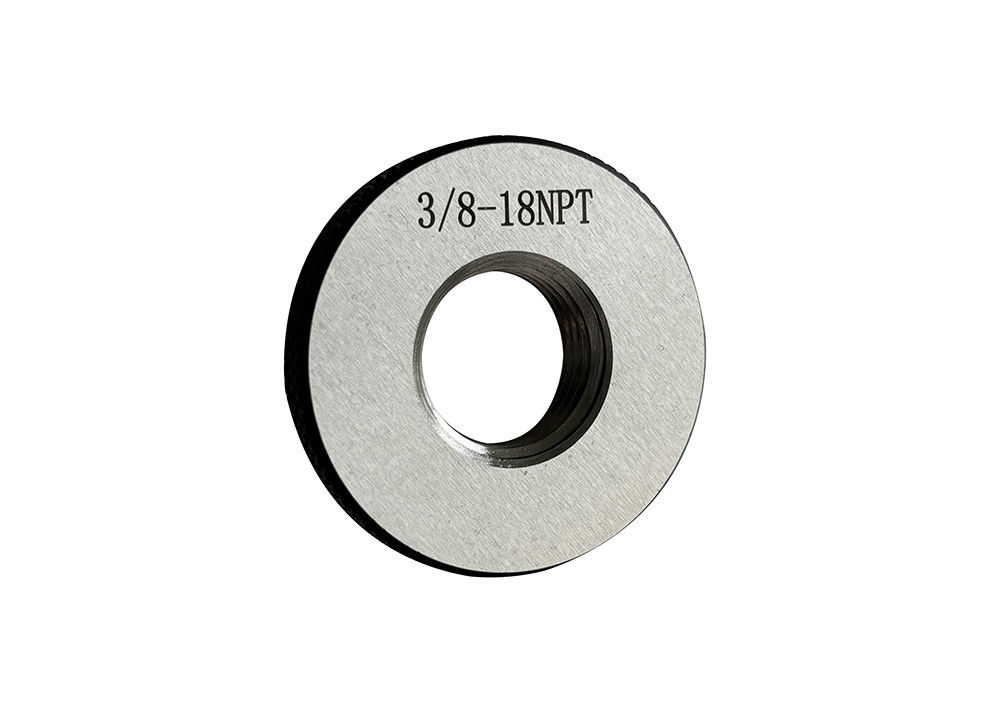

3/8-18 NPT Thread Ring Gauge for Inspecting Threads with Internal First Grade Thread Machining Center

3/8-18 NPT Thread Ring Gauge for Inspecting Threads with Internal First Grade Thread Machining Center

Quick Detail:

1. GO and NO GO and combination GO/NOGO types.

2. Conform standard: FED-STD-H28/8.7.

3. Material GCR15.

4. Wear resistance and corrosion resistance, stable structure, easy to use.

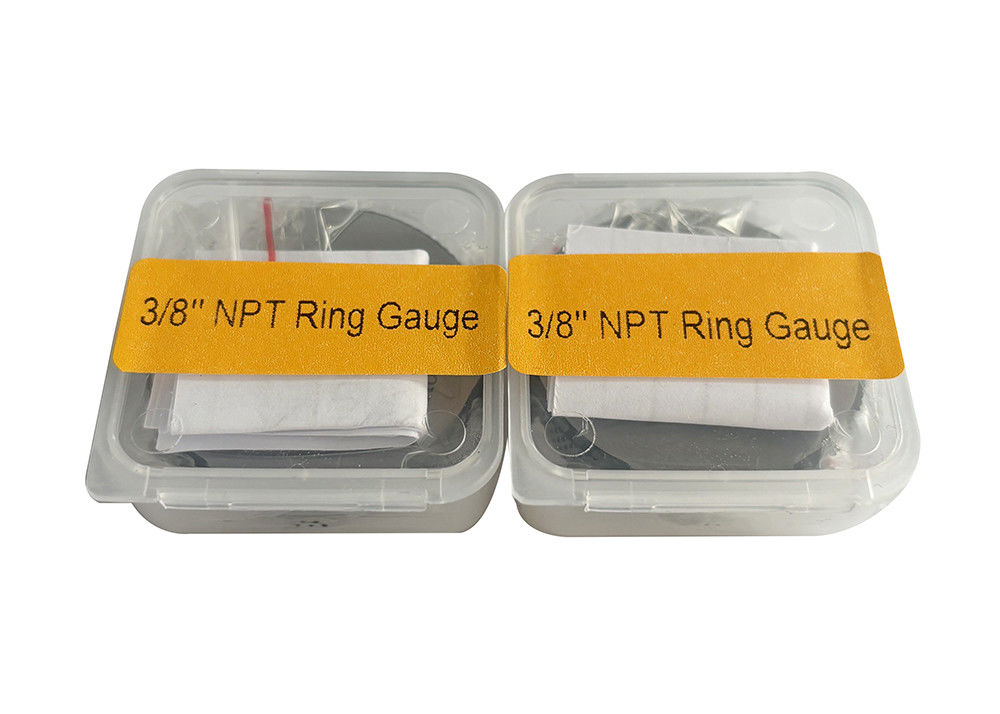

5. Supplied in fitted case.

Description:

Deko Corp provides a complete line of taper pipe thread ring gauges, available with sizes from 1/16-27NPT to 6-8NPT

and sizes from 1/16-27NPTF to 6-8NPTF as per National (American) Standard Pipe Taper Threads specification.

NPT taper pipe thread ring gauge is used to inspect the internal and external threads of the NPT thread. When inspecting

the external thread, screw the thread ring gauge into the external thread to be inspected, if the thread body to be inspected

is qualified between the upper and lower base surfaces of the thread ring gauge, it means that the thread meets the standard.

When inspecting the internal thread, screw the thread plug gauge into the internal thread to be inspected, and if it is also qualified

between the upper and lower base surfaces, it means that it is qualified.

NPTF is utilized as a dry seal while NPT thread ring gauge needs some kind of sealing medium to prevent leaks.

Taper pipe threads are one of the more challenging threads to produce and measure.

We introduced internal first grade thread machining center and measuring equipment, NPT general purpose pipe thread plug

and ring gages are manufactured per ANSI.

Specification:

Precautions:

1. Do not use it for non-gauge inspection purposes, because there are functional sharp parts in the thread

    and the corners of the gauge part, which is easy to cause injury to the operator.

2. Before use, please use oil to invade the gauge and the product, or wipe it with a clean cloth to confirm

    whether the gauge has rust, scratches, burrs, etc.

3. When using, apply fully with anti-rust lubricating oil, do not apply impact to the gauge.

4. When storing the gauge, dust, chips, etc. should be removed first to prevent rust. Store the gauge in a place

    where there is no moisture and the temperature does not change much, and check it regularly.

Applications:

The NPT (National Pipe Thread) Thread Ring Gauge is a tool used to measure and calibrate the threads of pipe connections.

They play an important role in the installation and repair of piping systems, ensuring that pipes are tightly connected and do not leak.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
