Precision Thread Plug Gauge BSW 1/4-20 Go and NoGo
-
Highlight
Precision Plug Thread Plug Gauge
,BSW Precision Thread Plug Gauge
,BSW 1/4-20 Plug Thread Gauge
-
WarrantyOne Year
-
TypeBSW Pipe Taper Thread Plug Gauge
-
MaterialGCR15
-
SpecificationBritish Standard
-
UsageFor Working And Inspection
-
MeasurementInch
-
Size1/4"-20
-
CustomizedAvailable
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Packaging DetailsABS Box 8*1.5*1.5cm/Piece 0.06kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Precision Thread Plug Gauge BSW 1/4-20 Go and NoGo
Precision Thread Plug Gauge BSW 1/4-20 Go and NoGo
Product Description

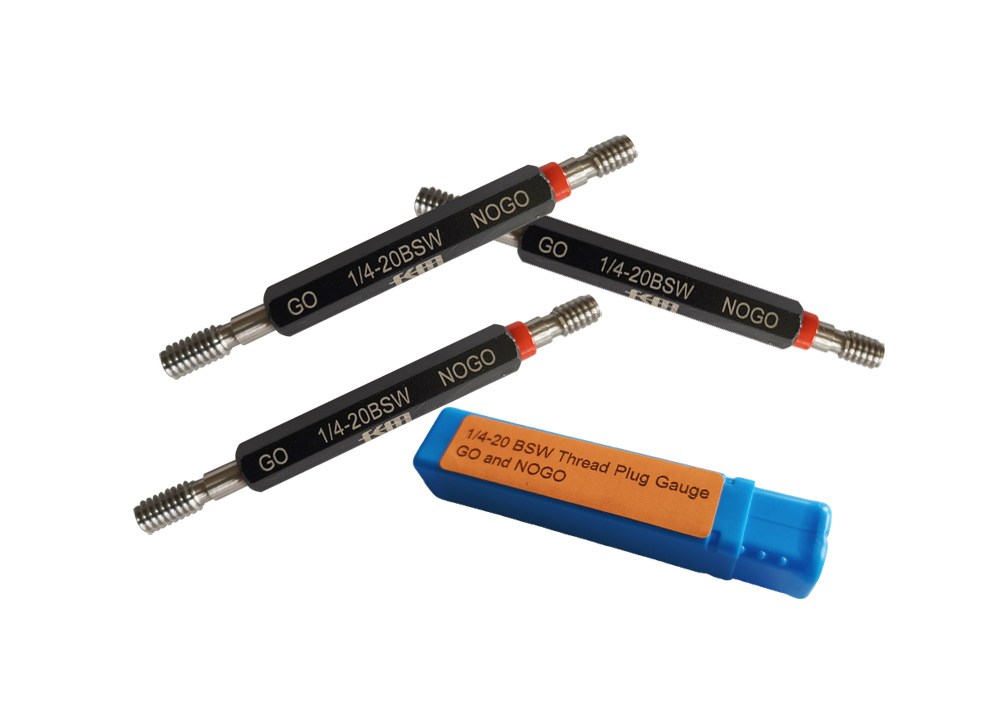

The BSW thread plug gauge is designed to verify the accuracy of internal BSW (British Standard Whitworth) screw threads. Developed by Joseph Whitworth, these threads feature a 55-degree thread angle. These precision gauges are essential for ensuring proper fit and interchangeability of parts, particularly in applications using the Whitworth thread standard.
Quick Details
- British Standard Whitworth (BSW) thread.
- Material: GCR15 bearing steel.
- Available in both right-hand (RH) and left-hand (LH) configurations.
- Wear-resistant and corrosion-resistant construction.
- Stable structure for easy operation.
- Supplied in a fitted protective case.
Specifications
| Size | Major Diameter (mm) | Pitch (mm) | Threads per inch | Thread Height (mm) | Tap Drill Diameter (mm) |
|---|---|---|---|---|---|
| 1/16" | 1.587 | 0.423 | 60 | 0.270 | 1.15 |
| 3/32" | 2.381 | 0.529 | 48 | 0.338 | 1.90 |
| 1/8" | 3.175 | 0.635 | 40 | 0.406 | 2.50 |
| 5/32" | 3.969 | 0.793 | 32 | 0.507 | 3.20 |
| 3/16" | 4.762 | 1.058 | 24 | 0.677 | 3.70 |
| 7/32" | 5.556 | 1.058 | 24 | 0.677 | 4.50 |
| 1/4" | 6.350 | 1.270 | 20 | 0.813 | 5.10 |
| 5/16" | 7.938 | 1.411 | 18 | 0.904 | 6.50 |
Applications
- Inspect internal BSW threads (nuts, threaded holes) for correct pitch diameter and form compliance.
- Verify BSW threads in legacy British-engineered equipment or military hardware.
- Check threaded components in vintage vehicles or machinery using Whitworth standards.
- Ensure proper sealing in pipe fittings with BSW threads (hydraulic systems).
- Assess wear/damage in existing BSW threads during overhaul or reassembly.
- Confirm compatibility between BSW-threaded parts from different manufacturers.
Precautions
- Use only for gauge inspection purposes - functional sharp parts may cause injury.
- Before use, inspect for rust, scratches, or burrs and clean with oil or cloth.
- Apply anti-rust lubricating oil during use and avoid impact.
- Store in a dry, temperature-stable environment after removing dust and chips.
- Perform regular maintenance checks.
