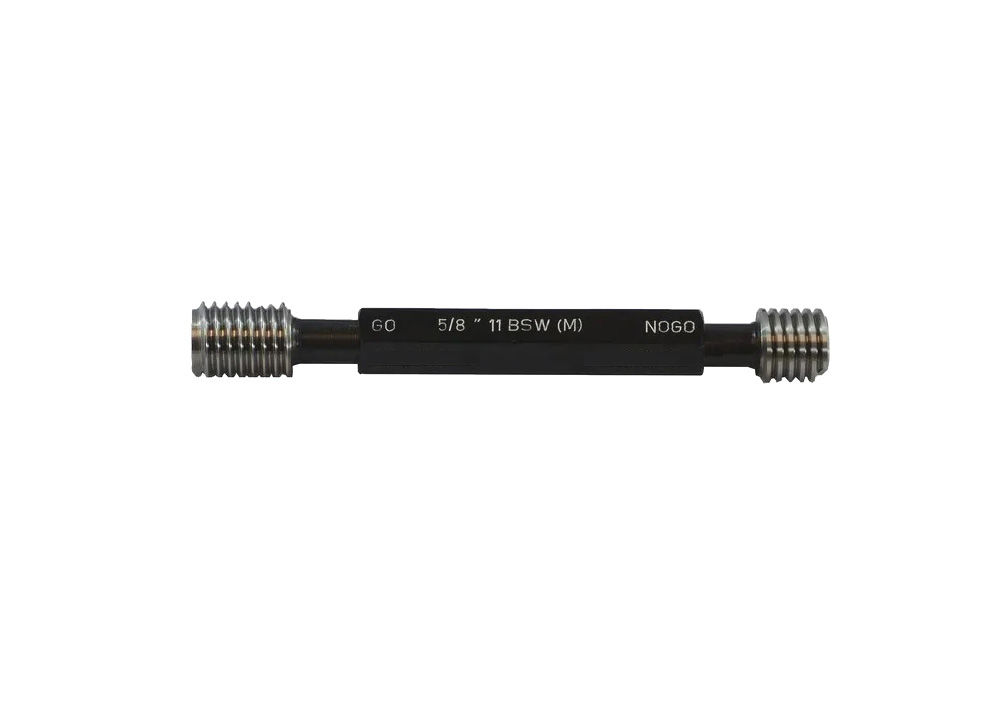

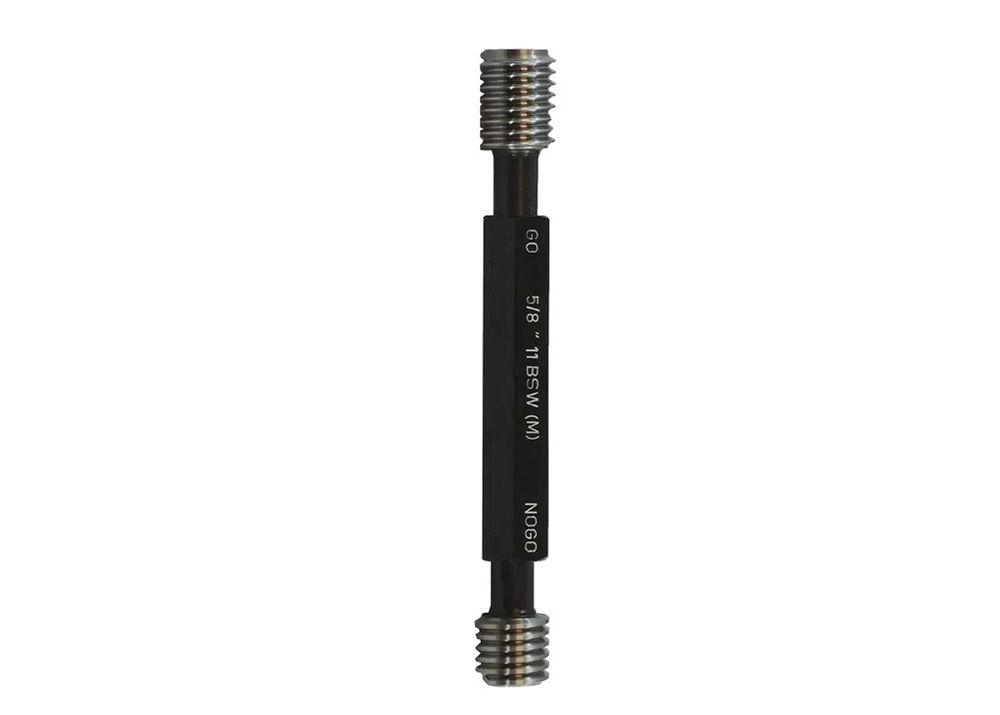

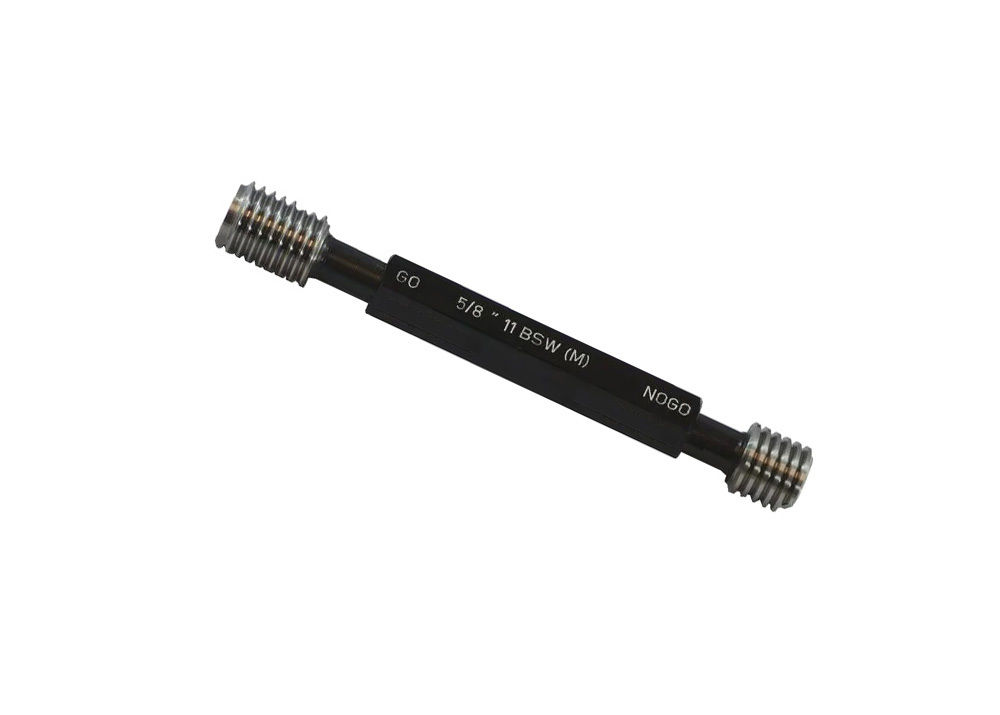

5/8"-11 BSW Go and NoGo Plug Thread Gauge with Calibration Certificate

5/8"-11 BSW Go and NoGo Plug Thread Gauge with Calibration Certificate

Description:

BSW thread plug gauge is used to verify the accuracy of internal BSW(British Standard Whitworth) screw threads, developed

by Joseph Whitworth, are s specific type of screw thread with a 55 degree thread angle. These gauges are essential for ensuring

proper fit and interchangeability of parts, particularly in applications using the order Whitworth thread standard.

BSW thread gauge available with GO thread plug gauges, NOGO thread plug gauge and combination GO/NOGO

thread plug gauges. Thread plug gauge are made of bearing steel, each thread gauge supplied with calibration certificate.

Quick Detail:

1. British Standard.

2. Material GCR15.

3. Both right hand(RH) and left hand(LH) are available

4. Wear resistance and corrosion resistance, stable structure, easy to use.

5. Supplied in fitted case.

Specification:

Applications:

1. Inspect internal BSW threads (e.g., nuts, threaded holes) for correct pitch diameter and thread form compliance.

2. Verify BSW threads in legacy British-engineered equipment or military hardware.

3. Check threaded components in vintage vehicles or machinery using Whitworth standards.

4. Ensure proper sealing in pipe fittings with BSW threads (e.g., hydraulic systems).

5. Assess wear/damage in existing BSW threads during overhaul or reassembly.

6. Confirm compatibility between BSW-threaded parts from different manufacturers.

Precautions:

1. Do not use it for non-gauge inspection purposes, because there are functional sharp parts in the thread

    and the corners of the gauge part, which is easy to cause injury to the operator.

2. Before use, please use oil to invade the gauge and the product, or wipe it with a clean cloth to confirm

    whether the gauge has rust, scratches, burrs, etc.

3. When using, apply fully with anti-rust lubricating oil, do not apply impact to the gauge.

4. When storing the gauge, dust, chips, etc. should be removed first to prevent rust. Store the gauge in a place

    where there is no moisture and the temperature does not change much, and check it regularly.
