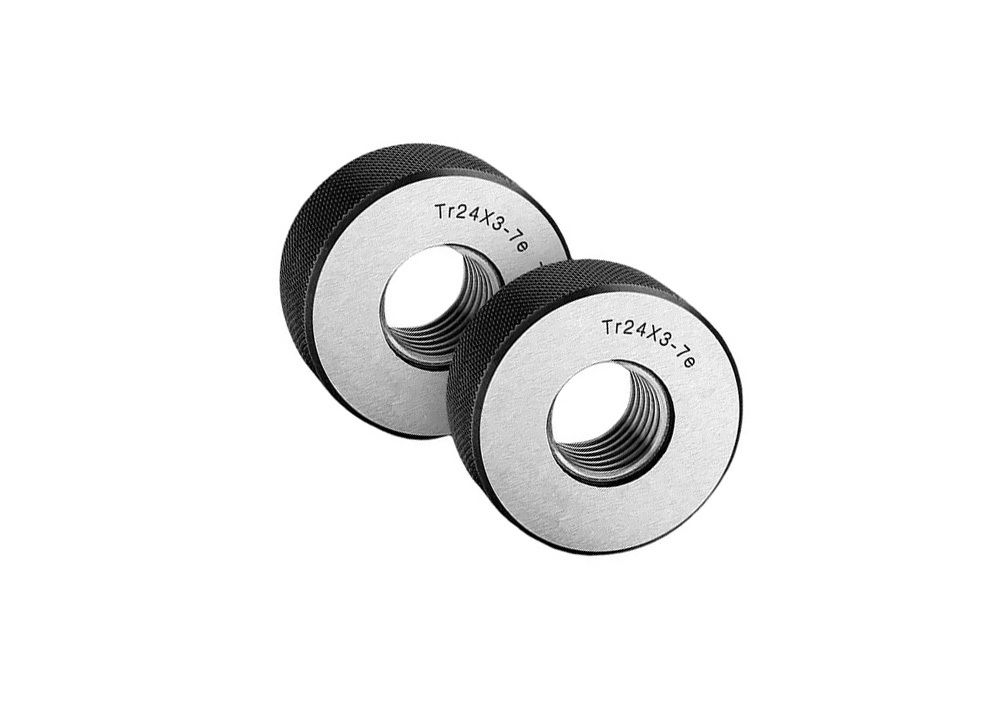

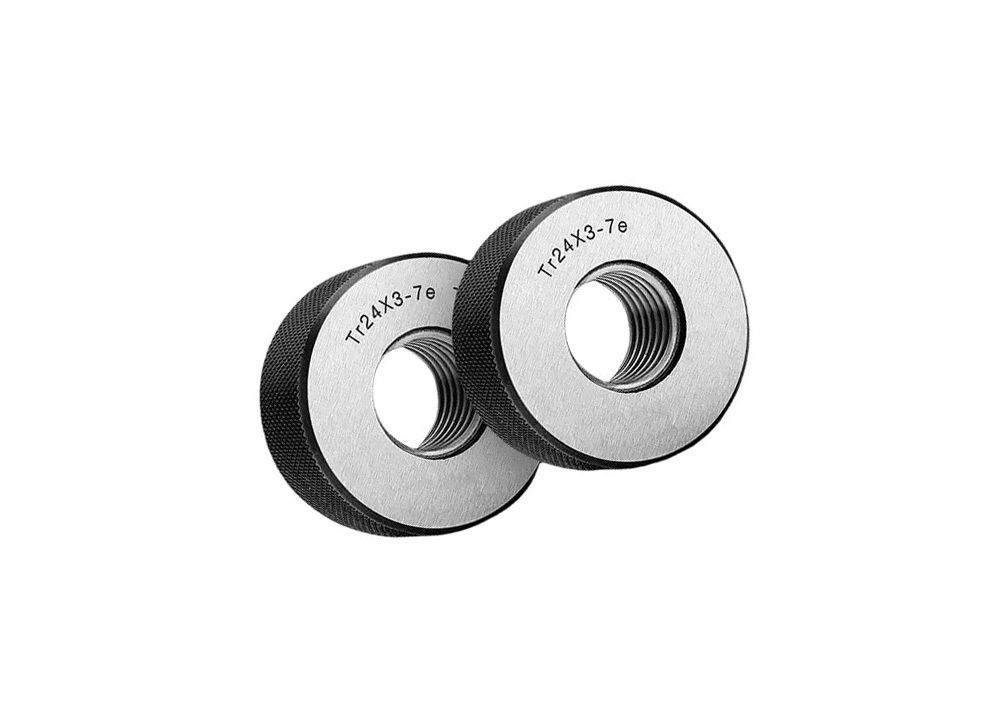

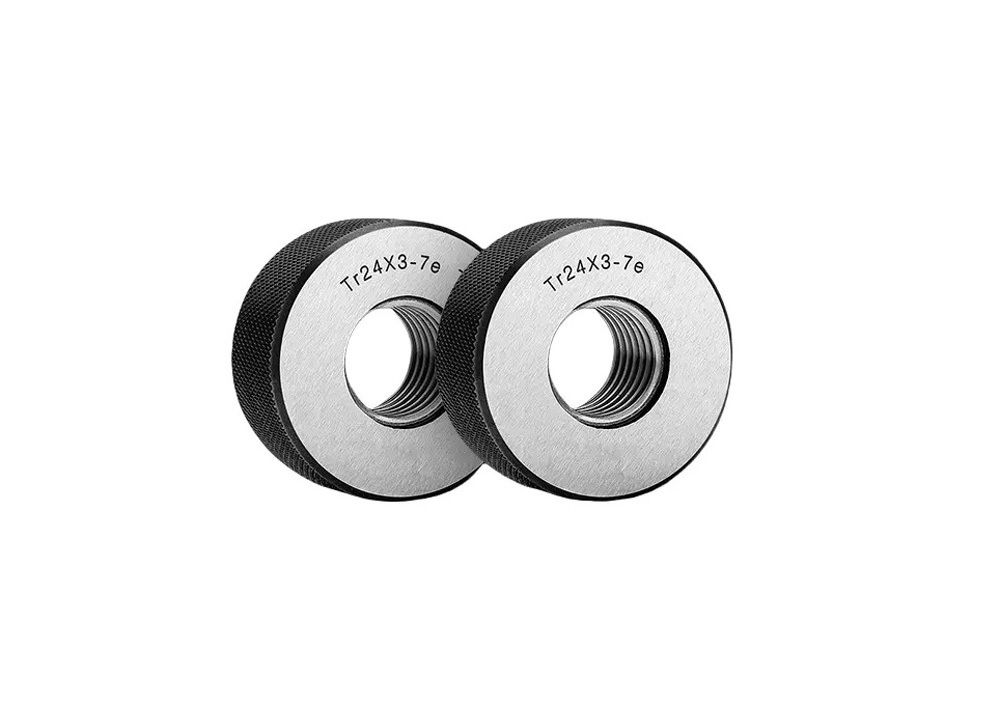

Thread Ring Gauge Tr24x3 Made From Hardened Tool Steel For Excellent Durability And Wear Resistance With Calibration Certificate

Thread Ring Gauge Tr24x3 Made from Hardened Tool Steel for Excellent Durability and Wear Resistance

with Calibration Certificate

Description:

Trapezoidal thread ring gauges used to inspect and verify external threads manufactured to trapezoidal thread standards.

Metric Trapezoidal thread ring gauge with thread angle 30°, tolerance class 7H, 7e, 8e, 8c,9c. These gauge are made of bearing

steel,each thread gauge supplied with calibration certificate.

Trapezoidal thread gauge thread gauge available with GO thread plug gauges, NOGO thread plug gauge and combination

GO/NOGO thread plug gauges.  Trapezoidal thread gauge also available with RH&LH.

When you order, please mark example, Thread Ring Gauge Tr8x1.5 7h LH

Quick Detail:

1. Verify the accuracy of internal threads that conform to trapezoidal thread standards

2. Material GCR15.

3. Both right hand(RH) and left hand(LH) are available

4. Wear resistance and corrosion resistance, stable structure, easy to use.

5. Supplied in fitted case.

Specification:

Applications:

Trapezoidal thread is mainly used for transmission (feed and lift) and position adjustment device, it is widely used in machinery

industry. Trapezoidal threads also can be used in fastening-connection.

Precautions:

1. Do not use it for non-gauge inspection purposes, because there are functional sharp parts in the thread

    and the corners of the gauge part, which is easy to cause injury to the operator.

2. Before use, please use oil to invade the gauge and the product, or wipe it with a clean cloth to confirm

    whether the gauge has rust, scratches, burrs, etc.

3. When using, apply fully with anti-rust lubricating oil, do not apply impact to the gauge.

4. When storing the gauge, dust, chips, etc. should be removed first to prevent rust. Store the gauge in a place

    where there is no moisture and the temperature does not change much, and check it regularly.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
