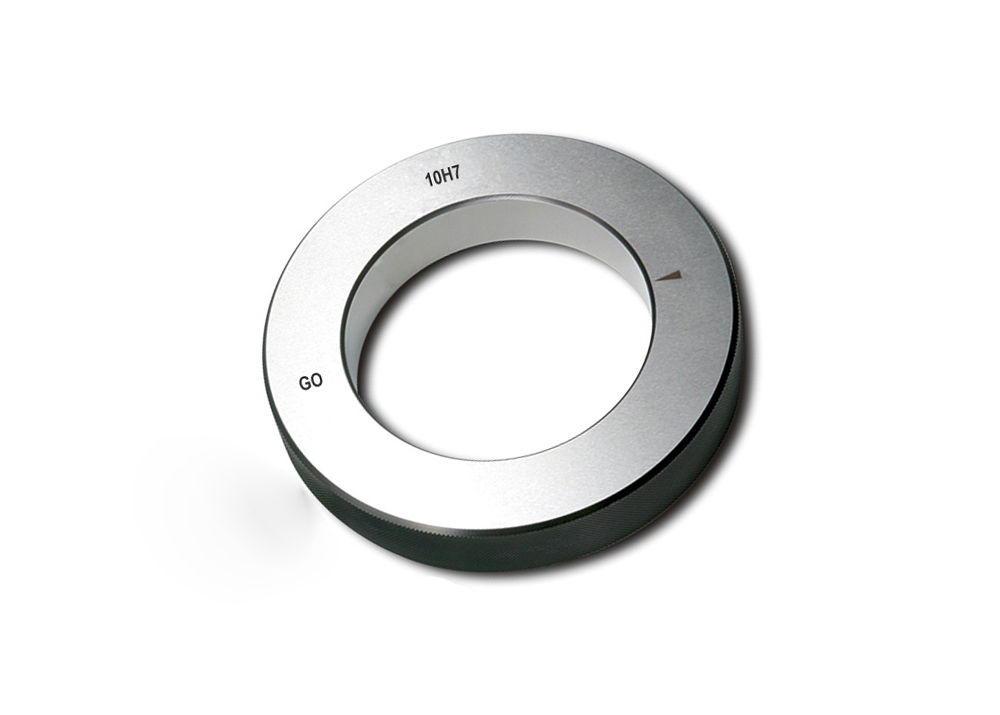

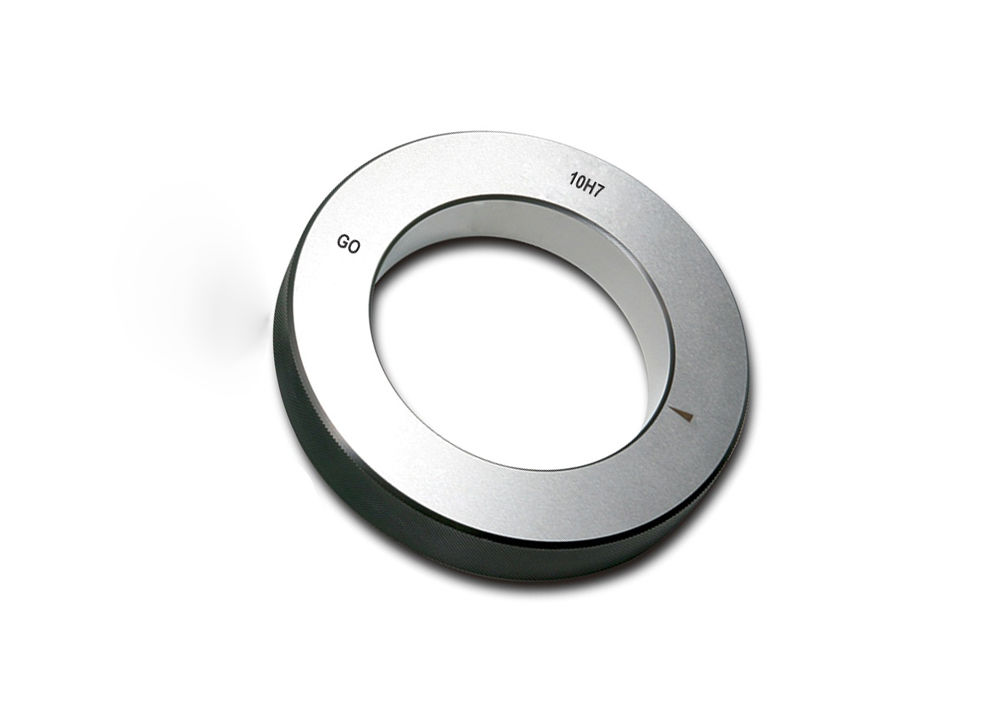

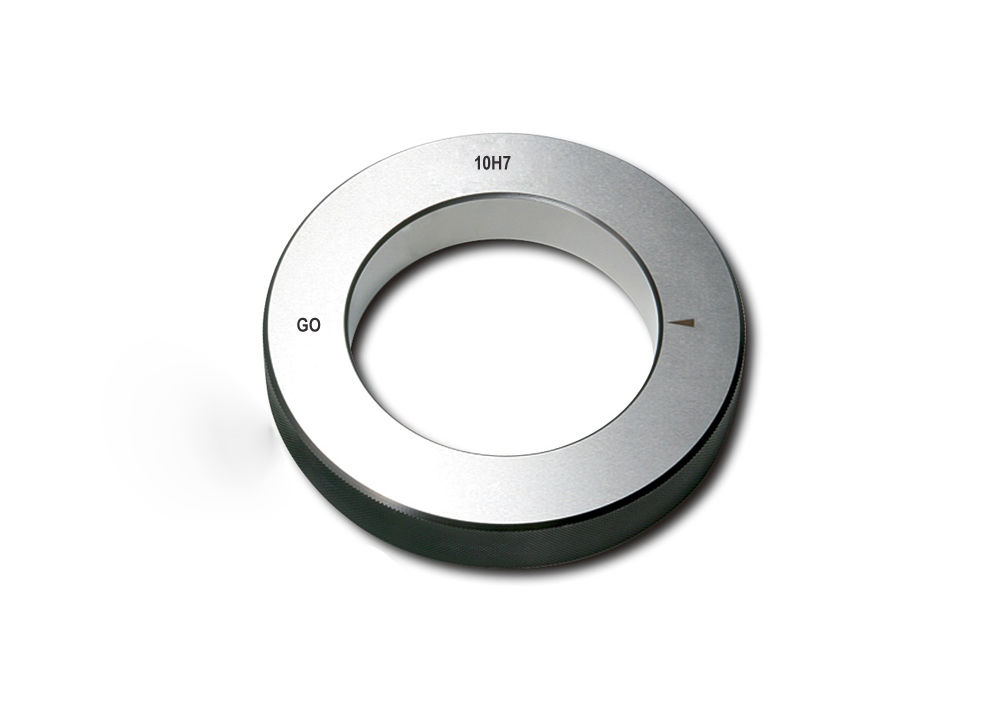

High Precision 10H7 Plain Ring Gauge Go Smooth Ring Gauges DIN7162 Standard

High Precision 10H7 Plain Ring Gauge Go Smooth Ring Gauges DIN7162 Standard

Description:

Deko Corp provides a complete line of smooth ring gauge available with sizes from 1.8 to 300, it is a precision measuring tool

used to measure the inner hole size of workpieces. Smooth ring gauges can be made into two types: maximum limit size

and minimum limit size. one end of its minimum limit size is called the GO end, and the end with the maximum limit size

is called the NOGO end.

Smooth ring gauges can be customized in various specifications according to user needs. Smooth ring gauges can be used

as dimensional benchmarks and comparative measurements. The structure of the smooth ring gauge is simple, usually

some solid with accurate size and shape, such as cylinder, cone, etc.

When you order, please kindly mention example: 8 ring gauge 6H GO and NOGO.

Quick Detail:

1. Smooth ring gauge.

2. Accuracy: H6, H7, H8, etc.

3. GO and NO GO and combination GO/NOGO types.

4. Conform standard: DIN7162.

5. Wear resistance and corrosion resistance, stable structure, easy to use.

6. Supplied in fitted case.

Specification:

Applications:

1.Hole inspection: The smooth ring gauge is mainly used to inspect the hole size of the workpiece to ensure that

    it meets the design requirements.

2.Quality control: In the production process, smooth ring gauges are widely used in quality control to ensure that

   the dimensions of the produced workpieces meet the standards.

3.Standardized production: the use of smooth ring gauges helps to achieve the standardization of production,

   ensure the consistency of the size of each batch of workpieces, and improve production efficiency and product quality.

Precautions:

1. Before use, check whether the measuring surface of the ring gauge is clean and free of rust, scratches and other defects.

    The sign of the ring gauge should be clearly visible.

2. The ring gauge should be used during the periodic inspection period, and should be accompanied by a certificate

    of conformity or other supporting documents. When measuring, the temperature should be as close to 20°C as possible,

    the force should be as small as possible, and it is avoided to push in or rotate the ring gauge.

3. The ring gauge should be inserted or pulled out along the axis of the hole, and should not be tilted or rotated.

    When measuring, the ring gauge should be fully inside the hole and should not be turned or shaken.

4. After use, the ring gauge should be cleaned in time, and the unclean ring gauge should be avoided for detection

    to reduce the measurement error.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
