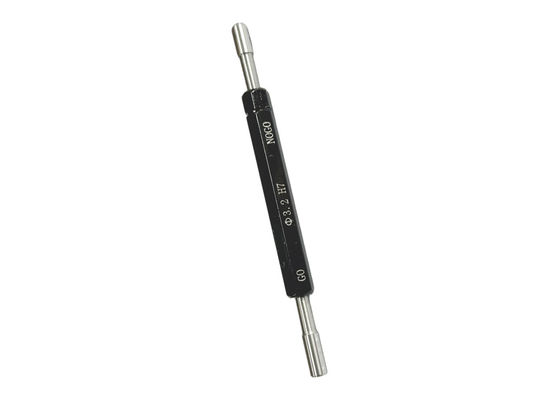

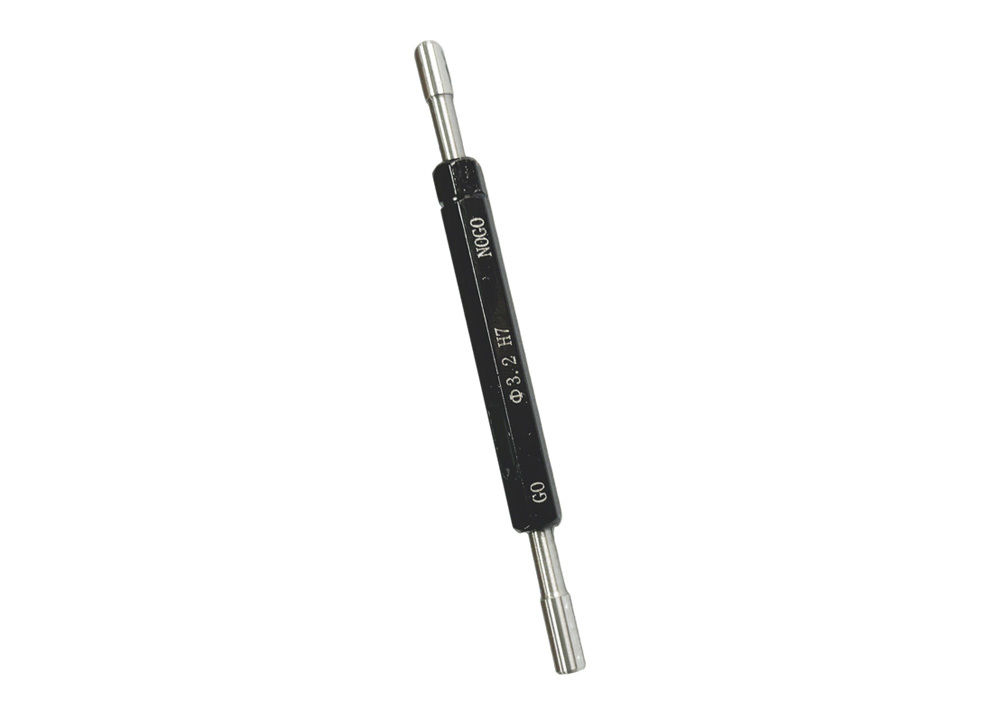

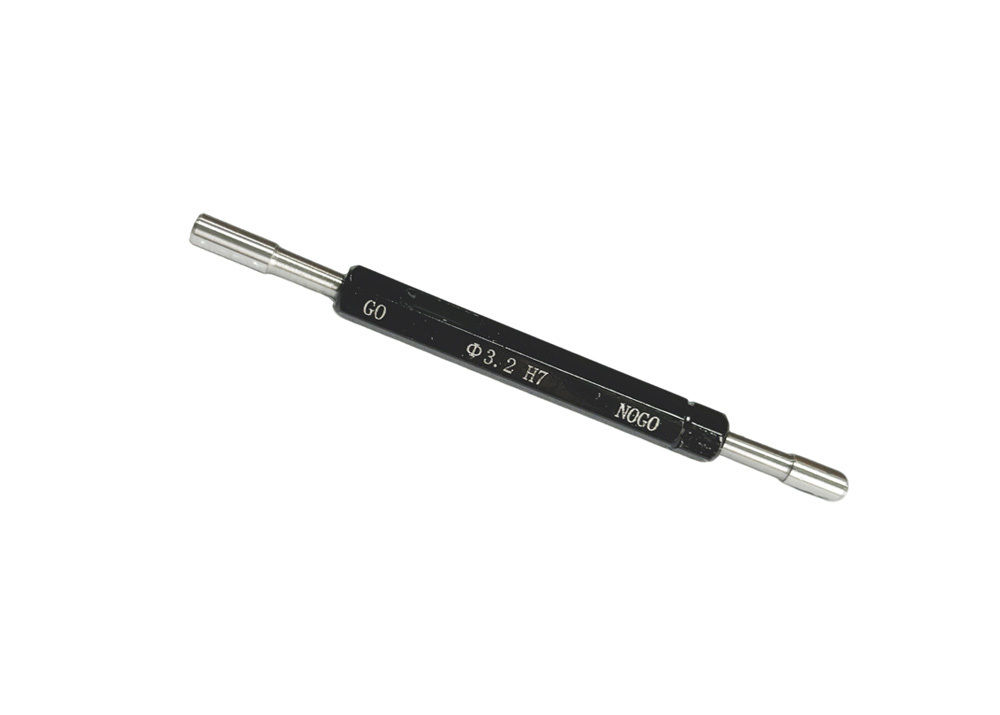

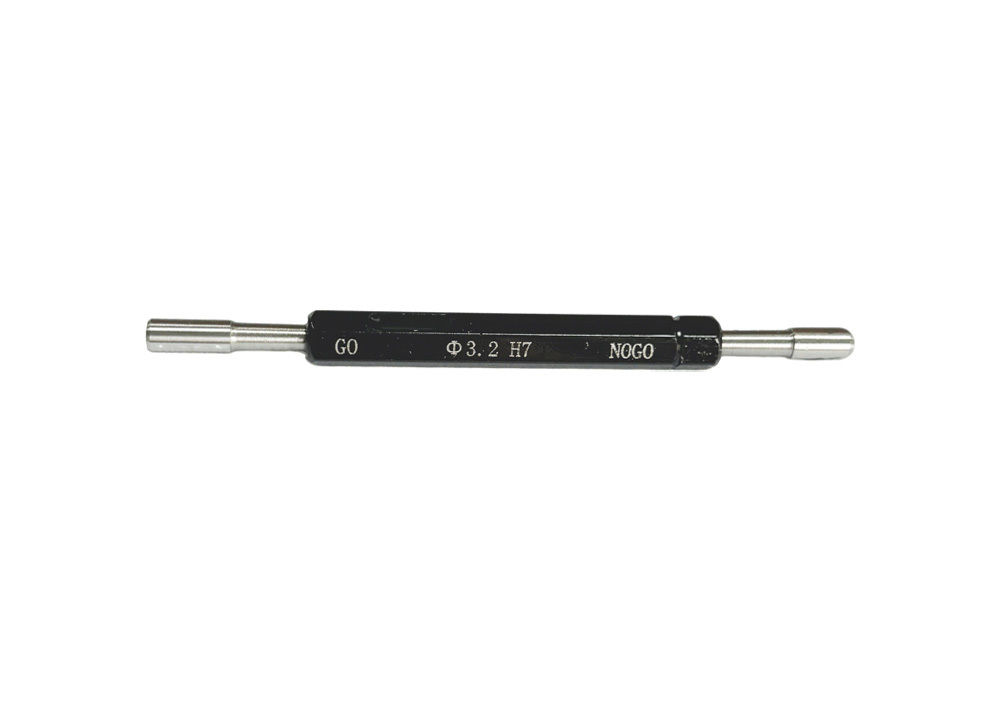

Bearing Steel Plain GO and NO GO Plug Gauges for Holes Accurate Measurement

Bearing Steel Plain GO and NO GO Plug Gauges for Holes Accurate Measurement

Description:

Plain plug gauge is a type of precision measuring tool used to check the internal diameter or hole size of a workpiece. It is commonly

used in manufacturing and quality control to ensure that holes or bores in parts are made to specific dimensions and tolerances. Plain

plug gauges come in two primary types: go and *no-go* gauges. The “go” gauge checks whether a hole is large enough, while the

“no-go” gauge ensures that the hole is not too large.

Smooth plug gauge available with different types, including GO plug gauges,

NOGO plain plug gauge and combination GO/NOGO plain plug gauges.

Thread plug gauge are made of bearing steel, each thread gauge supplied with calibration certificate.

When you order, please kindly mention example: 8 plug gauge 6H GO and NOGO.

Quick Detail:

1. Smooth plug gauge.

2. Accuracy: H6, H7, H8, etc.

3. GO and NO GO and combination GO/NOGO types.

4. Conform standard: DIN7162.

5. Wear resistance and corrosion resistance, stable structure, easy to use.

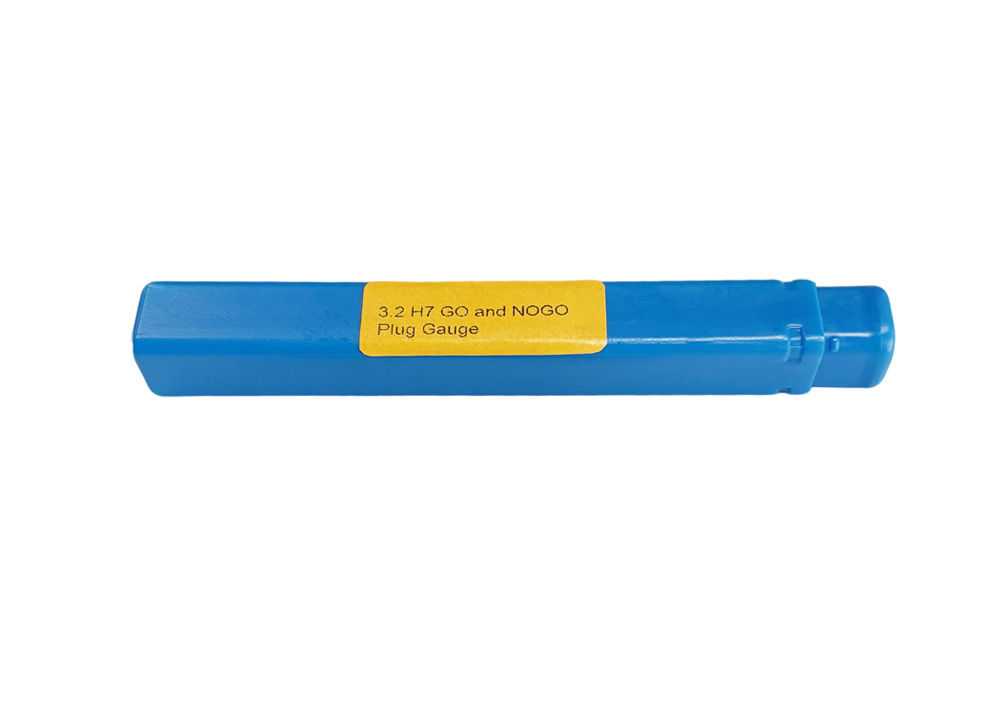

6. Supplied in fitted case.

Specification:

Applications:

1.Hole inspection: The smooth plug gauge is mainly used to inspect the hole size of the workpiece to ensure that

    it meets the design requirements.

2.Quality control: In the production process, smooth plug gauges are widely used in quality control to ensure that

   the dimensions of the produced workpieces meet the standards.

3.Standardized production: the use of smooth plug gauges helps to achieve the standardization of production,

   ensure the consistency of the size of each batch of workpieces, and improve production efficiency and product quality.

Precautions:

1. Before use, check whether the measuring surface of the plug gauge is clean and free of rust, scratches and other defects.

    The sign of the plug gauge should be clearly visible.

2. The plug gauge should be used during the periodic inspection period, and should be accompanied by a certificate

    of conformity or other supporting documents. When measuring, the temperature should be as close to 20°C as possible,

    the force should be as small as possible, and it is avoided to push in or rotate the plug gauge.

3. The plug gauge should be inserted or pulled out along the axis of the hole, and should not be tilted or rotated.

    When measuring, the plug gauge should be fully inside the hole and should not be turned or shaken.

4. After use, the plug gauge should be cleaned in time, and the unclean plug gauge should be avoided for detection

    to reduce the measurement error.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
