12-16″ Digital Outside Micrometer with Carbide Faces ±0.006mm Accuracy
-
Highlight
12-16″ Outside Micrometer
,High Accuracy IP65 Outside Micrometer
,Carbide Measuring Digital Outside Micrometer
-
WarrantyOne Year
-
Measurement ObjectDigital Outside Micrometer
-
MeasurementInch
-
Range12-16″
-
Resolution0.00005″
-
Accuracy±0.006mm
-
Electronic Or MechanicalElectronic
-
Protection LevelIP65
-
AnvilCarbide Measuring Faces
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2143-16
-
Packaging DetailsABS Box 45*30*7.5cm/Piece 2.30kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

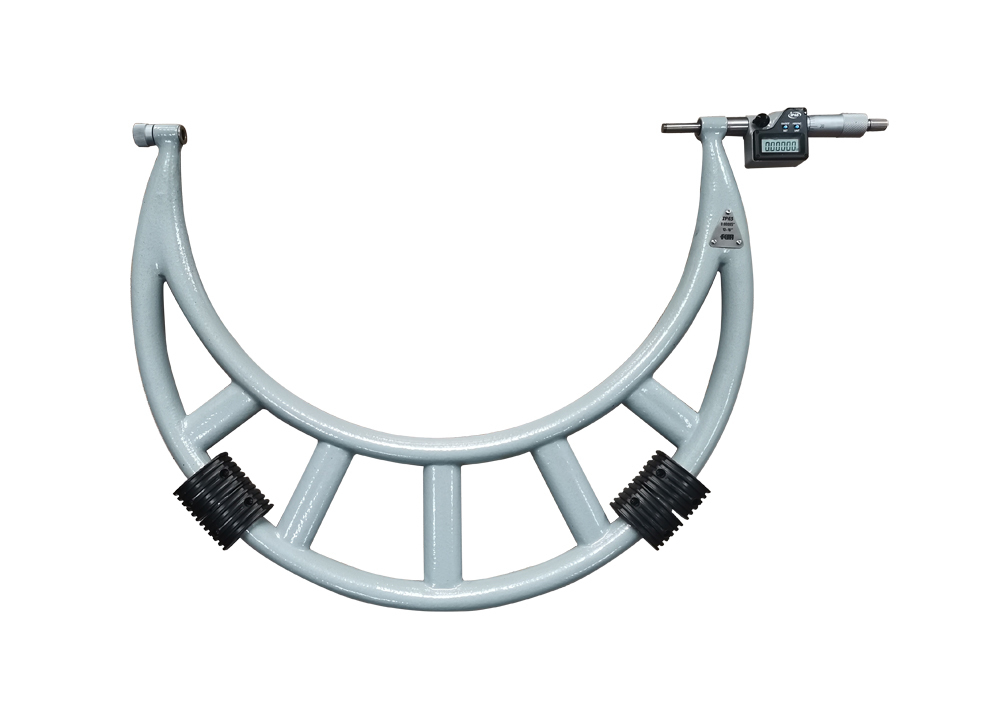

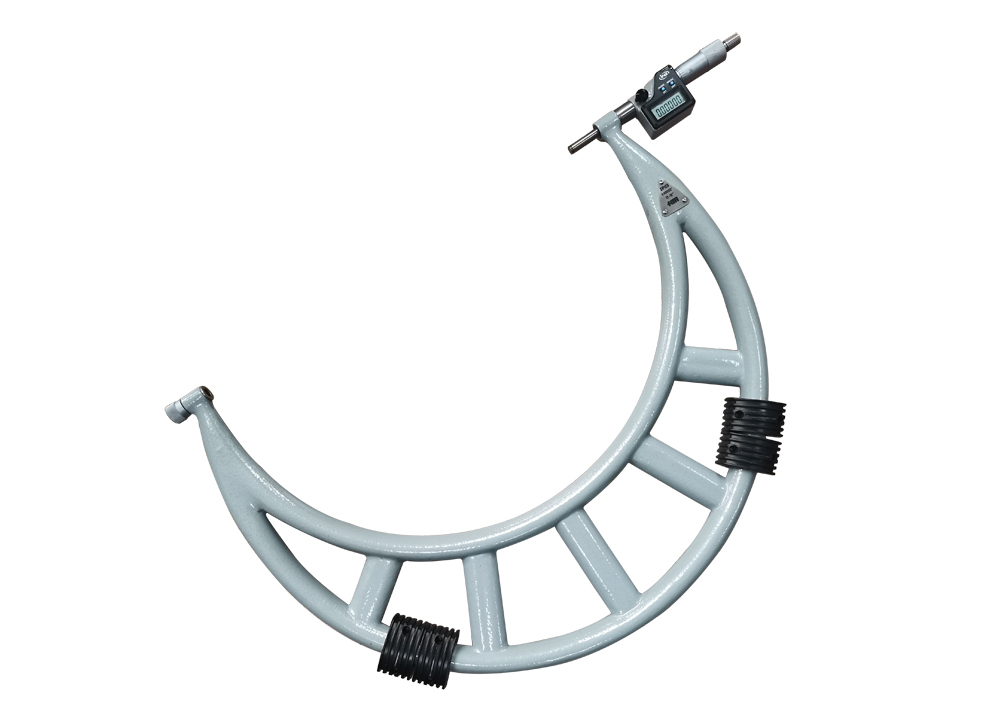

12-16″ Digital Outside Micrometer with Carbide Faces ±0.006mm Accuracy
12-16″ Large Size Digital Outside Micrometer with Carbide Measuring Faces
Precision measuring device with interchangeable anvils for measuring range up to 1000mm/40'', featuring hardened and ground spindle with carbide anvil for durability and accuracy. IP65 protection ensures resistance against water and dust for reliable measurements in harsh environments.
Key Features
- Protection level: IP65 (oil, water and dust proof)

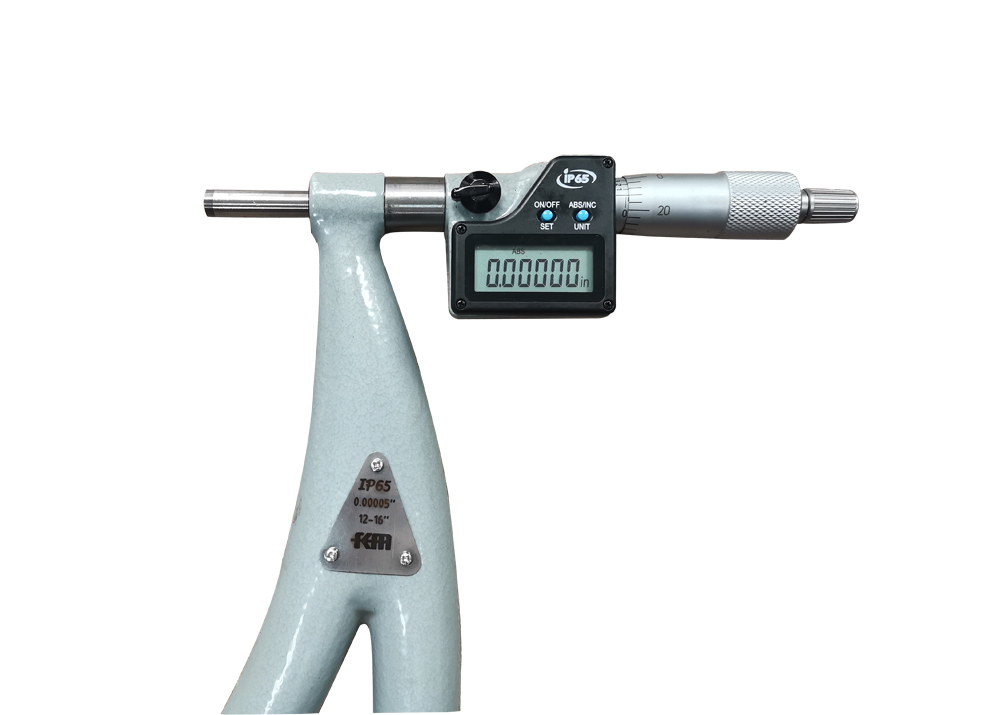

- Large LCD display for fast, accurate readings
- Wide measuring range with interchangeable anvil
- High accuracy standard collars maintain calibration
- Standard collars: within 1000mm/40":25mm/1", 50mm/2"

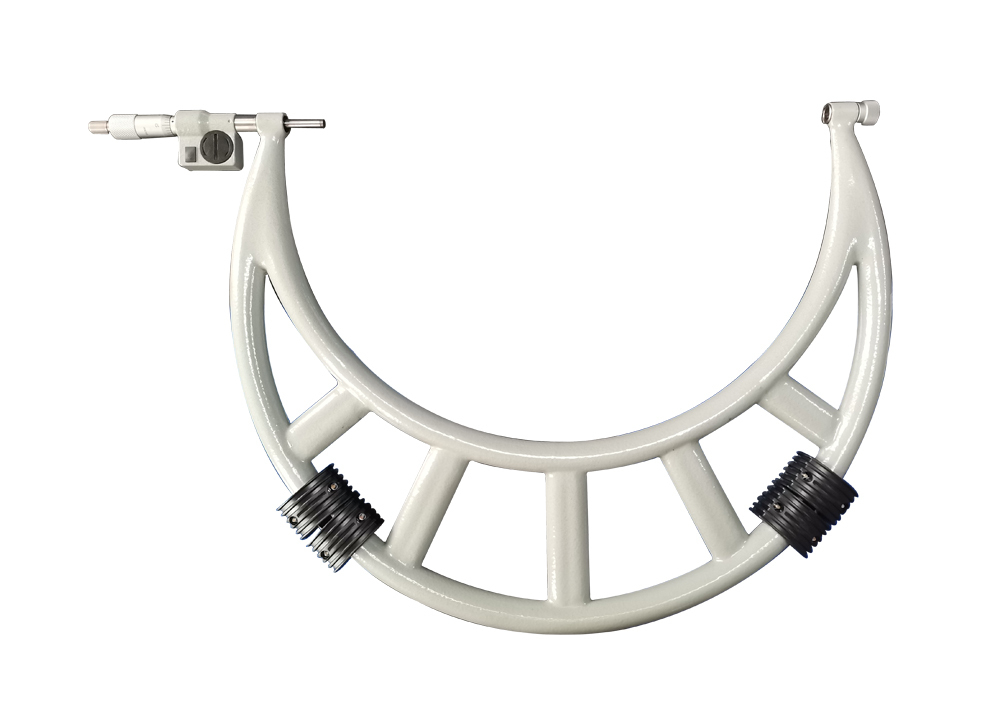

- Pipe combined frame for light weight and high rigidity
- Function keys: OFF/ON, SET, ABS/INC, UNIT (in/mm conversion)
- Carbide measuring faces for accuracy and wear resistance
- Ratchet thimble for precise application of force
- SPC data output capability

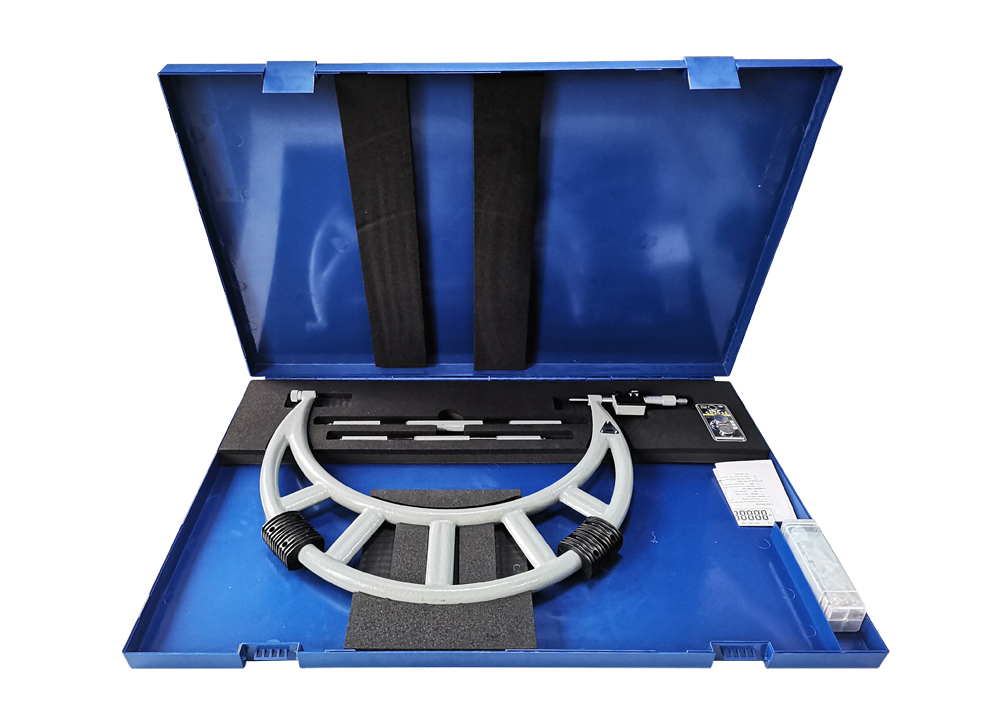

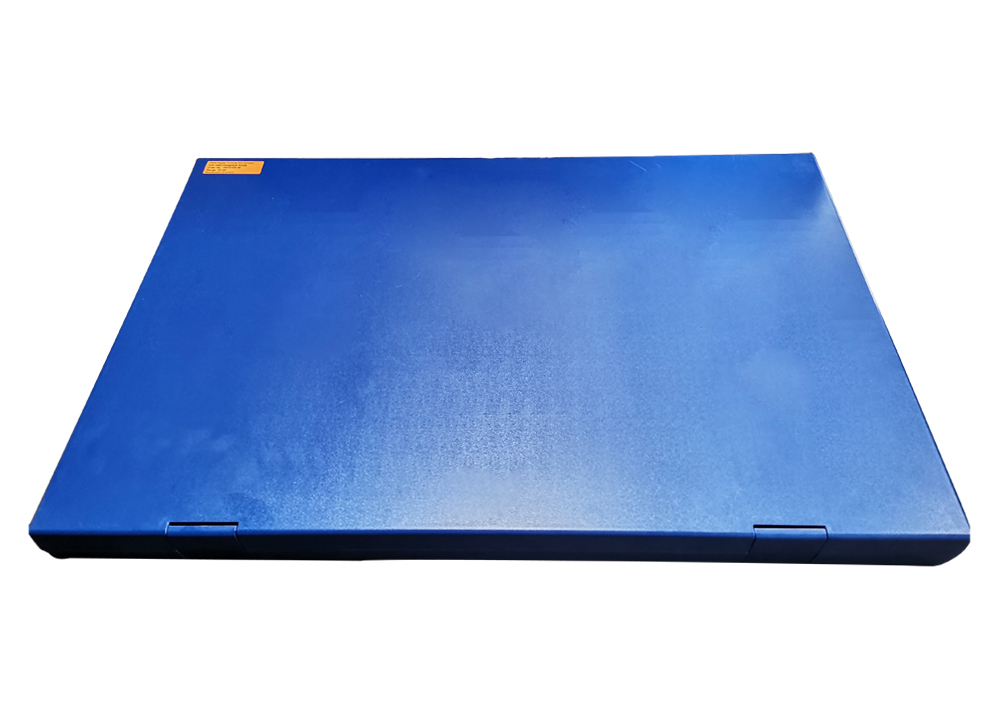

- Includes protective case for storage
Technical Specifications
Metric/Inch
| Order No. | Range | Resolution | Accuracy |
|---|---|---|---|
| KM-2143-100 | 0-100mm/0-4″ | 0.001mm | ±0.003mm |
| KM-2143-200 | 100-200mm/4-8″ | 0.001mm | ±0.004mm |
| KM-2143-300 | 200-300mm/8-12″ | 0.001mm | ±0.005mm |
| KM-2143-400 | 300-400mm/12-16″ | 0.001mm | ±0.006mm |
| KM-2143-500 | 400-500mm/16-20″ | 0.001mm | ±0.007mm |
| KM-2143-600 | 500-600mm/20-24″ | 0.001mm | ±0.007mm |
| KM-2143-700 | 600-700mm/24-28″ | 0.001mm | ±0.008mm |
| KM-2143-800 | 700-800mm/28-32″ | 0.001mm | ±0.009mm |
| KM-2143-900 | 800-900mm/32-36″ | 0.001mm | ±0.010mm |
| KM-2143-1000 | 900-1000mm/36-40″ | 0.001mm | ±0.010mm |
Inch/Metric
| Order No. | Range | Resolution | Accuracy |
|---|---|---|---|
| KM-2143-4 | 0-4″/0-100mm | 0.00005″ | ±0.003mm |
| KM-2143-8 | 4-8″/100-200mm | 0.00005″ | ±0.004mm |
| KM-2143-12 | 8-12″/200-300mm | 0.00005″ | ±0.005mm |
| KM-2143-16 | 12-16″/300-400mm | 0.00005″ | ±0.006mm |
| KM-2143-20 | 16-20″/400-500mm | 0.00005″ | ±0.007mm |
| KM-2143-24 | 20-24″/500-600mm | 0.00005″ | ±0.007mm |
| KM-2143-28 | 24-28″/600-700mm | 0.00005″ | ±0.008mm |
| KM-2143-32 | 28-32″/700-800mm | 0.00005″ | ±0.009mm |
| KM-2143-36 | 32-36″/800-900mm | 0.00005″ | ±0.010mm |
| KM-2143-40 | 36-40/″900-1000mm | 0.00005″ | ±0.010mm |
Applications
Digital outside micrometers are essential for precision measurement in engineering, machining, physics, and manufacturing applications:
- Manufacturing: Measuring parts and components to ensure product accuracy and quality
- Machining: Outer diameter measurement, dimensional verification, and roundness assessment
- Automotive maintenance: Measuring tire diameters and other critical components
Usage Guidelines
- Inspect micrometer for damage or wear before use
- Clean both the anvil and workpiece surface to remove oil, debris, or contaminants
- Position workpiece securely on anvil to prevent movement during measurement
- Perform regular maintenance and calibration
