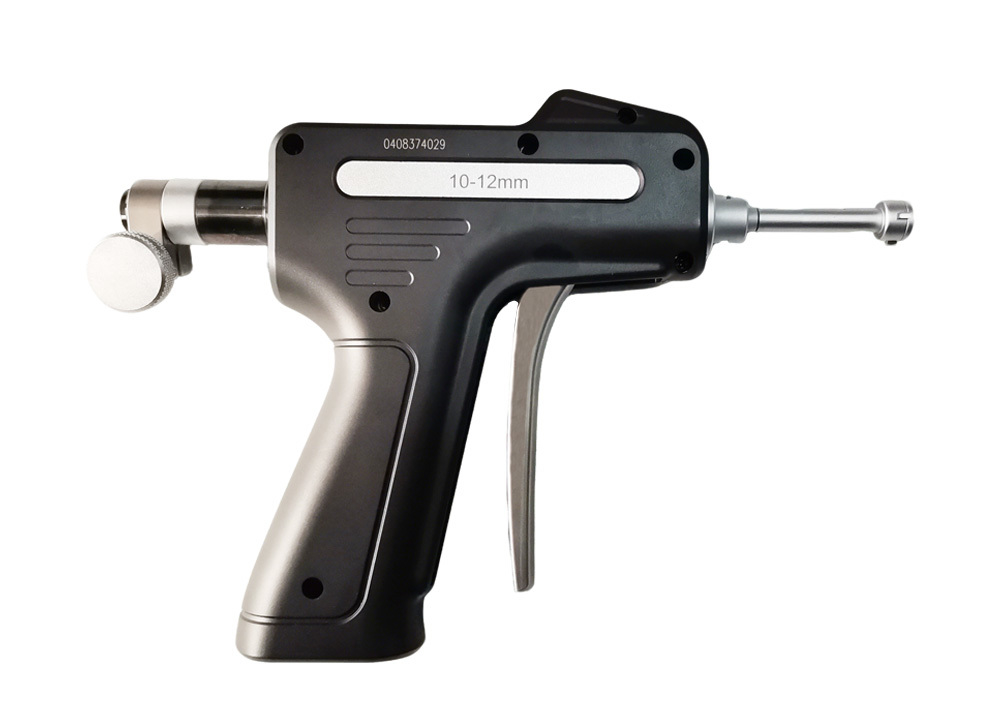

10-12mm Pistol-Grip 3 Point Bore Gauge Tool with Digital Indicator for Fast Batch Measurement
-
Highlight
3 Point Bore Gauge Tool
,Batch Measurement Bore Gauge Tool
,12mm Bore Gauge Tool
-
WarrantyOne Year
-
MeasurementMetric
-
Measurement ObjectInside Diameter
-
Measuring Range10-12mm
-
Accuracy0.004mm
-
Setting RingsΦ10mm
-
FormPistol-Grip Three-Point
-
FeatureSingle-Hand Operation
-
ProcessingFine Lapping
-
PackageAluminium Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2305-12
-
Packaging DetailsAluminium Box 34*21*10.5cm/Piece 1.55kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
10-12mm Pistol-Grip 3 Point Bore Gauge Tool with Digital Indicator for Fast Batch Measurement
10-12mm Pistol-Grip 3 Point Bore Gauge Tool with Digital Indicator for Fast Batch Measurement

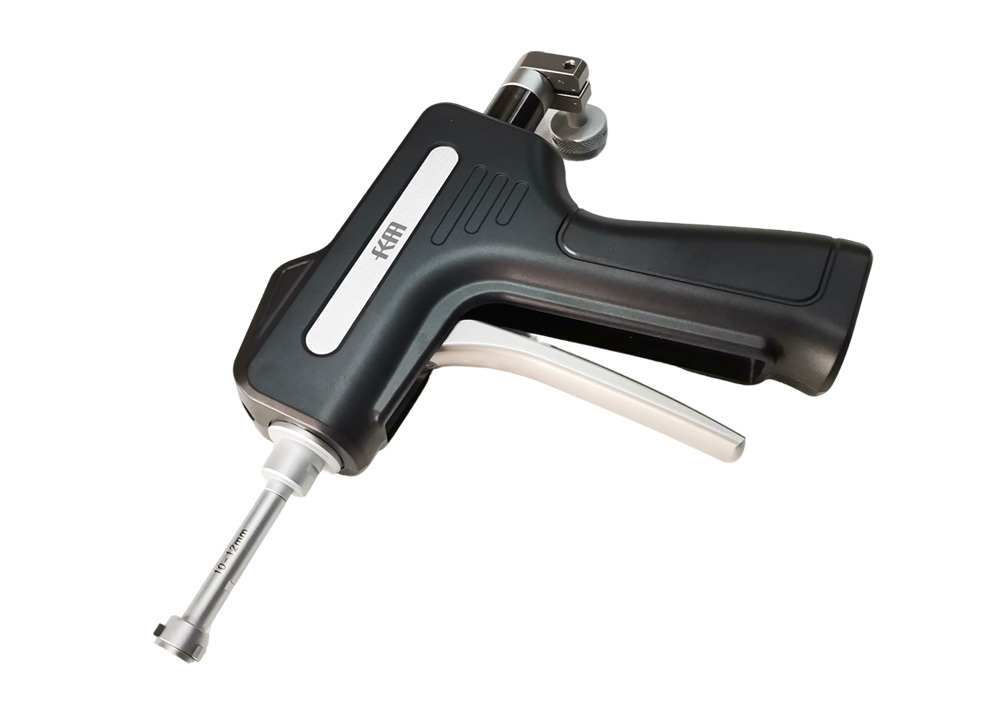

This pistol-grip three-point bore gauge enables one-handed operation, making it ideal for measuring in tight spaces and hard-to-reach locations. Designed for fast batch measurements, it allows quick comparison of multiple hole dimensions to verify consistency.
The three-point contact design ensures superior accuracy and stability when measuring both blind and through holes. This configuration effectively minimizes measurement errors, delivering highly precise results.
Available in a comprehensive measuring range from 6-8mm up to 275-300mm (metric) and 0.275-0.35" up to 11-12" (imperial).
Key Features
- Self-centering 3-point mechanism for accurate bore measurement
- Capable of measuring closer to the bottom of blind bores
- Carbide-tipped contact points with ratchet stop
- Optional digital indicator (fixing bore: φ8mm or 3/8")
- Supplied with setting rings for measurements within 100mm

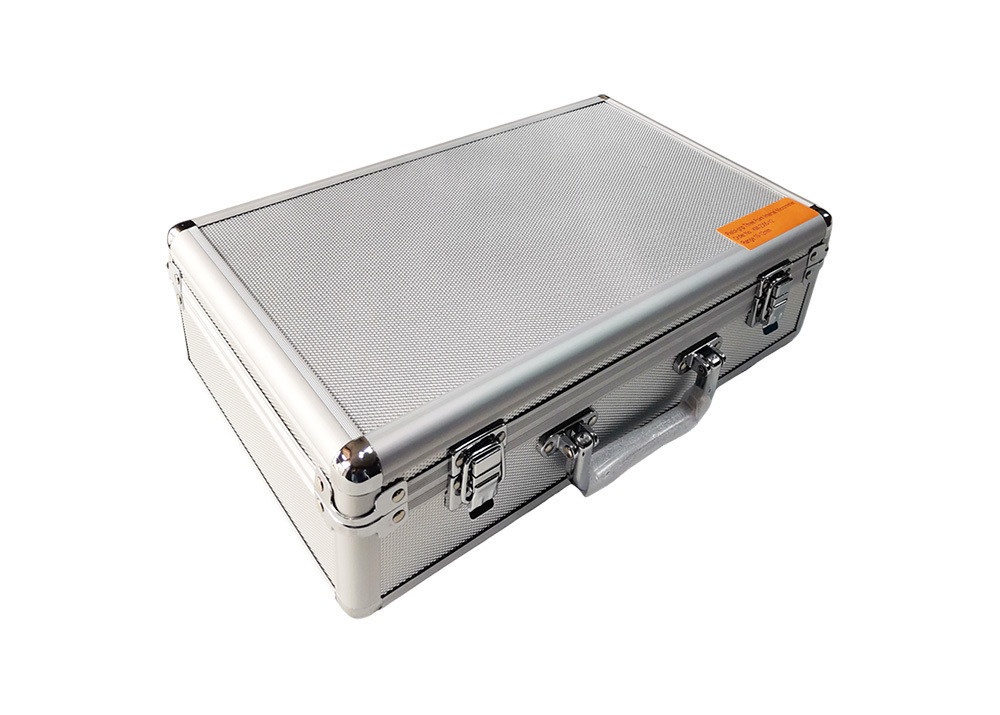

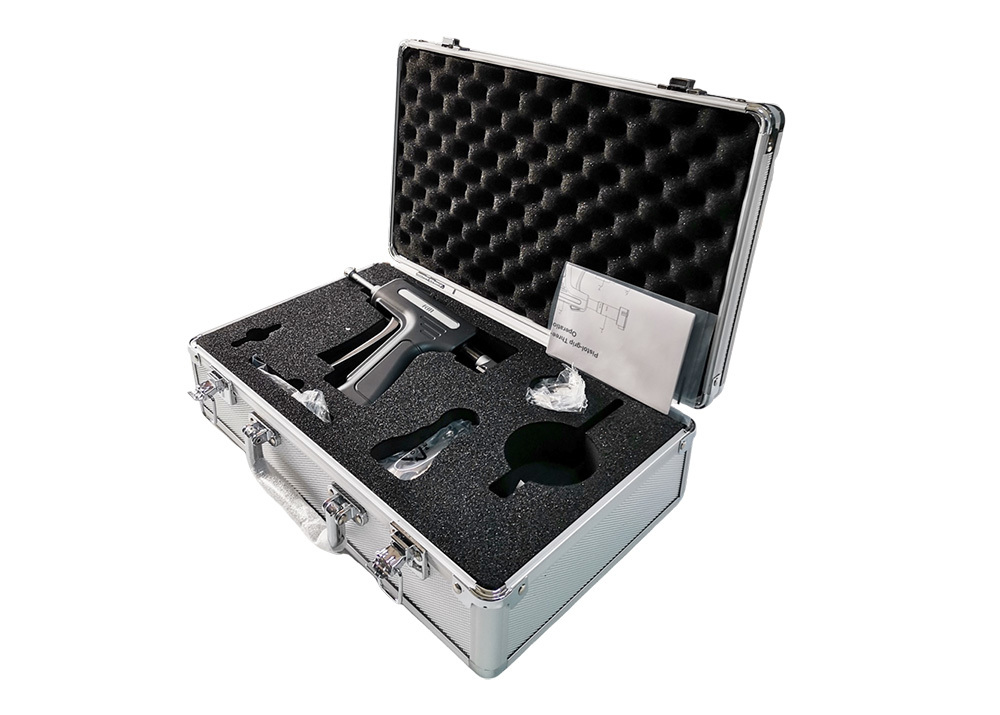

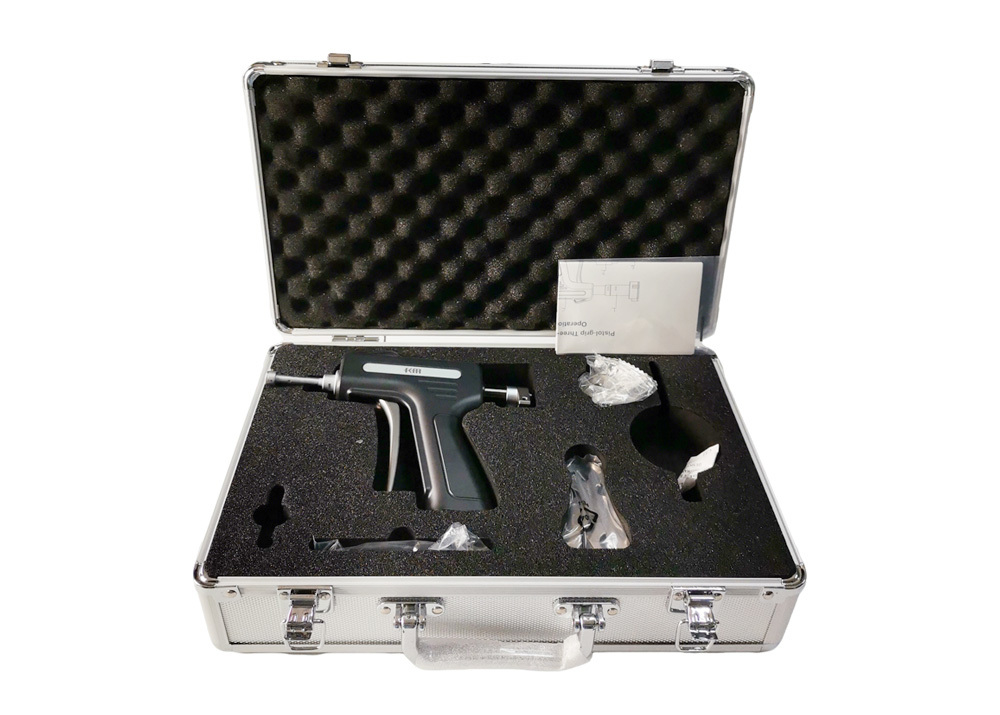

- Comes in a fitted protective case
Technical Specifications
| Order No. | Measuring Range | Accuracy | Setting Rings |
|---|---|---|---|
| KM-2305-8 | 6-8mm | 0.004mm | Φ6mm |
| KM-2305-10 | 8-10mm | 0.004mm | Φ8mm |
| KM-2305-12 | 10-12mm | 0.004mm | Φ10mm |
| KM-2305-16 | 12-16mm | 0.004mm | Φ16mm |
| KM-2305-20 | 16-20mm | 0.004mm | Φ16mm |
| KM-2305-25 | 20-25mm | 0.004mm | Φ25mm |
| KM-2305-30 | 25-30mm | 0.004mm | Φ25mm |
| KM-2305-40 | 30-40mm | 0.004mm | Φ40mm |
| KM-2305-50 | 40-50mm | 0.005mm | Φ40mm |
| KM-2305-63 | 50-63mm | 0.005mm | Φ62mm |
| KM-2305-75 | 62-75mm | 0.005mm | Φ62mm |
| KM-2305-88 | 75-88mm | 0.005mm | Φ87mm |
| KM-2305-100 | 87-100mm | 0.005mm | Φ87mm |
| KM-2305-125 | 100-125mm | 0.005mm | Φ112.5mm |
| KM-2305-150 | 125-150mm | 0.005mm | Φ137.5mm |
| KM-2305-175 | 150-175mm | 0.005mm | Φ162.5mm |
| KM-2305-200 | 175-200mm | 0.005mm | Φ187.5mm |
| KM-2305-225 | 200-225mm | 0.007mm | Φ212.5mm |
| KM-2305-250 | 225-250mm | 0.007mm | Φ237.5mm |
| KM-2305-275 | 250-275mm | 0.007mm | Φ262.5mm |
| KM-2305-300 | 275-300mm | 0.007mm | Φ287.5mm |
Applications
This pistol-grip three-point internal micrometer is primarily used for measuring holes, slotted holes, and similar features. It finds extensive application across machinery manufacturing, automotive production, aerospace, electronic components, and various industrial sectors. Its high measurement accuracy, user-friendly design, and simple operation make it an essential tool for precise bore diameter measurement.
Operation Guidelines
- Avoid applying excessive force during measurement to maintain precision
- Do not disassemble the instrument
- Keep the instrument clean and dry
- When installing measuring jaws, pull back the grip and insert jaws into grooves sequentially
- Ensure jaw numbers correspond with the three grooves in the measuring head
- Apply anti-rust oil and return to packaging box for long-term storage
- Prevent dust accumulation in the three grooves of the measuring head
- Recommended digital indicator range: above 12.7mm/0.5"
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacturing, and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. If you receive any defective accessories, we will ship replacement parts or products. As an experienced manufacturer with strict calibration and inspection processes, you can trust our product quality.
