30-40mm Pistol-grip Three-point Internal Micrometers For Precise And Measurements In Tight Spaces For Easy Reading
-
Highlight
Measurements in Tight Spaces Micrometers
,Pistol Grip Three Point Micrometers
,30-40mm Three Point Micrometers
-
WarrantyOne Year
-
MeasurementMetric
-
Measurement ObjectInside Diameter
-
Measuring Range30-40mm
-
Accuracy0.004mm
-
Setting RingsΦ40mm
-
FormPistol-Grip Three-Point
-
FeatureSingle-Hand Operation
-
ProcessingFine Lapping
-

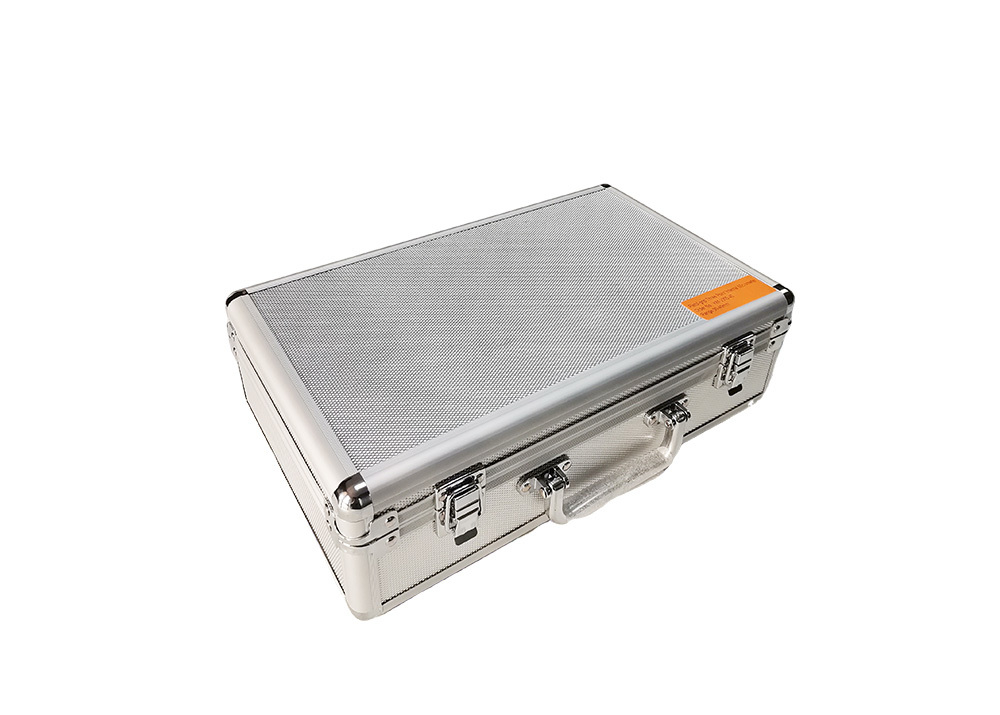

PackageAluminium Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2305-40
-
Packaging DetailsAluminium Box 34*21*11cm/Piece 2.60kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
30-40mm Pistol-grip Three-point Internal Micrometers For Precise And Measurements In Tight Spaces For Easy Reading
30-40mm Pistol-grip Three-point Internal Micrometers For Precise And Measurements In Tight Spaces For Easy Reading
Precision measurement tools designed for accurate bore measurements in tight spaces and hard-to-reach locations.
Product Overview

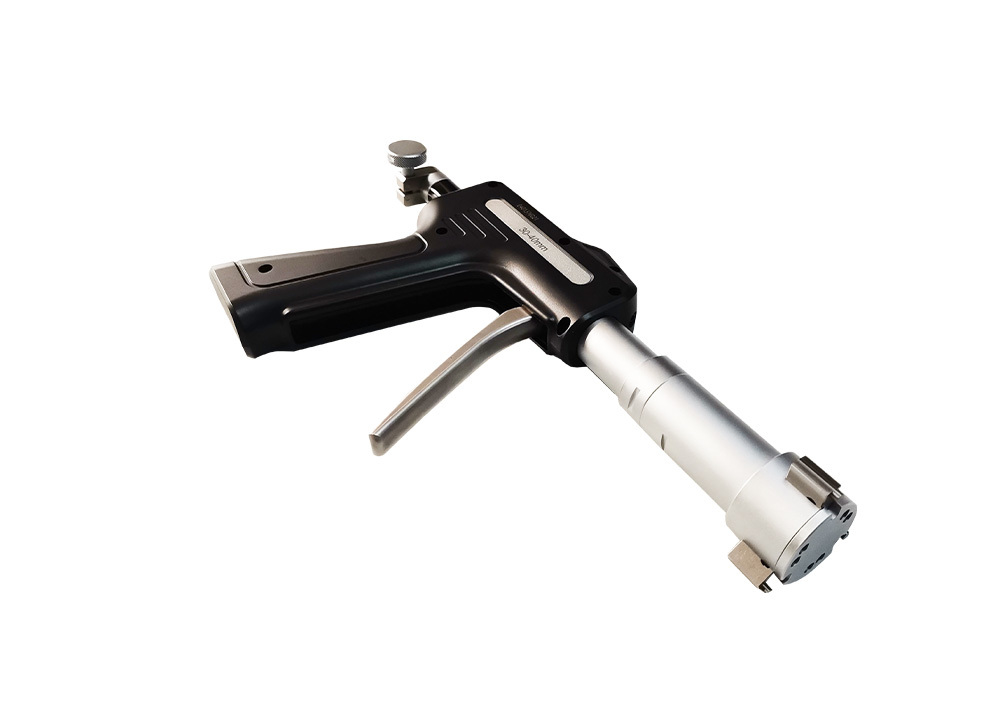

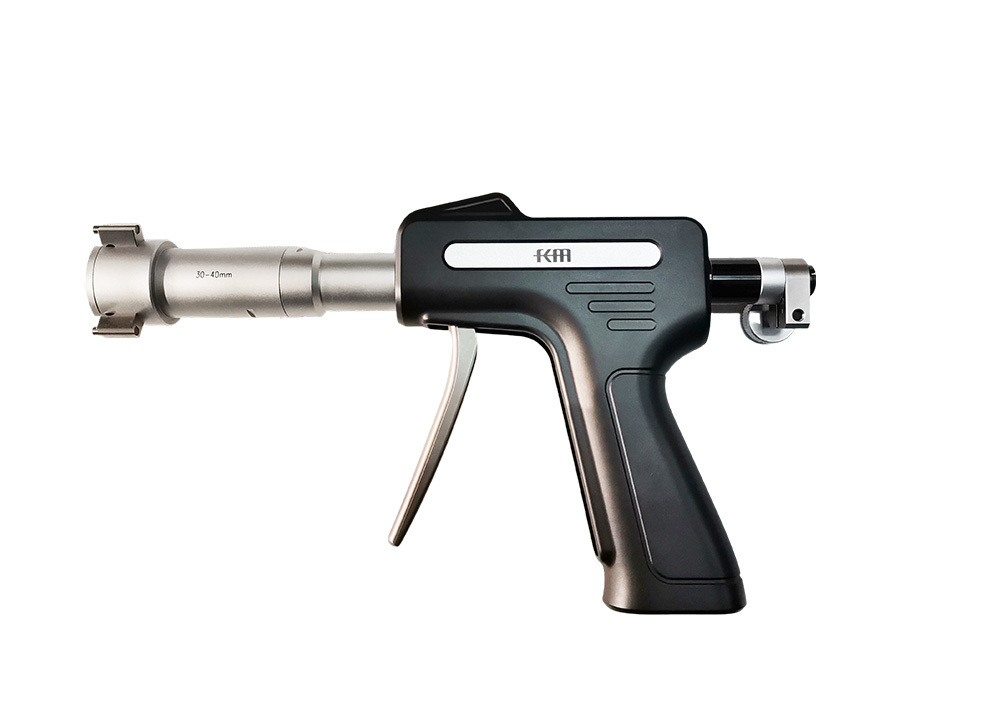

The pistol-grip three-point internal micrometer enables one-handed operation, making it ideal for measuring in confined spaces and suitable for batch measurements. The three-point contact system ensures superior accuracy and stability when measuring both blind and through holes, effectively minimizing measurement errors.
Key Features
- Self-centering 3-point design for accurate bore measurement
- Ability to measure closer to the bottom of blind bores
- Carbide-tipped contact points with ratchet stop
- Optional digital indicator (fixing bore: φ8mm or 3/8")
- Supplied with setting rings for measurements within 100mm

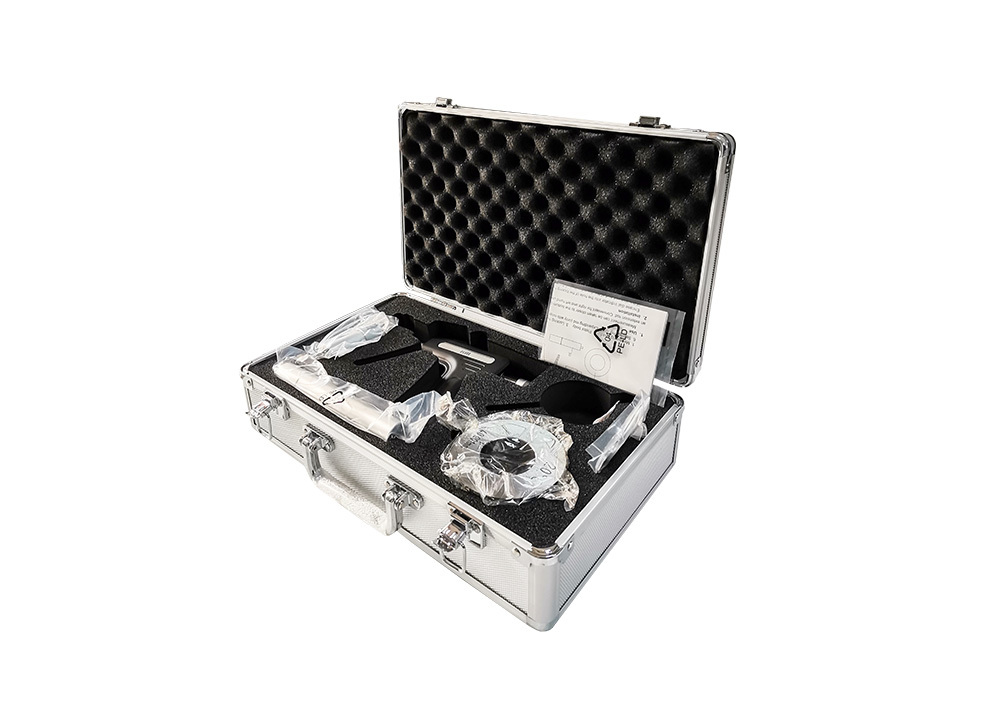

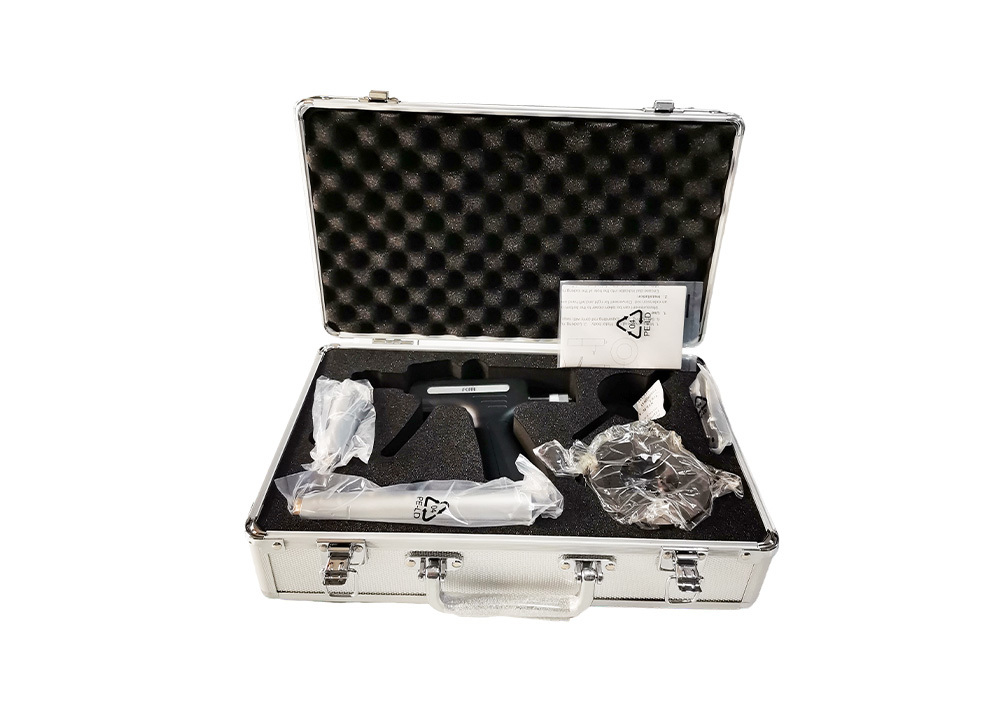

- Includes fitted protective case
Technical Specifications
| Order No. | Measuring Range | Accuracy | Setting Rings |
|---|---|---|---|
| KM-2305-8 | 6-8mm | 0.004mm | Φ6mm |
| KM-2305-10 | 8-10mm | 0.004mm | Φ8mm |
| KM-2305-12 | 10-12mm | 0.004mm | Φ10mm |
| KM-2305-16 | 12-16mm | 0.004mm | Φ16mm |
| KM-2305-20 | 16-20mm | 0.004mm | Φ16mm |
| KM-2305-25 | 20-25mm | 0.004mm | Φ25mm |
| KM-2305-30 | 25-30mm | 0.004mm | Φ25mm |
| KM-2305-40 | 30-40mm | 0.004mm | Φ40mm |
| KM-2305-50 | 40-50mm | 0.005mm | Φ40mm |
| KM-2305-63 | 50-63mm | 0.005mm | Φ62mm |
| KM-2305-75 | 62-75mm | 0.005mm | Φ62mm |
| KM-2305-88 | 75-88mm | 0.005mm | Φ87mm |
| KM-2305-100 | 87-100mm | 0.005mm | Φ87mm |
| KM-2305-125 | 100-125mm | 0.005mm | Φ112.5mm |
| KM-2305-150 | 125-150mm | 0.005mm | Φ137.5mm |
| KM-2305-175 | 150-175mm | 0.005mm | Φ162.5mm |
| KM-2305-200 | 175-200mm | 0.005mm | Φ187.5mm |
| KM-2305-225 | 200-225mm | 0.007mm | Φ212.5mm |
| KM-2305-250 | 225-250mm | 0.007mm | Φ237.5mm |
| KM-2305-275 | 250-275mm | 0.007mm | Φ262.5mm |
| KM-2305-300 | 275-300mm | 0.007mm | Φ287.5mm |
Applications
Pistol-grip three-point internal micrometers are primarily used for measuring holes and slotted holes. They are widely applied in machinery manufacturing, automobile manufacturing, aerospace, electronic components, and other industrial fields. Their high measurement accuracy, ease of use, and simple operation make them essential tools for bore diameter measurement.
Usage Guidelines
- Avoid applying excessive force during measurement to maintain precision
- Do not disassemble the instrument
- Keep the instrument clean and dry
- When installing measuring jaws, pull back the grip and insert jaws into grooves sequentially
- Ensure jaw numbers match corresponding groove numbers when changing jaws
- Apply anti-rust oil and return to packaging box for long-term storage
- Prevent dust from entering the three grooves in the measuring head
- Recommended digital indicator range: above 12.7mm/0.5"
