225-250mm Pistol-Grip 3 Point Grip Micrometer Tool With Effortless Measurements Tight Spaces for Machinery Manufacturing
-
Highlight
3 Point Grip Micrometer Tool
,250mm 3 Point Grip Micrometer
-
WarrantyOne Year
-
MeasurementMetric
-
Measurement ObjectInside Diameter For Bore
-
Measuring Range225-250mm
-
Accuracy0.007mm
-
Setting RingsΦ237.5mm
-
FormPistol-Grip Three-Point
-
FeatureSingle-Hand Operation
-
ProcessingFine Lapping
-
CustomizedAcceptable
-

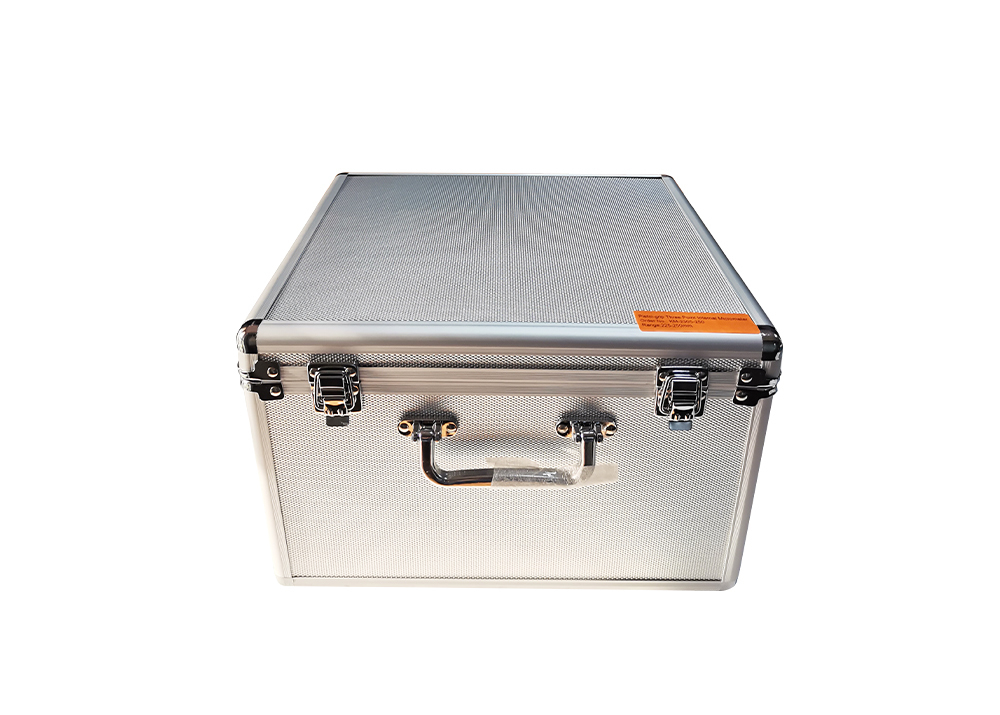

PackageAluminium Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2305-250
-
Packaging DetailsAluminium Box 32*30*21cm/Piece 4.10kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
225-250mm Pistol-Grip 3 Point Grip Micrometer Tool With Effortless Measurements Tight Spaces for Machinery Manufacturing
225-250mm Pistol-Grip 3 Point Grip Micrometer Tool With Effortless Measurements Tight Spaces for Machinery Manufacturing

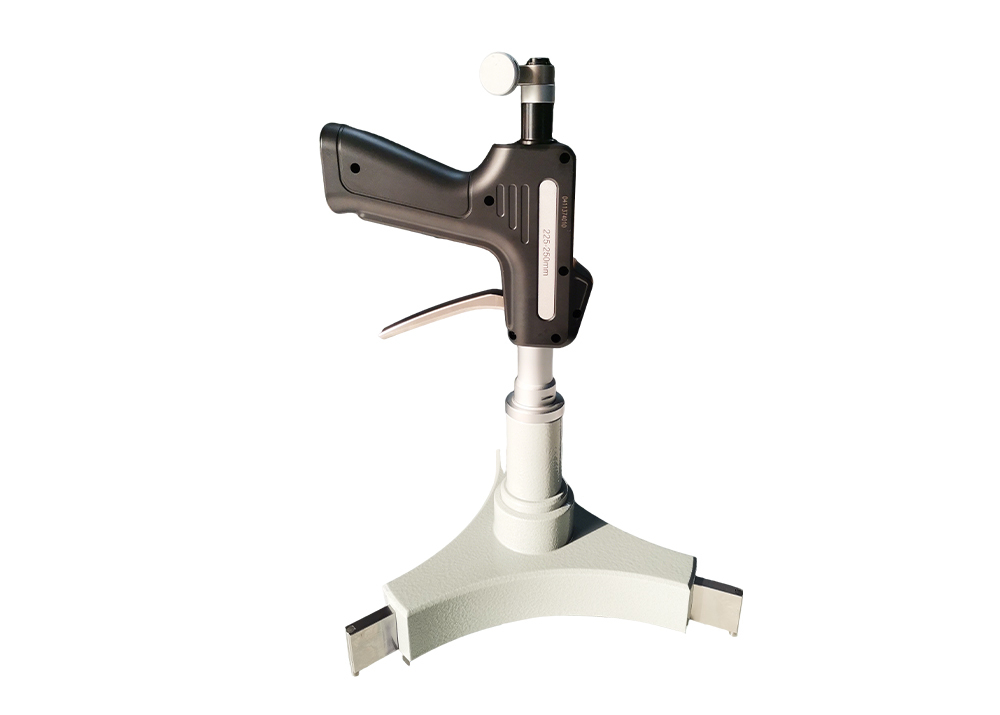

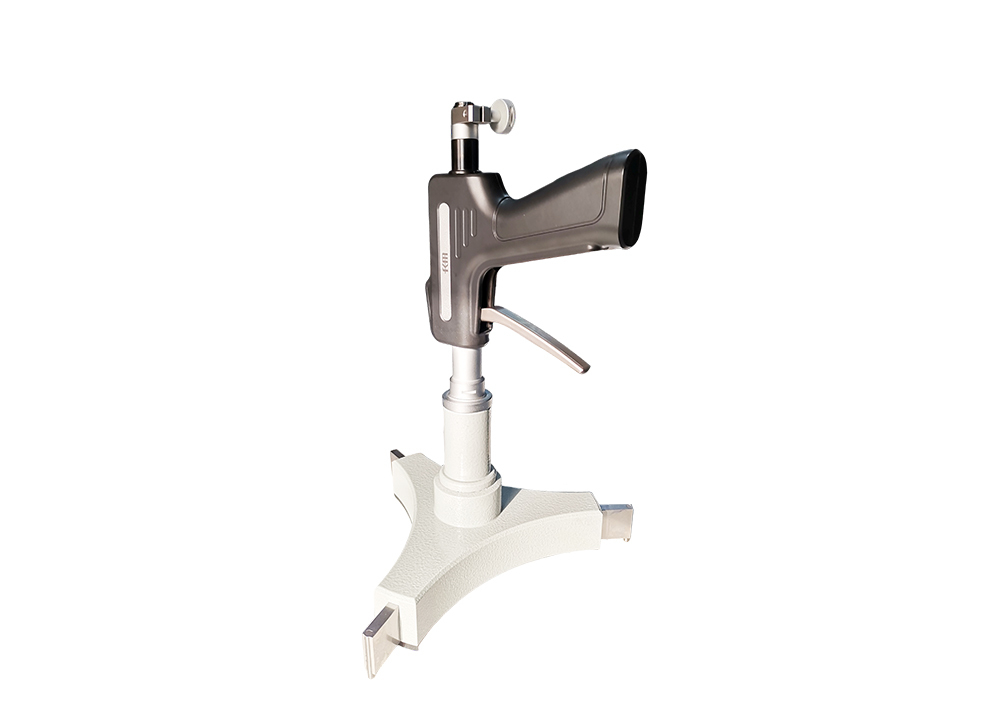

This pistol-grip three-point micrometer enables effortless one-handed operation, making it ideal for measuring in tight spaces and hard-to-reach locations. Perfect for batch measurements, it allows quick comparison of multiple hole dimensions to verify consistency.
Enhanced Measurement Accuracy
The three-point contact design ensures superior accuracy and stability when measuring both blind and through holes. This configuration effectively minimizes measurement errors, delivering highly precise results.
Comprehensive Measurement Range
Available with a wide measuring range from 6-8mm up to 275-300mm (metric) and 0.275-0.35″ up to 11-12″ (imperial), accommodating diverse industrial applications.
Key Features
- Self-centering 3-point design for accurate bore measuring
- Measurement capability closer to the bottom of blind bores
- Carbide-tipped contact points with ratchet stop
- Optional digital indicator (fixing bore: φ8mm or 3/8'')
- Supplied with setting rings for measurements within 100mm

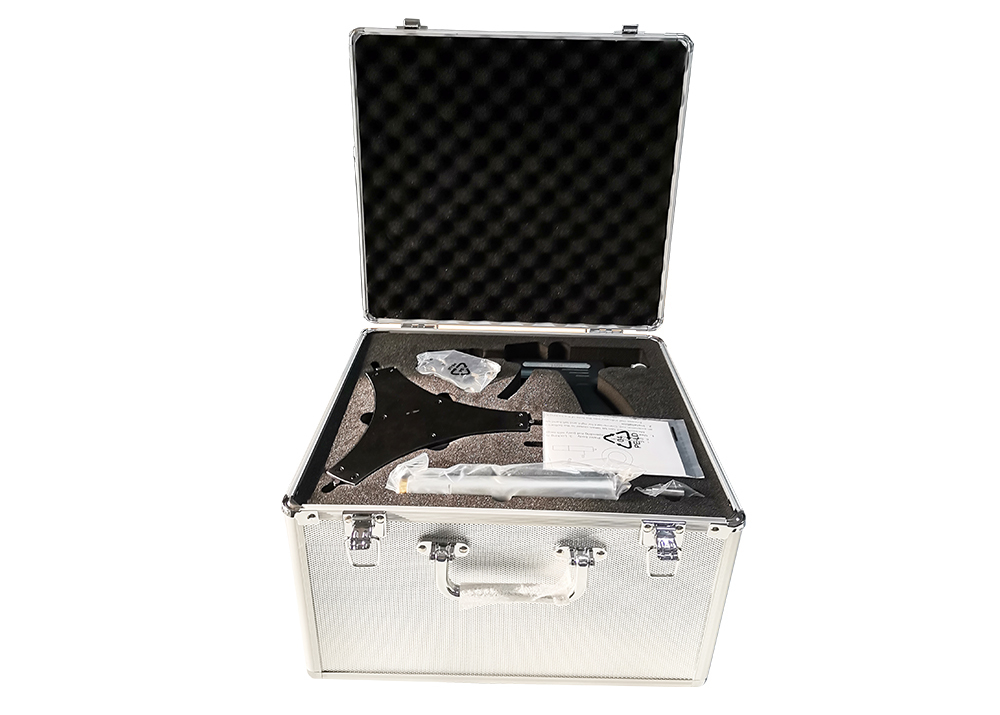

- Comes in a fitted protective case
Technical Specifications
| Order No. | Measuring Range | Accuracy | Setting Rings |
|---|---|---|---|
| KM-2305-8 | 6-8mm | 0.004mm | Φ6mm |
| KM-2305-10 | 8-10mm | 0.004mm | Φ8mm |
| KM-2305-12 | 10-12mm | 0.004mm | Φ10mm |
| KM-2305-16 | 12-16mm | 0.004mm | Φ16mm |
| KM-2305-20 | 16-20mm | 0.004mm | Φ16mm |
| KM-2305-25 | 20-25mm | 0.004mm | Φ25mm |
| KM-2305-30 | 25-30mm | 0.004mm | Φ25mm |
| KM-2305-40 | 30-40mm | 0.004mm | Φ40mm |
| KM-2305-50 | 40-50mm | 0.005mm | Φ40mm |
| KM-2305-63 | 50-63mm | 0.005mm | Φ62mm |
| KM-2305-75 | 62-75mm | 0.005mm | Φ62mm |
| KM-2305-88 | 75-88mm | 0.005mm | Φ87mm |
| KM-2305-100 | 87-100mm | 0.005mm | Φ87mm |
| KM-2305-125 | 100-125mm | 0.005mm | Φ112.5mm |
| KM-2305-150 | 125-150mm | 0.005mm | Φ137.5mm |
| KM-2305-175 | 150-175mm | 0.005mm | Φ162.5mm |
| KM-2305-200 | 175-200mm | 0.005mm | Φ187.5mm |
| KM-2305-225 | 200-225mm | 0.007mm | Φ212.5mm |
| KM-2305-250 | 225-250mm | 0.007mm | Φ237.5mm |
| KM-2305-275 | 250-275mm | 0.007mm | Φ262.5mm |
| KM-2305-300 | 275-300mm | 0.007mm | Φ287.5mm |
Industrial Applications
The pistol-grip three-point internal micrometer is primarily used for measuring holes and slotted holes. It finds extensive application across machinery manufacturing, automobile manufacturing, aerospace, electronic components, and various industrial sectors. With its high measurement accuracy, user-friendly design, and simple operation, it has become an essential tool for precise bore diameter measurement.
Usage and Maintenance Guidelines
- Avoid applying excessive force during measurement to maintain precision
- Do not disassemble the instrument
- Keep the instrument clean and dry
- When installing measuring jaws, pull back the grip and insert jaws into grooves sequentially
- Verify jaw fit with a gentle pull test
- Ensure jaw numbers correspond with the three grooves in the measuring head
- Apply anti-rust oil and return to packaging box when not in use for extended periods
- Prevent dust from entering the three grooves in the measuring head
- For optimal performance with pistol-grip three-point internal micrometers, use digital indicators with range above 12.7mm/0.5''
