Bore Gauge Precision Measuring Tools Used to Measure Inside Diameter of Holes
-
Highlight
150mm Bore Gauge
,Precision Bore Gauge
-
WarrantyOne Year
-
TypeDial Bore Gauge
-
MeasurementMetric
-
ApplicationInternal Measurement
-
Range35-50mm
-
Measuring Depth500mm
-
Graduation0.01mm
-
FeatureWheel Guide
-
PartsWith Inserting Interchangeable Anvils
-
CustomizedAcceptable
-
PackageWooden Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DBI50
-
Packaging DetailsWooden Case 120*44*5cm/Piece 8.60kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

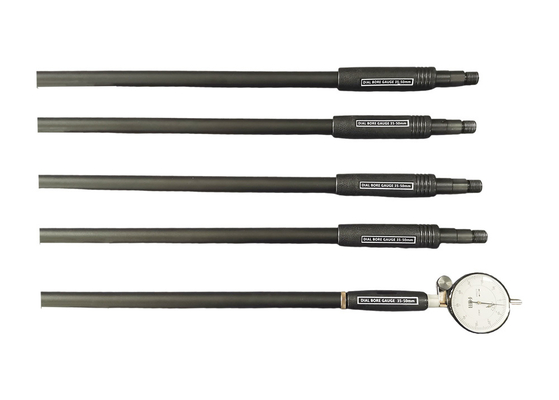

Bore Gauge Precision Measuring Tools Used to Measure Inside Diameter of Holes
Bore Gauge Precision Measuring Tools Used to Measure Inside Diameter of Holes
Bore gauge is the ultimate solution for precise and accurate measurements of inner hole sizes. This comprehensive set includes a durable metal clamping device and a dial indicator with a measuring range of 0-3mm and a graduation of 0.01mm.
The self-centering design allows for fast and efficient measurement, while the insulated grip ensures comfort and safety during use. Available with measuring diameters from 6mm up to 450mm, standard ranges include 6-8mm, 10-18mm, 18-35mm, 35-60mm, 50-160mm, 160-250mm, and 250-450mm. Custom measuring ranges can be provided to meet specific requirements.
Each cylinder bore gauge comes with either an ABS or wooden storage case for easy transportation and protection. This dial bore gauge is an essential tool for mechanics and engineers requiring precision measurements.
Key Features
- Designed for internal measurement applications
- Wheel guide for smooth operation
- Interchangeable anvils for versatility
- Includes 0.01mm dial indicator for high precision
- Customizable measuring depth for different applications
- Supplied in protective fitted case
Technical Specifications
| Order No. | Range | Measuring Depth | Graduation | Anvils | Washers | Sub-anvils |
|---|---|---|---|---|---|---|
| KM-DBI10 | 6-10mm | 40mm | 0.01mm | 9 | ||
| KM-DBI18 | 10-18mm | 100mm | 0.01mm | 9 | 1 | |
| KM-DBI35 | 18-35mm | 150mm | 0.01mm | 9 | 2 | |
| KM-DBI50 | 35-50mm | 150mm | 0.01mm | 4 | 4 | |
| KM-DBI60 | 35-60mm | 150mm | 0.01mm | 4 | 4 | |
| KM-DBI100 | 50-100mm | 150mm | 0.01mm | 11 | 4 | |
| KM-DBI160 | 50-160mm | 150mm | 0.01mm | 12 | 4 | 1 |
| KM-DBI250 | 160-250mm | 250mm | 0.01mm | 5 | 5 | 1 |
| KM-DBI450 | 250-450mm | 250mm | 0.01mm | 5 | 5 | 2 |
Industry Applications
Bore gauges are extensively used in the automotive industry for checking hole sizes in engine components, drivetrains, and brake systems during production.
These precision tools also serve critical roles in machining, aerospace, shipbuilding, and other industrial sectors, helping enterprises improve production efficiency and maintain quality standards.
Usage Precautions
- Do not disassemble or modify the gauge
- Avoid subjecting the gauge to impacts or knocks
- Clean and apply anti-rust treatment after use; disassemble the indicator (storing it with the gauge may affect precision) and place in the protective case
- Do not interchange anvils, washers, or other components between different gauge sets
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trading terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available for custom requirements.
How about after-sales service?
All products include a one-year warranty. If you receive any defective accessories, we will ship replacement parts or products. As an experienced manufacturer with strict calibration and inspection processes, you can trust our product quality.
