Cylinder Dial Bore Gage for Accurate and Precise Hole Diameter Measurements with 150mm Measuring Depth
-
Highlight
Accurate Cylinder Dial Bore Gage
,Precise Cylinder Dial Bore Gage
,150mm Measuring Depth Bore Gage
-
WarrantyOne Year
-
TypeDial Bore Gauge
-
MeasurementMetric
-
ApplicationInternal Measurement
-
Range35-60mm
-
Measuring Depth150mm
-
Graduation0.01mm
-
FeatureWheel Guide
-
PartsWith Inserting Interchangeable Anvils
-
CustomizedAcceptable
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DBI60
-
Packaging DetailsABS Box 37.5*15*6.5cm/Piece 1.08kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Cylinder Dial Bore Gage for Accurate and Precise Hole Diameter Measurements with 150mm Measuring Depth
Cylinder Dial Bore Gage for Accurate and Precise Hole Diameter Measurements with 150mm Measuring Depth

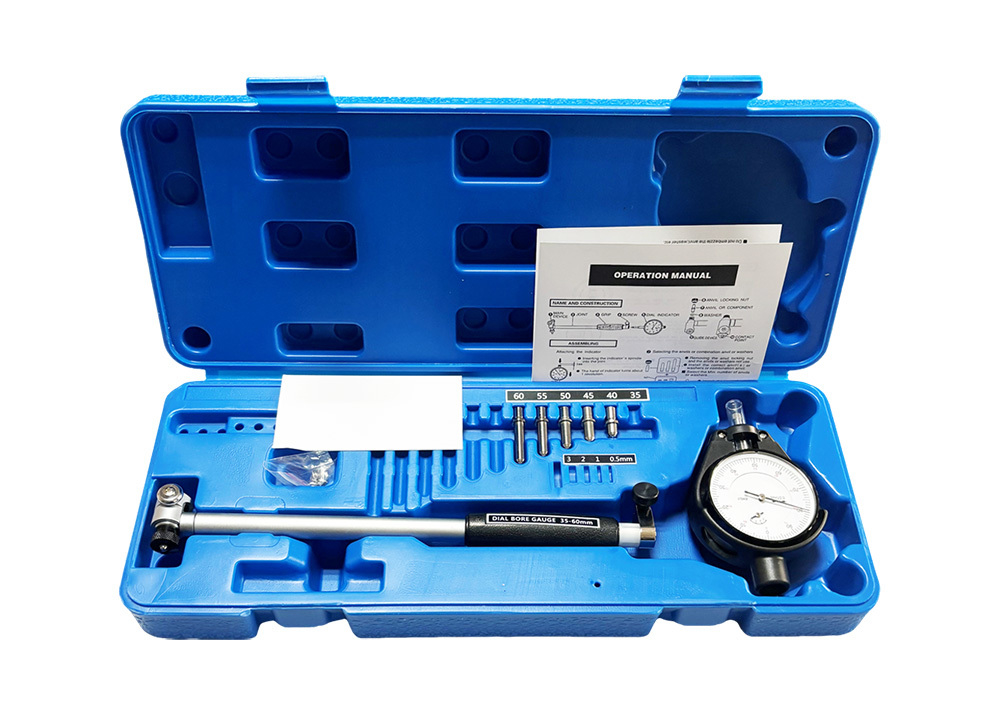

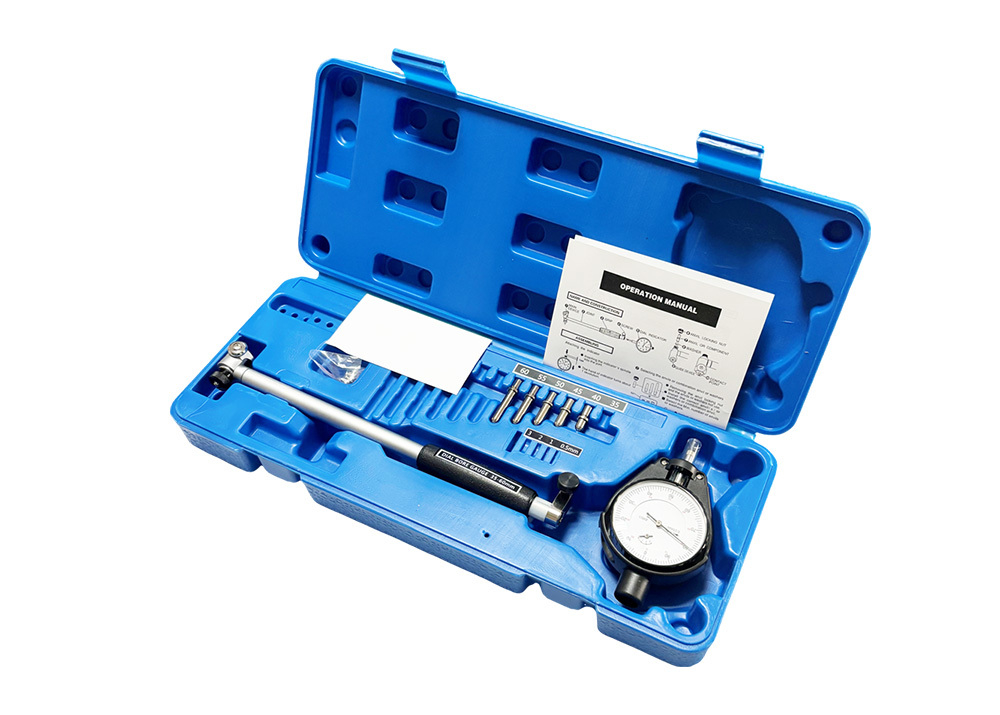

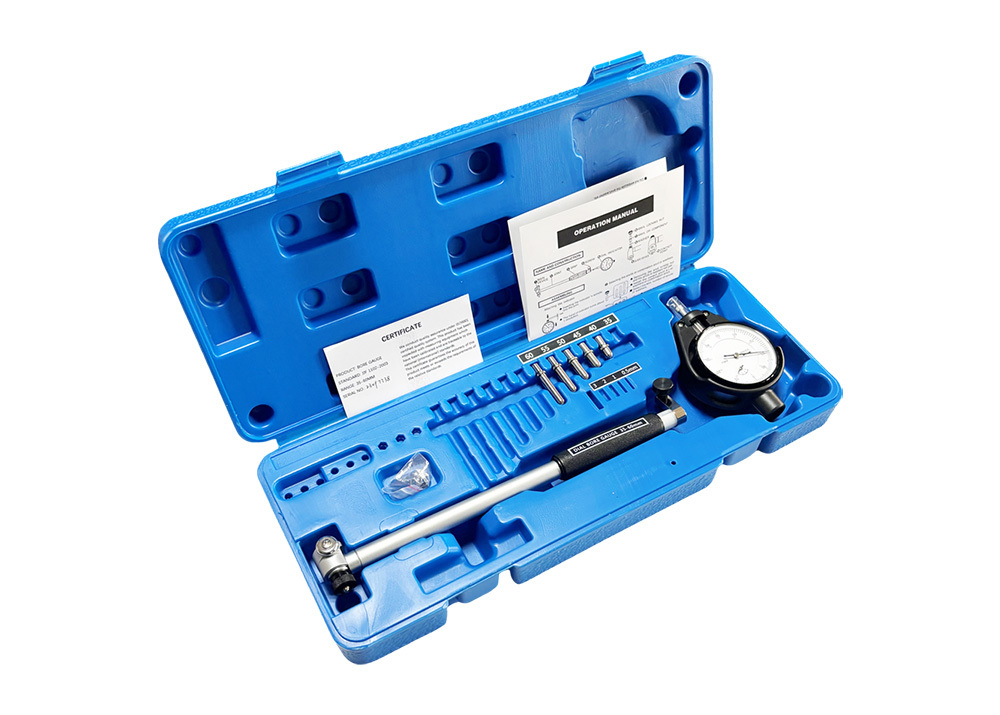

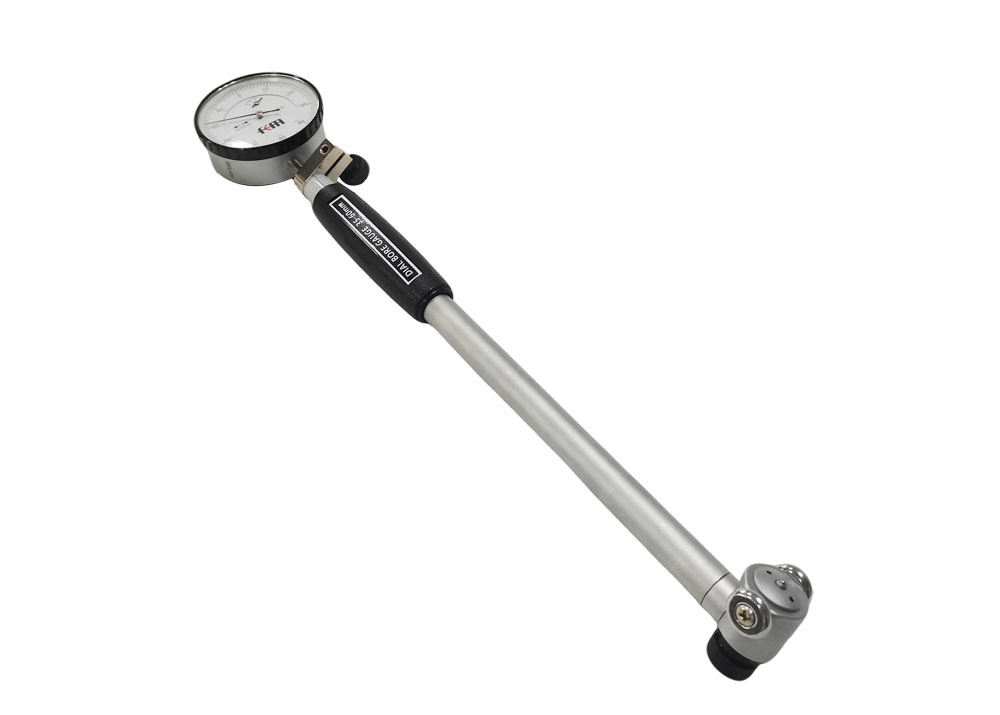

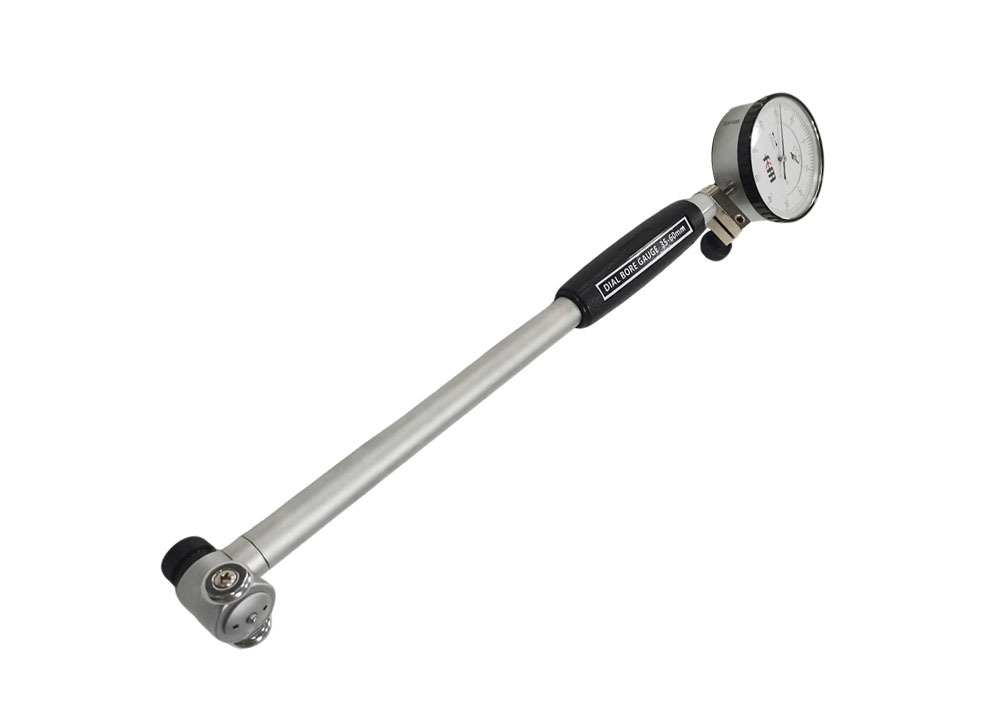

The Cylinder Dial Bore Gage is engineered for precise measurement of inner hole diameters, featuring a durable metal clamping device and a high-precision dial indicator with 0-3mm measuring range and 0.01mm graduation. Its self-centering design enables fast, efficient measurements while the insulated grip ensures operator comfort and safety.
Key Features
- Designed for internal diameter measurement applications
- Wheel guide mechanism for smooth operation
- Interchangeable anvils for versatile measurement ranges
- Includes 0.01mm precision dial indicator
- Customizable measuring depth for specific applications
- Includes protective storage case (ABS or Wooden options)
Technical Specifications
|
Order No. |
Range |
Measuring Depth |
Graduation |
Accessories |
||
|
Anvils |
Washers |
Sub-anvils |
||||
|
KM-DBI10 |
6-10mm |
40mm |
0.01mm |
9 |
|
|
|
KM-DBI18 |
10-18mm |
100mm |
0.01mm |
9 |
1 |
|
|
KM-DBI35 |
18-35mm |
150mm |
0.01mm |
9 |
2 |
|
|
KM-DBI50 |
35-50mm |
150mm |
0.01mm |
4 |
4 |
|
|
KM-DBI60 |
35-60mm |
150mm |
0.01mm |
4 |
4 |
|
|
KM-DBI100 |
50-100mm |
150mm |
0.01mm |
11 |
4 |
|
|
KM-DBI160 |
50-160mm |
150mm |
0.01mm |
12 |
4 |
1 |
|
KM-DBI250 |
160-250mm |
250mm |
0.01mm |
5 |
5 |
1 |
|
KM-DBI450 |
250-450mm |
250mm |
0.01mm |
5 |
5 |
2 |
Industrial Applications
Essential for quality control in automotive manufacturing (engine components, drivetrains, brake systems), machining operations, aerospace engineering, and shipbuilding. Helps maintain production efficiency and quality standards across industries.
Usage Guidelines
- Do not disassemble or modify the gauge
- Protect from impacts and drops
- Clean and apply anti-rust solution after use
- Store components separately (dial indicator should not remain attached during storage)
- Keep all components organized in provided case
Frequently Asked Questions
About Deko Corporation
Specializing in development and manufacturing of KM brand precision measuring tools in China.
Product Range
Comprehensive selection including dial indicators, micrometers, calipers, height gauges, and specialized measurement instruments.
Trade Terms
FOB, CFR, CIF, and EXW available.
Payment Options
T/T, L/C, D/A, D/P, PayPal, and Western Union accepted.
Customization
OEM services available for specialized requirements.
Warranty & Support
One-year warranty with replacement of defective parts. Rigorous quality control and calibration processes ensure product reliability.
