High Quality 10-18mm Dial Bore Gauge With Inserting Interchangeable Anvils For Accurate Cylinder Measurements
-
Highlight
10-18mm Dial Bore Gauge
,Insert Interchangeable Anvils Dial Bore Gauge
,Accurate Cylinder Measurements Dial Bore Gauge
-
WarrantyOne Year
-
TypeDial Bore Gauge
-
MeasurementMetric
-
MaterialStainless Steel
-
ApplicationInternal Measurement
-
Range10-18mm
-
Measuring Depth100mm
-
Graduation0.01mm
-
FeatureWheel Guide
-
CustomizedAcceptable
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DBI18
-
Packaging DetailsABS Box 25.5*14*4.5cm/Piece 0.55g/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
High Quality 10-18mm Dial Bore Gauge With Inserting Interchangeable Anvils For Accurate Cylinder Measurements
High Quality 10-18mm Dial Bore Gauge With Inserting Interchangeable Anvils For Accurate Cylinder Measurements
Description

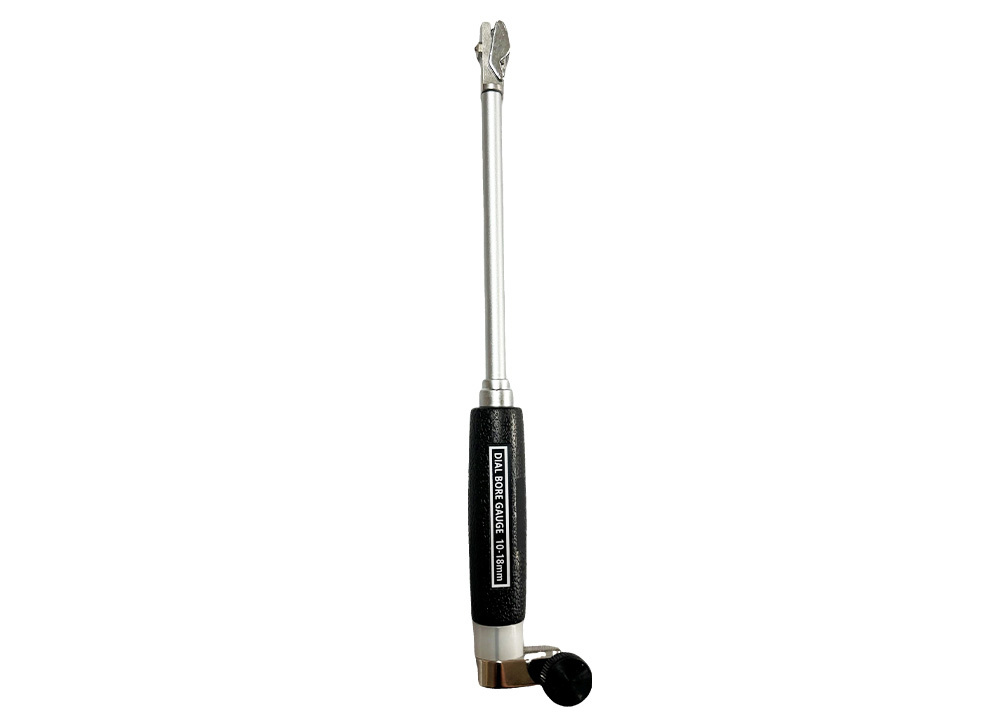

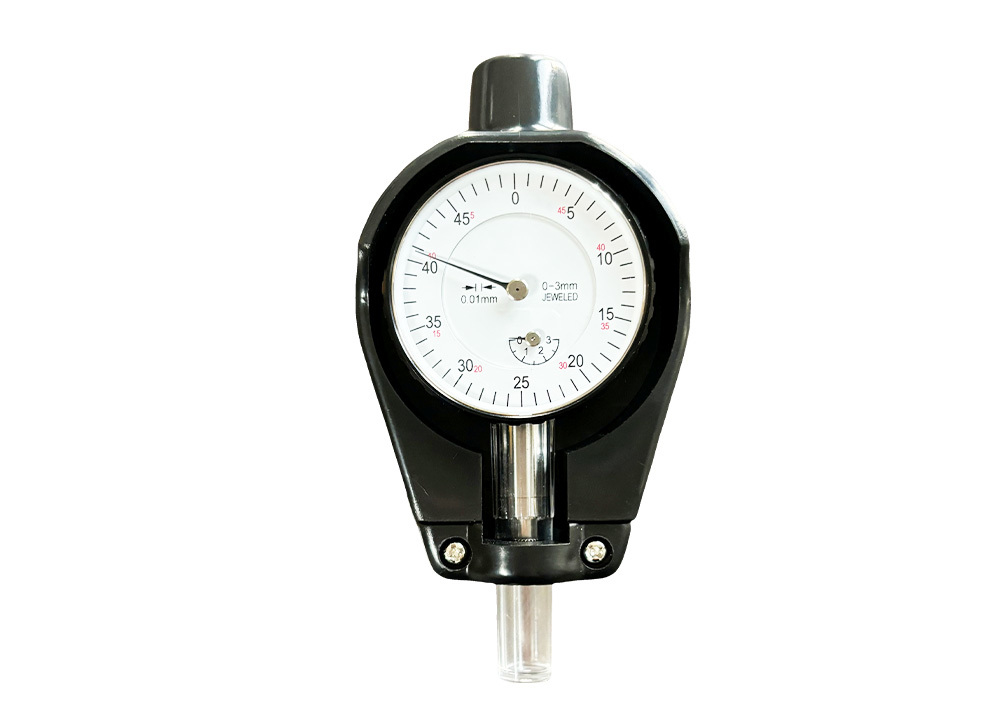

The bore gauge is the ultimate solution for precise and accurate measurements of inner hole sizes. This set includes a durable metal clamping device and a dial indicator with a measuring range of 0-3mm and a graduation of 0.01mm.
The self-centering design allows for fast and efficient measurement, while the insulated grip ensures comfort and safety during use. Available in multiple measuring ranges from 6mm up to 450mm, with standard options including 6-8mm, 10-18mm, 18-35mm, 35-60mm, 50-160mm, 160-250mm, and 250-450mm. Custom measuring ranges can be accommodated upon request.

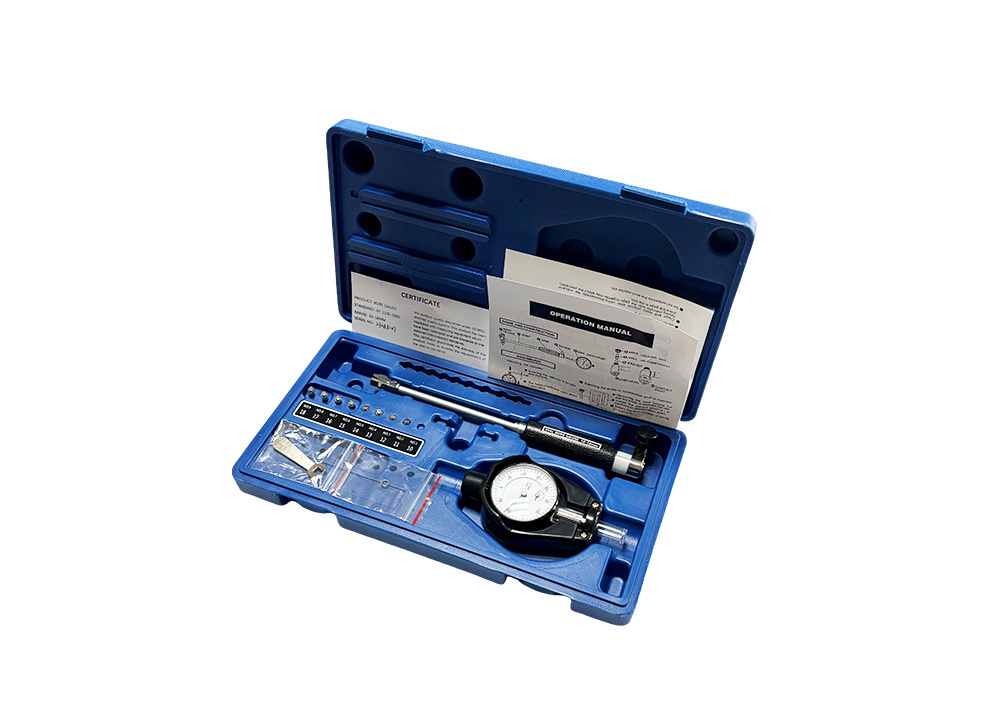

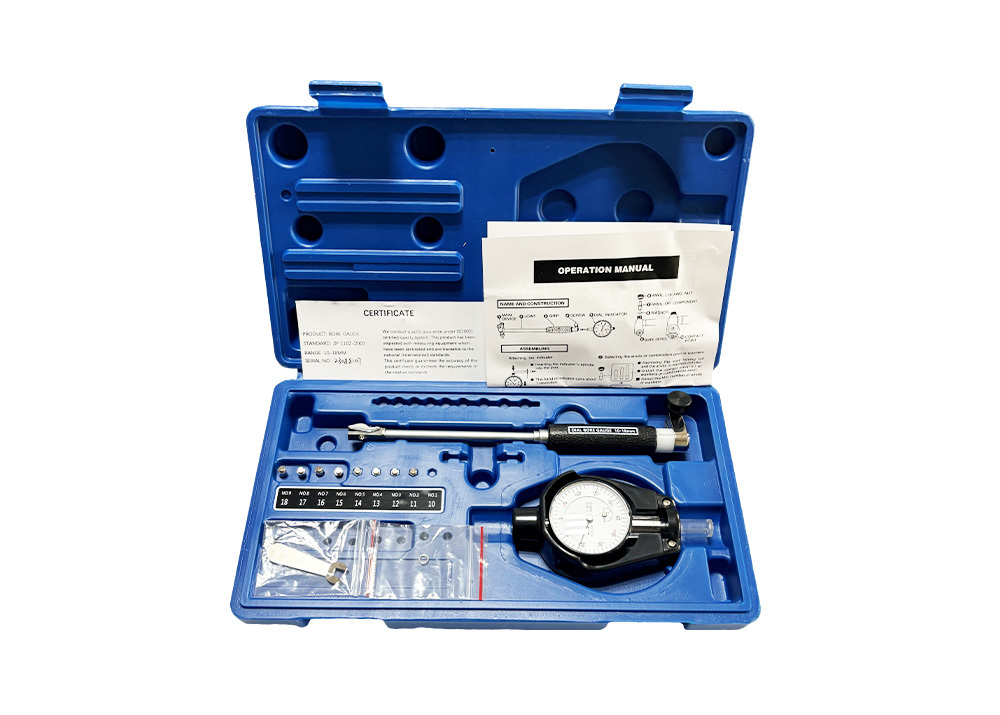

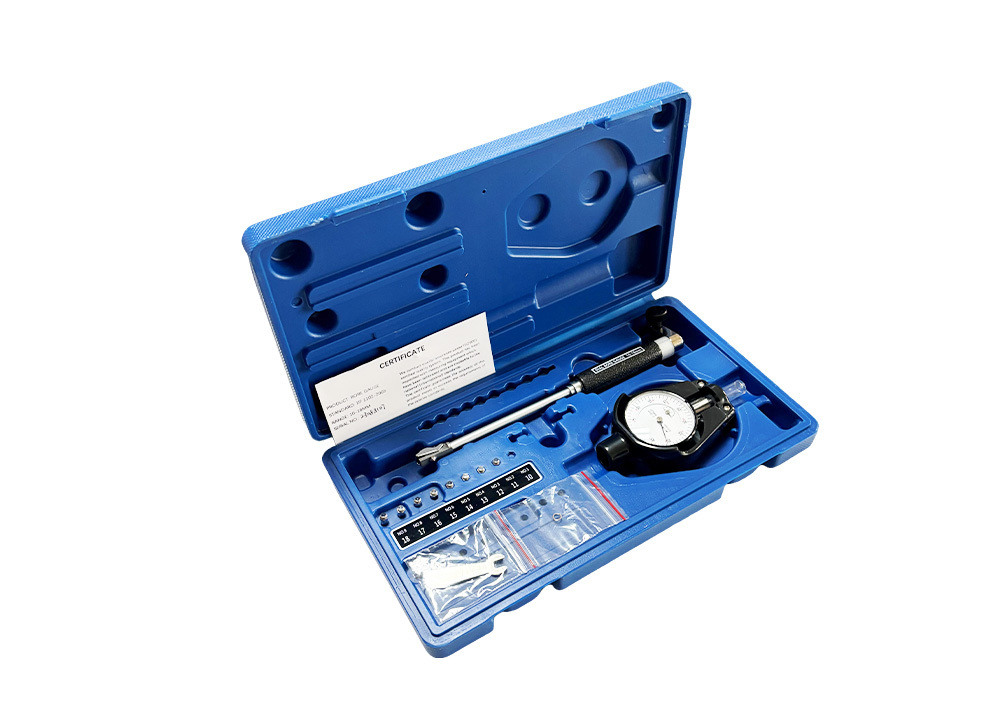

Each set comes with either an ABS or wooden storage case for easy transportation and protection. This dial bore gauge is an essential tool for mechanics and engineers requiring precision measurements.
Key Features
- Designed for internal measurements
- Features wheel guide mechanism
- Includes inserting interchangeable anvils
- Supplied with 0.01mm dial indicator
- Customizable measuring depth for different applications
- Comes with fitted protective case
Specifications
| Order No. | Range | Measuring Depth | Graduation | Accessories |
|---|---|---|---|---|
| KM-DBI10 | 6-10mm | 40mm | 0.01mm | 9 anvils |
| KM-DBI18 | 10-18mm | 100mm | 0.01mm | 9 anvils, 1 washer |
| KM-DBI35 | 18-35mm | 150mm | 0.01mm | 9 anvils, 2 washers |
| KM-DBI50 | 35-50mm | 150mm | 0.01mm | 4 anvils, 4 washers |
| KM-DBI60 | 35-60mm | 150mm | 0.01mm | 4 anvils, 4 washers |
| KM-DBI100 | 50-100mm | 150mm | 0.01mm | 11 anvils, 4 washers |
| KM-DBI160 | 50-160mm | 150mm | 0.01mm | 12 anvils, 4 washers, 1 sub-anvil |
| KM-DBI250 | 160-250mm | 250mm | 0.01mm | 5 anvils, 5 washers, 1 sub-anvil |
| KM-DBI450 | 250-450mm | 250mm | 0.01mm | 5 anvils, 5 washers, 2 sub-anvils |
Applications
Bore gauges are essential in the automotive industry for checking hole sizes in engine components, drivetrains, and brake systems. They are also widely used in machining, aerospace, and shipbuilding industries to improve production efficiency and quality control.
Precautions
- Do not disassemble or modify the gauge
- Avoid subjecting the gauge to blows or knocks
- Clean and apply anti-rust treatment after use
- Store the indicator separately from the gauge to maintain precision
- Keep all components organized in the provided case
- Do not interchange anvils or washers between different sets
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. If you receive any defective parts, we will ship replacements immediately. Our strict calibration and inspection processes ensure high product quality.
