Electronic Digital Three Point Internal Micrometer Set with IP54 Protection Degree

Electronic Digital Three Point Internal Micrometer Set with IP54 Protection Degree

Description:

IP54 digital three-point internal micrometer design allows the micrometer to be more accurate and stable when measuring

blind and through holes. With three-point contact, the errors in the measurement process can be avoided more effectively,

thus improving the accuracy of the measurement results.

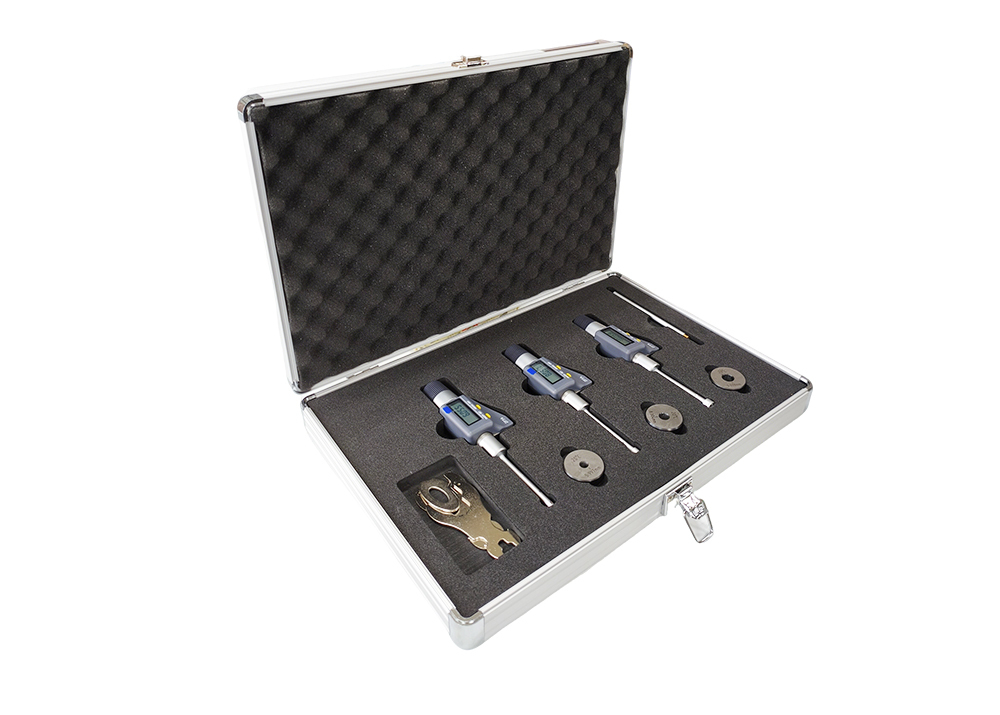

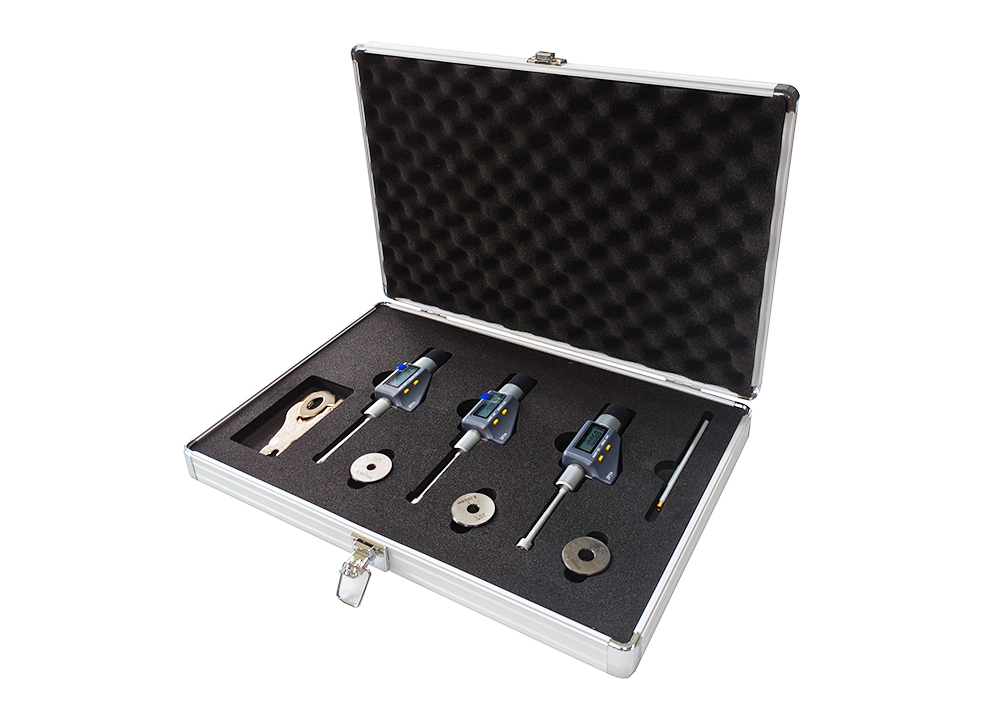

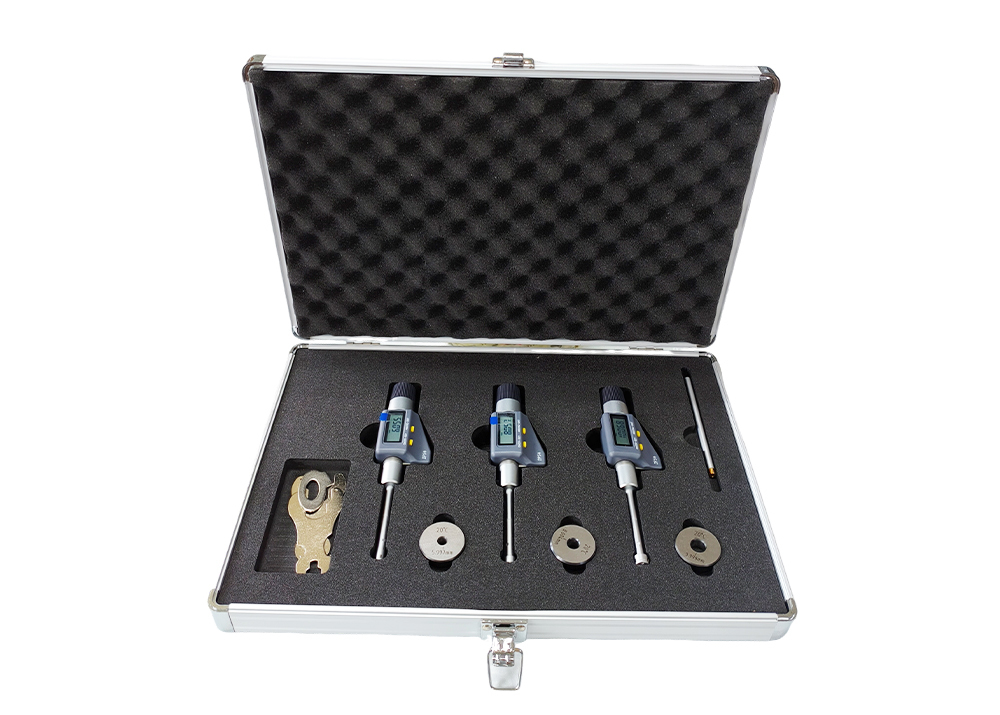

Digital 3 point internal micrometer set provide measuring range including 20-25mm, 25-30mm, 30-40mm,40-50mm, supplied

with setting rings and extension rods for wide measurement.

Three point bore gauge features with IP54 protection degree, make it can work stably in the harsh workshop environment,

and the characteristics of oil, water and dust resistance make it suitable for various complex working environments. Supplied with

measuring range from 6mm up to 50mm, with resolution 0.001mm.

Quick Detail:

1. Protection level IP54.

2. Digital three-point micrometer centering self and aligning self.

3. Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole with an extension rod.

4. ON/OFF button.

5. Zero setting at any position.

6. Metric/inch conversion.

7. Absolute/Incremental measurement conversion.

8. Origin set for absolute measurement.

9. Carbide-tipped contacts points, ratchet stop.

10. Supplied with setting rings.

11. Data output.

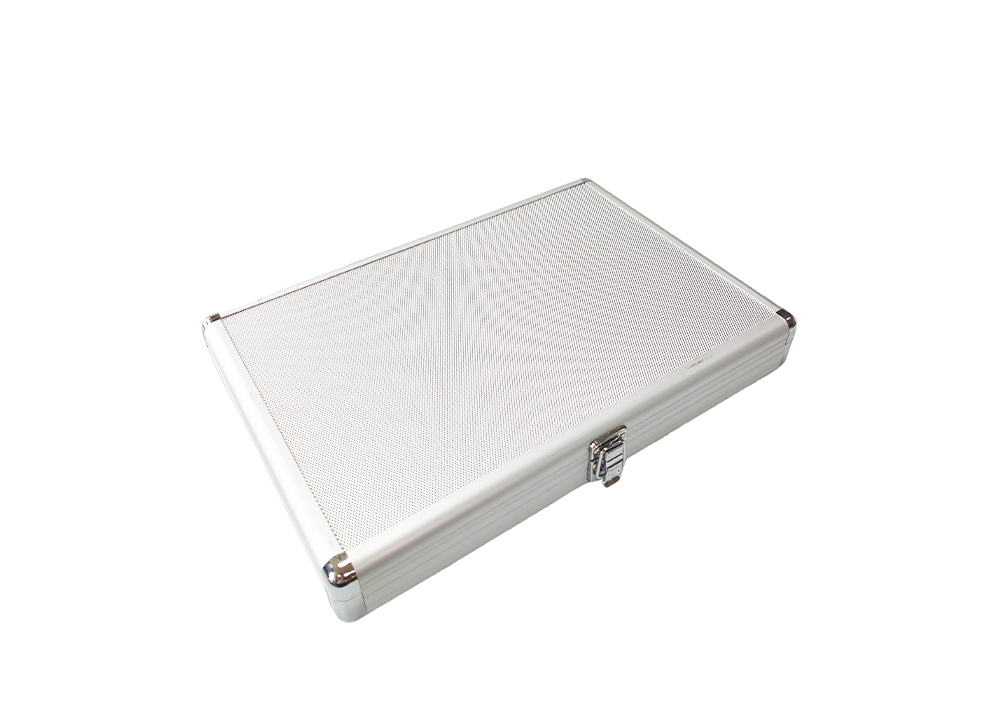

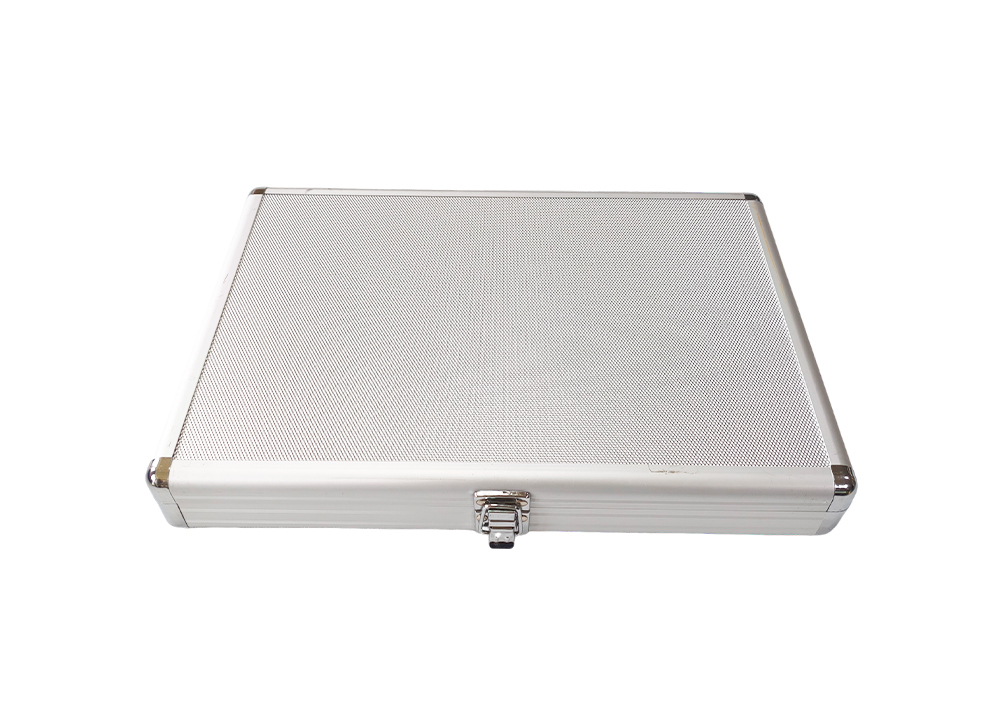

12. Supplied in fitted case.

Specification:

Applications:

Digital three-point internal micrometer is mainly used to measure the holes, slotted hole, etc. It is widely used in machinery

manufacturing, automobile manufacturing, aerospace, electronic components and other industrial fields. With its high

measurement accuracy, easy to use and simple operation, it has become one of the important tools for measuring bore diameter.

Precautions:

1.Do not subject the instrument to blows or knocks. Do not drop it or apply excessive force to it.

2.Do not disassemble the instrument. Do not press the key with a pointed object.

3.Do not use or store the instrument under direct sunlight, or in an excessively hot or cold place.

4.Do not let the instrument near strong magnetic field or high voltage.

5.Use a soft or a cotton swad that is dry to wipe stains off the instrument. Do not use organic solvent such as benzene.

6.Clean measuring faces of the instrument before use it.

7.Remove the battery if the instrument not used for a long time.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
