600-750mm Wide Range Outside Micrometer with Interchangeable Anvils
-
Highlight
600-750mm Outside Micrometer
,Wide Range Outside Micrometer
,Interchangeable Anvil Outside Micrometer
-
WarrantyOne Year
-
Measurement ObjectOutside Diameter
-
MeasurementMetric
-
Range600-750mm
-
Graduation0.01mm
-
Accuracy±0.016mm
-
FeatureRatchet Stop
-
Measuring FacesCarbide
-
Measure MethodManual
-

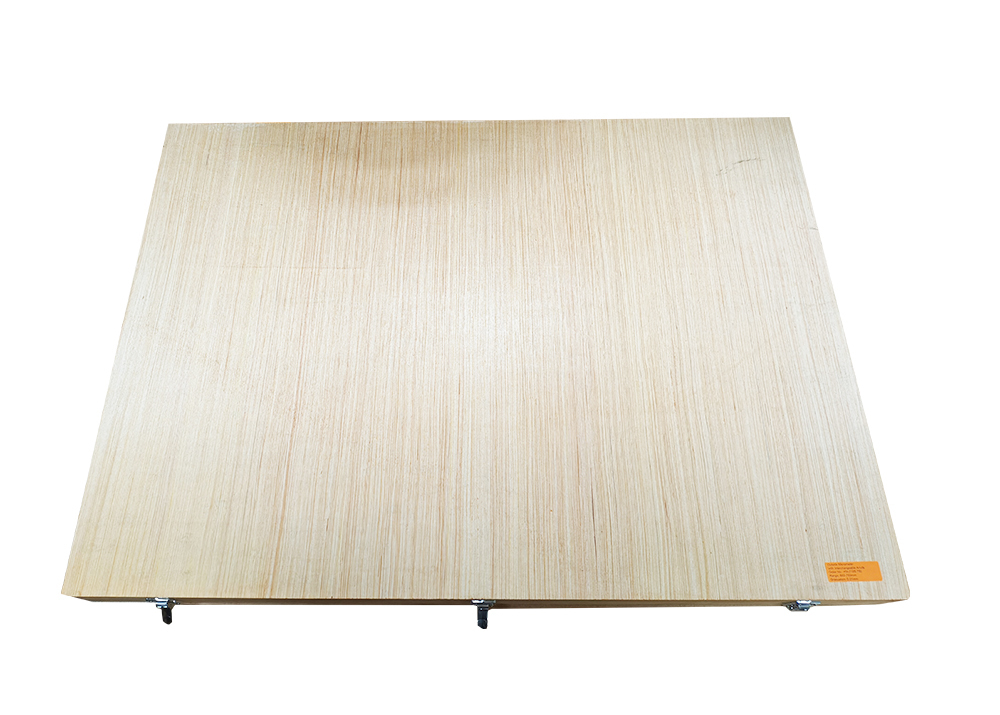

PackageWooden Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2105-750
-
Packaging DetailsWooden Case 100*84*6m/Piece 8.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

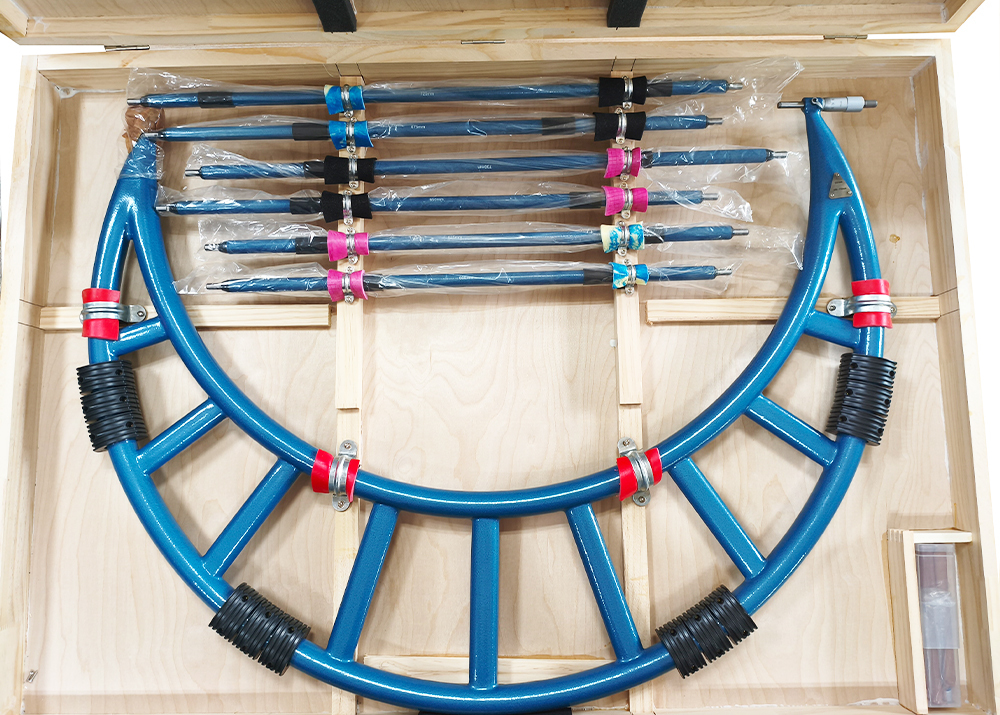

600-750mm Wide Range Outside Micrometer with Interchangeable Anvils
600-750mm Wide Range Outside Micrometer with Interchangeable Anvils
Product Descriptions:This digital outside micrometer features a compact design with a measuring range of 600-750mm, 0.01mm division, and ±0.016mm accuracy. It includes standard setting bars and is ideal for measuring length, outside diameters, and material thickness in construction, mechanical engineering, mold making, automotive, and furniture industries.
The micrometer features interchangeable anvils for measuring objects of different sizes and shapes. Its hardened and ground spindle with carbide anvil ensures durability and accuracy, while the ratchet thimble allows precise pressure application during measurement.
Designed for large-sized objects, this micrometer maintains stable measurement accuracy over long-term use thanks to its durable construction that resists environmental influences.
Key Features:
- Wide measuring range with interchangeable anvils.
- Steel-plate frame (within 300mm) or pipe combined frame (over 300mm).
- Painted and fine cast frame.
- Laser-etched scale for clear and easy reading.
- Carbide measuring faces for accuracy and wear resistance.
- Ratchet thimble for precise force application.

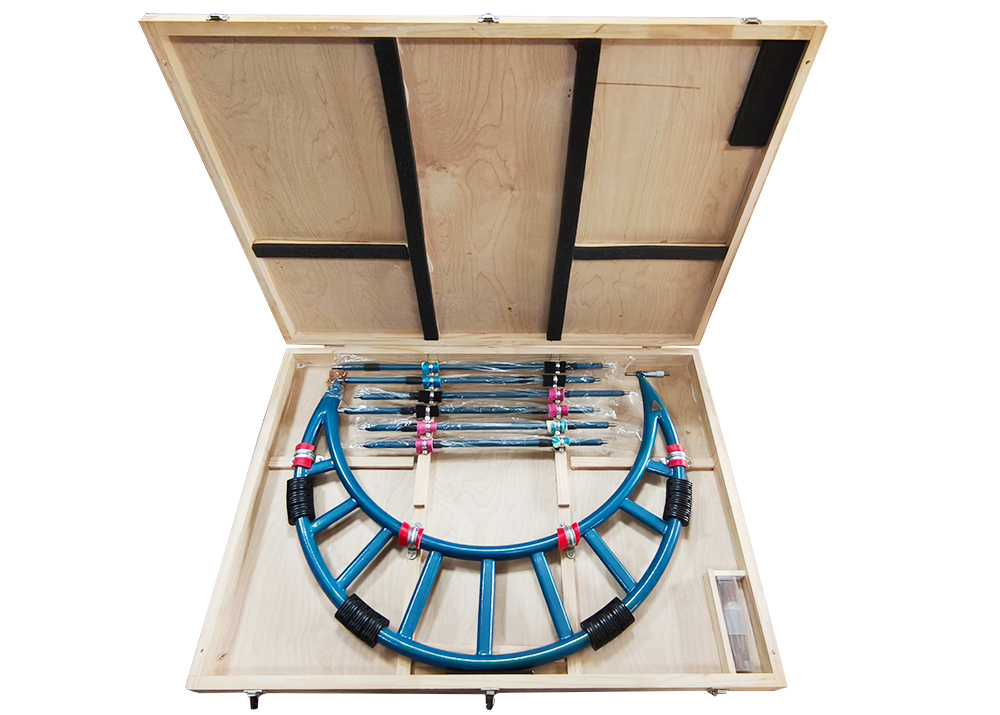

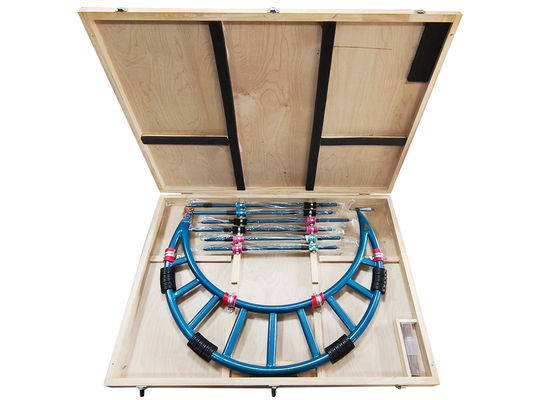

- Supplied in fitted case.
Product Specifications:
| Order No. | Measuring Range | Graduation | Accuracy |
|---|---|---|---|
| KM-2105-400 | 300-400mm | 0.01mm | ±0.011mm |
| KM-2105-500 | 400-500mm | 0.01mm | ±0.013mm |
| KM-2105-600 | 500-600mm | 0.01mm | ±0.015mm |
| KM-2105-700 | 600-700mm | 0.01mm | ±0.016mm |
| KM-2105-800 | 700-800mm | 0.01mm | ±0.018mm |
| KM-2105-900 | 800-900mm | 0.01mm | ±0.020mm |
| KM-2105-1000 | 900-1000mm | 0.01mm | ±0.020mm |
| KM-2105-450 | 300-450mm | 0.01mm | ±0.011mm |
| KM-2105-601 | 450-600mm | 0.01mm | ±0.015mm |
| KM-2105-750 | 600-750mm | 0.01mm | ±0.016mm |
| KM-2105-901 | 750-900mm | 0.01mm | ±0.020mm |
| KM-2105-1050 | 900-1050mm | 0.01mm | ±0.021mm |
Applications:
Outside micrometers are essential for precision measurement in engineering, machining, physics, and manufacturing. In manufacturing, they ensure part accuracy and quality. Machining applications include outer diameter measurement, dimensional verification, and roundness assessment. Automotive maintenance uses include tire diameter measurement for accurate and safe repairs.
Usage Instructions:
- Select the appropriate anvil size matching your measurement range and verify its accuracy against the micrometer's master ruler.
- Keep anvils clean during measurement to prevent dirt or scratches from affecting results.
- Clean the micrometer surface with a soft cloth or paper to remove dust and oil.
- Perform regular maintenance including cleaning and calibration to ensure measurement accuracy and stability.
About Deko Corporation:
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in mainland China.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. Defective parts will be replaced promptly. Our strict calibration and inspection processes ensure reliable product quality.
