900-1050mm Outside Micrometer For Measuring Metal And Non-metal Workpieces With Interchangeable Anvils
-
Highlight
Interchangeable Anvils Outside Micrometer
,Measuring tool Outside Micrometer
,1050mm Outside Micrometer
-
WarrantyOne Year
-
Measurement ObjectOutside Diameter
-
MeasurementMetric
-
Range900-1050mm
-
Graduation0.01mm
-
Accuracy±0.021mm
-
FeatureRatchet Stop
-
Measuring FacesCarbide
-
Measure MethodManual
-
PackageWooden Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2105-1050
-
Packaging DetailsWooden Case 120*92*8m/Piece 12.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
900-1050mm Outside Micrometer For Measuring Metal And Non-metal Workpieces With Interchangeable Anvils
900-1050mm Outside Micrometer with Interchangeable Anvils
Product Descriptions:This digital outside micrometer features a compact design with a measuring range of 900-1050mm, 0.01mm division, and ±0.021mm accuracy. It comes with standard setting bars and is suitable for measuring length, outside diameter, and material thickness in construction, mechanical engineering, molds, automotive, and furniture industries.

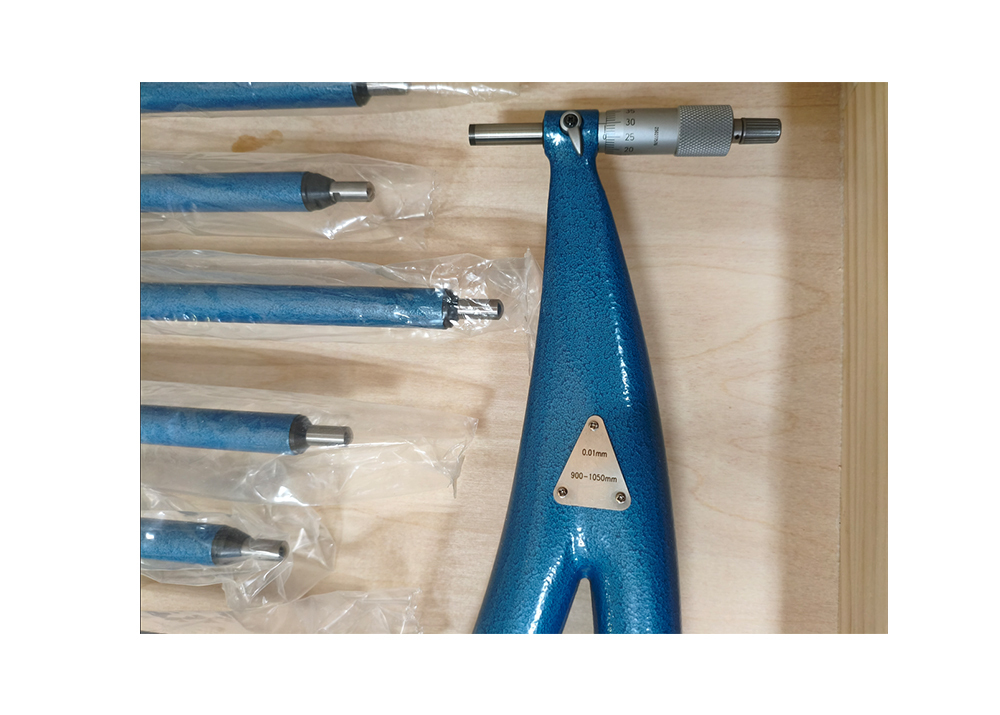

The micrometer includes interchangeable anvils for measuring objects of different sizes and shapes. Its hardened and ground spindle with carbide anvil ensures durability and accuracy, while the ratchet thimble allows precise pressure application during measurement.
Designed for large-sized objects, this micrometer features a stable, durable construction that maintains measurement accuracy even with long-term use and varying environmental conditions.
Key Features:
- Wide measuring range with interchangeable anvils.
- Steel-plate frame (within 300mm) or pipe combined frame (over 300mm).
- Painted and fine cast frame construction.
- Laser-etched scale for clear, easy reading.
- Carbide measuring faces for accuracy and wear resistance.
- Ratchet thimble for precise force application.

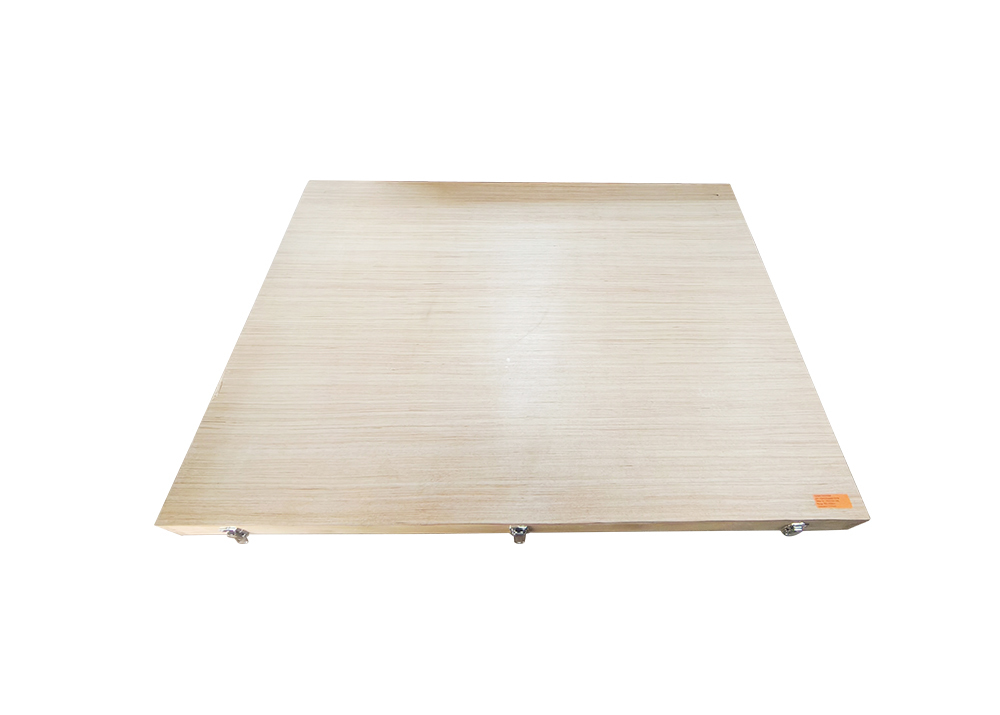

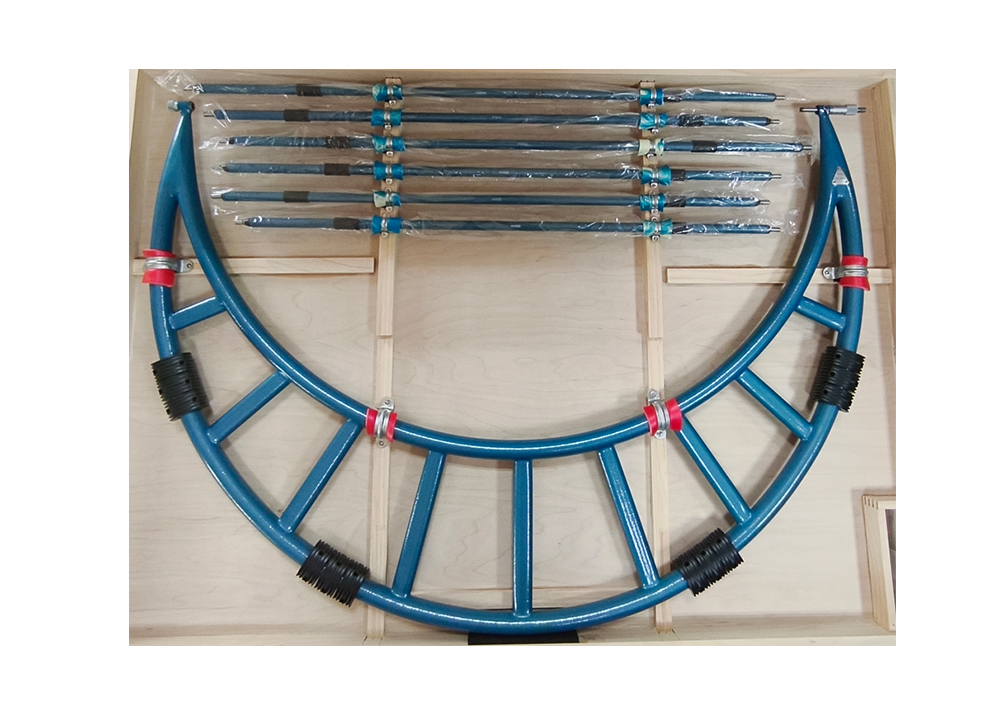

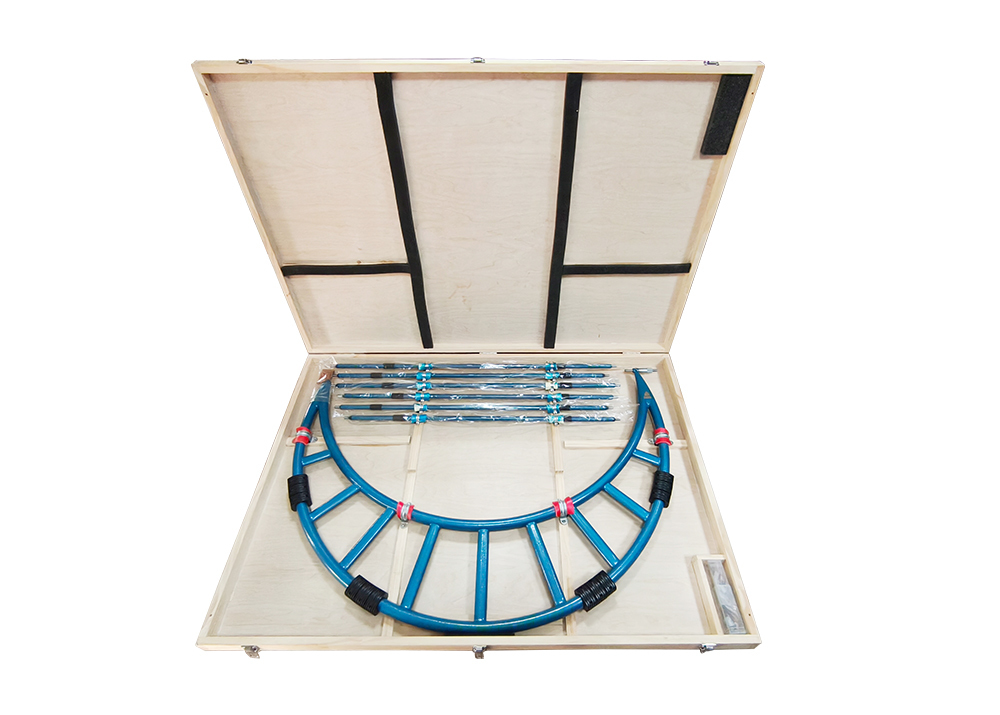

- Supplied in fitted protective case.
Product Specifications:
| Order No. | Measuring Range | Graduation | Accuracy |
|---|---|---|---|
| KM-2105-400 | 300-400mm | 0.01mm | ±0.011mm |
| KM-2105-500 | 400-500mm | 0.01mm | ±0.013mm |
| KM-2105-600 | 500-600mm | 0.01mm | ±0.015mm |
| KM-2105-700 | 600-700mm | 0.01mm | ±0.016mm |
| KM-2105-800 | 700-800mm | 0.01mm | ±0.018mm |
| KM-2105-900 | 800-900mm | 0.01mm | ±0.020mm |
| KM-2105-1000 | 900-1000mm | 0.01mm | ±0.020mm |
| KM-2105-450 | 300-450mm | 0.01mm | ±0.011mm |
| KM-2105-601 | 450-600mm | 0.01mm | ±0.015mm |
| KM-2105-750 | 600-750mm | 0.01mm | ±0.016mm |
| KM-2105-901 | 750-900mm | 0.01mm | ±0.020mm |
| KM-2105-1050 | 900-1050mm | 0.01mm | ±0.021mm |
Applications:
This outside micrometer is essential for precision measurement in engineering, machining, physics, and manufacturing. It's widely used for:
- Quality control measurements in manufacturing.
- Outer diameter machining and dimensional measurement.
- Roundness measurement in precision machining.
- Automotive maintenance (e.g., tire diameter measurement).
Usage Instructions:
- Select the appropriate anvil size for your measurement range.
- Keep anvils clean to prevent measurement inaccuracies.
- Regularly clean the micrometer surfaces with a soft cloth.
- Perform periodic maintenance including calibration.
