Internal Groove Three-Point Micrometer Pistol Grip for Easy Handling Precision Bore Measurement Tool
-
Highlight
Internal Groove Three Point Micrometer
,Precision Bore Three Point Micrometer
,Pistol Grip Three Point Micrometer
-
WarrantyOne Year
-
MeasurementMetric
-
Product TypeInternal Groove Micrometer
-
Measuring Range16-20mm
-
Anvil TypeThree-Point Contact
-
Grip TypePistol Grip
-
Primary ApplicationInternal Groove, Bore, And O-Ring Groove Measurement
-
Frame MaterialHigh-Strength Stainless Steel
-
PackageAluminium Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2306-20
-
Packaging DetailsAluminium Box 37*22*16cm/Piece 3.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

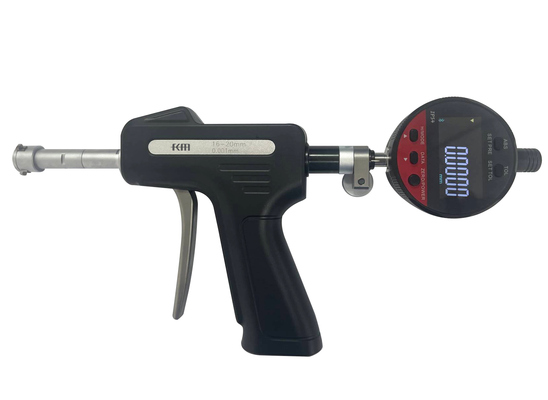

Internal Groove Three-Point Micrometer Pistol Grip for Easy Handling Precision Bore Measurement Tool
Internal Groove Three-Point Micrometer Pistol Grip for Easy Handling Precision Bore Measurement Tool
Precision bore measurement tool featuring ergonomic pistol grip design for easy handling and accurate internal groove measurements.
Key Features
- Self-centering 3-point mechanism for accurate bore diameter measurement
- Stepped measuring head design for convenient groove diameter measurement
- Rapid mobile measurement method for efficient repeated groove measurements
- Quick measurement capability for multiple products
- Includes setting rings for measurements within 100mm range
- Supplied in protective fitted case for storage and transport
Product Specifications
| Order No. | Measuring Range | Measuring Width | Measuring Depth | Accuracy | Setting |
|---|---|---|---|---|---|
| KM-2306-8 | 6-8mm | 1.5mm | 1.5mm | 0.006mm | Φ6mm |
| KM-2306-10 | 8-10mm | 1.5mm | 1.5mm | 0.006mm | Φ8mm |
| KM-2306-12 | 10-12mm | 1.5mm | 1.5mm | 0.006mm | Φ10mm |
| KM-2306-16 | 12-16mm | 2mm | 1.5mm | 0.005mm | Φ16mm |
| KM-2306-20 | 16-20mm | 2mm | 1.5mm | 0.005mm | Φ16mm |
| KM-2306-25 | 20-25mm | 2mm | 1.5mm | 0.005mm | Φ25mm |
| KM-2306-30 | 25-30mm | 2mm | 1.5mm | 0.005mm | Φ25mm |
| KM-2306-40 | 30-40mm | 2mm | 3mm | 0.006mm | Φ40mm |
| KM-2306-50 | 40-50mm | 2mm | 3mm | 0.006mm | Φ40mm |
| KM-2306-63 | 50-63mm | 2mm | 3mm | 0.007mm | Φ62mm |
| KM-2306-75 | 62-75mm | 2mm | 3mm | 0.007mm | Φ62mm |
| KM-2306-88 | 75-88mm | 2mm | 3mm | 0.007mm | Φ87mm |
| KM-2306-100 | 87-100mm | 2mm | 3mm | 0.007mm | Φ87mm |
Measurement Sets
| Order No. | Measuring Range | Setting Ring |
|---|---|---|
| KM-2306S-12 | 6-8mm, 8-10mm, 10-12mm | Φ6mm, Φ8mm, Φ10mm |
| KM-2306S-20 | 12-16mm, 16-20mm | Φ16mm |
| KM-2306S-50 | 20-25mm, 25-30mm, 30-40mm, 40-50mm | Φ25mm, Φ40mm |
| KM-2306S-100 | 50-63mm, 62-75mm, 75-88mm, 87-100mm | Φ62mm, Φ87mm |
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacturing, and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available for custom requirements.
How about after-sales service?
All products include a one-year warranty. If you receive any defective accessories, we will ship replacement parts or products. As an experienced manufacturer with strict calibration and inspection processes, you can trust our product quality.
