0-12.7mm/0-0.5″ Electronic Digital Indicator with Data Output
-
Highlight
0-12.7mm digital indicator with data output
,electronic digital indicator 0-0.5 inch
,digital indicator with data output
-
WarrantyOne Year
-
Product TypeDigital Indicator
-
MeasurementMetric/Inch
-
Range0-12.7mm/0-0.5"
-
Resolution0.01mm/0.0005"
-
BackFlat Back And Back With Lug
-
Measuring Force1.5 N
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-231-12.7
-
Packaging DetailsABS Box 16*8*6cm/Piece 0.30kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

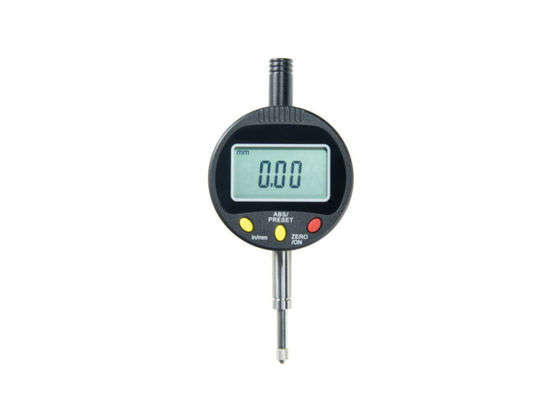

0-12.7mm/0-0.5″ Electronic Digital Indicator with Data Output
Digital indicator mainly used to check the variation in tolerance during the inspection process of a machined part, measure the deflection
of a beam or ring under laboratory conditions, as well as many other situations where a small measurement needs to be registered or indicated.
Electronic digital dial indicator has large LCD display, which can measure the dimensions of objects quickly and accurately, and we can easily
obtain measurement results by simply looking at the numbers on the display, without the need for complex calculations or conversions.
This is one economical digital dial indicator with a competitive price, features with features metric/inch conversion, data hold and absolute positioning,
making it ideal for tasks requiring high accuracy.
- Large LCD for easy reading.
- Metric/inch (mm/in) conversion.
- Absolute/incremental measurement modes.
- Power ON/OFF function.
- Zero setting capability.
- Glass capacitive sensor.
- Aerometal main body construction.
- Data output functionality.
- Includes fitted protective case.
| Order No. | Range | Resolution | Accuracy |
|---|---|---|---|
| KM-231-12.7 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | ±0.02mm |
| KM-231-25.4 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | ±0.02mm |
| KM-231-30 | 0-30mm/0-1.2″ | 0.01mm/0.0005″ | ±0.02mm |
| KM-231-50.8 | 0-50.8mm/0-2″ | 0.01mm/0.0005″ | ±0.02mm |
- Keep indicator face clean and prevent liquid ingress.
- Avoid shocks, impacts, or dropping to prevent damage to appearance and precision.
- Do not operate in direct sunlight or store in extreme temperatures.
- Never connect any part of the indicator to voltage sources.
- Do not remove end lid without using output interface.
- Remove battery when not in use for extended periods.
Digital dial indicators widely used in the manufacturing industry for precision measurement tasks such as quality control, machine setup,
and alignment. They are also used in the automotive industry for measuring engine components, brake rotors, and tire tread depth.
Additionally, absolute digital indicators are useful in the field of engineering for measuring the deflection or deformation of materials under load.
