Digital Display Electronic Dial Indicator with Metric and Inch Measurement
-
Highlight
digital dial indicator with metric inch
,electronic dial indicator with digital display
,digital measurement indicator with warranty
-
WarrantyOne Year
-
Product TypeDigital Indicator
-
MeasurementMetric/Inch
-
Range0-25.4mm/0-1"
-
Resolution0.01mm/0.0005"
-
BackFlat Back And Back With Lug
-
Measuring Force1.5 N
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-231-25.4
-
Packaging DetailsABS Box 16*8*6cm/Piece 0.45kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Digital Display Electronic Dial Indicator with Metric and Inch Measurement
Digital Display Electronic Dial Indicator with Metric and Inch Measurement
Product Overview
The digital indicator is primarily used to check tolerance variations during machined part inspections, measure beam or ring deflection under laboratory conditions, and other applications requiring precise small measurements.

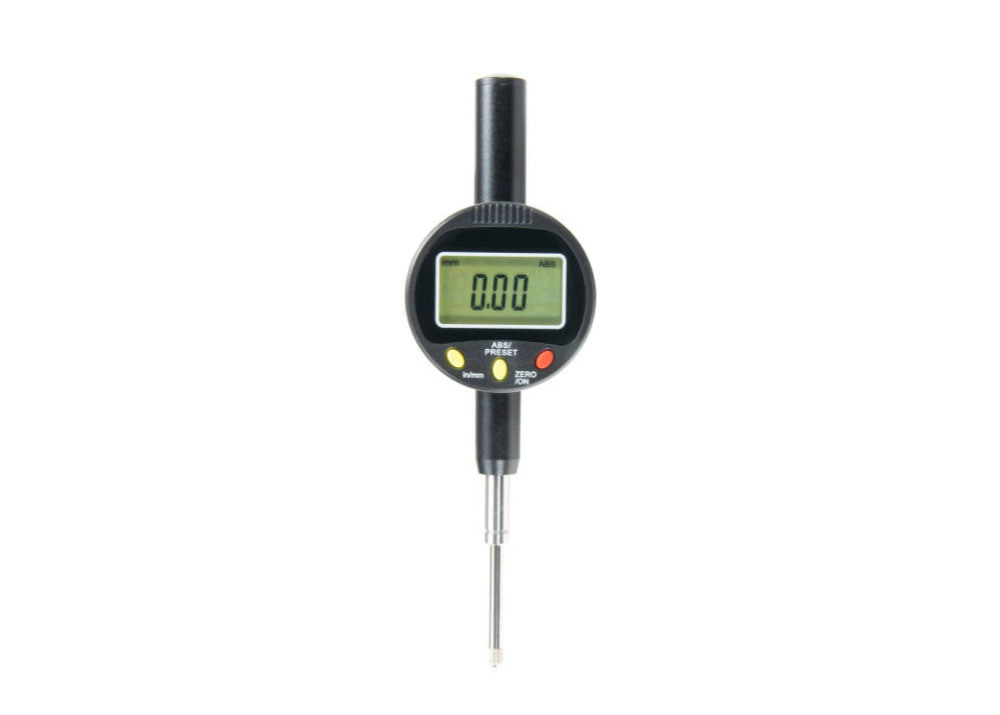

Featuring a large LCD display, this electronic digital dial indicator provides quick, accurate dimensional measurements. The clear digital readout eliminates the need for complex calculations or conversions.
This economical digital dial indicator offers excellent value, with metric/inch conversion, data hold, and absolute positioning features, making it ideal for high-accuracy tasks.
Key Features
- Large LCD for easy reading.
- Metric/inch (mm/in) conversion.
- Absolute/incremental measurement modes.
- Power ON/OFF function.
- Zero setting capability.
- Glass capacitive sensor.
- Aerometal main body construction.
- Data output functionality.
- Includes fitted protective case.
Specifications
| Order No. | Range | Resolution | Accuracy |
|---|---|---|---|
| KM-231-12.7 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | ±0.02mm |
| KM-231-25.4 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | ±0.02mm |
| KM-231-30 | 0-30mm/0-1.2″ | 0.01mm/0.0005″ | ±0.02mm |
| KM-231-50.8 | 0-50.8mm/0-2″ | 0.01mm/0.0005″ | ±0.02mm |
Usage Precautions
- Keep indicator face clean and prevent liquid ingress.
- Avoid shocks, impacts, or dropping to prevent damage to appearance and precision.
- Do not operate in direct sunlight or store in extreme temperatures.
- Never connect any part of the indicator to voltage sources.
- Do not remove end lid without using output interface.
- Remove battery when not in use for extended periods.
Applications
Digital dial indicators are widely used in manufacturing for precision measurement tasks including quality control, machine setup, and alignment. They are also valuable in automotive applications for measuring engine components, brake rotors, and tire tread depth. In engineering fields, these indicators measure material deflection or deformation under load.
