0-50.8mm Digital Dial Indicator with LCD Display for Metrology & Inspection
-
Highlight
digital dial indicator with LCD display
,0-50.8mm digital indicator for metrology
,LCD display digital indicator for inspection
-
WarrantyOne Year
-
TypeDigital Indicator
-
MeasurementMetric/Inch
-
Range0-50.8mm/0-2"
-
Resolution0.001mm/0.00005"
-
BackFlat Back And Back With Lug
-
Max Measuring Force1.6n
-
CapFixed And Moveable Cap
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-232H-50.8
-
Packaging DetailsABS Box 30*21*12cm/Piece 0.78kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

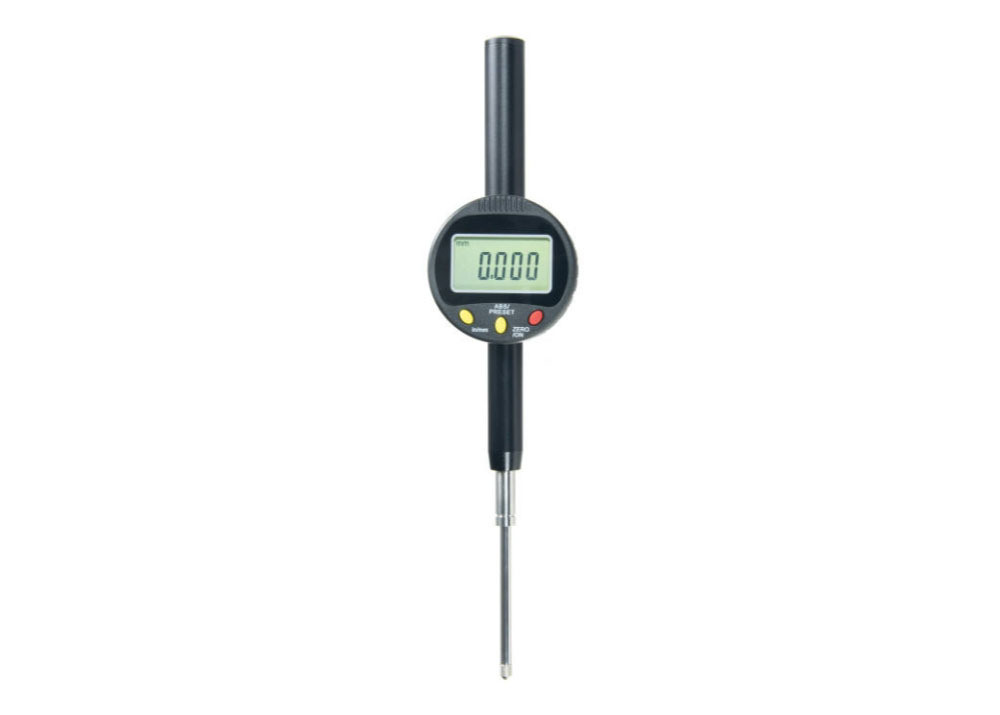

0-50.8mm Digital Dial Indicator with LCD Display for Metrology & Inspection
Digital indicator mainly used to check the variation in tolerance during the inspection process of a machined part, measure the deflection
of a beam or ring under laboratory conditions, as well as many other situations where a small measurement needs to be registered or indicated.
Electronic digital dial indicator has large LCD display, which can measure the dimensions of objects quickly and accurately, and we can easily
obtain measurement results by simply looking at the numbers on the display, without the need for complex calculations or conversions.
This is one economical digital dial indicator with a competitive price, features with features metric/inch conversion, data hold and absolute positioning,
making it ideal for tasks requiring high accuracy.
- Large LCD display for easy reading.
- Metric/inch conversion capability.
- Absolute/incremental measurement modes.
- Power on/off function.
- Zero setting capability.
- Glass capacitive sensor.
- Aerometal main body construction.
- Data output functionality.
- Includes fitted protective case.
| Order No. | Range | Resolution | Accuracy |
|---|---|---|---|
| KM-232H-12.7 | 0-12.7mm/0-0.5″ | 0.001mm/0.00005″ | ±0.004mm |
| KM-232H-25.4 | 0-25.4mm/0-1″ | 0.001mm/0.00005″ | ±0.005mm |
| KM-232H-30 | 0-30mm/0-1.2″ | 0.001mm/0.00005″ | ±0.005mm |
| KM-232H-50.8 | 0-50.8mm/0-2″ | 0.001mm/0.00005″ | ±0.006mm |
- Keep indicator face clean and prevent liquid ingress.
- Avoid shocks, impacts, or dropping to prevent damage to appearance and precision.
- Do not operate in direct sunlight or store in extreme temperatures.
- Never connect any part of the indicator to voltage sources.
- Do not remove end lid without using output interface; avoid metal contact with output end.
- Remove battery when not in use for extended periods.
