Master Wear Plug Gauge Calibration Tool for GO and NOGO Ring Gauges
-
Highlight
Master Wear plug gauge calibration tool
,GO NOGO ring gauge calibration
,Metric thread plug gauge tool
-
WarrantyOne Year
-
Product TypeMaster Wear Plug Gauge
-
Gauge TypeGO And NOGO Gauge (for Checking Ring Gauge Wear)
-
ApplicationFor Calibration And Wear Verification Of GO Ring Gauges
-
Gauge MaterialTool Steel
-
Surface TreatmentPrecision Ground And Lapped To Mirror Finish
-
Storage CasePlastic Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-CPR800-150-6H-NG
-
Packaging DetailsPlastic Case 22*11*9cm/Piece 0.84kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,MoneyGram
-
Supply Ability50000pieces/Month

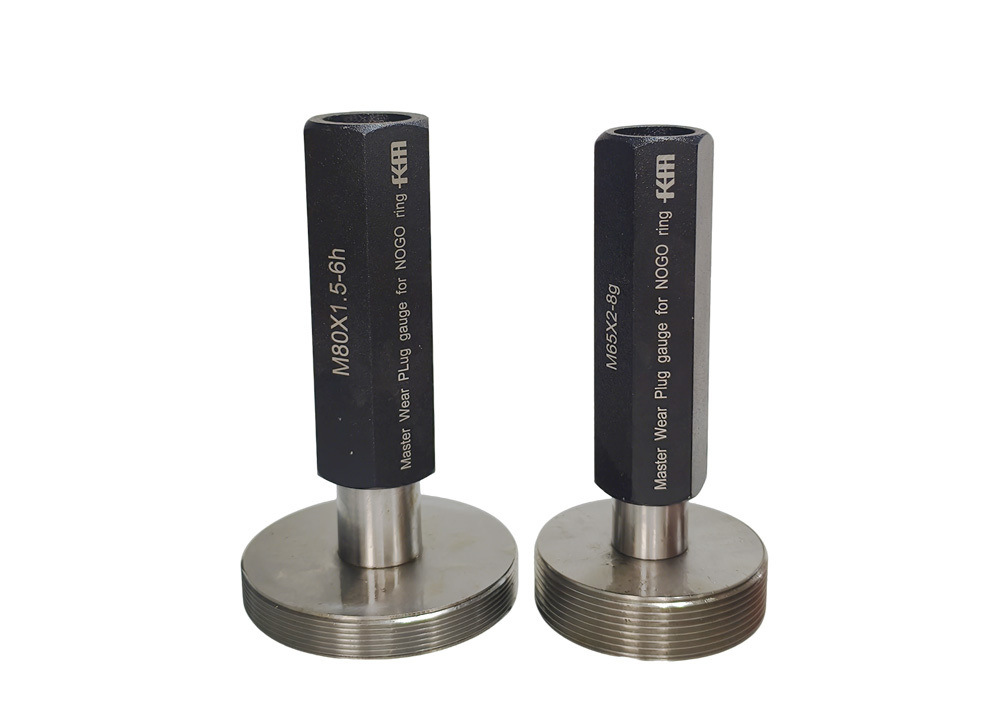

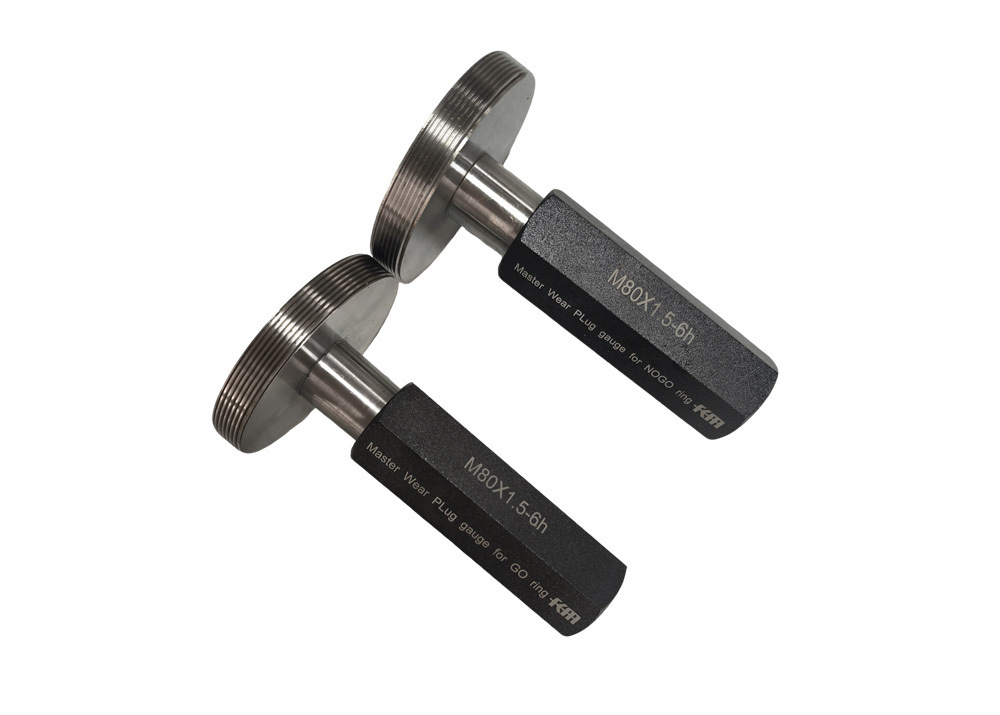

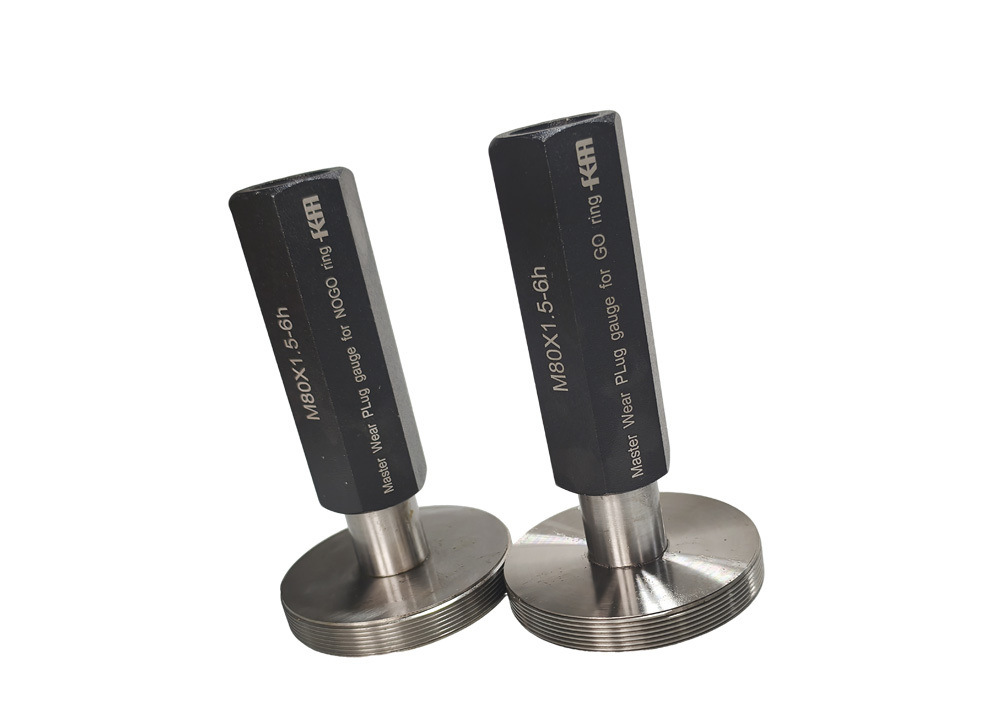

Master Wear Plug Gauge Calibration Tool for GO and NOGO Ring Gauges
- Master wear plug gauge for precision measurement.
- Available in various accuracy grades: 6g, 8g, etc.
- Types include GO, NO GO, and combination GO/NOGO.
- Wear and corrosion resistant bearing steel construction.
- Stable structure for reliable performance.
- Supplied in protective fitted case.
|
Order No. |
Size |
Coarse |
Fine |
Accuracy |
||||
|
Pitch 1 |
Pitch 1 |
Pitch 1 |
Pitch 1 |
Pitch 1 |
Pitch 1 |
|||
|
KM-R001 |
M1.0 |
0.25 |
0.20 |
|
|
|
|
3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h |
|
KM-R011 |
M1.1 |
0.25 |
0.20 |
|
|
|
|
|
|
KM-R012 |
M1.2 |
0.25 |
0.20 |
|
|
|
|
|
|
KM-R014 |
M1.4 |
0.30 |
0.20 |
|
|
|
|
|
|
KM-R016 |
M1.6 |
0.35 |
0.20 |
|
|
|
|
|
|
KM-R018 |
M1.8 |
0.35 |
0.20 |
|
|
|
|
|
|
KM-R020 |
M2.0 |
0.40 |
0.25 |
|
|
|
|
|
|
KM-R022 |
M2.2 |
0.45 |
0.25 |
|
|
|
|
|
|
KM-R025 |
M2.5 |
0.45 |
0.35 |
|
|
|
|
|
|
KM-R030 |
M3.0 |
0.50 |
0.35 |
|
|
|
|
|
|
KM-R035 |
M3.5 |
0.60 |
0.35 |
|
|
|
|
|
|
KM-R040 |
M4.0 |
0.70 |
0.50 |
|
|
|
|
|
|
KM-R050 |
M5.0 |
0.80 |
0.50 |
|
|
|
|
|
|
KM-R060 |
M6.0 |
1.00 |
0.75 |
0.50 |
|
|
|
|
|
KM-R080 |
M8.0 |
1.25 |
1.00 |
0.75 |
0.50 |
|
|
|
|
KM-R100 |
M10.0 |
1.50 |
1.25 |
1.00 |
0.75 |
0.50 |
|
|
|
KM-R120 |
M12.0 |
1.75 |
1.50 |
1.25 |
1.00 |
0.75 |
0.50 |
|
|
KM-R140 |
M14.0 |
2.00 |
1.50 |
1.25 |
1.00 |
0.75 |
0.50 |
|
|
KM-R160 |
M16.0 |
2.00 |
1.50 |
1.00 |
0.75 |
0.50 |
|
|
|
KM-R180 |
M18.0 |
2.50 |
2.00 |
1.50 |
1.00 |
0.75 |
0.50 |
|
|
|
…… |
…… |
…… |
…… |
…… |
…… |
…… |
|
|
KM-R320 |
M320 |
|
|
|
|
|
|
|
- Inspect the measuring surface for cleanliness, rust, or scratches before use.
- Ensure all markings are clearly visible.
- Use only during valid inspection periods with proper documentation.
- Maintain measurement temperature close to 20°C.
- Apply minimal force - avoid pushing or rotating the gauge.
- Insert and remove along the axis without tilting.
- Clean thoroughly after each use to maintain accuracy.
Our products are sold all over the world, you can rest assured.
