Industrial Universal Magnetic Base Mechanical On/Off Switch for Indicator Holding
-
Highlight
industrial magnetic base switch
,universal mechanical on/off switch
,magnetic indicator holding stand
-
WarrantyOne Year
-
TypeMagnetic Stand
-
MaterialAluminum Alloy
-
Magnetic Force100kg
-
FormMechanical Universal Type
-
Base(L×W×H)73×50×55mm
-
FeatureWith Fine Adjustment
-
Material BaseAluminum Arm
-
PackagePaper Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-635-4
-
Packaging DetailsPaper Box 25*10*5cm/Piece 1.40kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

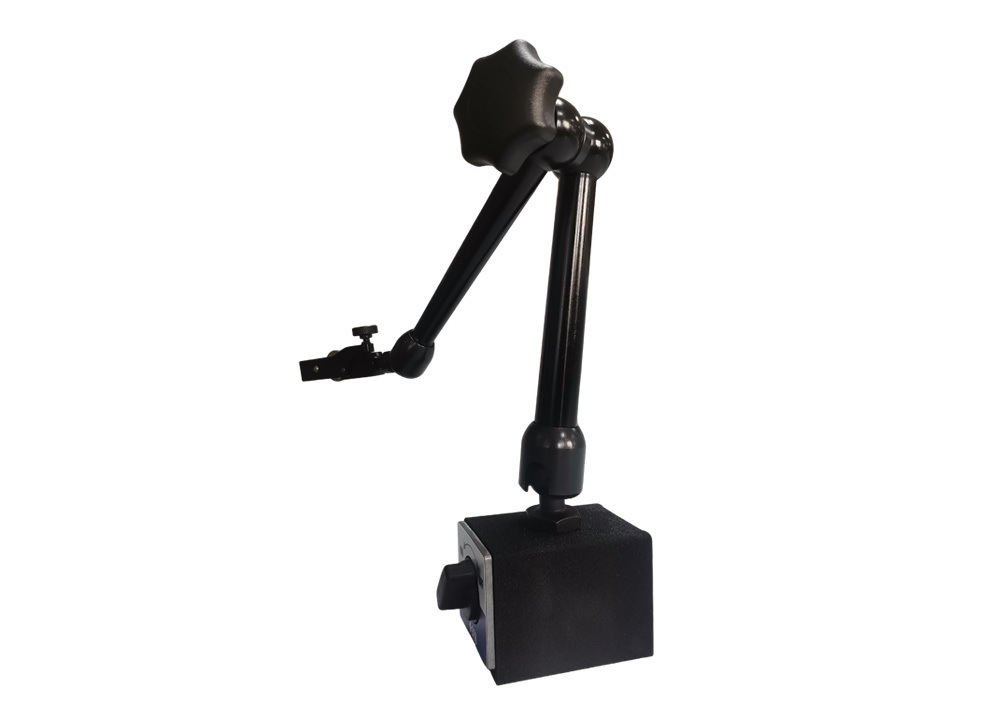

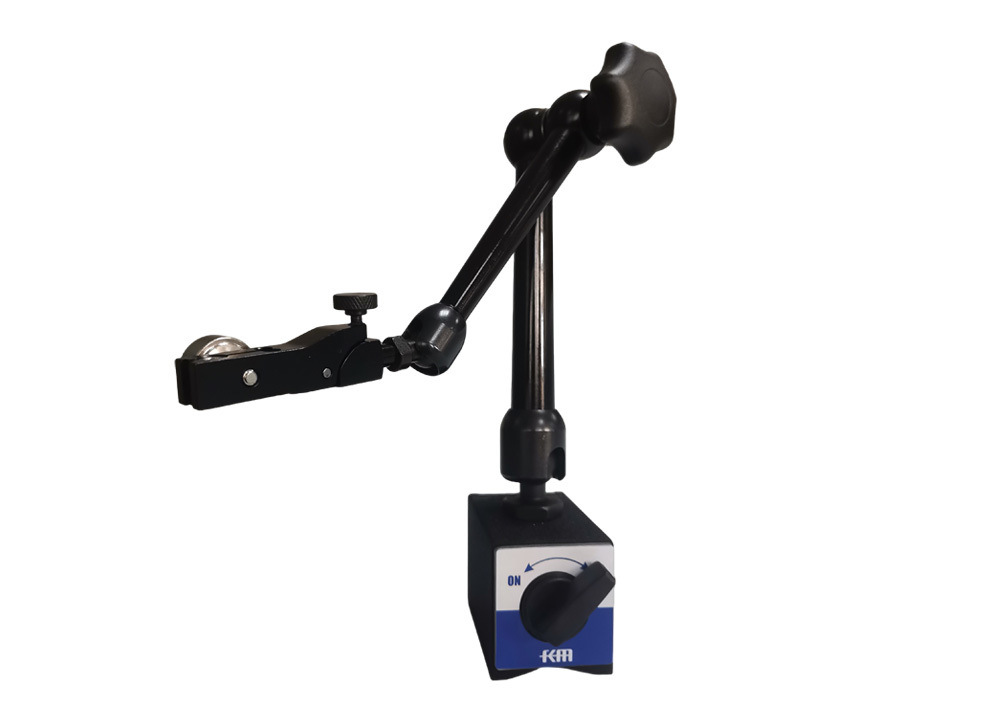

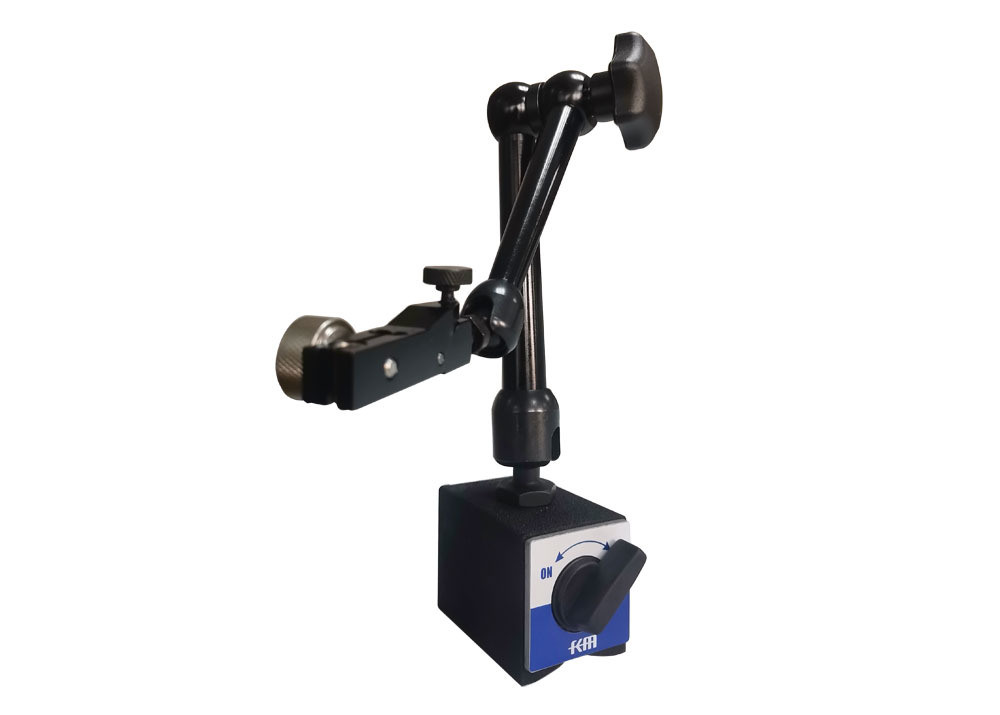

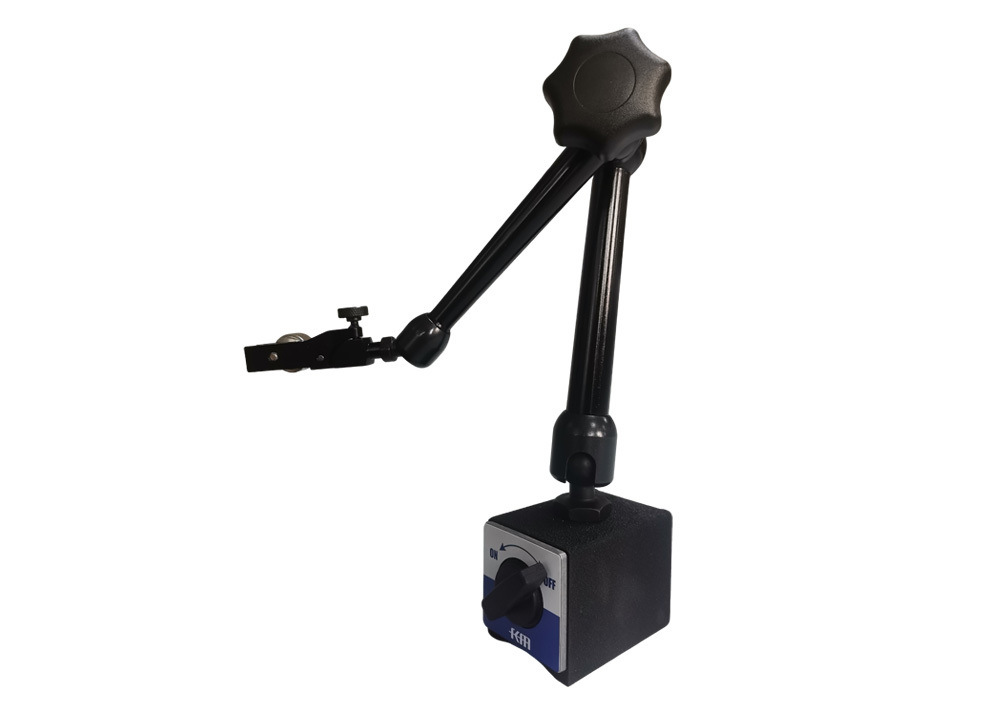

Industrial Universal Magnetic Base Mechanical On/Off Switch for Indicator Holding
Industrial Universal Magnetic Base Mechanical On/Off Switch for Indicator Holding
This new type magnetic stand features fine adjustment on top for higher accuracy. Designed with an aluminum arm and central locking mechanism, it provides a stable and adjustable platform for measurement tools in industrial applications.
Key Features
- Mechanical universal type with magnetic base and ON/OFF switch.
- Fine adjustment mechanism for micro-adjustments and maximum precision.
- Dovetail groove for test indicators with M8×1.25mm tapped hole.
- Strong magnetic force ranging from 30kg to 130kg for secure attachment.
- Includes fitted case for safe transportation and storage.
- Available in 5 different dimensions to meet various application requirements.
Technical Specifications
| Order No. | Magnetic Force | Arm Length | Overall Length | Clamping Dia. | Base (L×W×H) |
|---|---|---|---|---|---|
| KM-635-1 | 30kg | 157mm | 192mm | ø 6mm, ø 8mm, Dovetail | 35×30×35mm |
| KM-635-2 | 30kg | 205mm | 240mm | ø 6mm, ø 8mm, Dovetail | 35×30×35mm |
| KM-635-3 | 80kg | 310mm | 365mm | ø 6mm, ø 8mm, Dovetail | 60×50×55mm |
| KM-635-4 | 100kg | 385mm | 440mm | ø 6mm, ø 8mm, Dovetail | 73×50×55mm |
| KM-635-5 | 130kg | 635mm | 690mm | ø 6mm, ø 8mm, Dovetail | 117×50×55mm |
Operation Precautions
- Place on a flat, dry, and non-magnetic worktable.
- Adjust to appropriate position before fixing measured objects.
- Prevent external vibrations and interference during measurement.
- Regularly check magnetic stand condition and perform maintenance.
Applications
Ideal for metalworking and machining processes to securely hold dial indicators, test indicators, and other measuring tools, ensuring precise measurements and alignment during operations.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
We offer dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with one year warranty. Defective parts will be replaced promptly. Our strict quality control ensures reliable product performance.
