Precision Magnetic Base with Fine Adjustment for Welding, Drilling & Fabrication Clamping
-
Highlight
precision magnetic base for welding
,fine adjustment magnetic stand
,welding drilling fabrication clamping base
-
WarrantyOne Year
-
TypeMagnetic Stand
-
MaterialAluminum Alloy
-
Magnetic Force80kg
-
FormMechanical Universal Type
-
Base(L×W×H)60×50×55mm
-
FeatureWith Fine Adjustment
-
Material BaseAluminum Arm
-
PackagePaper Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-635-3
-
Packaging DetailsPaper Box 25*10*5cm/Piece 1.40kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

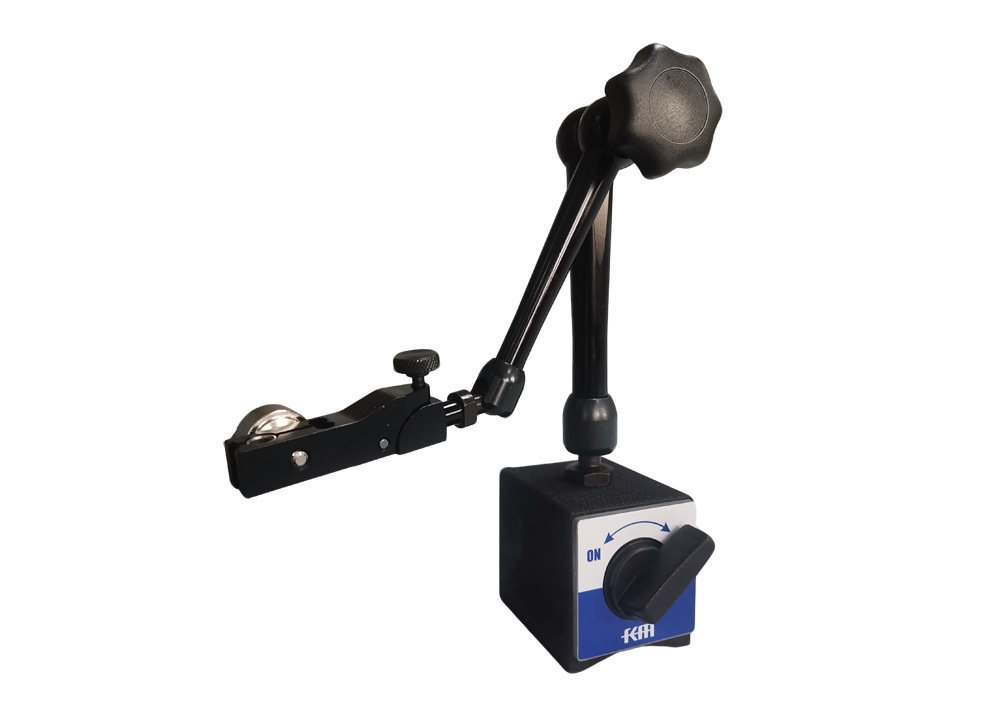

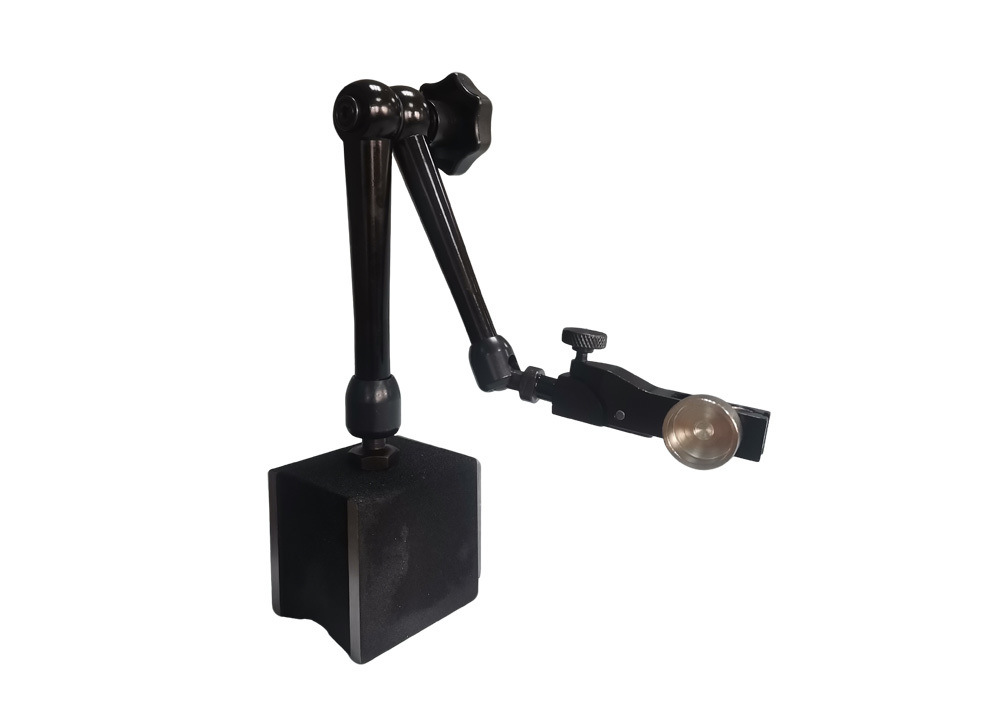

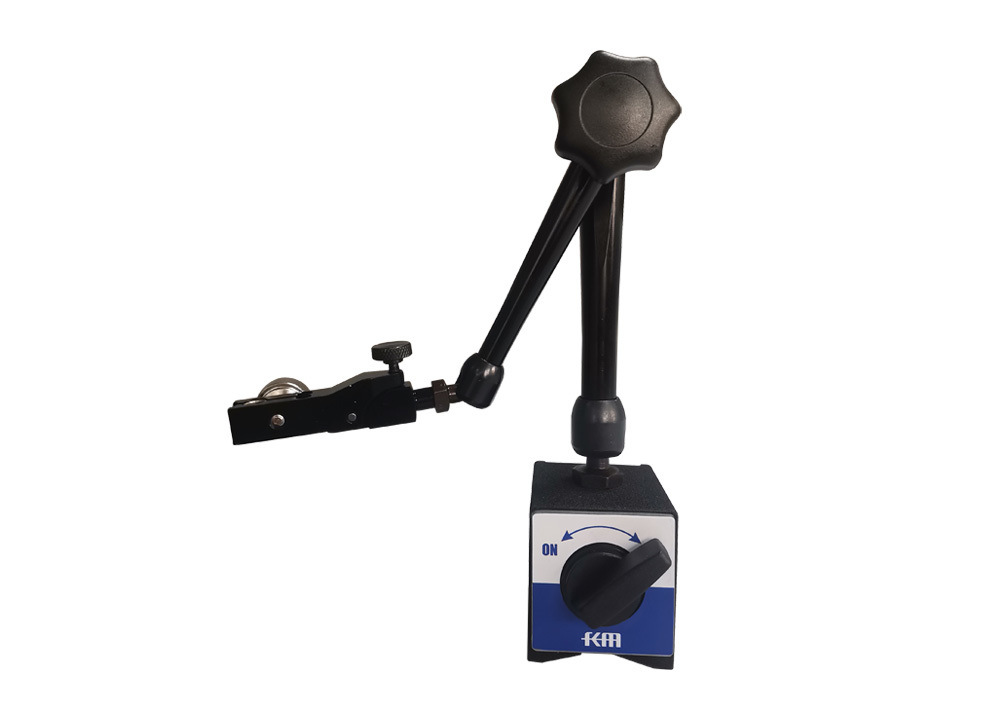

Precision Magnetic Base with Fine Adjustment for Welding, Drilling & Fabrication Clamping
Precision Magnetic Base with Fine Adjustment for Welding, Drilling & Fabrication Clamping
Quick Features
- Mechanical universal type.
- Magnetic base with ON/OFF switch.
- New type with fine adjustment on the top for higher accuracy.
- Dovetail groove for test indicators.
- Tapped hole: M8×1.25mm.
- Supplied in fitted case.
Product Description
This new type magnetic stand features fine adjustment on the top. We offer 5 different dimensions with overall lengths ranging from 192mm to 690mm to meet various application requirements. The series is designed with an aluminum arm featuring a central locking mechanism. All models except KM-635-1 include fine adjustment capability for micro-adjustments to your dial indicator, ensuring maximum precision.
The magnetic base provides strong magnetic force ranging from 30kg to 130kg, enabling secure attachment to any ferromagnetic surface for a stable and adjustable measurement platform. Each unit comes with a fitted case for safe transportation and storage, making it an essential tool for both general purpose workshops and precision machine shops.
Technical Specifications
| Order No. | Magnetic Force | Arm Length | Overall Length | Clamping Dia. | Base (L×W×H) |
|---|---|---|---|---|---|
| KM-635-1 | 30kg | 157mm | 192mm | ø 6mm, ø 8mm, Dovetail | 35×30×35mm |
| KM-635-2 | 30kg | 205mm | 240mm | ø 6mm, ø 8mm, Dovetail | 35×30×35mm |
| KM-635-3 | 80kg | 310mm | 365mm | ø 6mm, ø 8mm, Dovetail | 60×50×55mm |
| KM-635-4 | 100kg | 385mm | 440mm | ø 6mm, ø 8mm, Dovetail | 73×50×55mm |
| KM-635-5 | 130kg | 635mm | 690mm | ø 6mm, ø 8mm, Dovetail | 117×50×55mm |
Usage Precautions
- Place the magnetic stand on a flat, dry, and non-magnetic worktable.
- Adjust the stand to the appropriate position through the knob or screw before fixing the measured object to ensure stable contact.
- Prevent external vibrations and interference during measurement.
- Regularly check the magnetic stand's condition and perform maintenance as needed.
Applications
Magnetic bases are commonly used in metalworking and machining processes to securely hold dial indicators, test indicators, and other measuring tools, ensuring precise measurements and alignment during operations.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. If you receive any defective accessories, we will ship replacement parts or products. As an experienced manufacturer with strict calibration and inspection processes, you can trust our product quality.
