Stainless Steel Magnetic Base for Dial Indicator with Fine Adjustment & Strong Hold
-
Highlight
Strong Hold Magnetic Dial Indicator Base
,Fine Adjustment Magnetic Dial Indicator Base
,Black Stainless Steel Magnetic Base
-
WarrantyOne Year
-
TypeMagnetic Stand
-
MaterialStainless Steel
-
ColorBlack
-
FunctionFine Adjustment
-
Magnetic Force50kg
-
Base(L×W×H)40×40×40mm
-
PackagePaper Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-603-01
-
Packaging DetailsPaper Box 21*12*8cm/Piece 1.30kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Stainless Steel Magnetic Base for Dial Indicator with Fine Adjustment & Strong Hold
Magnetic Base for Dial Indicator with Fine Adjustment & Strong Hold
Product Description

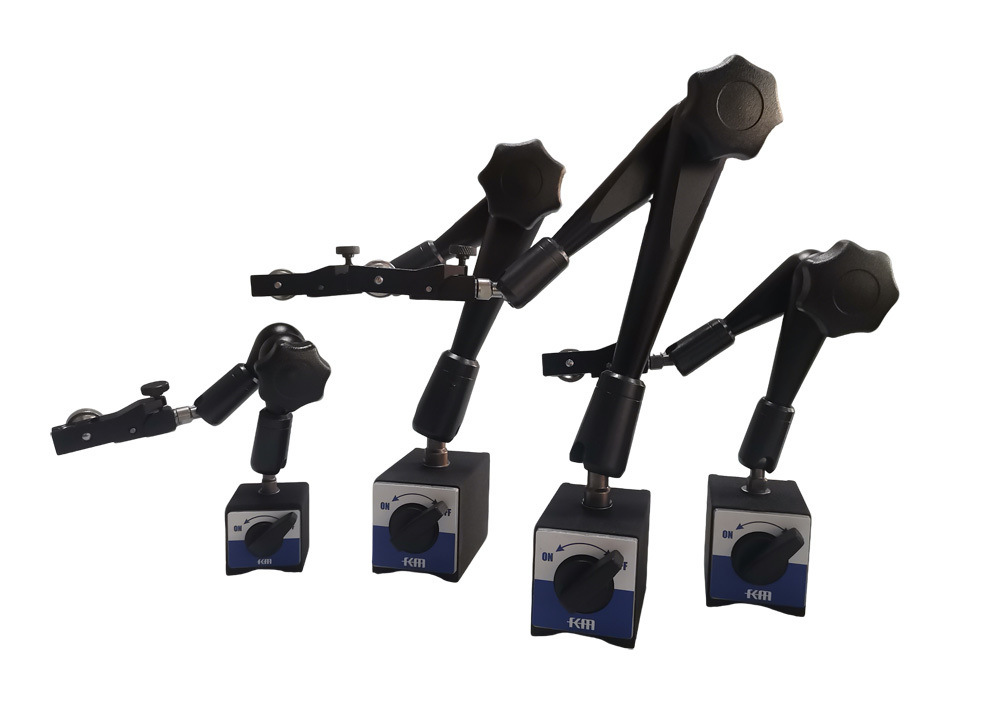

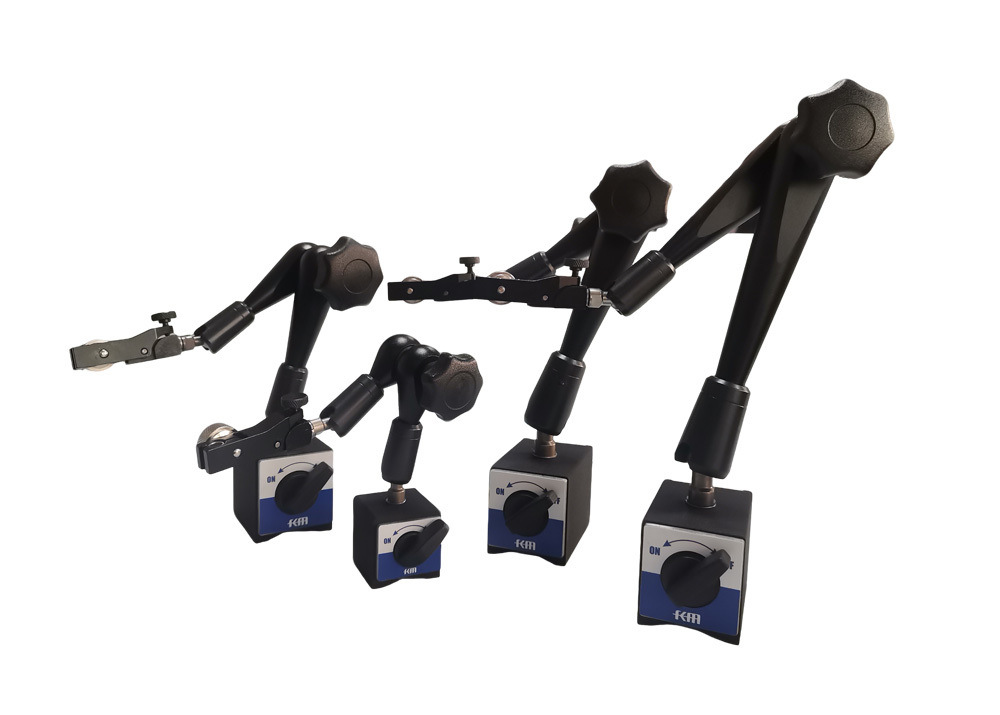

This mechanical universal magnetic base stand features a new locking mechanism with super strong arm lock. All wear parts use hardened high-class steel with hardness reaching HRC 58°+, manufactured on CNC lathe machines for precision.
Key Features
- New type locking mechanism with super strong-arm lock
- Magnetic base with convenient ON/OFF switch
- Fine adjustment on top for higher accuracy
- Enhanced stability with strong arm lock
- Dovetail groove for test indicators
- Universal clamp hole for both metric and inch indicators
This forced locking magnetic base provides strong magnetic force from 50kg up to 100kg, securely attaching to any ferromagnetic surface for stable measurement platform. Includes fitted case for safe transportation and storage. Essential for general workshops and precision machine shops.
Specifications
| Order No. | Magnetic Force | Applicable Holding Stem Dia. | Base (L*W*H) | Arm Length | Overall Length |
|---|---|---|---|---|---|
| KM-603-01 | 50kg | 6mm/8mm, Dovetail | 40*40*40mm | 182mm | 222mm |
| KM-603-02 | 50kg | 6mm/8mm, 3/8''/Dovetail | 40*40*40mm | 220mm | 260mm |
| KM-603-03 | 80kg | 6mm/8mm, 3/8''/Dovetail | 60*50*55mm | 295mm | 350mm |
| KM-603-04 | 100kg | 6mm/8mm, 3/8''/Dovetail | 73*50*55mm | 355mm | 410mm |
| KM-603-05 | 100kg | 6mm/8mm, 3/8''/Dovetail | 73*50*55mm | 415mm | 470mm |
Usage Precautions
- Place on a flat, dry, non-magnetic worktable
- Adjust to appropriate position before fixing measured objects
- Prevent external vibrations and interference during measurement
- Regularly inspect magnetic stand and maintain as needed
Applications
Widely used in machine building for inspecting machine tool accuracy, flatness, and workpiece dimensional accuracy. Essential for detecting concentricity, parallelism, and other shape/position errors during assembly to ensure product quality and performance.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
One year warranty on all products. Defective parts will be replaced promptly. Our strict calibration and inspection processes ensure product quality.
