150-1500mm Rod Type Inside Micrometer with 0.01mm Graduation
-
Highlight
150-1500mm Inside Micrometer
,Rod Type Inside Micrometer
,0.01mm Inside Micrometer
-
WarrantyOne Year
-
MeasurementMetric
-
Measurement ObjectInside Diameter
-
Reading TypeDirect Reading From Sleeve And Thimble
-
Measurement PrincipleTubular Rod System
-
Range150-1500mm
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-3303-1500
-
Packaging DetailsABS Box 55*50*12cm/Piece 4.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

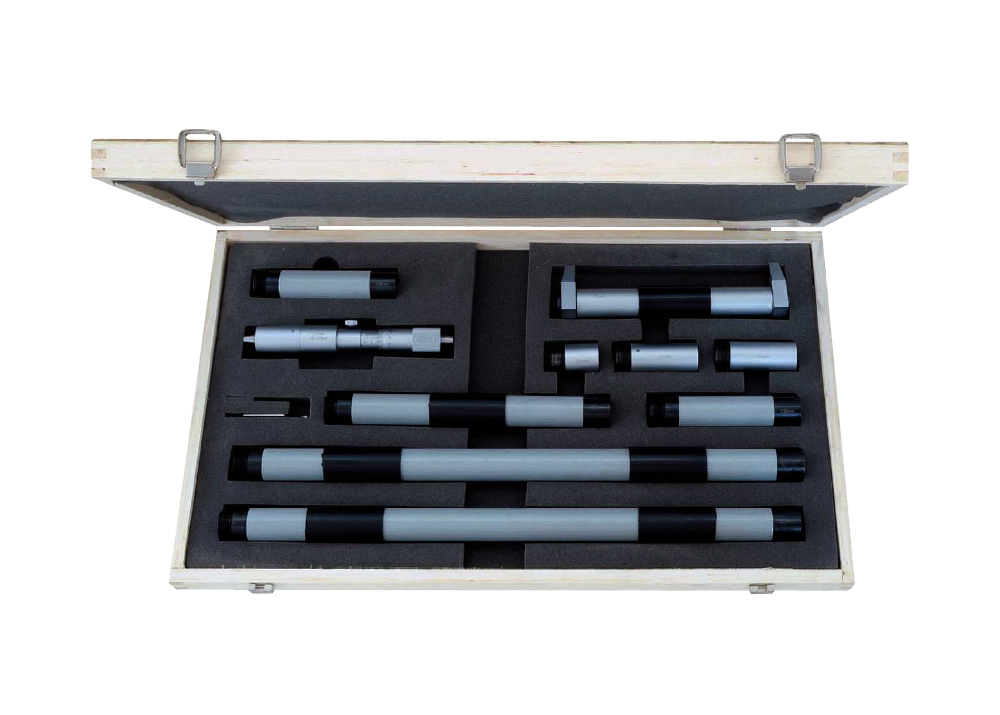

150-1500mm Rod Type Inside Micrometer with 0.01mm Graduation
150-1500mm Rod Type Inside Micrometer with 0.01mm Graduation
Key Features
- Graduation: 0.01mm (Metric); 0.001″ (Inch).
- Extension rods provide wide measuring range.
- Includes standard caliper gauge for zero setting.
- Extension rod diameter: φ22mm.
- Accuracy: (3+n+L/50)μm (n=number of rod, L=max measuring length in mm).
Product Description
Our tubular inside micrometers consist of a measuring head and tubular extension rods. The combination of extension rods provides a wide measuring range, while the tubular design allows for easy insertion into measured objects. The measuring head delivers precise internal diameter readings.
Available in ranges from 50-100mm up to 50-1500mm to suit various applications. All micrometers come with protective case packaging.
Metric Specifications
| Order No. | Measuring Range | Extension Rods |
|---|---|---|
| KM-3303-175 | 150-175mm | Micrometer Head |
| KM-3303-1400 | 150-1400mm | 25mm, 50mm(2pcs), 100mm, 200mm, 400mm(2pcs) |
| KM-3303-1500 | 150-1500mm | 25mm, 50mm(2pcs), 100mm(2pcs), 200mm, 400mm(2pcs) |
| KM-3303-2000 | 150-2000mm | 25mm, 50mm(2pcs), 100mm, 200mm(2pcs), 400mm(3pcs) |
| KM-3303-2100 | 150-2100mm | 25mm, 50mm(2pcs), 100mm(2pcs), 200mm(2pcs), 400mm(3pcs) |
Inch Specifications
| Order No. | Measuring Range | Extension Rods |
|---|---|---|
| KM-3303-7 | 6-7″ | Micrometer Head |
| KM-3303-56 | 6-56″ | 1″, 2″(2pcs), 4″, 8″, 16″(2pcs) |
| KM-3303-60 | 6-60″ | 1″, 2″(2pcs), 4″(2pcs), 8″, 16″(2pcs) |
| KM-3303-80 | 6-80″ | 1″, 2″(2pcs), 4″, 8″(2pcs), 16″(3pcs) |
| KM-3303-84 | 6-84″ | 1″, 2″(2pcs), 4″(2pcs), 8″(2pcs), 16″(3pcs) |
Usage Precautions
- Always connect the largest extension rod to the micrometer head first, then add other rods in sequence to minimize axis bending.
- Check for variation when the micrometer head is fixed and loosened during measurement.
- Ensure proper bearing position during measurement.
Applications
These precision tubular inside micrometers are ideal for measuring internal diameters of pipes, tubes, and cylindrical objects with narrow openings. Essential for quality control in manufacturing, automotive, and construction industries.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges,
bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. We replace defective parts or products upon receipt. Our strict calibration and inspection processes
ensure superior product quality.
