Precision Thread Plug Gauge M48 NOGO Side for Manufacturing Inspection
-
Highlight

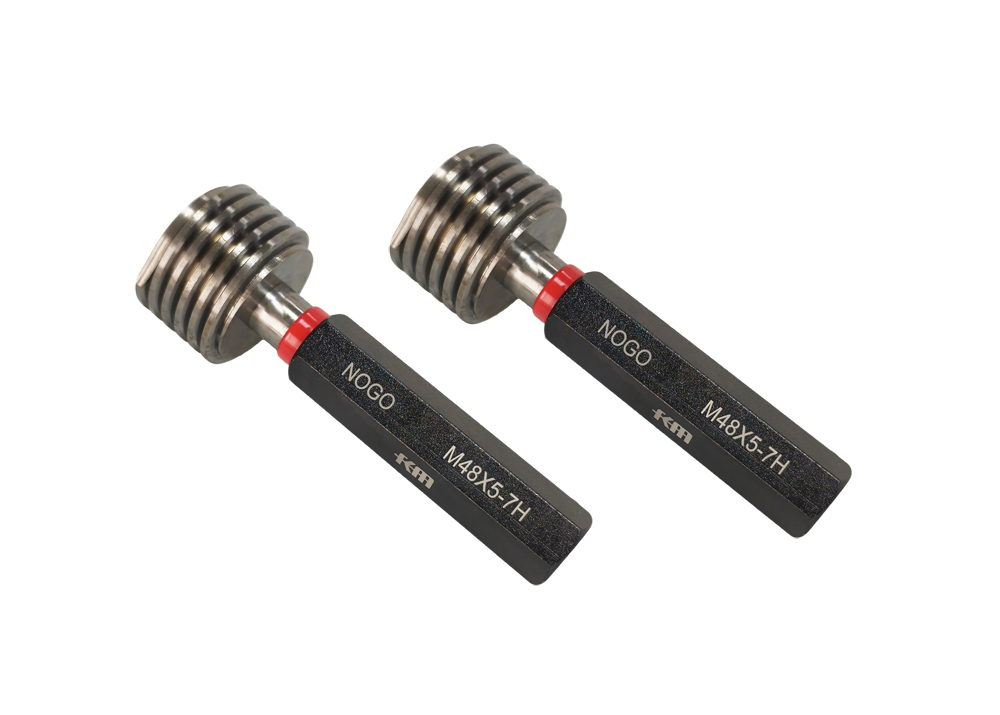

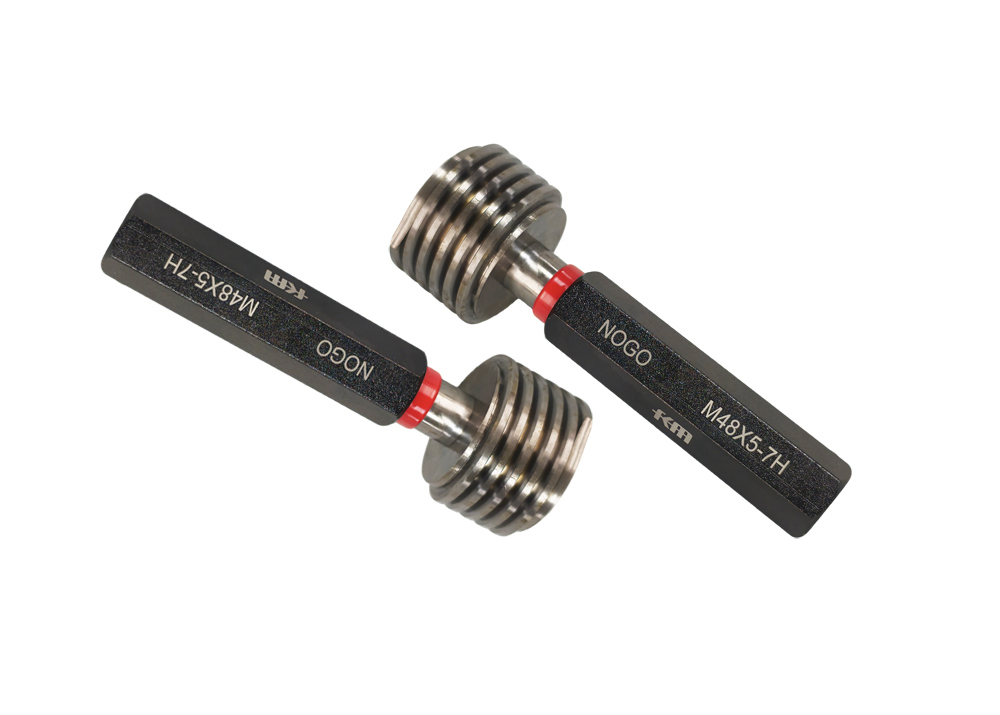

Manufacturing Inspection M48 Thread Plug Gauge
,Precision Thread Plug Gauge
,M48 NOGO Thread Plug Gauge
-
WarrantyOne Year
-
TypeMetric Thread Plug Gauge
-
MaterialTool Steel
-
Conform StandardDIN13
-
Thread SpecificationM48x5-7H GO NOGO
-
Accuracy5g,5h, 6g,6h,7g,7h ,etc
-
UsageFor Working And Inspection
-
Measurement ObjectCheck Threaded Or Tapped Holes,etc
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-P480
-

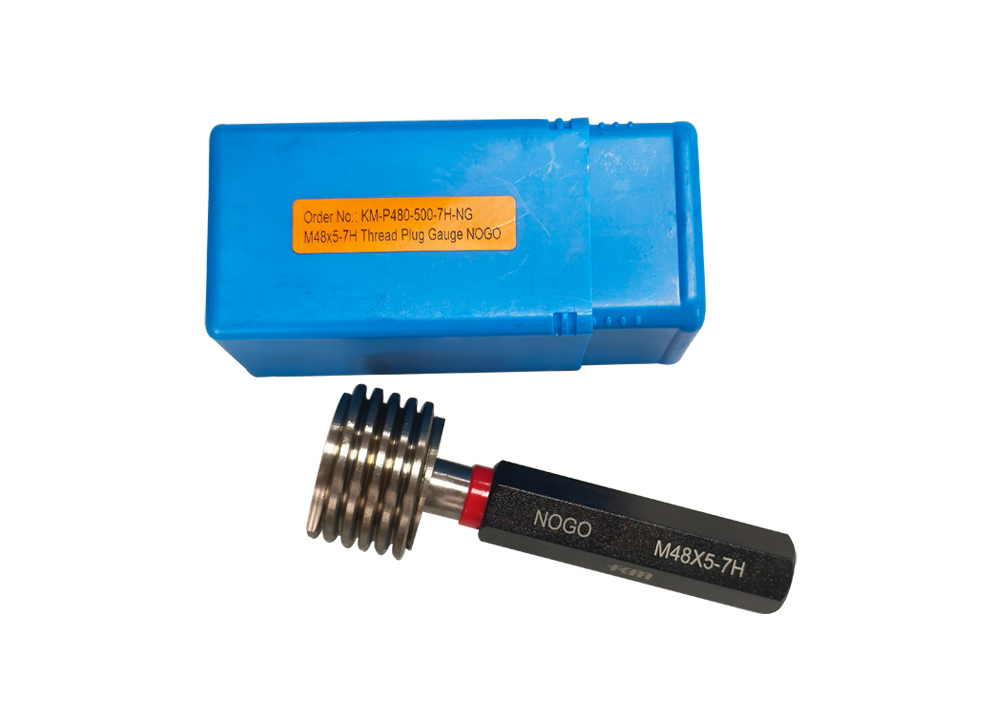

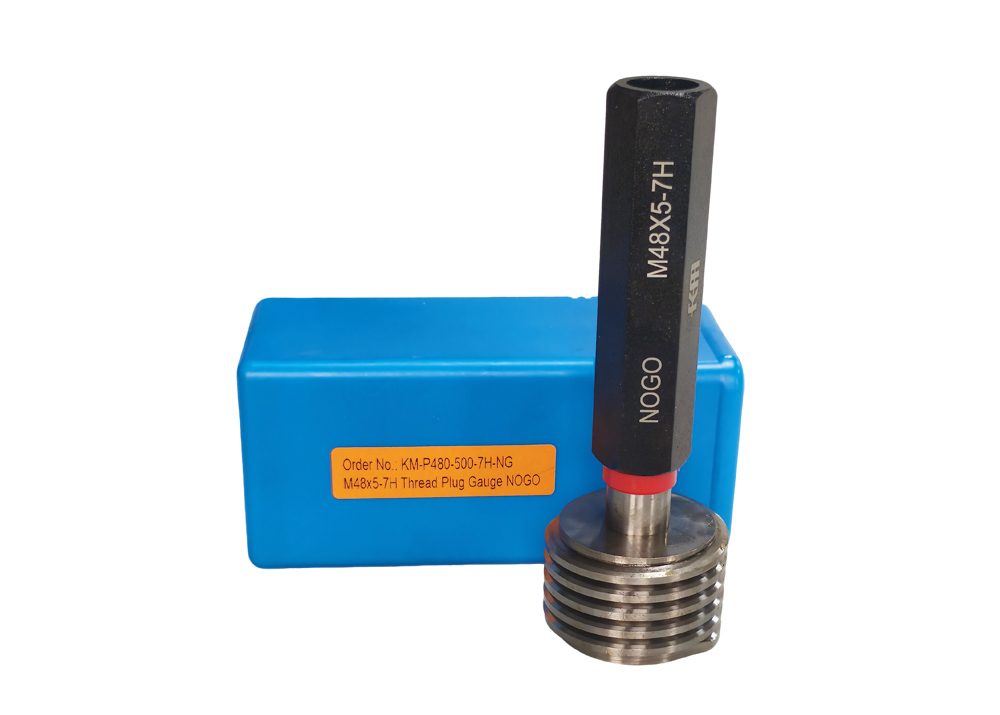

Packaging DetailsABS Box 16*5*5cm/Piece 0.80kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Precision Thread Plug Gauge M48 NOGO Side for Manufacturing Inspection
Precision Thread Plug Gauge M48 NOGO Side for Manufacturing Inspection
Product Description
These metric plug ring gauges are precision metrology tools designed for checking threaded or tapped holes. They verify proper thread type, major diameter, minor diameter, pitch diameter, and thread pitch against mating thread gauges.
Our facility features first-grade thread machining centers and measuring equipment to produce high-precision thread ring gauges for global customers. Plug gauges deliver fast results with simple operation principles that require minimal training.
For small threaded parts, gauges are double-ended with GO and NOGO sides. Larger parts may use separate pieces. Acceptance criteria: the GO gauge must pass through the entire length with minimal rotational force, while the NOGO gauge should not exceed 2 turns at either end.
Quick Details
- Metric thread plug gauge.
- Accuracy: 5g,5h, 6g,6h,7g,7h, etc.
- Available in GO, NOGO, and combination GO/NOGO types.
- Conforms to DIN13 standard.
- Wear-resistant, corrosion-resistant construction with stable structure.
- Includes fitted case.
Specifications
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 2 | Pitch 3 | Pitch 4 | Pitch 5 | Pitch 6 | |||
| KM-P001 | M1.0 | 0.25 | 0.20 |
4h 4h5h 5g 5h 5h6h 6g 6h 7g 7h |
||||
| KM-P011 | M1.1 | 0.25 | 0.20 | |||||
| KM-P012 | M1.2 | 0.25 | 0.20 | |||||
| KM-P014 | M1.4 | 0.30 | 0.20 | |||||
| KM-P016 | M1.6 | 0.35 | 0.20 | |||||
| KM-P018 | M1.8 | 0.35 | 0.20 | |||||
| KM-P020 | M2.0 | 0.40 | 0.25 | |||||
| KM-P022 | M2.2 | 0.45 | 0.25 | |||||
| KM-P025 | M2.5 | 0.45 | 0.35 | |||||
| KM-P030 | M3.0 | 0.50 | 0.35 | |||||
| KM-P035 | M3.5 | 0.60 | 0.35 | |||||
| KM-P040 | M4.0 | 0.70 | 0.50 | |||||
| KM-P050 | M5.0 | 0.80 | 0.50 | |||||
| KM-P060 | M6.0 | 1.00 | 0.75 | 0.50 | ||||
| KM-P080 | M8.0 | 1.25 | 1.00 | 0.75 | 0.50 | |||
| KM-P100 | M10.0 | 1.50 | 1.25 | 1.00 | 0.75 | 0.50 | ||
| KM-P120 | M12.0 | 1.75 | 1.50 | 1.25 | 1.00 | 0.75 | 0.50 | |
| KM-P140 | M14.0 | 2.00 | 1.50 | 1.25 | 1.00 | 0.75 | 0.50 | |
| KM-P160 | M16.0 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 | ||
| KM-P180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 | |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-P320 | M320 | |||||||
Applications
Thread plug gauges are essential for inspecting thread size compliance across industries including automotive manufacturing, aerospace, machining, and electronic processing. They ensure thread accuracy and improve product qualification rates for both standard and non-standard thread products.
Precautions
- Avoid touching working surfaces to prevent rust.
- Store on appropriate surfaces (tool cabinet, wooden backing plate) - never on machine tool holders or guide rails.
- Regularly inspect for damage, rust, or deformation.
- Treat rust with gasoline soak, careful wiping, and anti-rust oil application.
- Never store working surfaces together to prevent adhesion damage.
- Clean and dry thoroughly after each use.
