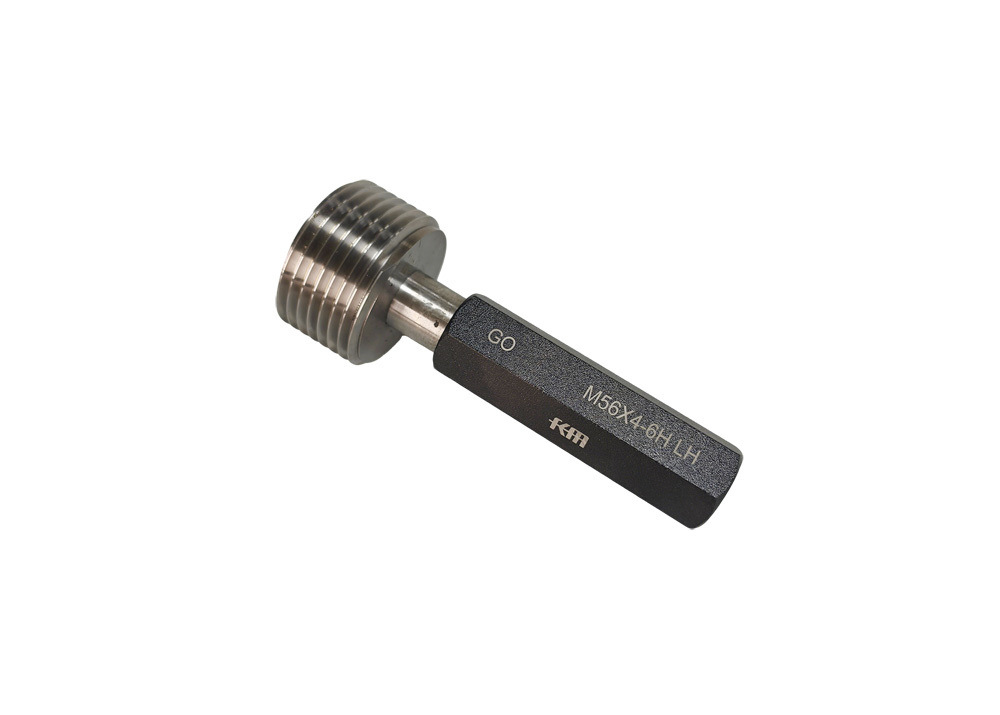

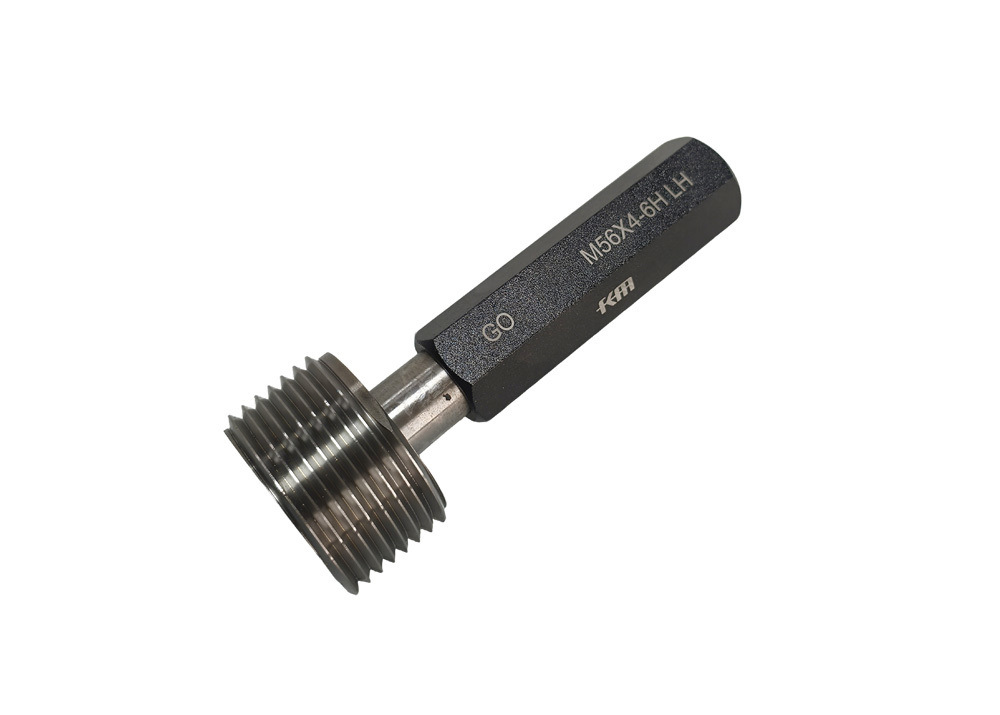

Metric M56x4-6H LH Thread Plug Gauge Full Size Range with Calibration Certificate Included
Product Description

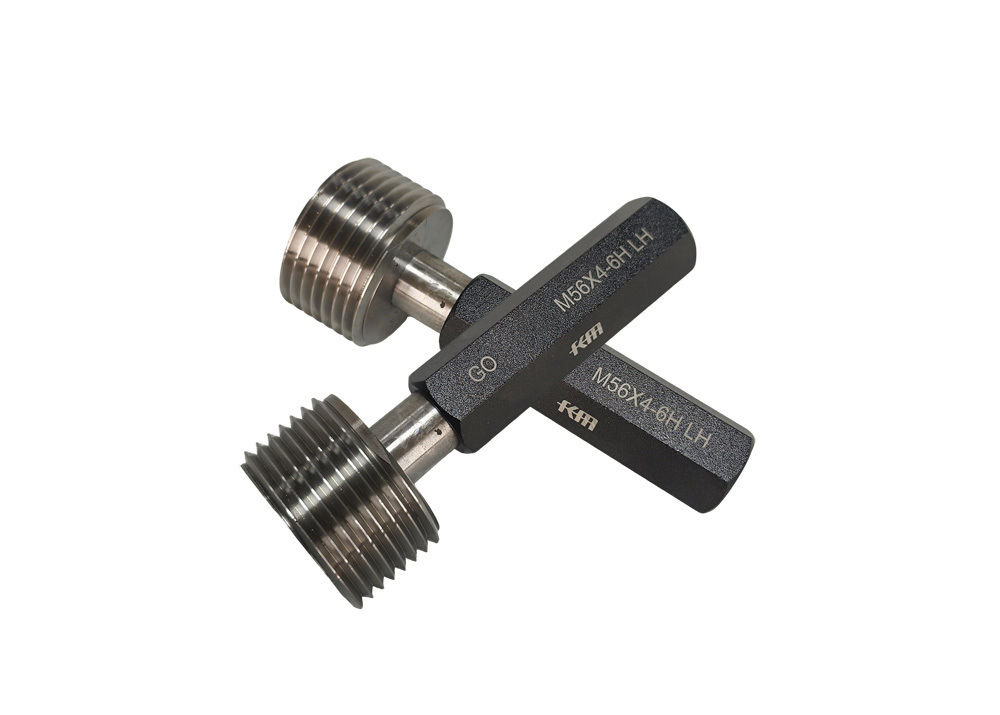

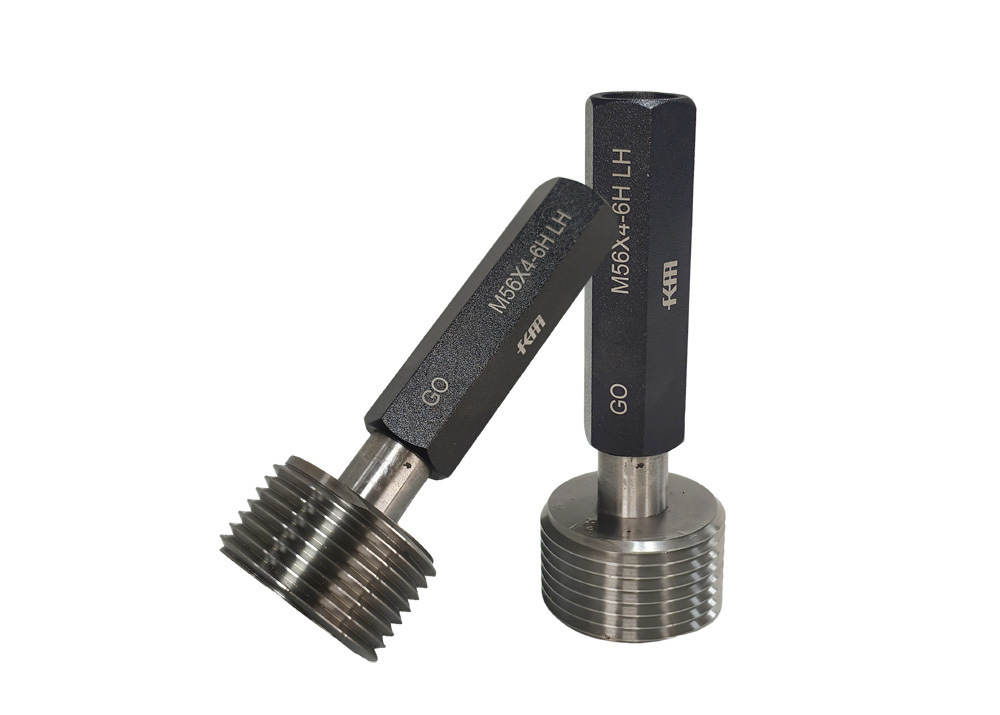

These metric plug ring gauges are precision metrology tools designed for inspecting threaded or tapped holes. They verify thread type, major diameter, minor diameter, pitch diameter, and pitch against mating thread gauges.For smaller threaded parts, the gauge features a double-ended design with GO gauge on one end and NOGO on the other. Larger parts may use separate pieces. Proper inspection requires the GO gauge to pass through the entire length with minimal rotational force, while the NOGO gauge should not exceed two turns at either end.
Manufactured using first-grade thread machining centers and precision measuring equipment, these gauges offer exceptional accuracy. Their simple operation principle allows for quick results and easy user training.
Quick Details
- Metric thread plug gauge system.
- Available in 5g,5h, 6g,6h,7g,7h accuracy grades.
- GO, NO GO, and combination GO/NOGO types available.
- Conforms to DIN13 standard.
- Wear-resistant, corrosion-resistant construction.
- Stable structure for reliable performance.

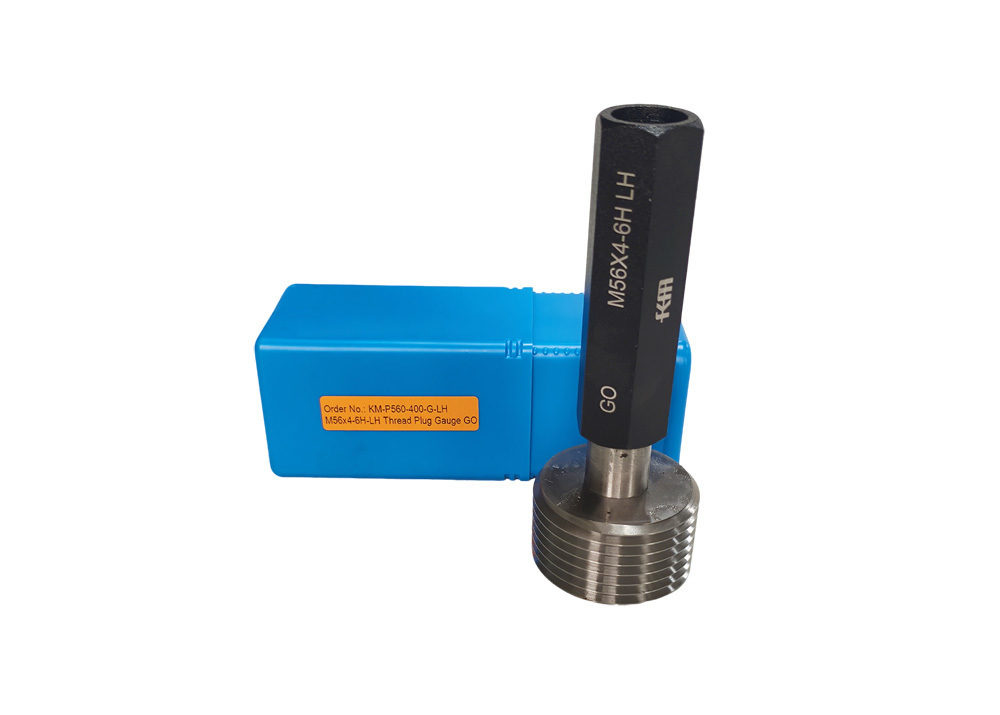

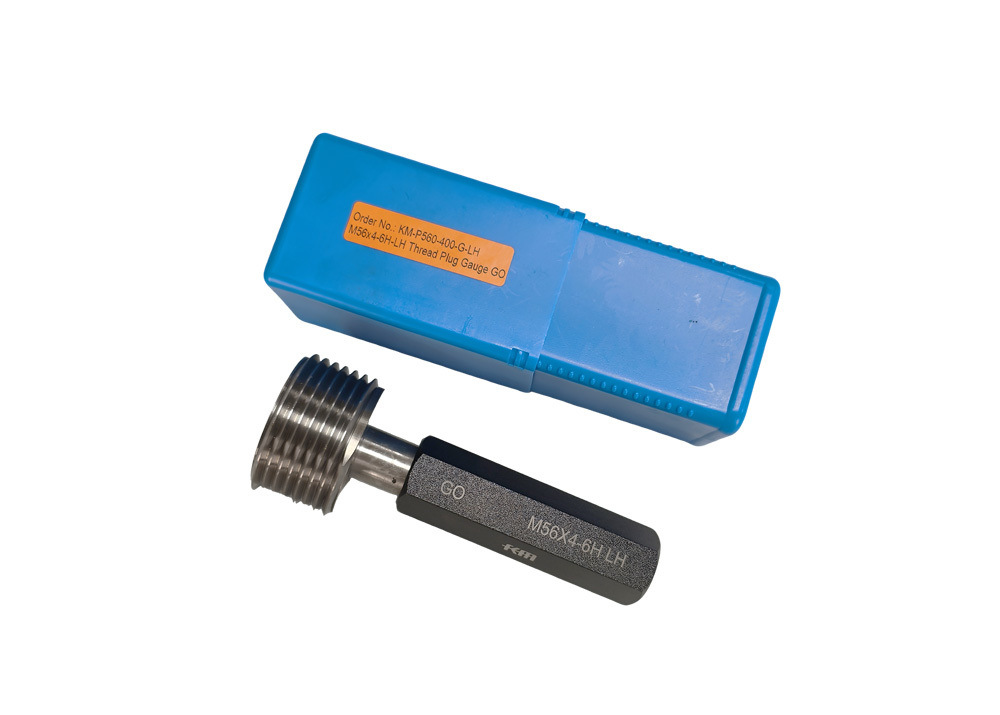

- Includes protective fitted case.
Specifications
Order No. |
Size |
Coarse |
Fine |
Accuracy |
Pitch 1 |
Pitch 2 |
Pitch 3 |
Pitch 4 |
Pitch 5 |
Pitch 6 |
KM-P560 |
M56.0 |
2.00 |
1.50 |
1.25 |
1.00 |
0.75 |
0.50 |
4h
4h5h
5g
5h
5h6h
6g
6h
7g
7h
|
|
…… |
…… |
…… |
…… |
…… |
…… |
…… |
KM-P320 |
M320 |
|
|
|
|
|
|
Applications
These thread plug gauges are essential for quality control in automotive manufacturing, aerospace, machining, and electronic processing industries. They ensure thread accuracy and improve product qualification rates for both standard and non-standard threaded components.
Precautions
- Avoid touching working surfaces to prevent rust.
- Store properly on tool cabinets or wooden backing plates - never on machine tool holders or guide rails.
- Regularly inspect for damage, rust, or deformation.
- Treat rust with gasoline soak and apply anti-rust oil.
- Never store working surfaces together to prevent adhesion.
- Clean and dry thoroughly after each use.
