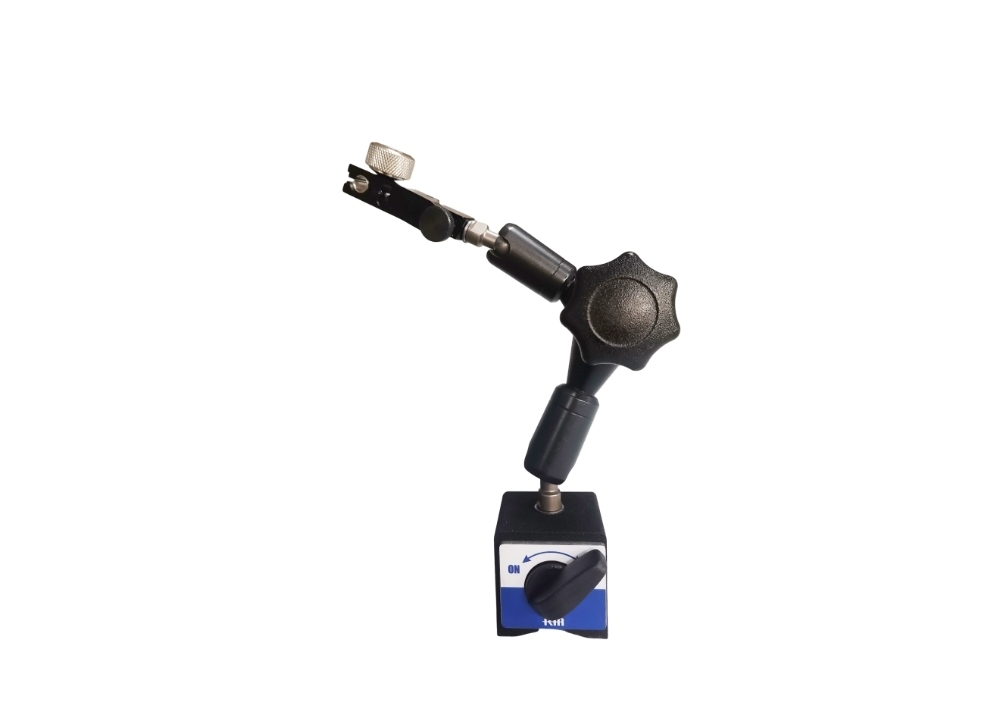

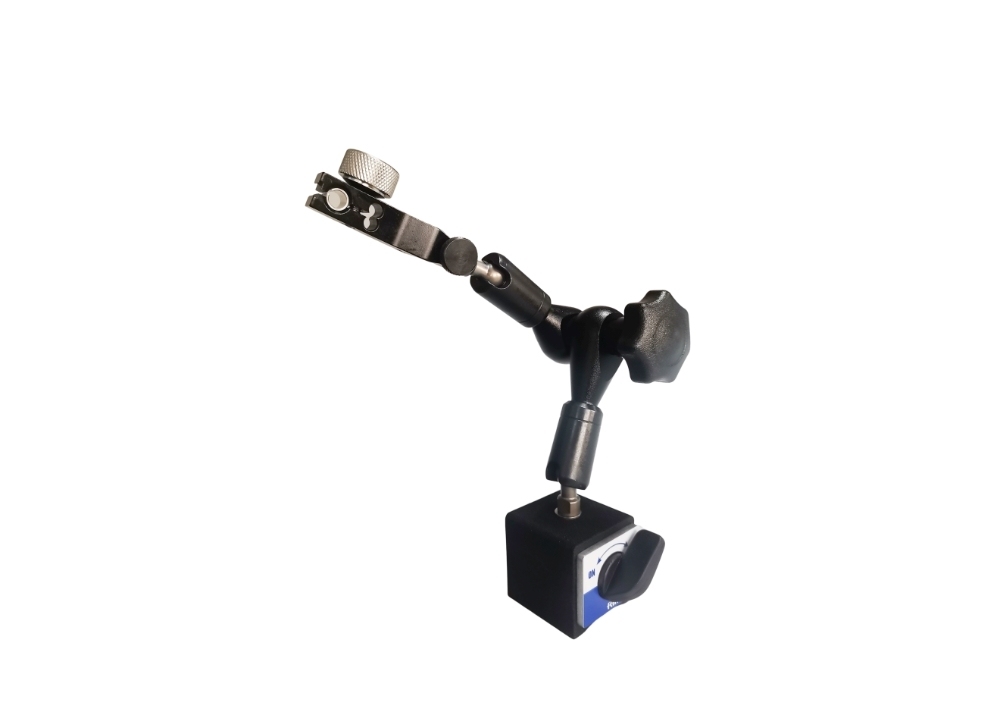

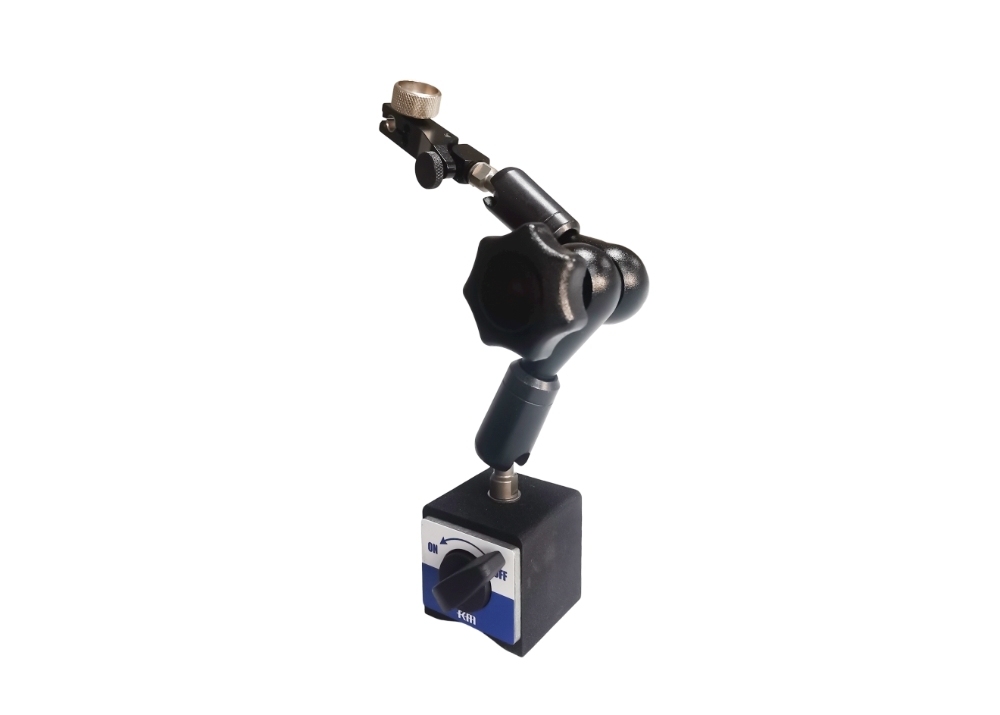

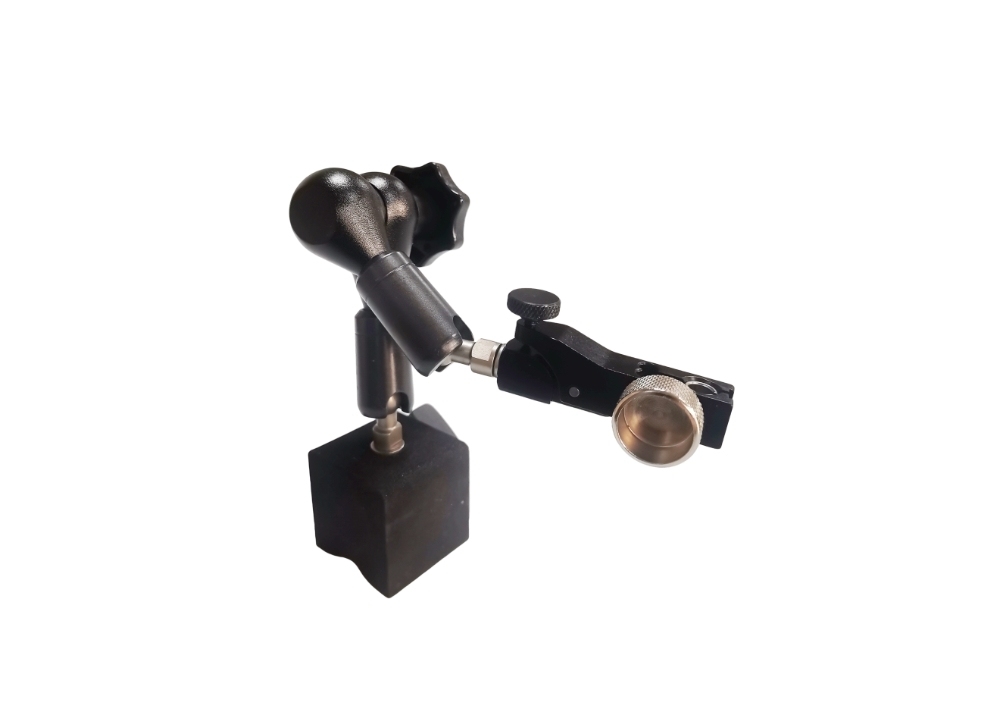

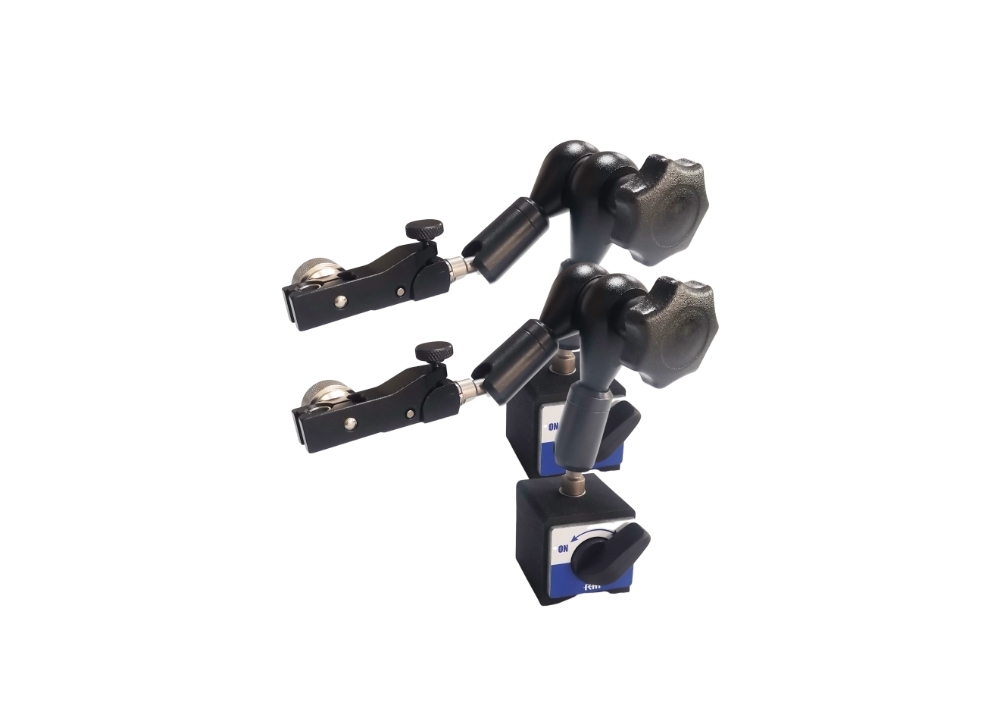

50kg Stainless Steel Magnetic Base for Dial Indicators with Fine Adjustment
-
Highlight
50kg Stainless Steel Magnetic Base
,Dial Indicators Magnetic Base
,Fine Adjustment 50kg Magnetic Base
-
WarrantyOne Year
-
TypeMagnetic Stand
-
MaterialStainless Steel
-
ColorBlack
-
MechanismLocking Mechanism
-
FunctionFine Adjustment
-
Magnetic Force50kg
-
Base(L×W×H)40×40×40mm
-
Arm Length220mm
-
PackagePaper Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-603-02
-
Packaging DetailsPaper Box 21*12*8cm/Piece 1.30kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
50kg Stainless Steel Magnetic Base for Dial Indicators with Fine Adjustment
50kg Stainless Steel Magnetic Base for Dial Indicators with Fine Adjustment
Product Description
This mechanical universal magnetic base stand features a super strong arm lock system with hardened high-class steel wear parts (HRC 58°+), precision-machined on CNC lathes. The forced locking mechanism delivers 50kg to 100kg magnetic force for secure attachment to ferromagnetic surfaces, creating a stable platform for measurement tools. Includes a fitted case for safe storage and transport.
Key Features
- Advanced locking mechanism with reinforced arm lock
- Convenient ON/OFF magnetic switch
- Precision fine adjustment for higher accuracy
- Dovetail groove compatible with test indicators
- Universal clamp hole for both metric and inch indicators
Technical Specifications
| Order No. | Magnetic Force | Applicable Holding Stem Dia. | Base (L×W×H) | Arm Length | Overall Length |
|---|---|---|---|---|---|
| KM-603-01 | 50kg | 6mm/8mm, Dovetail | 40×40×40mm | 182mm | 222mm |
| KM-603-02 | 50kg | 6mm/8mm, 3/8''/Dovetail | 40×40×40mm | 220mm | 260mm |
| KM-603-03 | 80kg | 6mm/8mm, 3/8''/Dovetail | 60×50×55mm | 295mm | 350mm |
| KM-603-04 | 100kg | 6mm/8mm, 3/8''/Dovetail | 73×50×55mm | 355mm | 410mm |
| KM-603-05 | 100kg | 6mm/8mm, 3/8''/Dovetail | 73×50×55mm | 415mm | 470mm |
Industrial Applications
Essential for machine building and precision workshops, this magnetic base inspects machine tool accuracy, workpiece dimensions, and shape characteristics. Ideal for measuring concentricity, parallelism, and positional errors during assembly to ensure product quality and performance.
Usage Guidelines
- Place on flat, dry, non-magnetic surfaces only
- Adjust position knobs/screws for stable contact before measurement
- Minimize vibration and environmental interference during use
- Perform regular maintenance checks and timely repairs
Manufacturer Information
Deko Corporation specializes in KM-brand precision measuring tools, including dial indicators, micrometers, calipers, and various gauges. Available under FOB, CFR, CIF, and EXW terms with T/T, L/C, and PayPal payment options.
