Strong Mechanical Universal Dial Gauge Indicator Holder 100kg Magnetic Base Stand
-
Highlight
Strong Mechanical Indicator Holder
,100kg Magnetic Base Stand
,Universal Dial Gauge Indicator Holder
-
WarrantyOne Year
-
TypeMagnetic Stand
-
MaterialStainless Steel
-
ColorBlack
-
Mechanical&ElectronicMechanical
-
MechanismLocking Mechanism
-
FunctionFine Adjustment
-
Magnetic Force100kg
-
Base(L×W×H)73×50×55mm
-
Overall Length410mm
-
PackagePaper Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-603-04
-
Packaging DetailsPaper Box 27*16*11cm/Piece 1.70kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

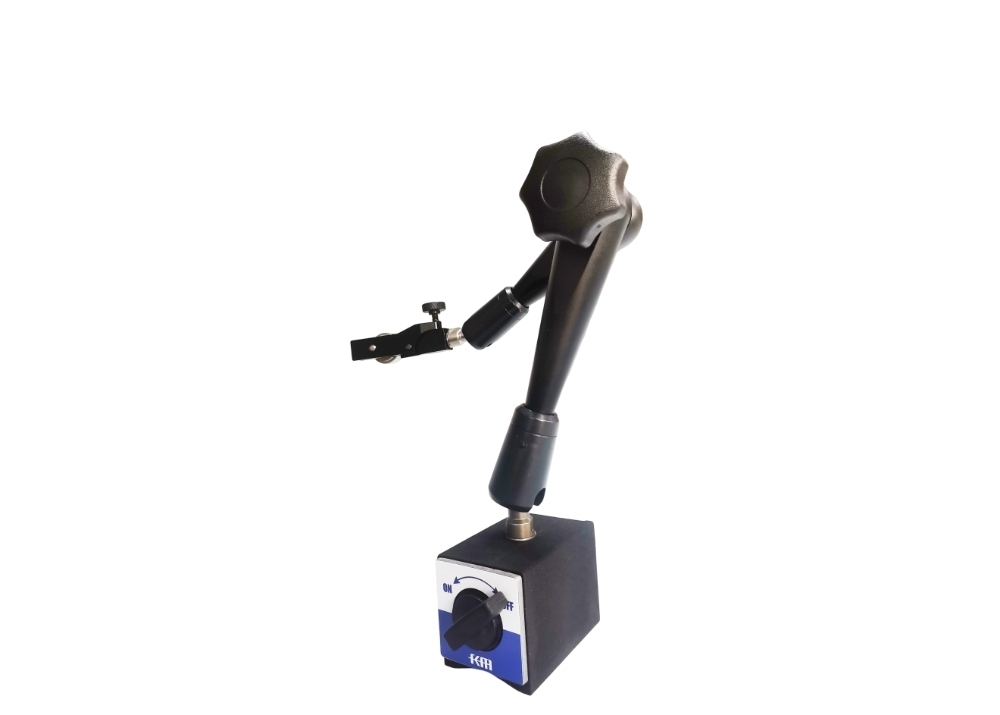

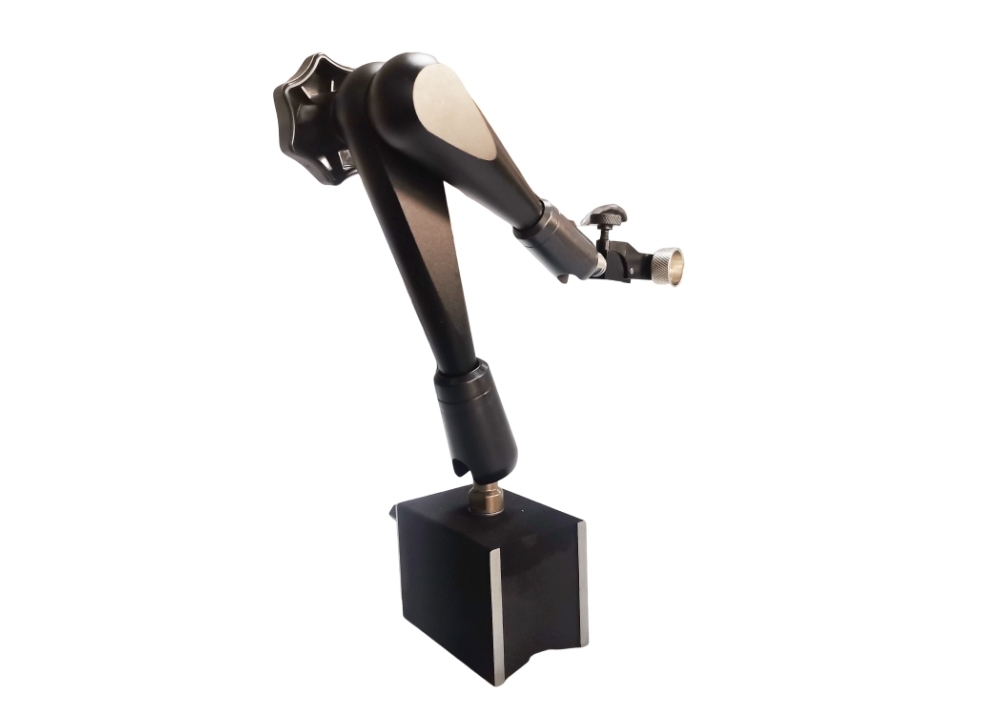

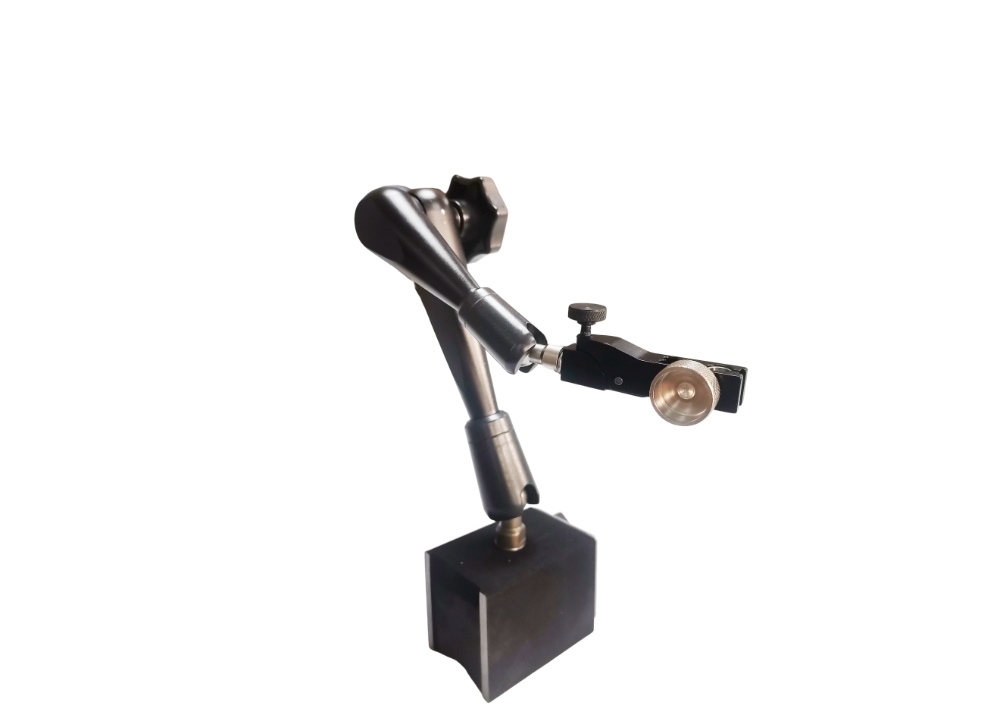

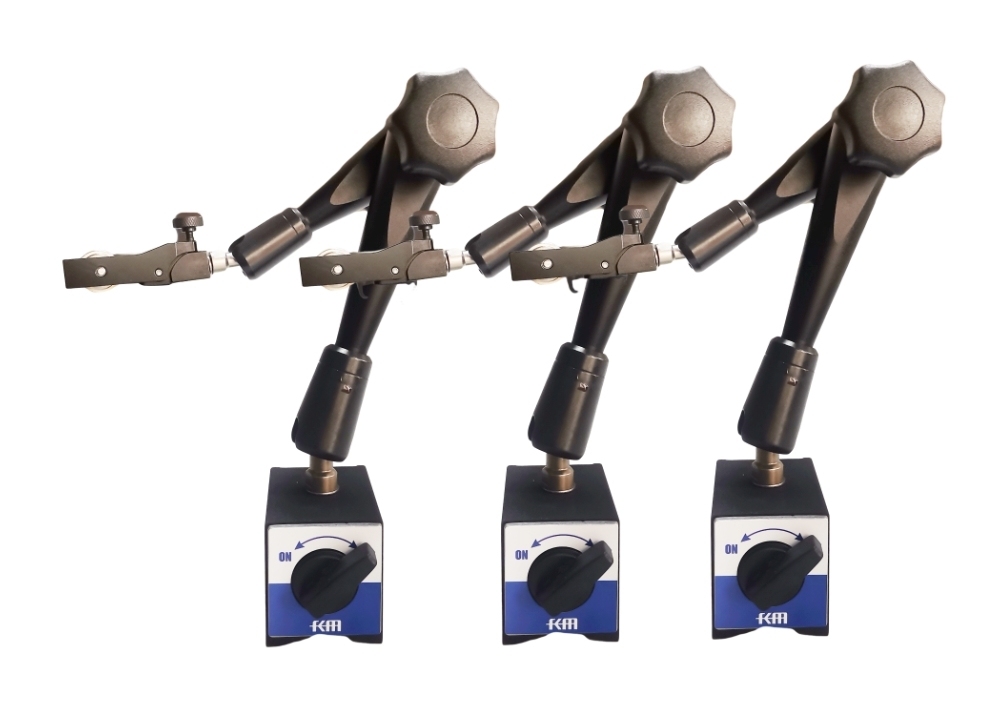

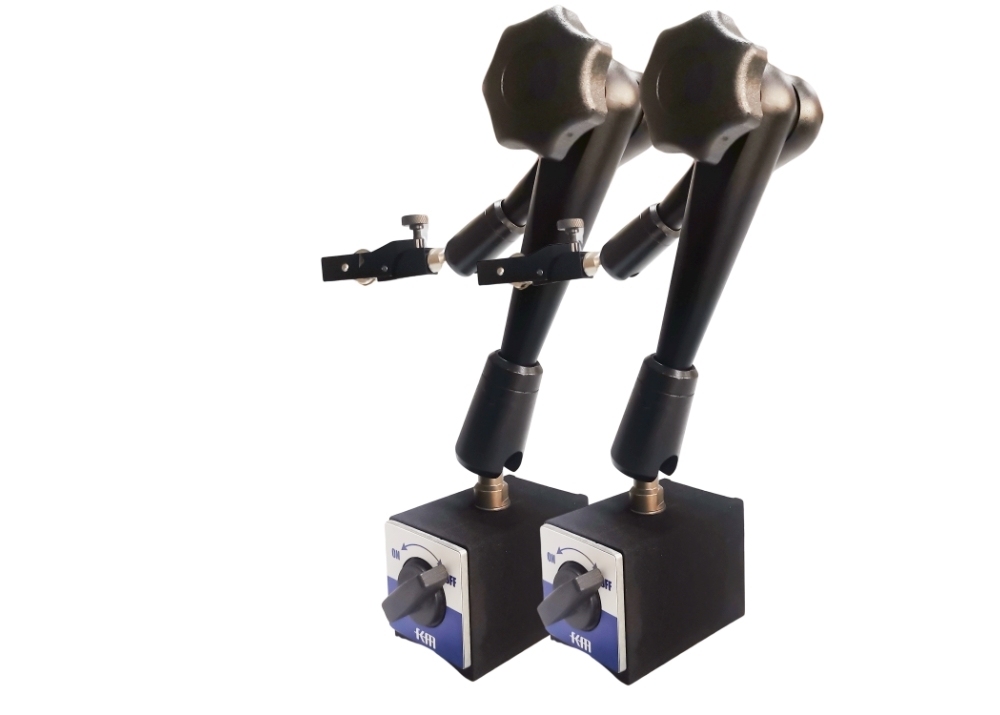

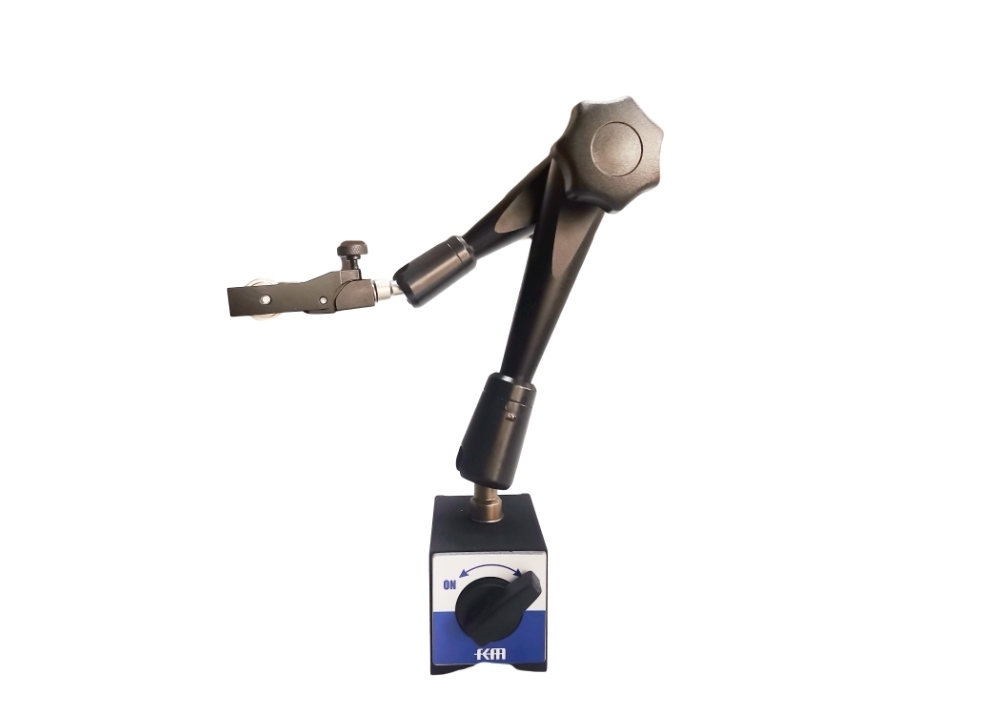

Strong Mechanical Universal Dial Gauge Indicator Holder 100kg Magnetic Base Stand
Strong Mechanical Universal Dial Gauge Indicator Holder 100kg Magnetic Base Stand
Our new mechanical universal magnetic base stand features a super strong arm lock system. All wear parts are made from hardened high-class steel with hardness reaching HRC 58°+, with main components precision-machined on CNC lathes.
This forced locking magnetic base delivers powerful magnetic force (50kg-100kg), securely attaching to any ferromagnetic surface to provide a stable, adjustable platform for measurement tools. Includes a fitted case for safe transportation and storage - an essential tool for workshops and precision machine shops.
Key Features
- New type locking mechanism with super strong-arm lock
- Magnetic base with convenient ON/OFF switch
- Fine adjustment on top for higher accuracy
- Reinforced arm lock for maximum stability
- Dovetail groove for test indicators
- Universal clamp hole for both metric and inch indicators
Technical Specifications
| Order No. | Magnetic Force | Applicable Holding Stem Dia. | Base (L×W×H) | Arm Length | Overall Length |
|---|---|---|---|---|---|
| KM-603-04 | 100kg | 6mm/8mm, 3/8''/Dovetail | 73×50×55mm | 355mm | 410mm |
Applications
Widely used in machine building for inspecting machine tool accuracy and flatness, workpiece dimensional accuracy, and detecting concentricity, parallelism, and other positional errors during assembly to ensure product quality and performance.
Usage Precautions
- Place on flat, dry, non-magnetic surfaces only
- Adjust to proper position before fixing measured objects
- Prevent external vibrations during measurement
- Regularly inspect magnetic stand condition
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
