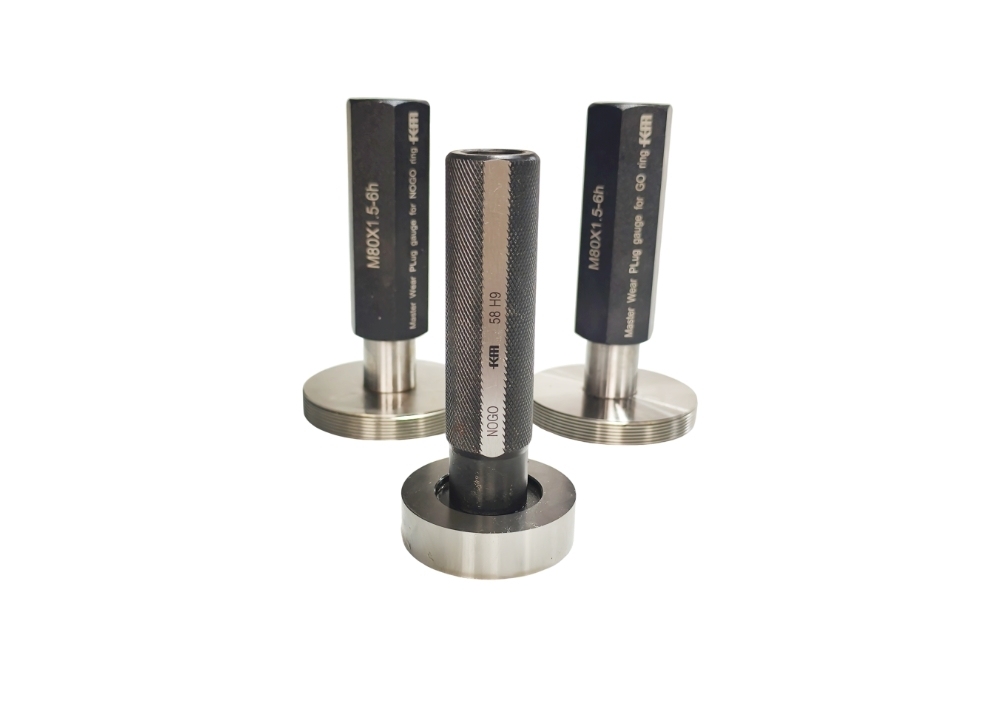

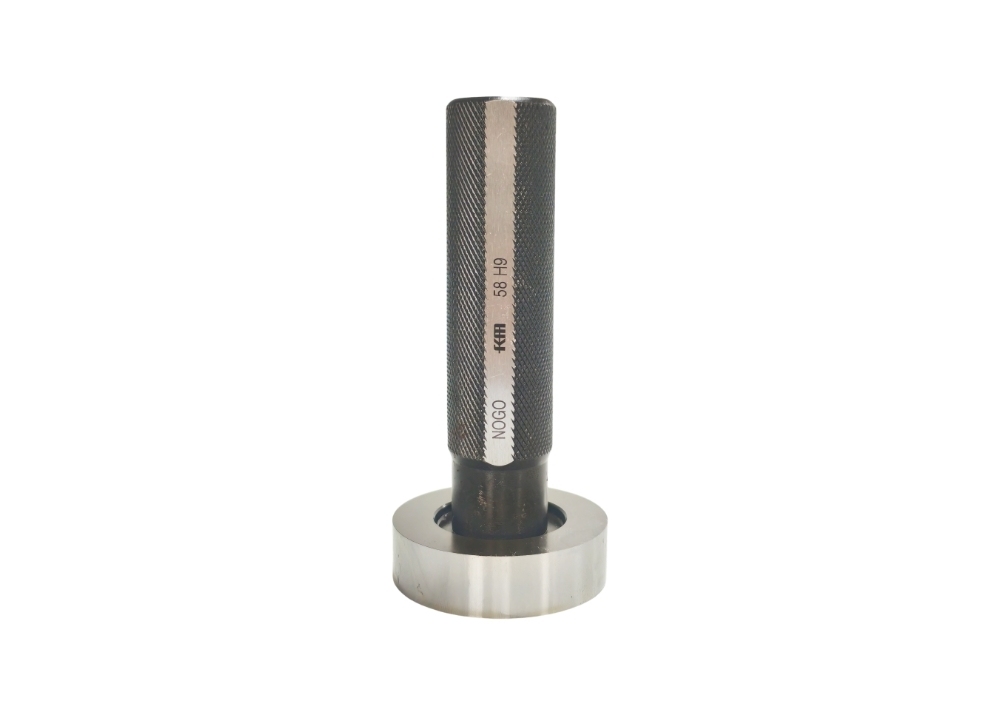

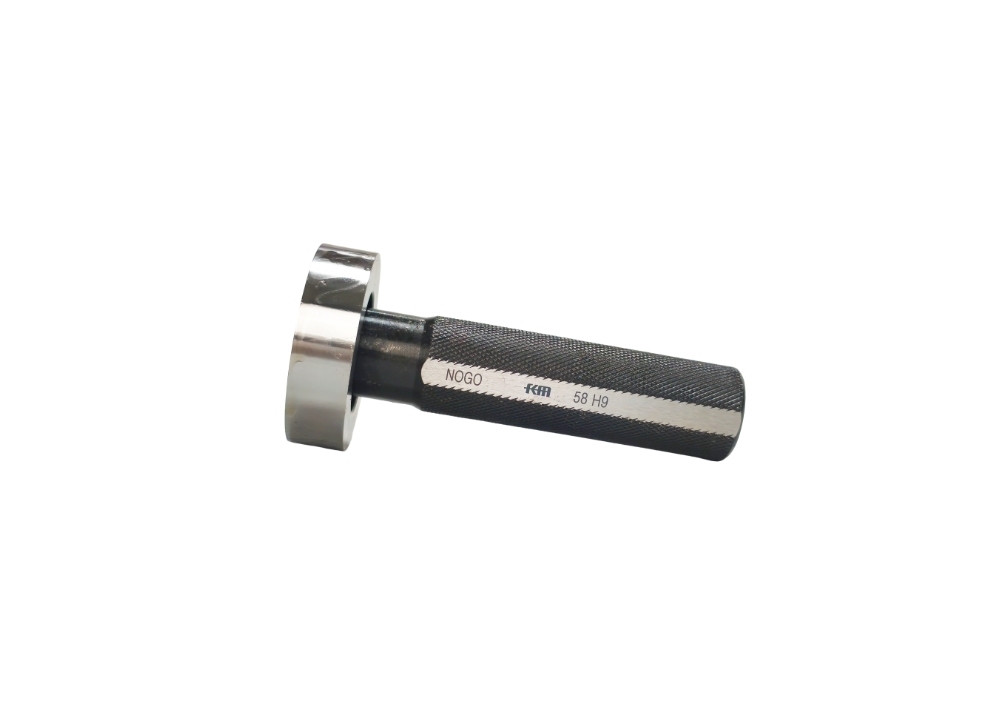

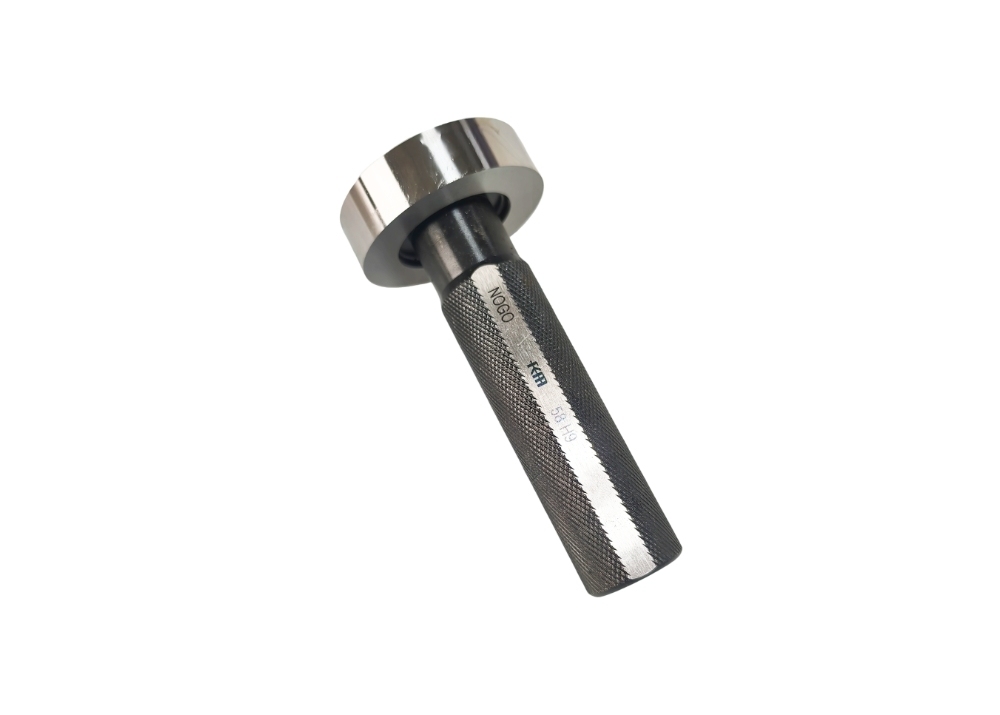

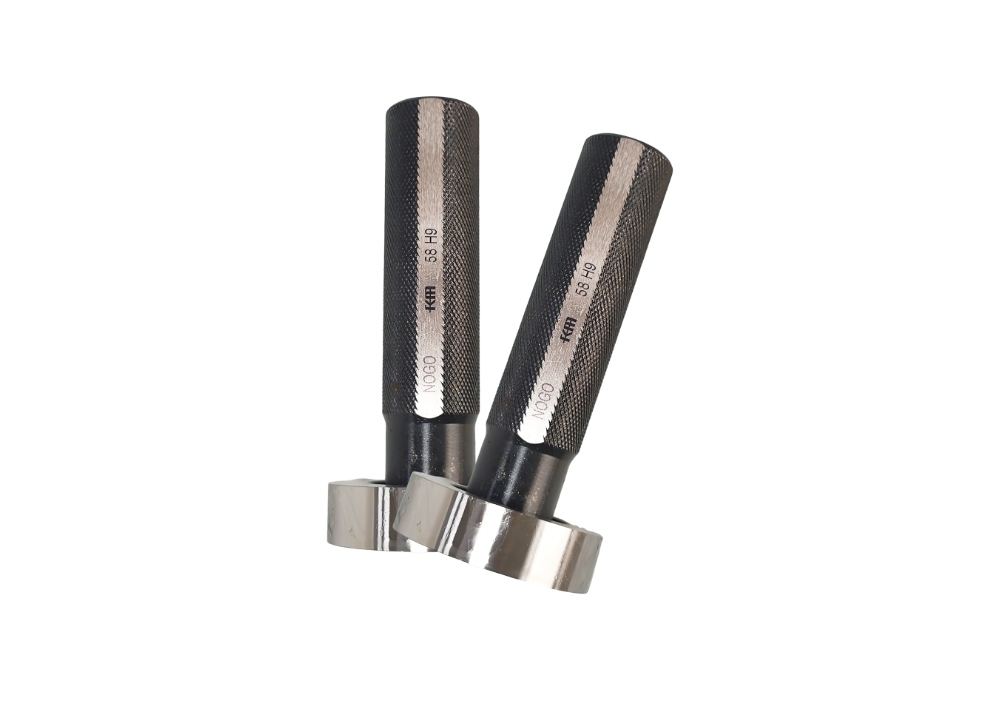

Smooth 58H9 Nogo Plug Gauge with Gcr15 Steel for Dimensional Benchmarks
-
Highlight
Smooth 58H9 Nogo Plug Gauge
,Dimensional Benchmarks Plug Gauge
-
WarrantyOne Year
-
TypeSmooth Plug Gauge
-
Measurement ObjectInner Hole Size
-
Conform StandardDIN7162
-
Size58H9
-
MaterialGcr15 Steel
-
UsageFor Working And Inspection
-
AccuracyH6 H7 H8
-
Measure MethodManual
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Packaging DetailsABS Box 10*2*1.5cm/Piece 0.20kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Smooth 58H9 Nogo Plug Gauge with Gcr15 Steel for Dimensional Benchmarks
Smooth 58H9 Nogo Plug Gauge with Gcr15 Steel for Dimensional Benchmarks
Product Description
Deko Corp provides a complete line of smooth plug gauges available in sizes from 1.8 to 300mm. These precision measuring tools are used to measure the inner hole size of workpieces. Smooth plug gauges come in two types: maximum limit size and minimum limit size. The minimum limit size end is called the GO end, while the maximum limit size end is called the NOGO end.
Our smooth plug gauges can be customized to various specifications according to user requirements. They serve as dimensional benchmarks and comparative measurement tools. The structure is simple, typically consisting of a solid cylinder or cone with precise dimensions.
Note: When ordering, please specify requirements (example: 8 plug gauge 6H GO and NOGO).
Key Features
- Smooth plug gauge design
- Available accuracies: H6, H7, H8, etc.
- GO, NOGO, and combination GO/NOGO types available
- Conforms to DIN7162 standard
- Excellent wear and corrosion resistance
- Stable structure for easy operation
- Supplied in protective fitted case
Specifications
| Size | Accuracy |
|---|---|
| 58 | H6 H7 H8 |
| ... | |
| 300 |
Applications
- Hole inspection: Verifies workpiece hole dimensions meet design specifications
- Quality control: Ensures production parts maintain dimensional standards
- Standardized production: Maintains consistency across production batches, improving efficiency and quality
Usage Precautions
- Inspect gauge measuring surfaces for cleanliness and defects before use
- Use only during valid calibration period with proper documentation
- Maintain measurement temperature near 20°C with minimal insertion force
- Insert/remove gauge along hole axis without tilting or rotation
- Avoid turning or shaking gauge during measurement
- Clean thoroughly after each use to maintain accuracy
Packing & Shipping
Company Profile
Frequently Asked Questions
1) Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
2) What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
3) How about after-sales service?
All products come with a one-year warranty. Defective items will be replaced promptly. Our strict calibration and inspection processes ensure reliable product quality.
