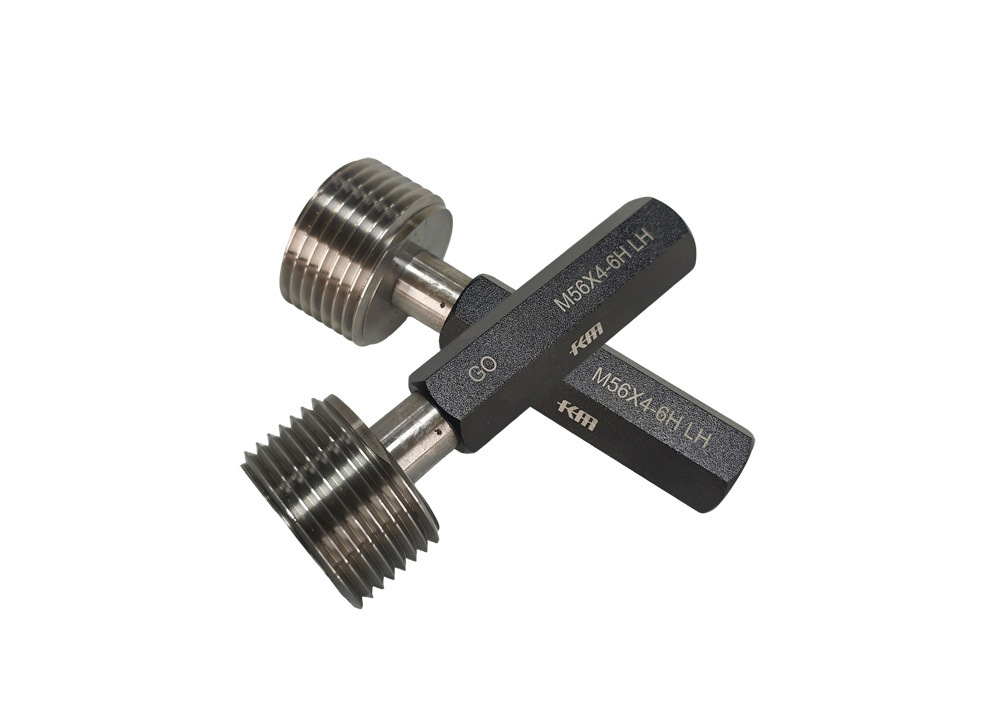

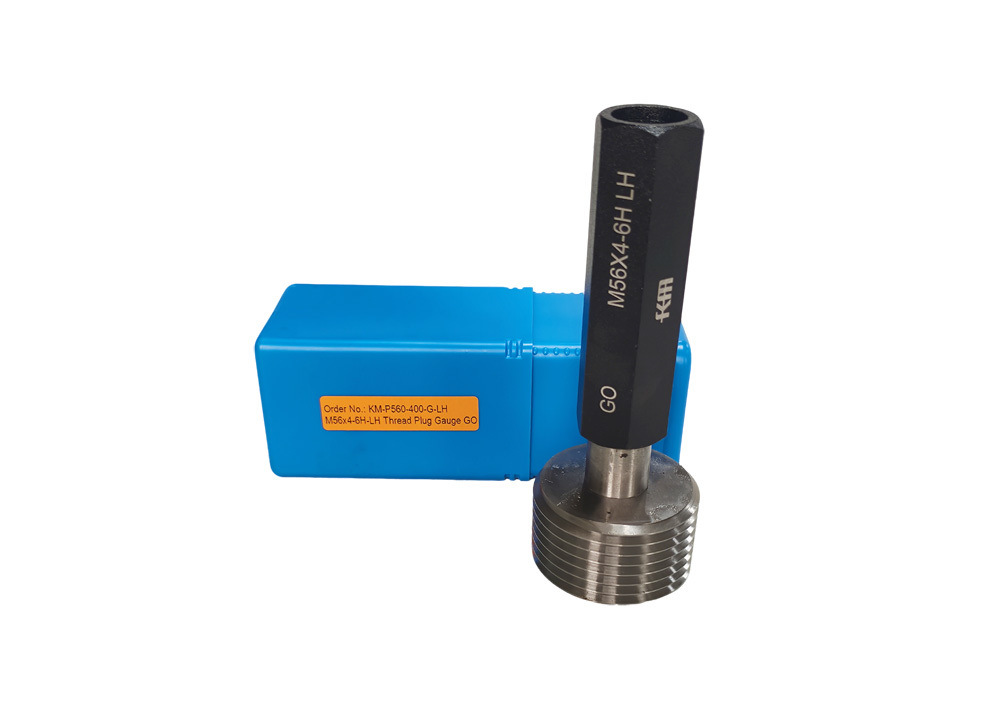

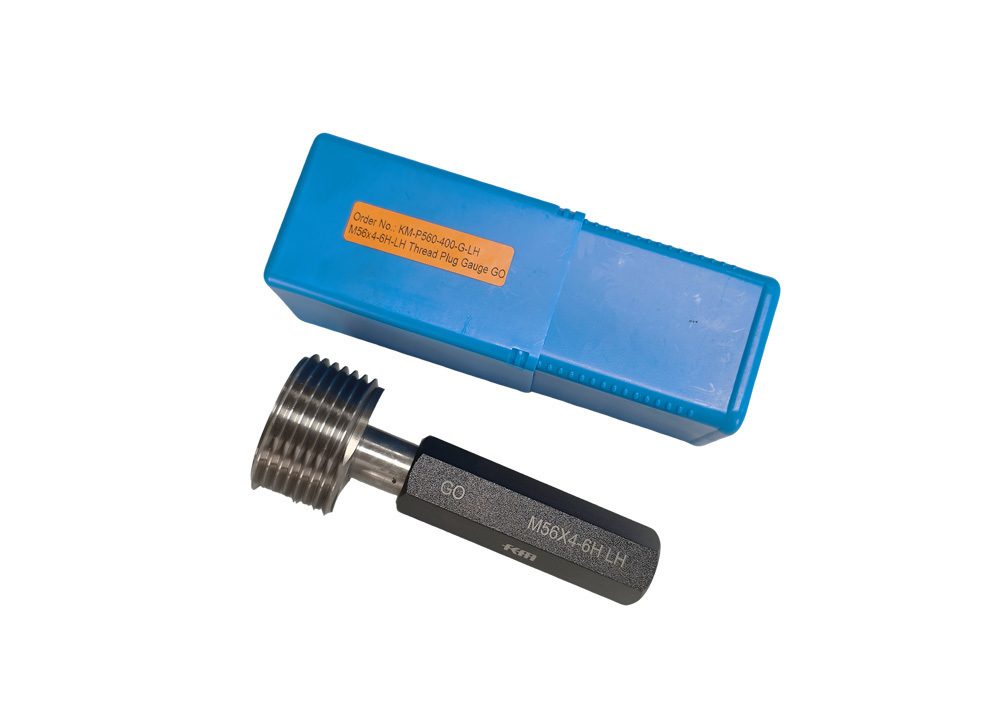

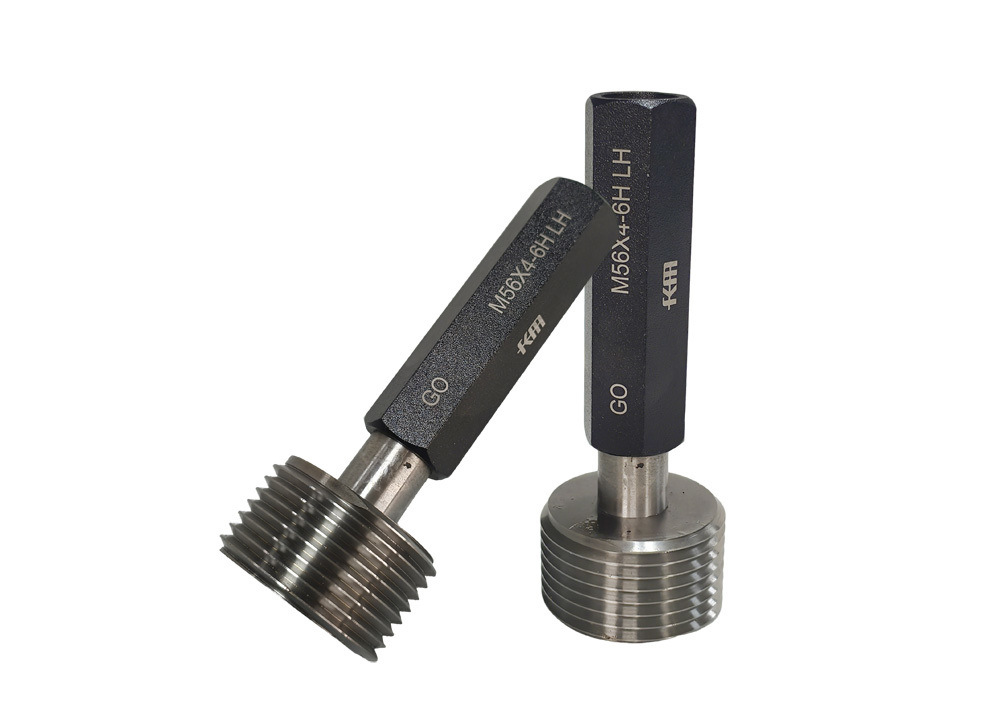

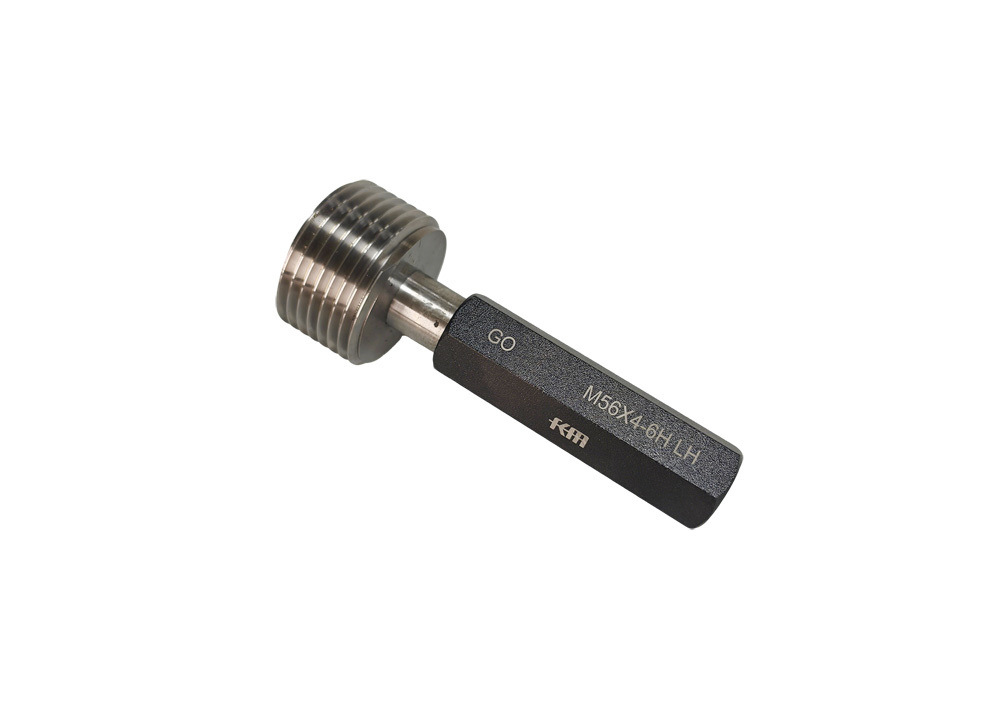

Highly Precise Metric Thread Plug Gauge M56 GO Side for Manufacturing Inspection
-
Highlight
Manufacturing Inspection Thread Plug Gauge
,M56 Thread Plug Gauge
,Thread Plug Gauge M56 GO Side
-
WarrantyOne Year
-
TypeMetric Thread Plug Gauge
-
MaterialTool Steel
-
Conform StandardDIN13
-
Thread SpecificationM56X4-6H GO
-
Accuracy5g,5h, 6g,6h,7g,7h ,etc
-
UsageFor Working And Inspection
-
Measurement ObjectCheck Threaded Or Tapped Holes,etc
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-P560-400
-
Packaging DetailsABS Box 15*4.5*4.5cm/Piece 0.36kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Highly Precise Metric Thread Plug Gauge M56 GO Side for Manufacturing Inspection
These metric plug ring gauges are precision metrology tools designed for checking threaded or tapped holes. They verify proper thread type, major diameter, minor diameter, pitch diameter, and pitch against mating thread gauges.
Our facility features first-grade thread machining centers and measuring equipment to produce high-precision thread ring gauges for global customers. Plug gauges provide rapid inspection results with simple operation principles that require minimal training.
For small threaded components, gauges feature double-ended design with GO and NOGO sections. Larger parts utilize separate pieces. Acceptance criteria require the GO gauge to pass through the entire nut length with minimal rotational force, while the NOGO gauge should not exceed two turns at either end.
Available in multiple configurations including GO thread plug gauges, NOGO thread plug gauges, and combination GO/NOGO thread plug gauges.
- Precision metric thread plug gauge
- Multiple accuracy grades: 5g,5h, 6g,6h,7g,7h
- Available in GO, NO GO, and combination GO/NOGO types
- Conforms to DIN13 standard
- Wear-resistant, corrosion-resistant construction
- Stable structure for easy operation
- Includes protective storage case
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 2 | Pitch 3 | Pitch 4 | Pitch 5 | Pitch 6 | |||
| KM-P180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 |
4h 4h5h 5g 5h 5h6h 6g 6h 7g 7h |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-P320 | M320 | |||||||
Thread plug gauges serve as essential inspection tools for determining thread size compliance. Widely utilized in automotive manufacturing, aerospace, machining, and electronic processing industries, they ensure thread accuracy and improve product qualification rates for both standard and non-standard threaded components.
- Avoid direct contact with gauge working surfaces to prevent rust
- Store properly on tool cabinet surfaces or machine backing plates - never on machine tool holders or guide rails
- Conduct regular inspections for damage, rust, or deformation
- For rust treatment: soak in gasoline, carefully wipe clean, and apply anti-rust oil
- Never store working surfaces in direct contact
- Clean thoroughly after use and store in dry conditions
