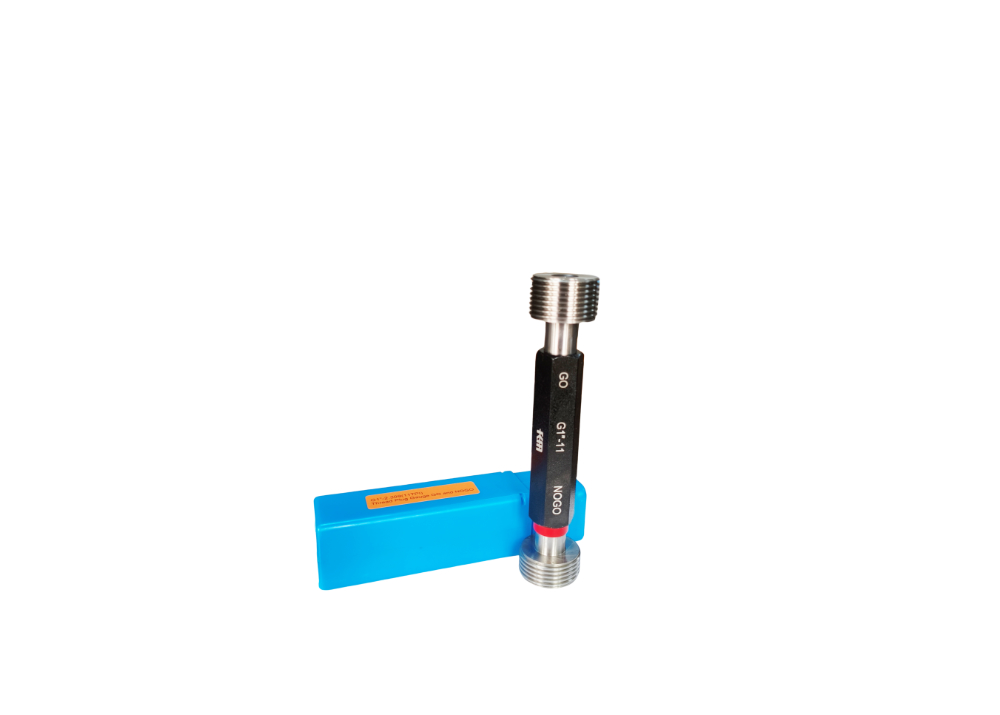

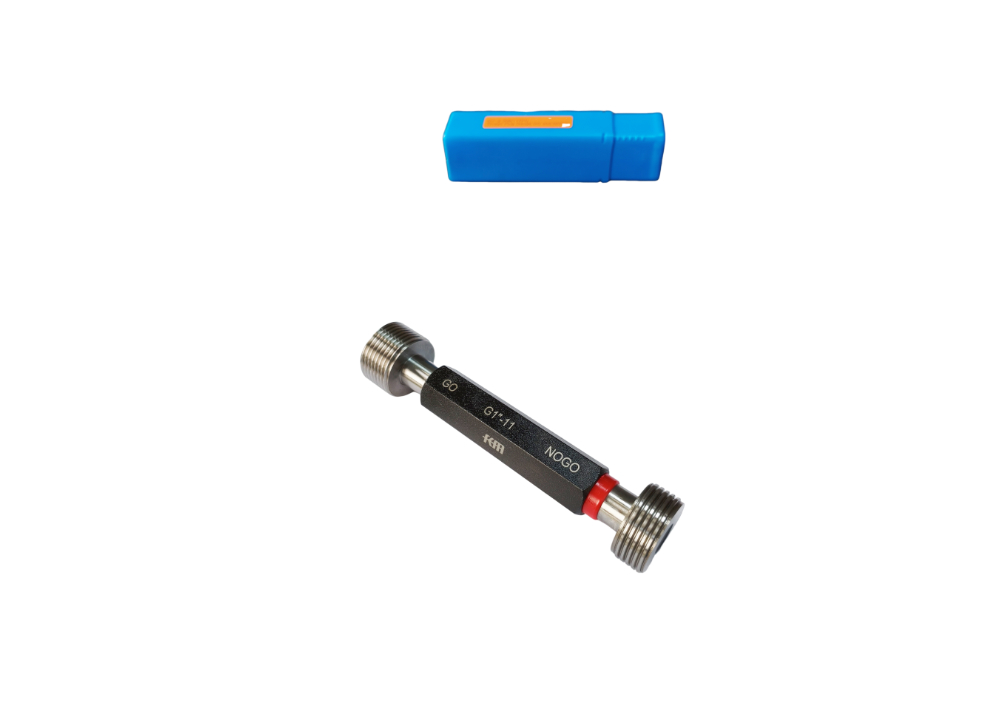

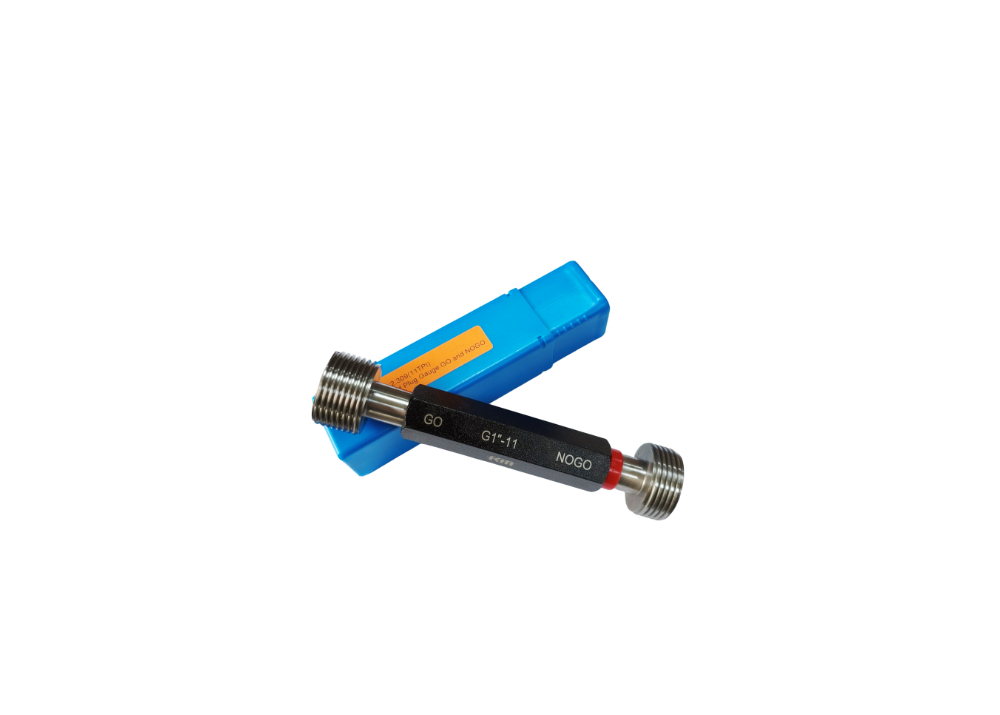

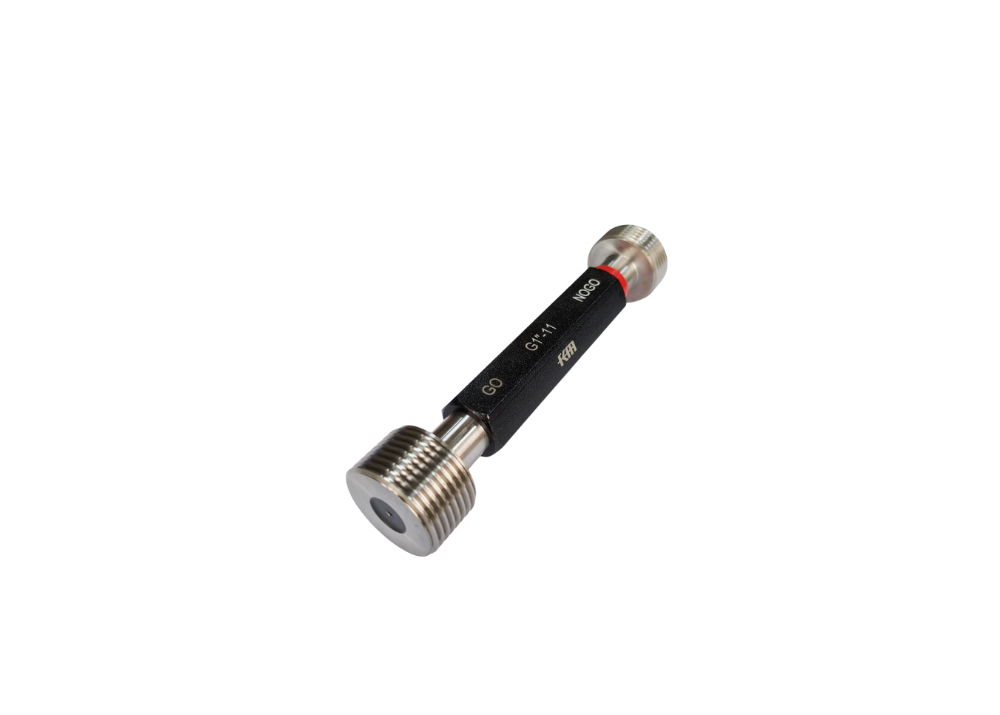

British Standard G1''-11 BSPP Thread Plug Gauge for Hydraulic Systems
-
Highlight
BSPP Thread Plug Gauge
,British Standard G1 Thread Plug Gauge
,Hydraulic Systems Thread Plug Gauge
-
WarrantyOne Year
-
TypeBSPP Pipe Thread Plug Gauge
-
Thread TypeG Series
-
Thread DesignationG1''-11
-
CompatibilityWorks With BSPP (G) Threads
-
MaterialGCR15
-
UsageFor Checking External BSPP Threads
-
Measure MethodManual
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Packaging DetailsABS Box 10*2*2cm/Piece 0.20kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
British Standard G1''-11 BSPP Thread Plug Gauge for Hydraulic Systems
British Standard G1''-11 BSPP Thread Plug Gauge for Hydraulic Systems
Product Description
The BSPP thread plug gauge is a British Standard Pipe Parallel thread plug gauge with 55° thread angle, designed to inspect internal threads on British Standard Pipe Parallel fittings. It ensures thread accuracy, pitch, and thread angle meet required specifications.
Manufactured according to ISO 7-2, BS EN 10226-3 and BS 21 standards, each BSPP thread gauge comes with a calibration certificate. Also known as G plug gauges, they are available in sizes including G 1/8, G 1/4, etc., with Go and NoGo options as well as combination Go/NoGo versions. Both right hand (RH) and left hand (LH) configurations are available.
Key Features
- British Standard compliant
- Made from durable GCR15 material
- Available in both right hand (RH) and left hand (LH) configurations
- Wear-resistant and corrosion-resistant construction
- Stable structure for easy operation
- Supplied in protective fitted case
Specifications
| Size | Pitch |
|---|---|
| G1" | 2.309 (11 TPI) |
Applications
BSPP thread gauges are widely used in hydraulic systems, water pipes, and air pipes due to their excellent sealing properties and large collar distance. They are particularly valuable in high-pressure liquid and gas delivery systems where their self-sealing effect prevents leaks and ensures system reliability. These gauges also find applications in manufacturing, construction, oil, gas, and chemical industries for pipe connections that require superior sealing and corrosion resistance.
Usage Precautions
1. Use only for gauge inspection purposes - functional sharp parts may cause injury.
2. Before use, inspect for rust, scratches, or burrs after cleaning with oil or a clean cloth.
3. Always apply anti-rust lubricating oil and avoid impact during use.
4. Store in a dry, temperature-stable environment after removing dust and chips; perform regular inspections.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
How about after-sales service?
All products come with a one-year warranty. We replace defective parts or products promptly. Our strict calibration and inspection processes ensure exceptional product quality you can trust.
