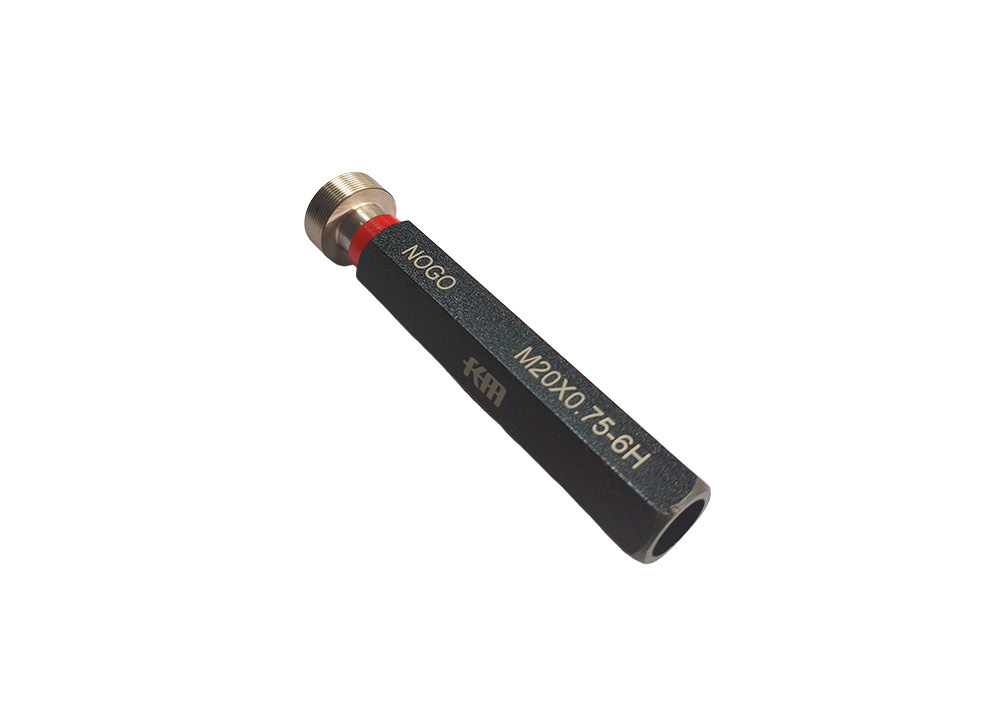

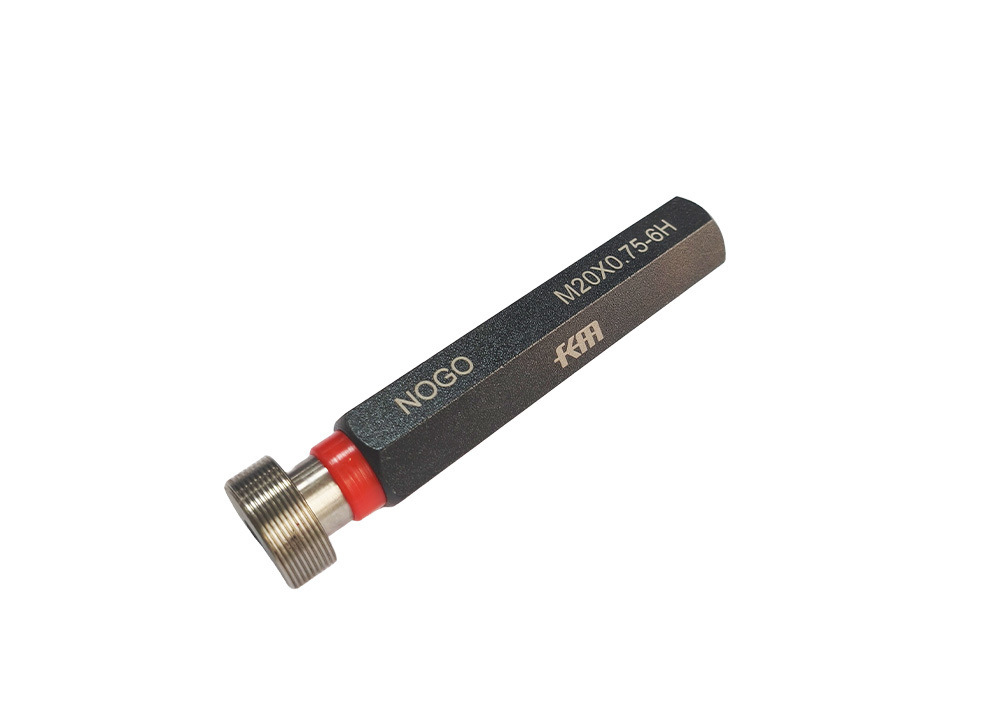

Simple Operate M20X0.75-6H Metric Thread Plug Gauge with DIN13 Standard
-
Highlight
M20X0.75-6H Metric Thread Plug Gauge
,DIN13 Metric Thread Plug Gauge
-
WarrantyOne Year
-
TypeMetric Thread Plug Gauge
-
MaterialTool Steel
-
Conform StandardDIN13
-
Thread SpecificationM20X0.75-6H NOGO
-
Accuracy5g,5h, 6g,6h,7g,7h ,etc
-
UsageFor Working And Inspection
-
Measurement ObjectCheck Threaded Or Tapped Holes,etc
-

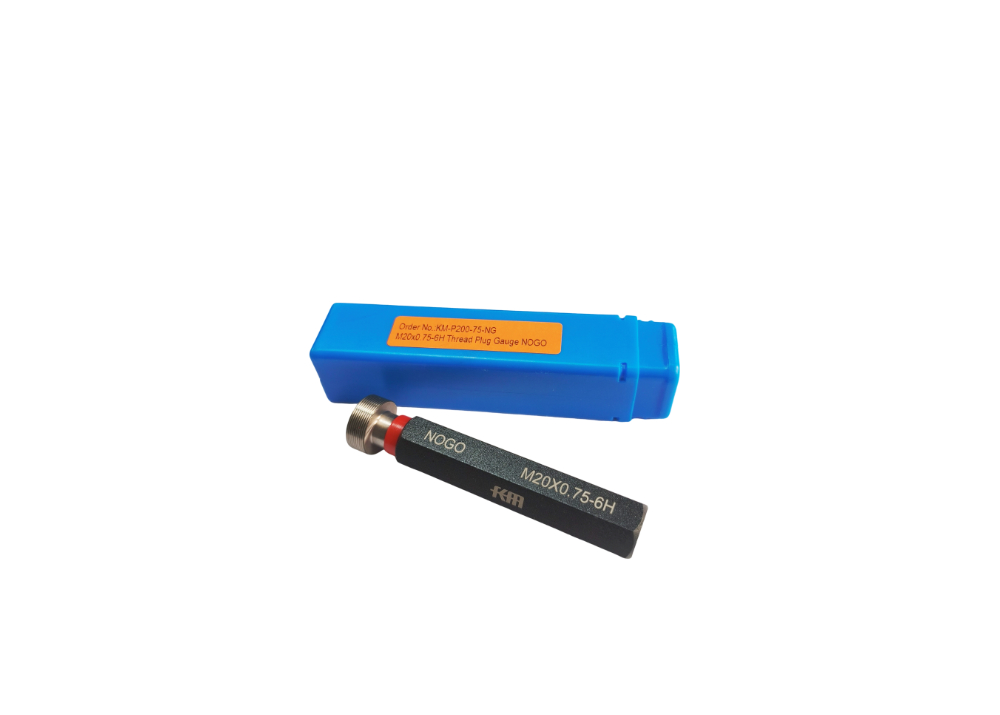

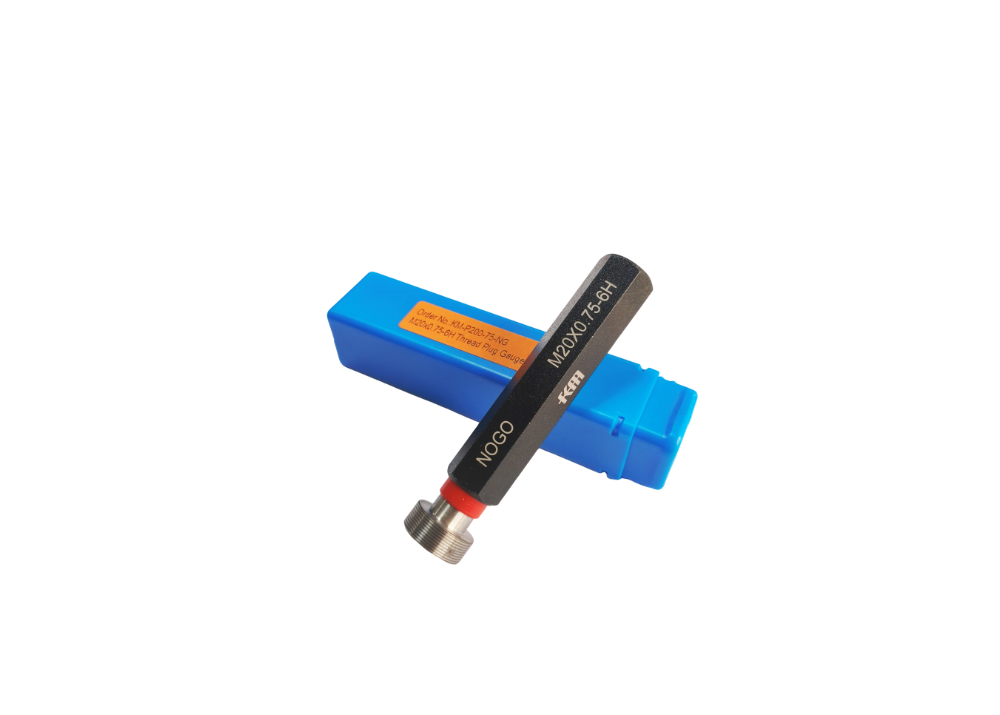

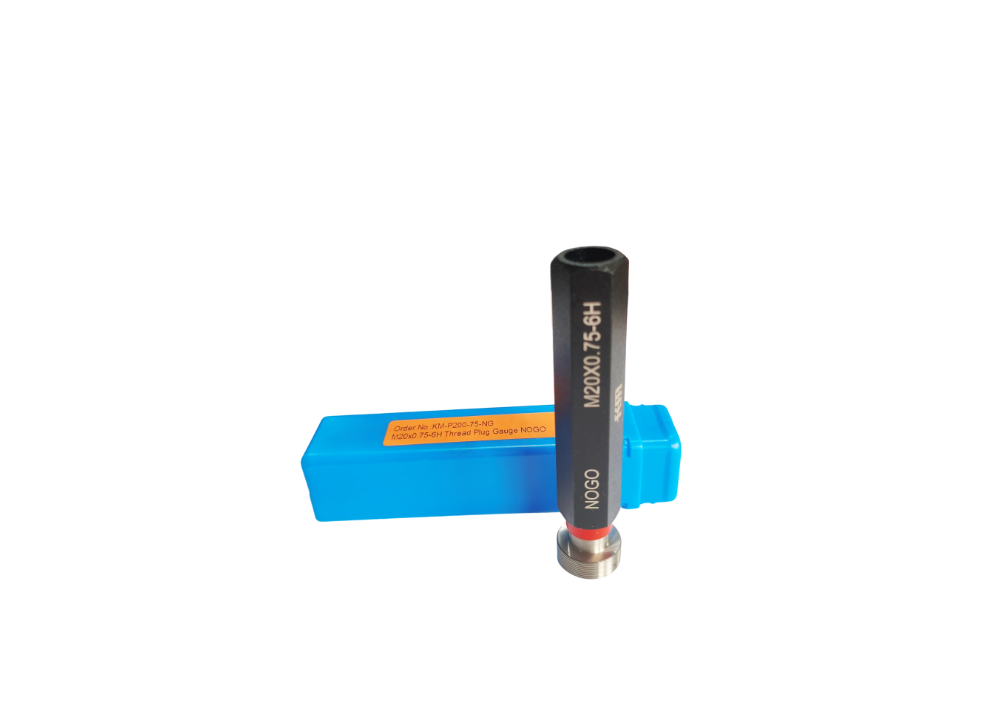

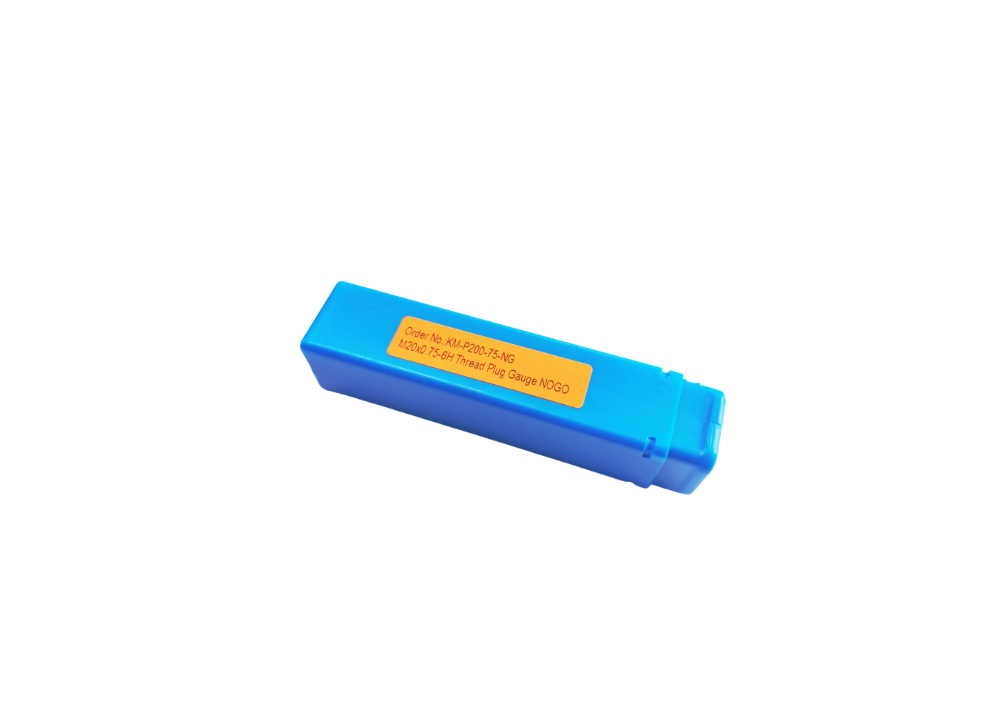

PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-P200-75-NG
-
Packaging DetailsABS Box 7*1.5*1.5cm/Piece 0.40kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Simple Operate M20X0.75-6H Metric Thread Plug Gauge with DIN13 Standard
Simple Operate M20X0.75-6H Metric Thread Plug Gauge with DIN13 Standard
These metric plug ring gauges are precision metrology tools designed for checking threaded or tapped holes. They verify proper thread type, major diameter, minor diameter, pitch diameter, and pitch against mating thread gauges.
Our facility features first-grade thread machining centers and measuring equipment to produce high-precision thread ring gauges for global customers. Plug gauges provide fast, reliable results with simple operation principles that require minimal training.
Key Features
- Metric thread plug gauge with DIN13 standard compliance
- Available in 5g, 5h, 6g, 6h, 7g, 7h accuracy grades
- Multiple types: GO, NO GO, and combination GO/NOGO versions
- Wear-resistant and corrosion-resistant construction
- Stable structure for easy operation
- Includes protective fitted case
Specifications
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 2 | Pitch 3 | Pitch 4 | Pitch 5 | Pitch 6 | |||
| KM-P180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 |
4h 4h5h 5g 5h 5h6h 6g 6h 7g 7h |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-P320 | M320 | |||||||
Applications
Thread plug gauges are essential for inspecting thread dimensions in automotive manufacturing, aerospace, machining, and electronic processing industries. They ensure thread accuracy and improve product qualification rates for both standard and non-standard threaded components.
Usage Precautions
- Avoid touching gauge working surfaces to prevent rust
- Store properly on tool cabinets or wooden backing plates - never on machine tool holders or guide rails
- Regularly inspect for damage, rust, or deformation
- For rust removal, soak in gasoline, wipe carefully, and apply anti-rust oil
- Never store working surfaces together to prevent adhesion damage
- Clean thoroughly after use and store in dry conditions
