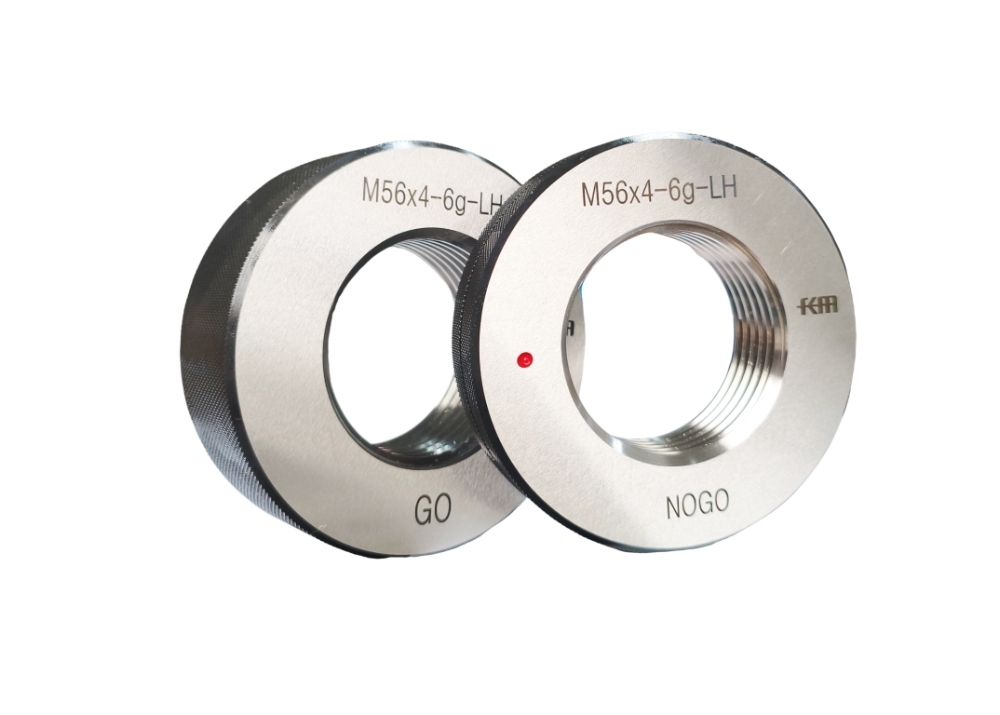

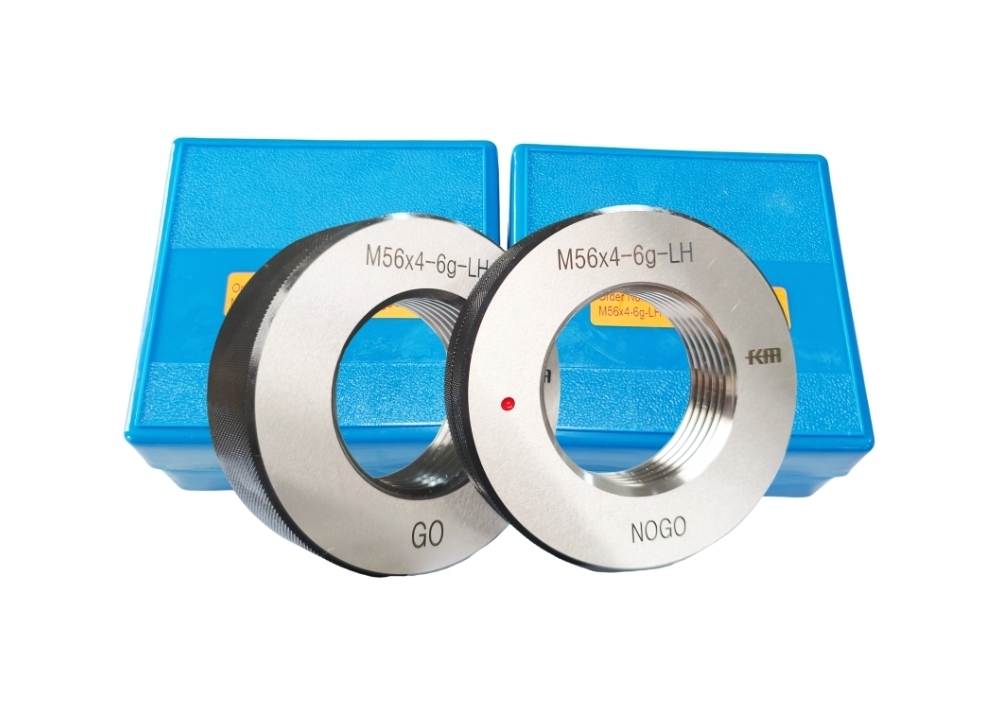

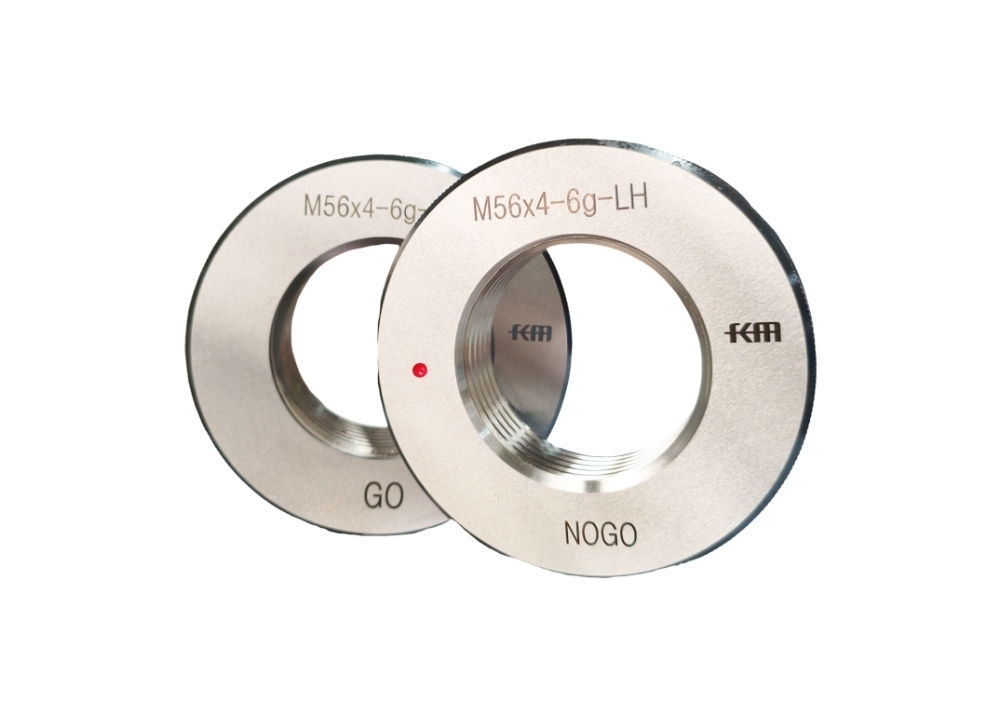

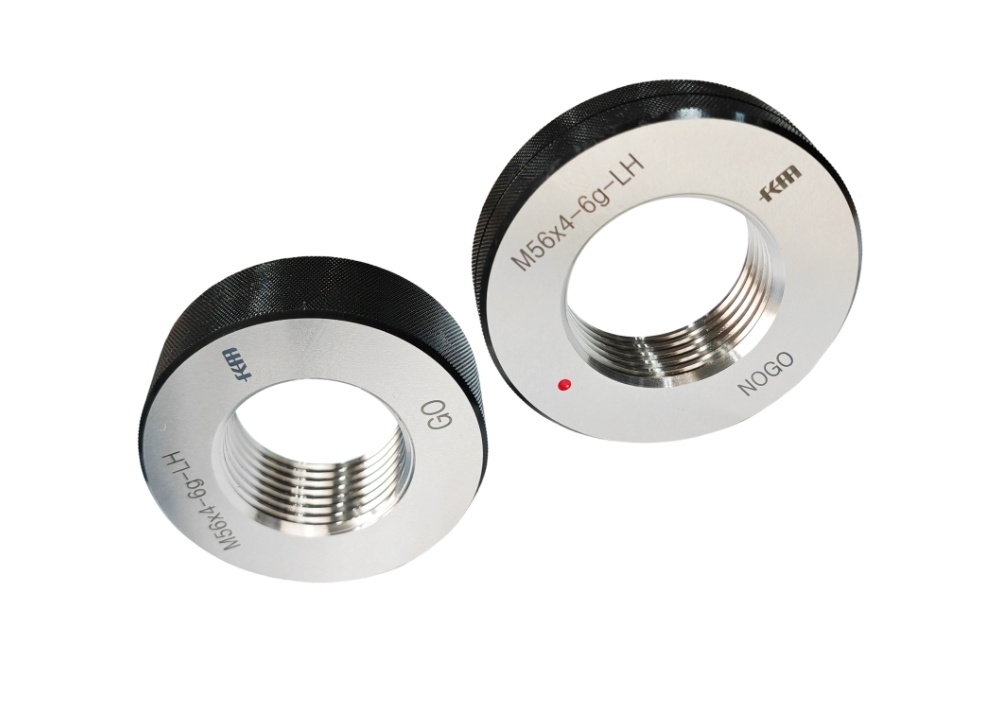

GO and NOGO M56X4 Metric Thread Ring Gauge for Screws Bolts and Threaded Rods with Left Hand
-
Highlight
Screws Bolts Thread Ring Gauge
,NOGO M56X4 Metric Thread Ring Gauge
,Threaded Rods Thread Ring Gauge
-
WarrantyOne Year
-
TypeThread Ring Gauge
-
StandardDIN13, DIN2280-89
-
MeasurementMetric
-
Thread SpecificationM56x4-6g-LH GO NOGO
-
ShapeRound
-
Measurement ObjectExternal Product Threads On Screws, Bolts
-
UsageFor Working And Inspection
-
Accuracy6g,6h,7g,7h,8g,8h, Etc.
-

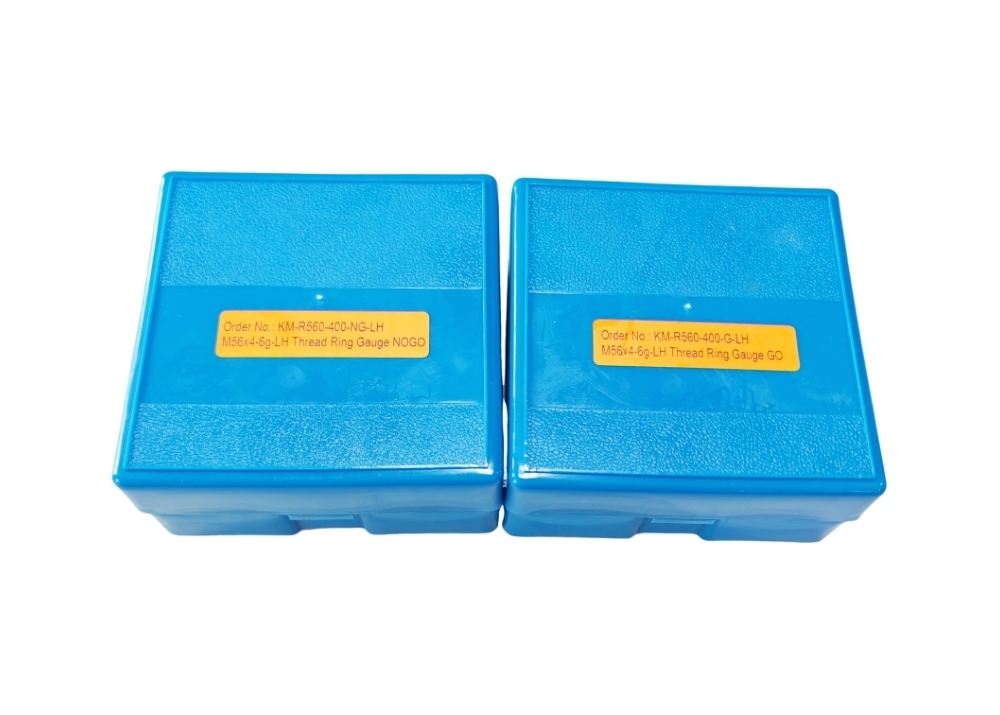

PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-R560-400-LH
-
Packaging DetailsABS Box 11*11*3cm/Piece 0.66kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,MoneyGram
-
Supply Ability50000pieces/Month
GO and NOGO M56X4 Metric Thread Ring Gauge for Screws Bolts and Threaded Rods with Left Hand
Metric thread ring gauges are precision inspection tools used for checking the thread of outside diameter on screws, bolts and threaded rods. These gauges typically have normal accuracy classifications including 6g, 6h, 7g, 7h, 8g, and 8h.
Our facility utilizes first-grade thread machining centers and measuring equipment to provide high precision thread ring gauges to customers worldwide.
Thread ring gauges come in GO and NOGO types:
- The GO ring gauge is machined to a minus tolerance, verifying the maximum material limit of externally threaded components
- The NOGO thread ring gauge is machined to a plus tolerance, verifying the minimum material limit of externally threaded components
- Precision metric thread ring gauge
- Available in various accuracy grades: 6g, 6h, 7g, 7h, 8g, 8h
- Includes both GO and NOGO types
- Conforms to DIN13 and DIN2280-89 standards
- Wear-resistant and corrosion-resistant construction
- Stable structure for easy operation
- Supplied in protective fitted case
| Order No. | Size | Coarse | Fine | Accuracy |
|---|---|---|---|---|
| KM-R001 | M1.0 | 0.25 | 0.20 | 3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h |
| KM-R011 | M1.1 | 0.25 | 0.20 | |
| KM-R012 | M1.2 | 0.25 | 0.20 | |
| KM-R014 | M1.4 | 0.30 | 0.20 | |
| KM-R016 | M1.6 | 0.35 | 0.20 | |
| KM-R018 | M1.8 | 0.35 | 0.20 | |
| KM-R020 | M2.0 | 0.40 | 0.25 | |
| KM-R022 | M2.2 | 0.45 | 0.25 | |
| KM-R025 | M2.5 | 0.45 | 0.35 | |
| KM-R030 | M3.0 | 0.50 | 0.35 | |
| KM-R035 | M3.5 | 0.60 | 0.35 | |
| KM-R040 | M4.0 | 0.70 | 0.50 | |
| KM-R050 | M5.0 | 0.80 | 0.50 | |
| KM-R060 | M6.0 | 1.00 | 0.75 | 0.50 |
| KM-R080 | M8.0 | 1.25 | 1.00 | 0.75 |
| KM-R100 | M10.0 | 1.50 | 1.25 | 1.00 |
| KM-R120 | M12.0 | 1.75 | 1.50 | 1.25 |
| KM-R140 | M14.0 | 2.00 | 1.50 | 1.25 |
| KM-R160 | M16.0 | 2.00 | 1.50 | 1.00 |
| KM-R180 | M18.0 | 2.50 | 2.00 | 1.50 |
| KM-R320 | M320 |
Threaded ring gauges are primarily used to measure thread diameter and pitch. Their high precision, wide measurement range, and simple operation make them ideal for various industries including:
- Machinery manufacturing
- Aerospace
- Automobile manufacturing
- Avoid touching the working surface with bare hands to prevent rust
- Store on appropriate surfaces (tool cabinet or wooden backing plate) - never on machine tool holders or guide rails
- Inspect regularly for damage, rust, or deformation
- If rust appears, soak in gasoline, wipe carefully, and apply anti-rust oil
- Never store working surfaces of two gauges together
- After use, clean thoroughly and store in dry conditions
