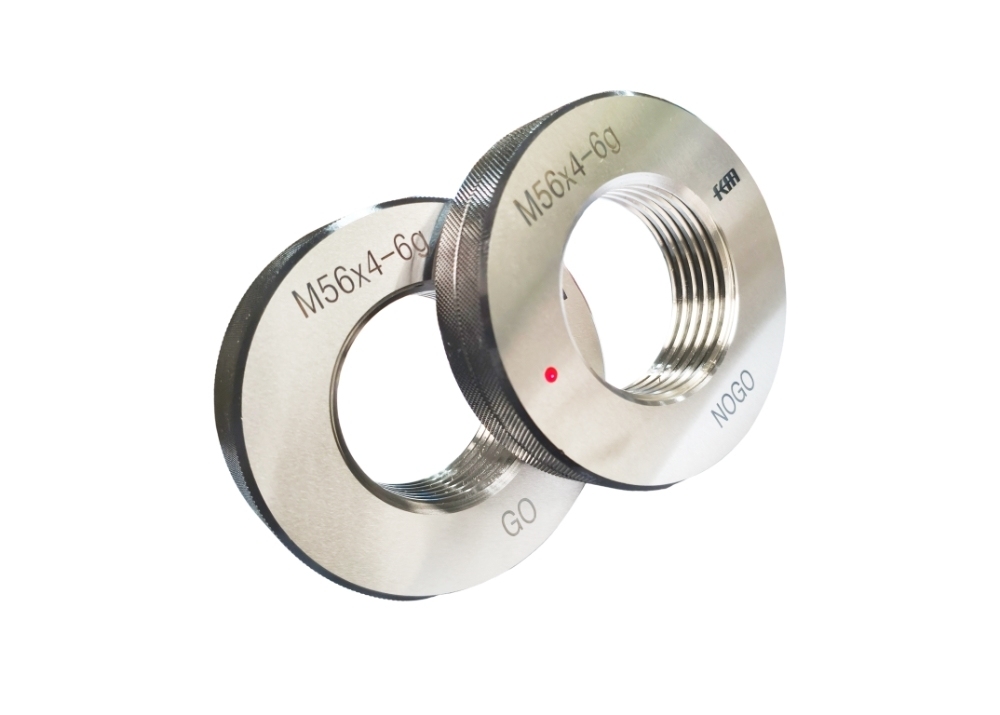

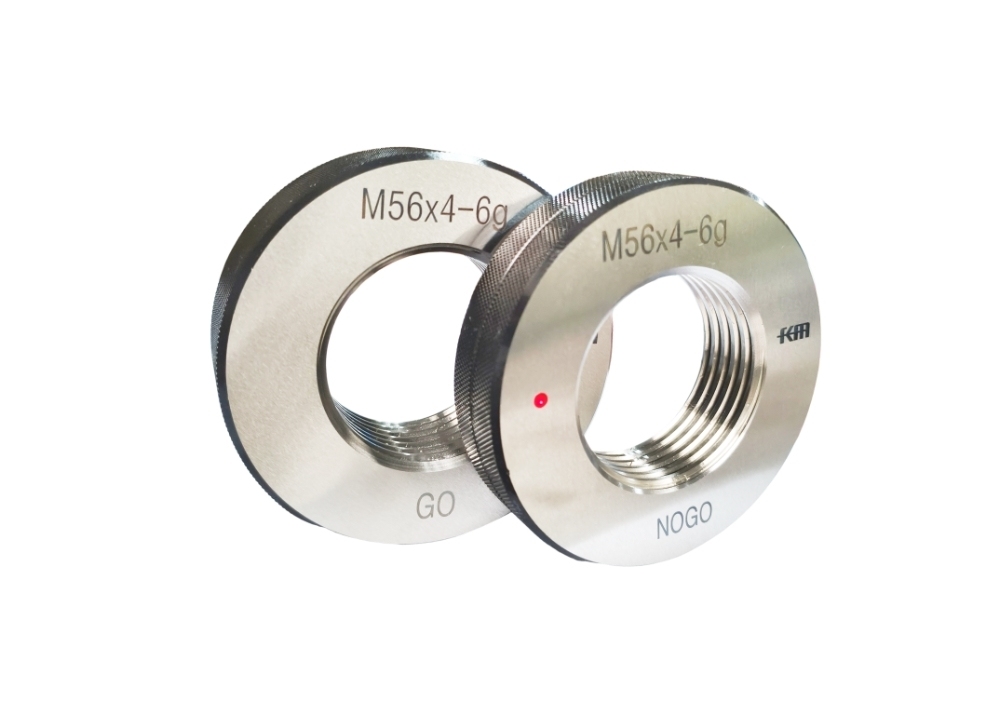

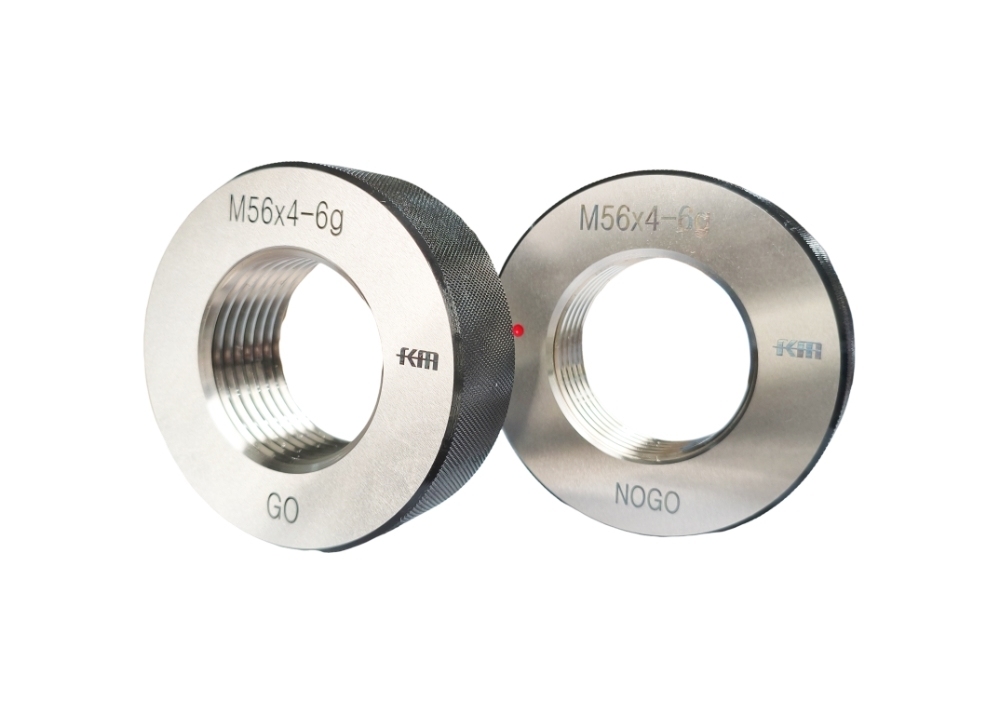

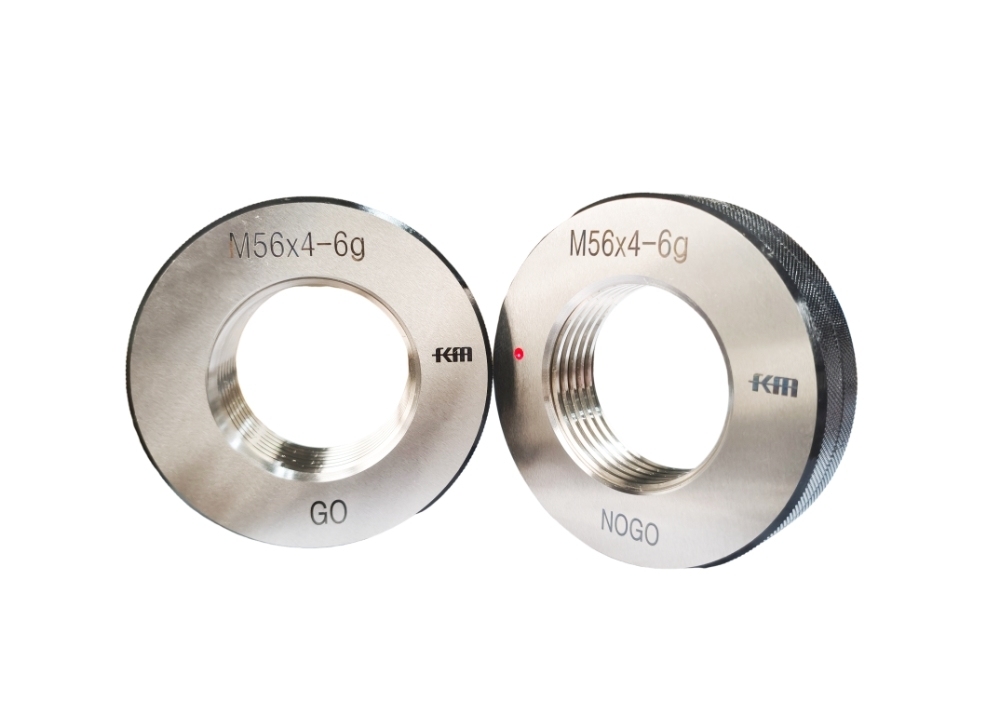

Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking

Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking

Products - Ring and Plug Gauge - Metric Ring and Plug Thread Gauge
  • Highlight

    NOGO Thread Ring Gauge

    ,

    M56.0 Metric Thread Ring Gauge

    ,

    M56.0 GO Thread Ring Gauge

  • Warranty
    One Year
  • Type
    Thread Ring Gauge
  • Standard
    DIN13, DIN2280-89
  • Measurement
    Metric
  • Thread Specification
    M56x4-6g GO NOGO
  • Shape
    Round
  • Measurement Object
    External Product Threads On Screws, Bolts
  • Usage
    For Working And Inspection
  • Accuracy
    6g,6h,7g,7h,8g,8h, Etc.
  • Package
    ABS Box
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-R560-400
  • Packaging Details
    ABS Box 11*11*3cm/Piece 0.66kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    L/C,D/A,D/P,T/T,Western Union,MoneyGram
  • Supply Ability
    50000pieces/Month

Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking

  • Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking
  • Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking
  • Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking
  • Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking
Get Price Contact Now
Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking
Metric thread ring gauges are precision inspection tools used for checking the thread of outside diameter on screws, bolts and threaded rods. These gauges typically have normal accuracy classifications including 6g, 6h, 7g, 7h, 8g, and 8h.
Our facility utilizes first-grade thread machining centers and measuring equipment to provide high precision thread ring gauges to customers worldwide.
GO and NOGO Functionality
Thread ring gauges come in GO and NOGO types. The GO ring gauge is machined to a minus tolerance, verifying the maximum material limit of externally threaded components. The NOGO thread ring gauge is machined to a plus tolerance, verifying the minimum material limit.
Key Features
  • Precision metric thread ring gauge
  • Available in accuracy classes: 6g, 6h, 7g, 7h, 8g, 8h
  • Includes both GO and NOGO types
  • Conforms to DIN13 and DIN2280-89 standards
  • Wear-resistant and corrosion-resistant construction
  • Stable structure for easy operation
  • Supplied in protective fitted case
Product Specifications
Order No. Size Coarse Fine Accuracy
KM-R001 M1.0 0.25 0.20 3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h
KM-R011 M1.1 0.25 0.20
KM-R012 M1.2 0.25 0.20
KM-R014 M1.4 0.30 0.20
KM-R016 M1.6 0.35 0.20
KM-R018 M1.8 0.35 0.20
KM-R020 M2.0 0.40 0.25
KM-R022 M2.2 0.45 0.25
KM-R025 M2.5 0.45 0.35
KM-R030 M3.0 0.50 0.35
KM-R035 M3.5 0.60 0.35
KM-R040 M4.0 0.70 0.50
KM-R050 M5.0 0.80 0.50
KM-R060 M6.0 1.00 0.75 0.50
KM-R080 M8.0 1.25 1.00 0.75
KM-R100 M10.0 1.50 1.25 1.00
KM-R120 M12.0 1.75 1.50 1.25
KM-R140 M14.0 2.00 1.50 1.25
KM-R160 M16.0 2.00 1.50 1.00
KM-R180 M18.0 2.50 2.00 1.50
KM-R320 M320


Applications
These threaded ring gauges are primarily used to measure thread diameter and pitch with high precision. Their wide measurement range and simple operation make them ideal for machinery manufacturing, aerospace, automotive production, and other industrial applications.
Usage Precautions
  • Avoid touching the working surface with bare hands to prevent rust
  • Store properly on tool cabinets or wooden backing plates - never on machine tool holders or guide rails
  • Inspect regularly for damage, rust, or deformation
  • If rust appears, soak in gasoline, wipe carefully, and apply anti-rust oil
  • Never store working surfaces together to prevent sticking
  • Always clean and store in dry conditions after use
Packing & Shipping
Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking 0
Company Profile
Accurate Metric Thread Ring Gauge M56.0 GO and NOGO Thread Machining Center for Checking 1
Frequently Asked Questions
1) Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
2) What are the terms of trade?
We support FOB, CFR, CIF, and EXW shipping terms.
3) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
4) Do we accept customization?
Yes, OEM services are available.
