0-5mm Small Micrometer Head with Plain Stem and Flat Measuring Measuring Face
-
Highlight
Plain Stem Micrometer Head
,0-5mm Small Micrometer Head
,Flat Measuring Micrometer Head
-
WarrantyOne Year
-
TypeMicrometer Head
-
Product TypeMetric
-
Meaurement0-5mm
-
Graduation0.02mm
-
Accuracy±0.005mm
-
Measuring FaceFlat
-
CustomizedAcceptable
-
PackageABS Box
-
StemPlain
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-3901-10
-
Packaging DetailsABS Box 17*10*5cm/Piece 0.30kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability50000pieces/Month

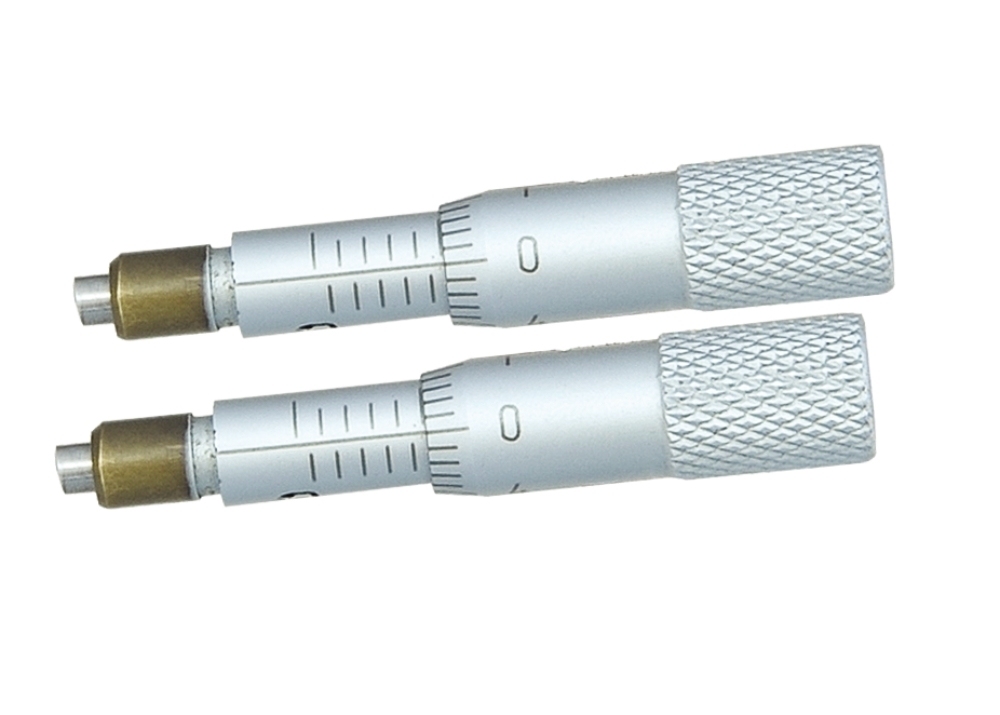

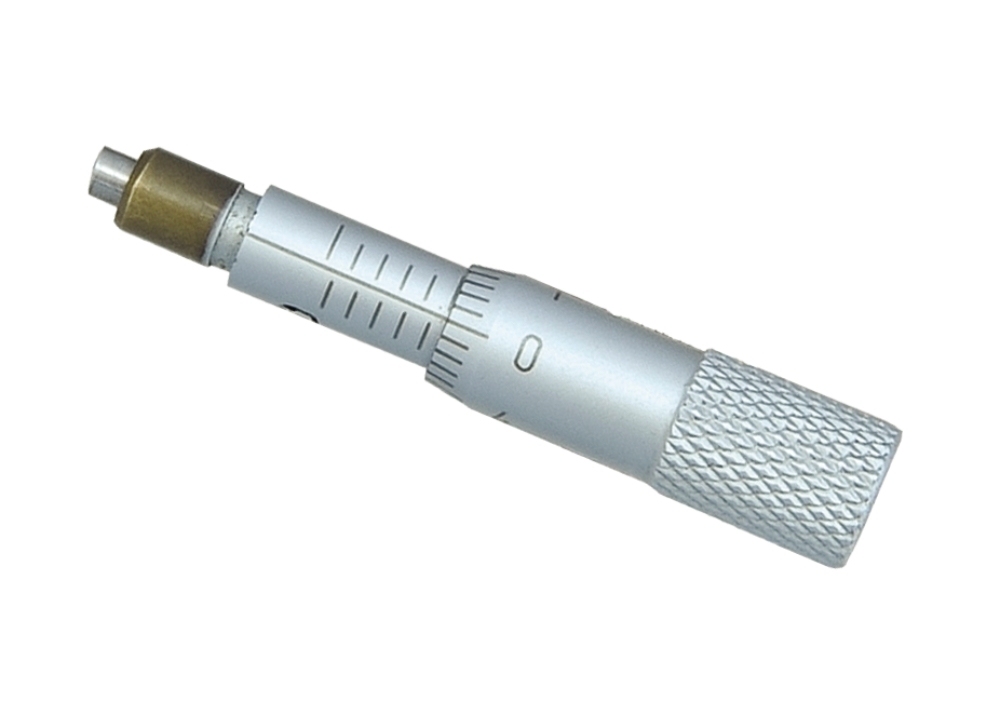

0-5mm Small Micrometer Head with Plain Stem and Flat Measuring Measuring Face
Micrometer Heads are designed to be mounted on measuring instruments and precision fixtures, serving multiple purposes including measurement, adjustment, and positioning. With recent technological advancements, micrometer heads have been widely adopted in precise feeding devices and cross-travel stages of laser instruments and manipulators.

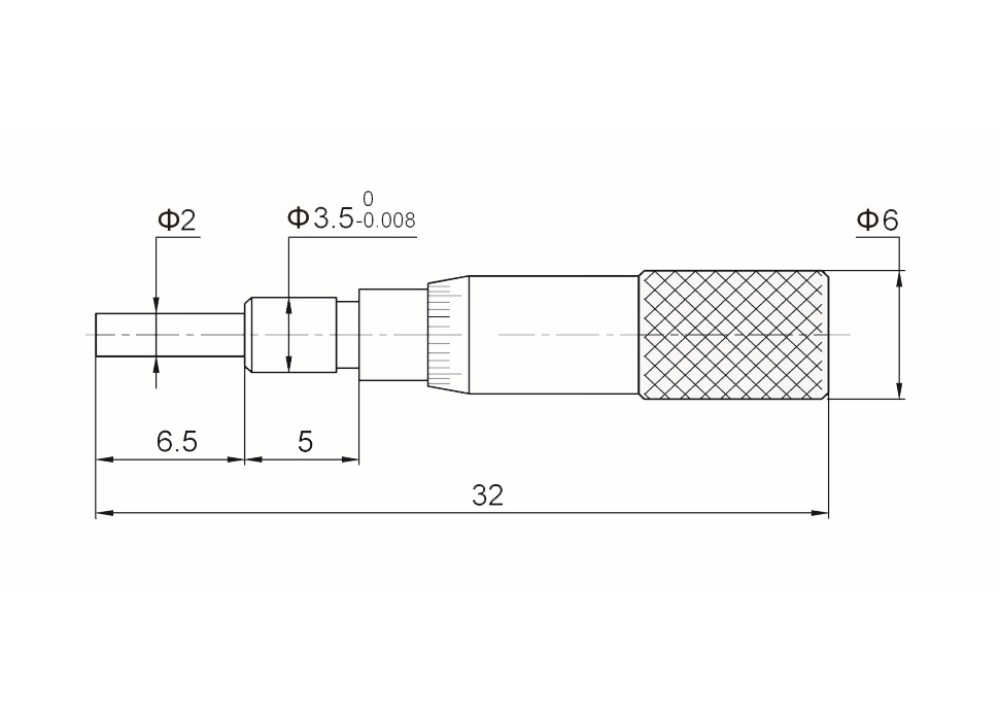

This compact micrometer head features a 5mm measurement range with 32mm total length. Its carbide-tipped spindle provides exceptional flatness, accuracy, and durability. The ratchet thimble mechanism ensures consistent measuring force.
As an adjustable positioning device, this micrometer head offers precision down to the micrometer level. The differential mechanism converts rotational motion into precise linear movements, enabling accurate control of minute distances.
- Available in Metric and Inch models
- 6mm thimble diameter
- 5mm spindle range
- 2mm spindle diameter
- Compact 32mm total length
- Laser-etched scale for clear reading
- Optional flat or spherical measuring face
- Carbide measuring face for precision and durability
- Includes protective case
| Order No. | Measuring Range | Graduation | Accuracy | Measuring Face | Stem |
|---|---|---|---|---|---|
| KM-3901-10 | 0-5mm | 0.02mm | ±0.005mm | Flat | Plain |
| KM-3901-20 | 0-5mm | 0.02mm | ±0.005mm | Spherical | Plain |
- Optics: Used in production and inspection equipment for disc reading lenses (DVDs, MDs, CDs) and optical heads
- Liquid Crystal Projection: Critical for prismatic positioning and film loading processes
- Fiber Optic Technology: Ensures accuracy in manufacturing and testing equipment
- LCD Production: Used to adjust and test manufacturing equipment with high precision
- Semiconductor Industry: Widely used in production and inspection equipment
- Mechanical Engineering: Essential for machine tool adjustments and precision gages
- Perform precise calibration before use
- Select appropriate measurement range (0-5mm standard)
- Maintain perpendicular alignment with measuring object
- Ensure stable contact before taking readings
- Read measurements vertically to avoid angle deviations
- Manufacturer: Deko Corporation, specializing in KM brand precision measuring tools
- Product Range: Includes dial indicators, micrometers, calipers, bore gauges, and more
- Trade Terms: FOB, CFR, CIF, EXW available
- Payment Methods: Accepts T/T, L/C, D/A, D/P, PayPal, Western Union
- Customization: OEM services available
- Warranty: One year warranty with replacement service for defective parts
