Metric Micrometer Head 0-5mm Range 0.02mm Graduation ±0.005mm Accuracy Spherical Face
-
Highlight
5mm Metric Micrometer Head
,0.02mm Accuracy Micrometer Head
,Spherical Face Micrometer Head
-
WarrantyOne Year
-
TypeMicrometer Head
-
Product TypeMetric
-
Meaurement0-5mm
-
Graduation0.02mm
-
Accuracy±0.005mm
-
Measuring FaceSpherical
-
CustomizedAcceptable
-
PackageABS Box
-
StemPlain
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-3901-20
-

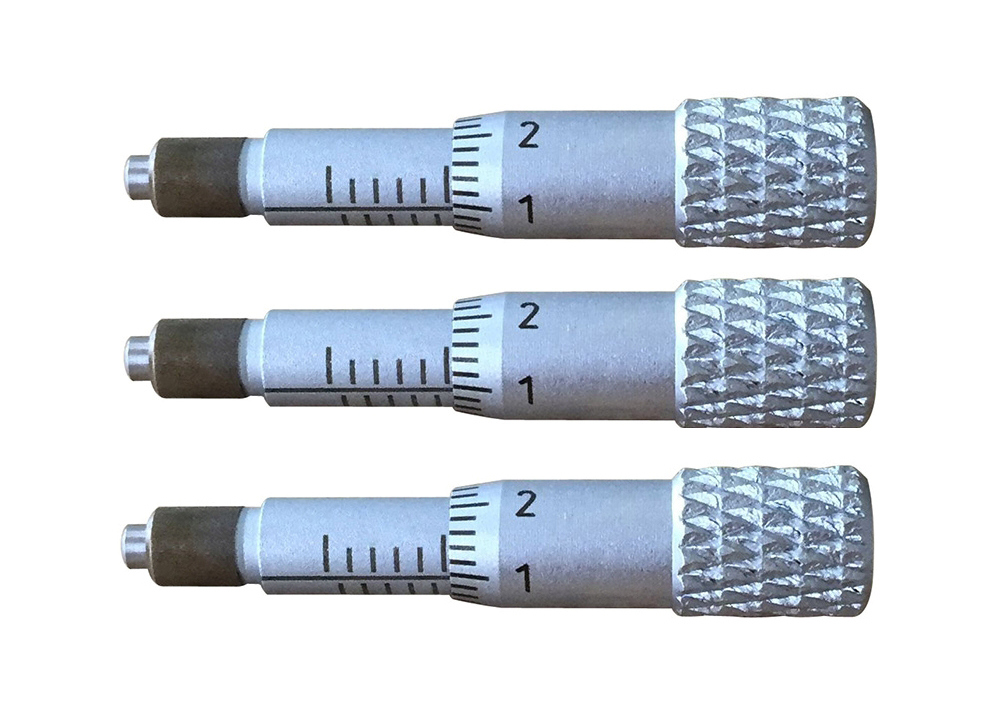

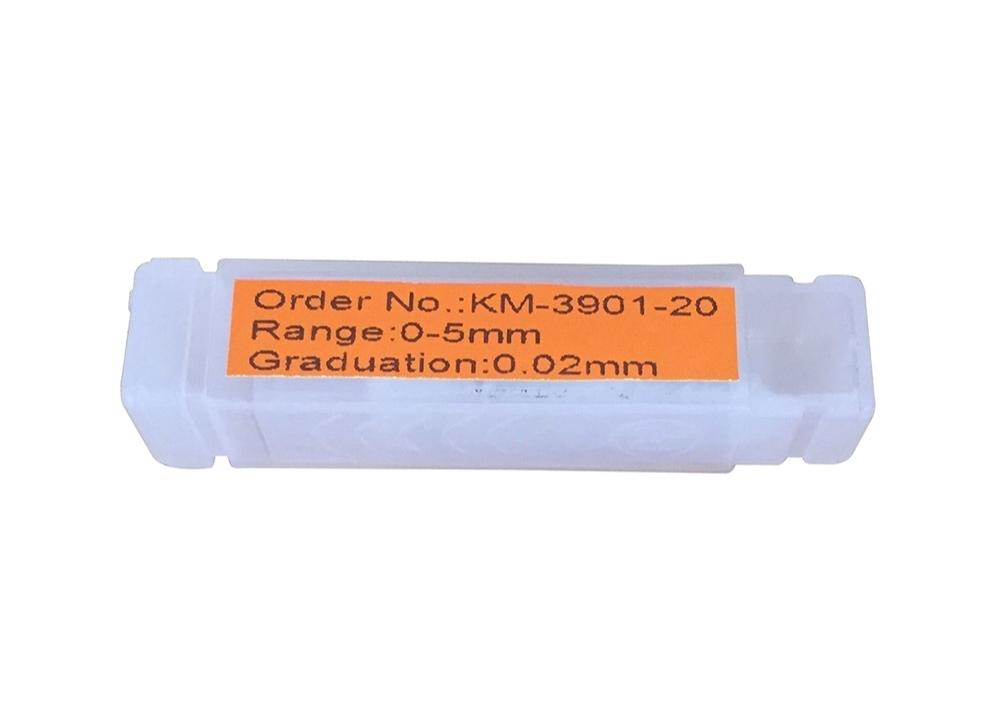

Packaging DetailsABS Box 17*10*5cm/Piece 0.30kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability50000pieces/Month
Metric Micrometer Head 0-5mm Range 0.02mm Graduation ±0.005mm Accuracy Spherical Face
Micrometer Heads are designed to be mounted on measuring instruments and precision fixtures, serving multiple purposes such as measurement, adjustment, and positioning. With recent technological advancements, micrometer heads have been widely adopted in precise feeding devices and cross-travel stages of laser instruments and manipulators, beyond their conventional use in measurement jigs.

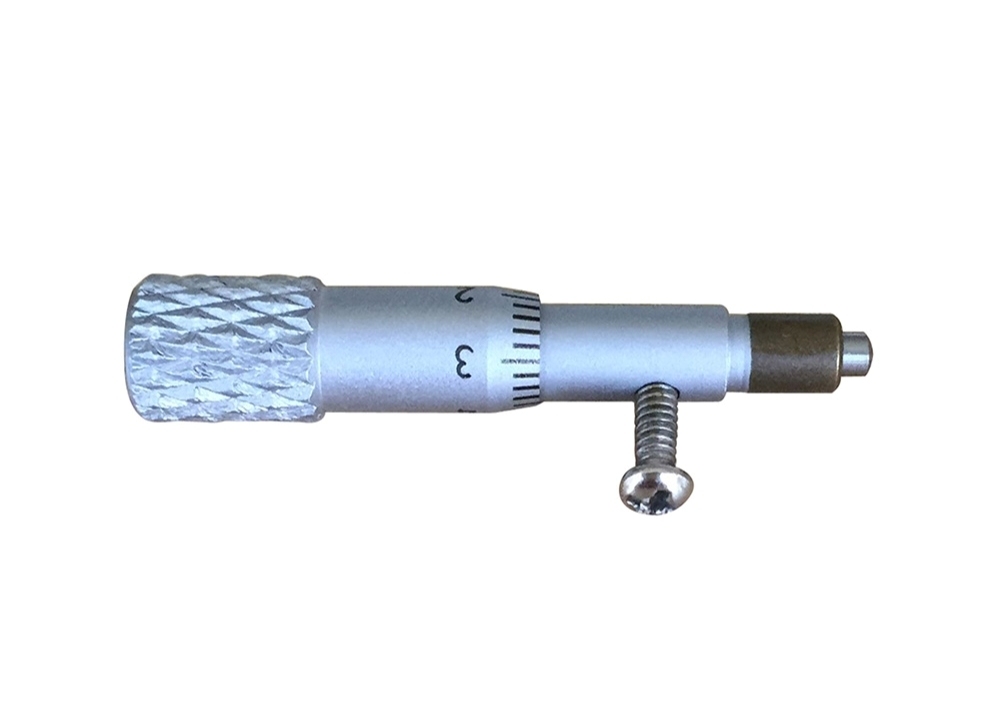

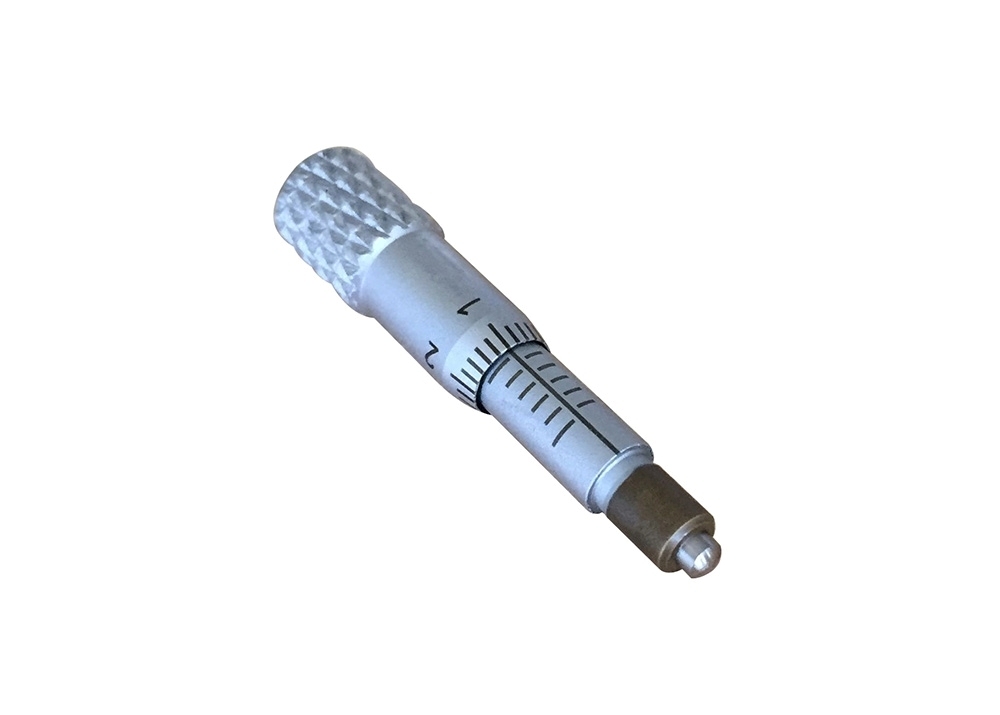

This is very small micrometer head with measurement up to 5mm, total length is 32mm. Its carbide-tipped spindle is exceptionally flat, accurate, and durable. The ratchet thimble mechanism provides an even, constant force.
As one adjustable positioning device, micrometer head can be adjusted down to the micrometer. The essence of the differential head is to use the principle of gears to convert the rotation of rotational motion into linear insertion and exit movements. It uses two gears of different diameters for a third moment differential action that converts subtle changes in rotation into linear insertion and exit movements, enabling precise control of small distances.
- Available in Metric and Inch models

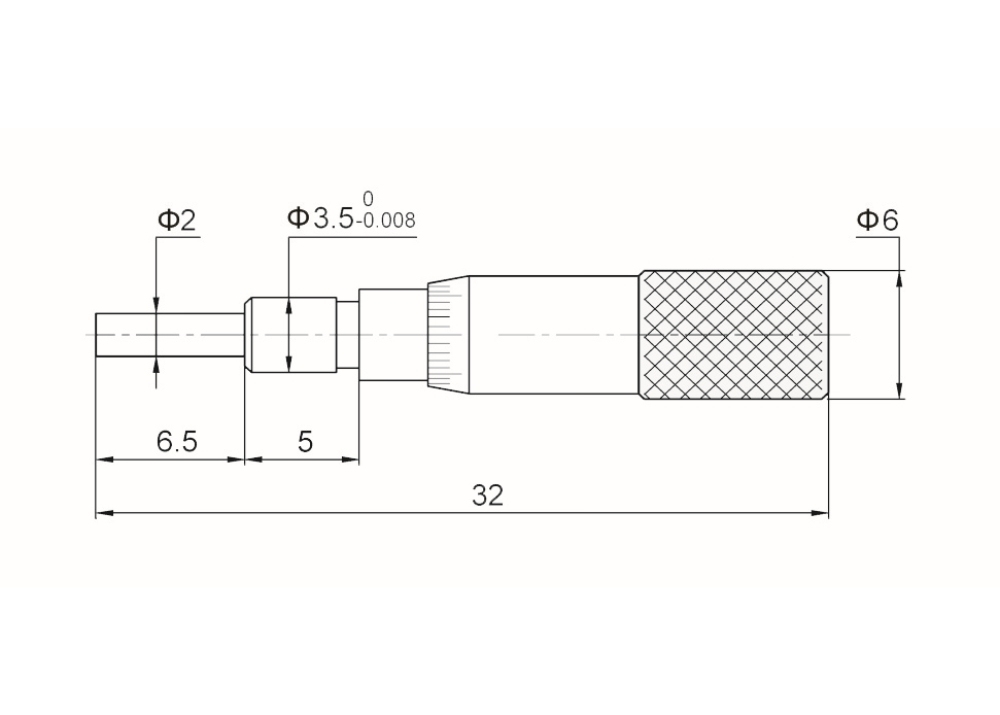

- With a 6mm thimble diameter
- The spindle range is 5mm
- The spindle diameter is 2mm
- Mic head total lengths is 32mm
- Laser-etched scale for clear and easy reading
- Flat measuring face and spherical measuring face as optional
- Carbide measuring face for precise measurements and reduced wear
- Supplied in the safe case packaging
| Order No. | Measuring Range | Graduation | Accuracy | Measuring Face | Stem |
|---|---|---|---|---|---|
| KM-3901-10 | 0-5mm | 0.02mm | ±0.005mm | Flat | Plain |
| KM-3901-20 | 0-5mm | 0.02mm | ±0.005mm | Spherical | Plain |
Optics: Micrometer heads are used in the production and inspection equipment of disc reading lenses such as DVDs, MDs, and CDs, as well as writable optical heads, to provide the critical precision control especially on curved positioning platforms.
Liquid crystal projection technology: Micrometer head plays an important role in the prismatic positioning and film loading process, ensuring the clarity and accurate focus of the image.
Fiber Optic Technology & Optical Communications: Micrometer head ensures the accuracy of signal transmission in the manufacturing and testing equipment of fiber optic positioning and optical communication system products.
Liquid crystal production and inspection: In the liquid crystal display manufacturing process, micrometer head is used to adjust and test the equipment with high precision.
Semiconductor industry: Micrometer heads are widely used in semiconductor production equipment and inspection and evaluation equipment to ensure the accuracy of the process.
Mechanical engineering and industrial applications: Micrometer heads are often used for the adjustment of machine tools, precision tools and special gages, especially where an accuracy of thousandths of a millimeter is required, e.g. with carbide probes, which can be straight or rotary, with options flat or spherical, with or without locking function to maintain a constant measuring force.
- Precise calibration: The calibration of the differential head should be performed prior to use. Using about 1/10 of the range of an ordinary dial gauge, turn the differential head during the reading process to see if the reading can be repeated.
- Set the appropriate measurement range: Before measuring, you should choose the appropriate measurement range, usually 0-5mm, 0-6.5mm, 0-13mm, 0-15mm, 0-25mm or 0-50mm, etc.
- Correct Measurement Process: Keep the micromotion head perpendicular to the measuring object. After touching the object, carefully feel the contact between the micro-moving head and the measured object to avoid uneven force. Read in a vertical direction to avoid deviations.
Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge, blocks, level, etc.
We support FOB, CFR, CIF, EXW.
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
Yes, OEM is available.
One year warranty for all kinds of products. If you find any defective accessories when receive goods, we will ship your news parts or new product to replace. As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
Our products are sold all over the world, you can rest assured.
