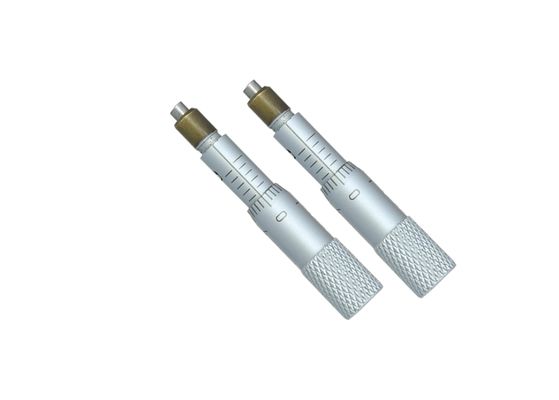

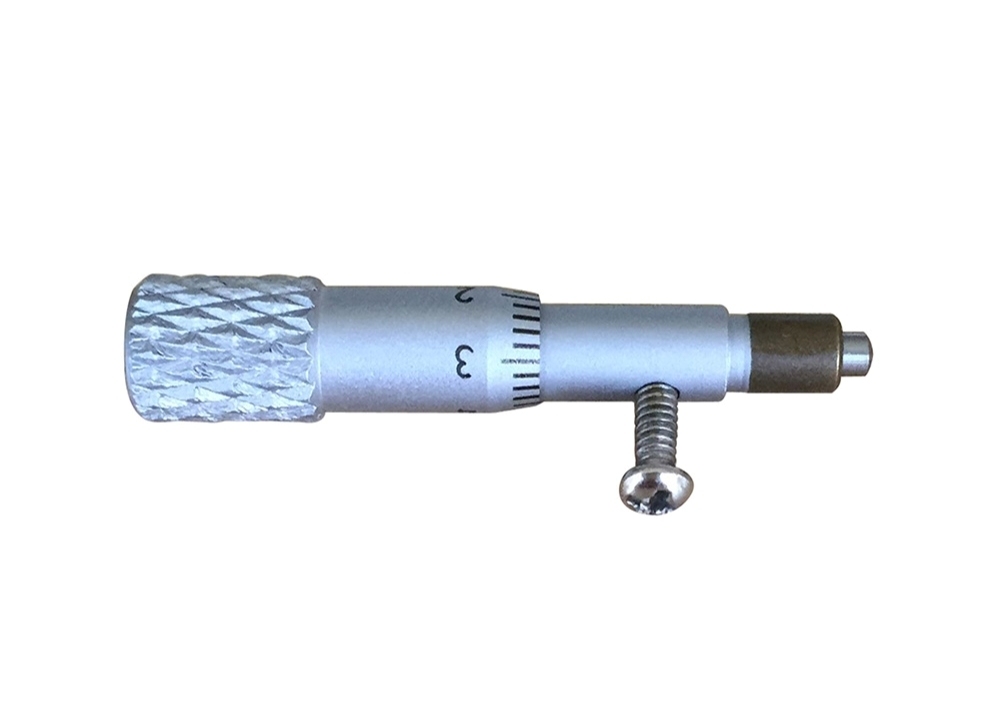

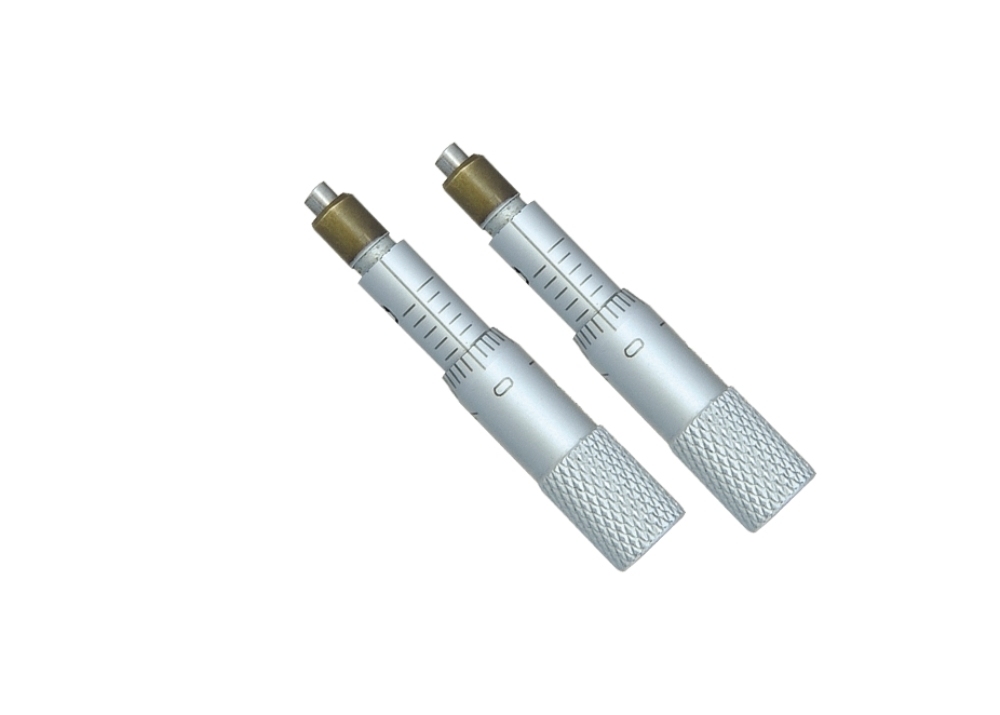

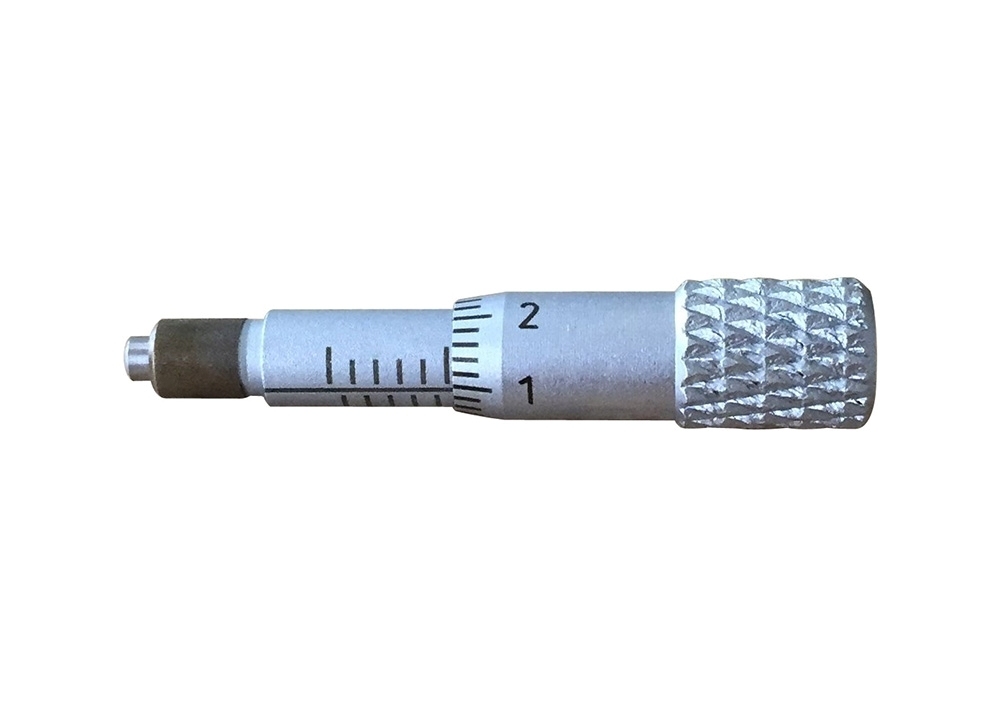

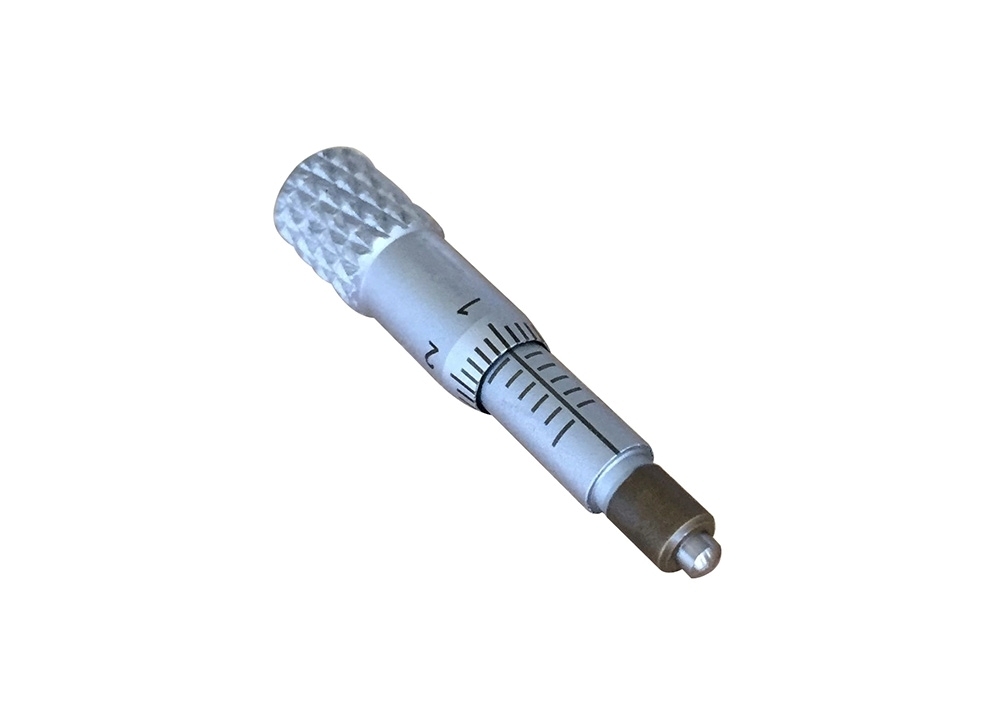

Measurement 0-0.2 Inch Micrometer Head Featuring Flat Measuring Face 0.001 Inch Graduation and ±0.0002 Inch Accuracy Precision Tool
-
Highlight
0.001 Inch Graduation Micrometer Head
,0.0002 Inch Accuracy Micrometer Head
,Precision Tool Micrometer Head
-
WarrantyOne Year
-
TypeMicrometer Head
-
Product TypeInch
-
Meaurement0-0.2″
-
Graduation0.001″
-
Accuracy±0.0002″
-
Measuring FaceFlat
-
CustomizedAcceptable
-
PackageABS Box
-
StemPlain
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-3901-11
-
Packaging DetailsABS Box 17*10*5cm/Piece 0.30kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability50000pieces/Month
Measurement 0-0.2 Inch Micrometer Head Featuring Flat Measuring Face 0.001 Inch Graduation and ±0.0002 Inch Accuracy Precision Tool
Micrometer Head 0-0.2" Range 0.001" Graduation ±0.0002" Accuracy Flat Face
This micrometer head serves as an adjustable positioning device capable of micrometer-level adjustments. Utilizing gear principles, it converts rotational motion into precise linear movements through differential action, enabling accurate control of minute distances.
This compact model features a 5mm measurement capacity with a total length of 32mm. Its carbide-tipped spindle ensures exceptional flatness, accuracy, and durability, while the ratchet thimble mechanism maintains consistent measuring force.
Key Features
- Available in both Metric and Inch models
- 6mm thimble diameter
- 5mm spindle range with 2mm diameter
- Compact 32mm total length
- Laser-etched scale for clear visibility
- Optional flat or spherical measuring faces
- Carbide measuring face for precision and durability
- Includes protective case
Specifications
| Order No. | Measuring Range | Graduation | Accuracy | Measuring Face | Stem |
|---|---|---|---|---|---|
| KM-3901-11 | 0-0.2″ | 0.001″ | ±0.0002″ | Flat | Plain |
| KM-3901-21 | 0-0.2″ | 0.001″ | ±0.0002″ | Spherical | Plain |
Applications
- Optics: Precision control in DVD/CD lens production and inspection equipment
- Liquid Crystal Projection: Prismatic positioning and film loading for image clarity
- Fiber Optics: Ensuring signal transmission accuracy in manufacturing and testing
- LCD Production: High-precision equipment adjustment and testing
- Semiconductor Industry: Production and inspection equipment applications
- Mechanical Engineering: Machine tool adjustments and precision gage applications
Usage Precautions
- Perform precise calibration before use, verifying repeatable readings
- Select appropriate measurement range (0-5mm, 0-6.5mm, etc.) for optimal accuracy
- Maintain perpendicular alignment with measured objects
- Ensure stable contact before taking readings to avoid measurement errors
Frequently Asked Questions
- Manufacturer: Deko Corporation, specializing in KM brand precision measuring tools
- Product Range: Includes dial indicators, micrometers, calipers, and various precision gauges
- Warranty: One-year coverage with replacement of defective parts
