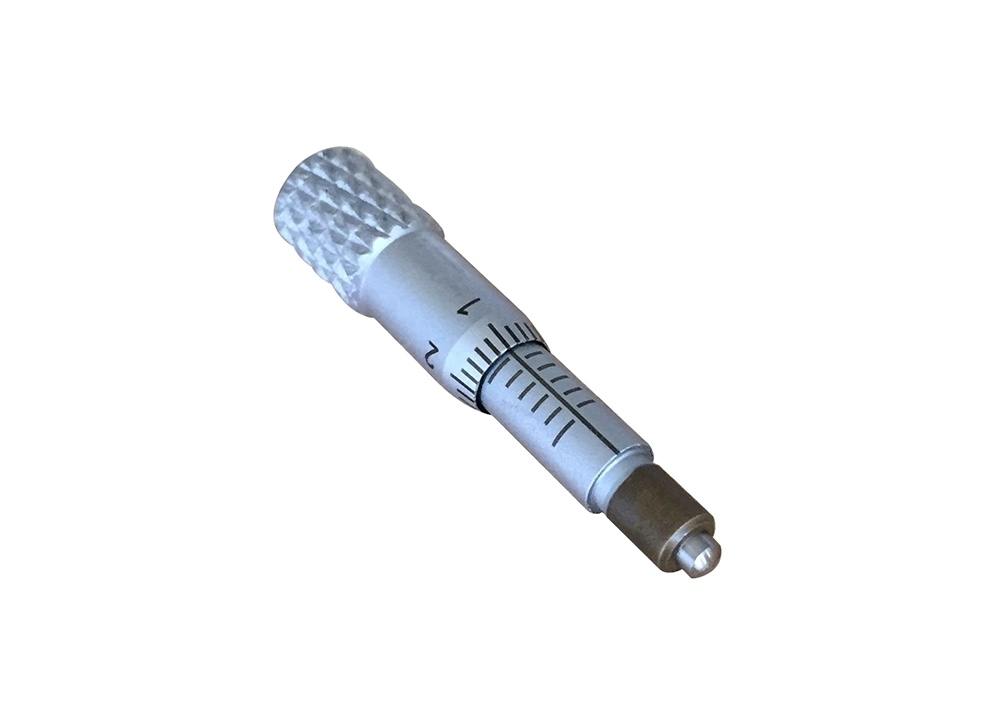

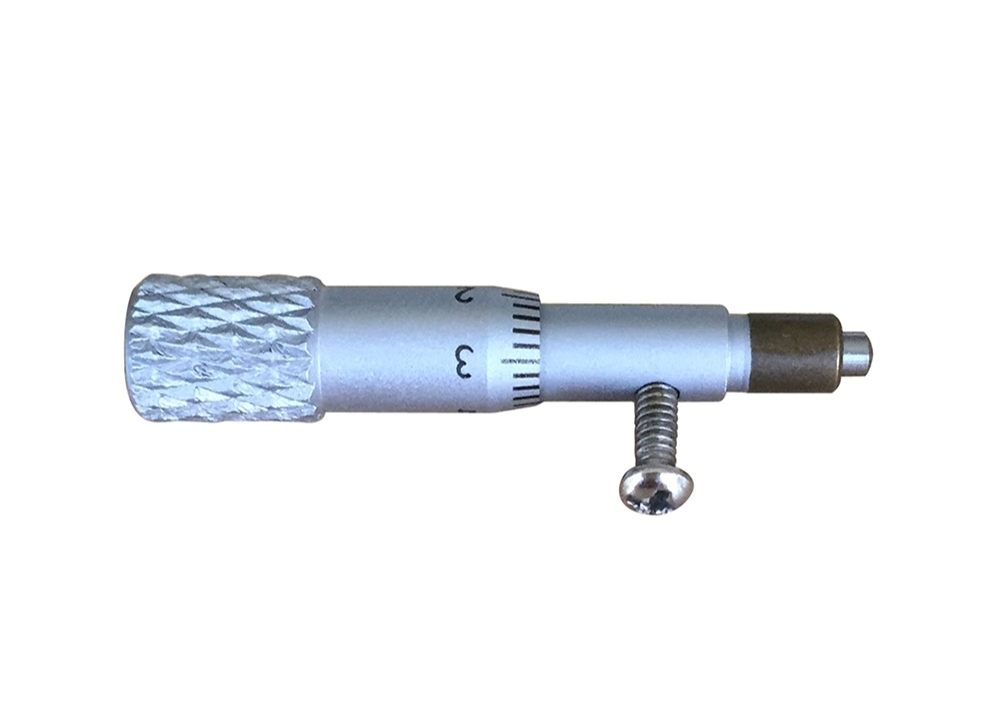

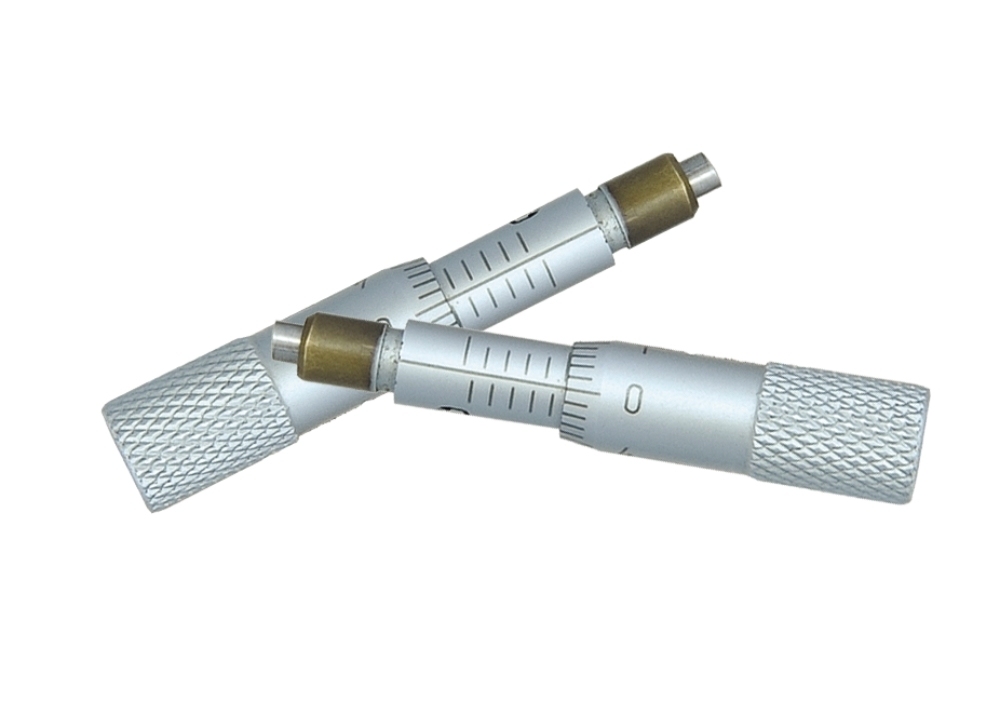

Customized 0-0.2" Range Micrometer Head with 0.001" Graduation ±0.0002" Accuracy Ball Face
-
Highlight
±0.0002'' Customized Micrometer Head
,Accuracy Ball Face Micrometer Head
,0.2'' Micrometer Head
-
WarrantyOne Year
-
TypeMicrometer Head
-
Product TypeInch
-
Meaurement0-0.2″
-
Graduation0.001″
-
Accuracy±0.0002″
-
Measuring FaceSpherical
-
CustomizedAcceptable
-
PackageABS Box
-
StemPlain
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-3901-21
-
Packaging DetailsABS Box 17*10*5cm/Piece 0.30kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability50000pieces/Month
Customized 0-0.2" Range Micrometer Head with 0.001" Graduation ±0.0002" Accuracy Ball Face
0-0.2" Range Micrometer Head with 0.001" Graduation ±0.0002" Accuracy Ball Face
The micrometer head is an adjustable positioning device capable of micrometer-level adjustments. Utilizing gear principles, it converts rotational motion into precise linear movements. This differential action enables accurate control of minute distances through a sophisticated gear mechanism.
This compact micrometer head features a 5mm measurement capacity with a total length of 32mm. Its carbide-tipped spindle ensures exceptional flatness, accuracy, and durability. The ratchet thimble mechanism provides consistent measuring force for reliable results.
Key Features
- Available in both Metric and Inch measurement systems
- 6mm thimble diameter for comfortable operation
- 2mm spindle diameter with 5mm range
- Compact 32mm total length design
- Laser-etched scale for clear, precise readings
- Optional flat or spherical measuring faces
- Carbide measuring face for enhanced precision and durability
- Includes protective case for safe storage
Specifications
| Order No. | Measuring Range | Graduation | Accuracy | Measuring Face | Stem |
|---|---|---|---|---|---|
| KM-3901-11 | 0-0.2″ | 0.001″ | ±0.0002″ | Flat | Plain |
| KM-3901-21 | 0-0.2″ | 0.001″ | ±0.0002″ | Spherical | Plain |
Industrial Applications
- Optics: Critical for DVD, MD, and CD production equipment, particularly for curved positioning platforms
- Liquid Crystal Projection: Ensures precise prism positioning and film loading for optimal image clarity
- Fiber Optics: Maintains signal transmission accuracy in manufacturing and testing equipment
- LCD Production: Provides high-precision adjustments in display manufacturing processes
- Semiconductor Industry: Essential for production and inspection equipment accuracy
- Mechanical Engineering: Ideal for machine tool adjustments and precision gaging applications
Operation Guidelines
- Perform precise calibration before initial use to ensure measurement accuracy
- Select appropriate measurement range (0-5mm, 0-6.5mm, etc.) for optimal results
- Maintain perpendicular alignment with measured objects
- Ensure stable contact before taking readings to prevent measurement errors
- Read measurements vertically to avoid angular deviations
Frequently Asked Questions
- Manufacturer: Deko Corporation specializes in precision measuring tools under the KM brand
- Product Range: Includes dial indicators, micrometers, calipers, bore gauges, and various precision measurement instruments
- Warranty: Comprehensive one-year warranty with replacement service for defective parts
All products undergo strict calibration and quality inspection processes to ensure superior performance and reliability.
